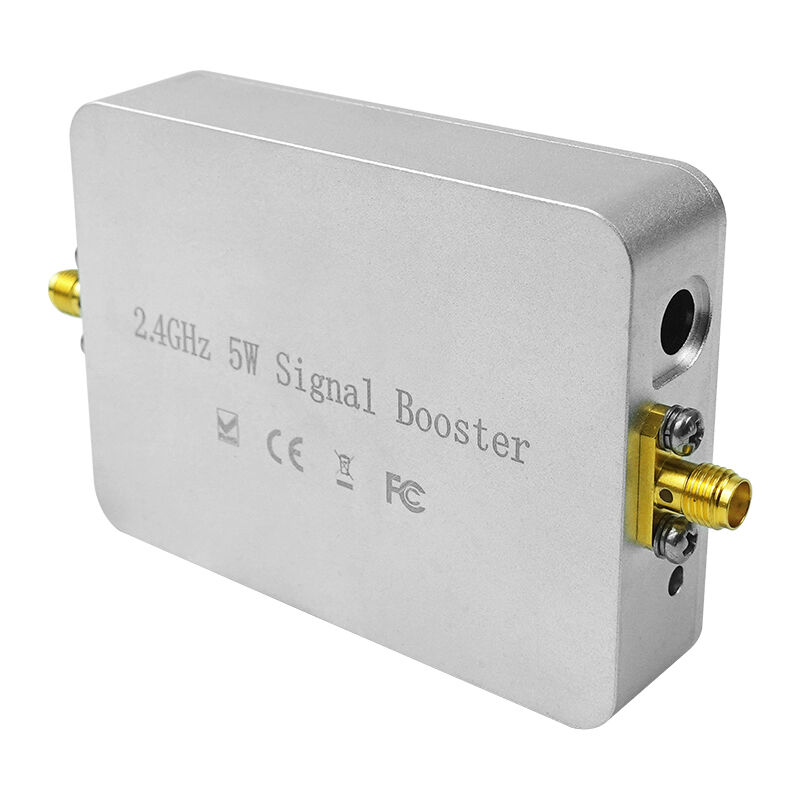

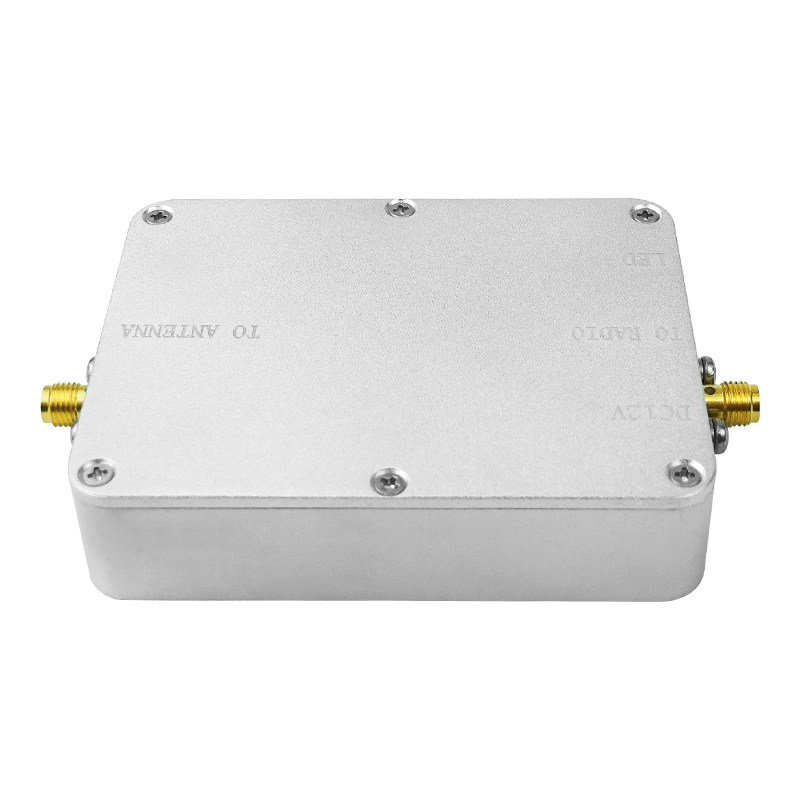

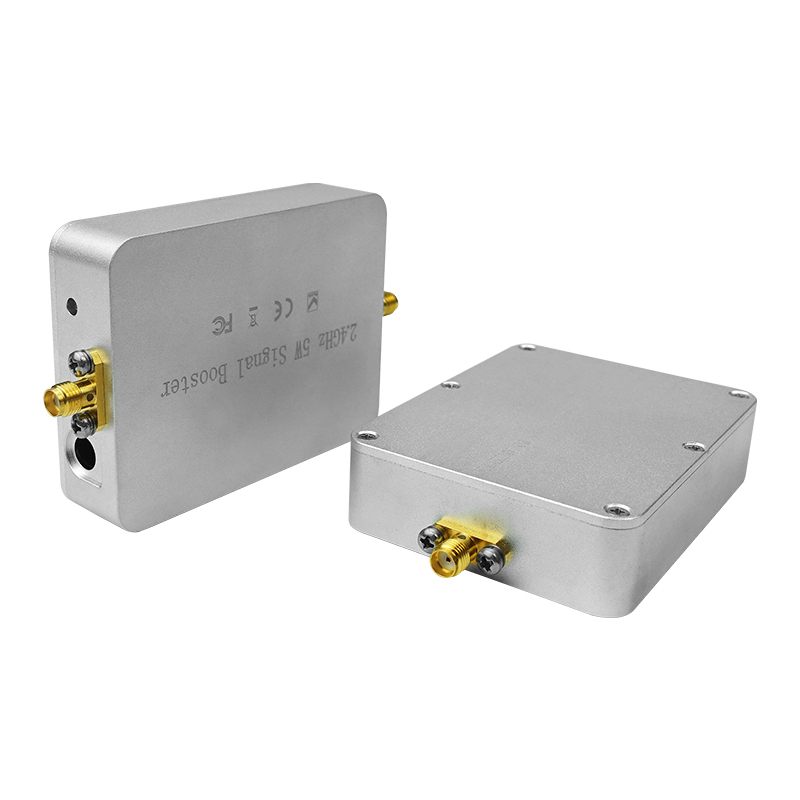

WIFI 5g 5.2ghz 5.8ghz 10W HD signl booster dual band power amplifier for drone signal extender
TXSZS520010 is special designed for high-definition image long distance transmission signal booster dual band power amplifier module .The module takes single-carrier modulation technology that the signal can transmit by air with long distance and it has strong anti-interference capability.TXSZS520010 featuring small size and strong signal transmission, it is widely used in wireless communication and radio frequency fields.
Features
■ 5100-5200GHz 5700-5200GHz Frequency Range
■ 40dB Gain (Typ) out put
■ Intraband fluctuations 0.3 db
■ MMCX-KEF input connector 50 Ω
■ MMCX-KEF input connector 50 Ω
■ Power supply voltage 12~31V option
■ Temperature:-40～+70℃

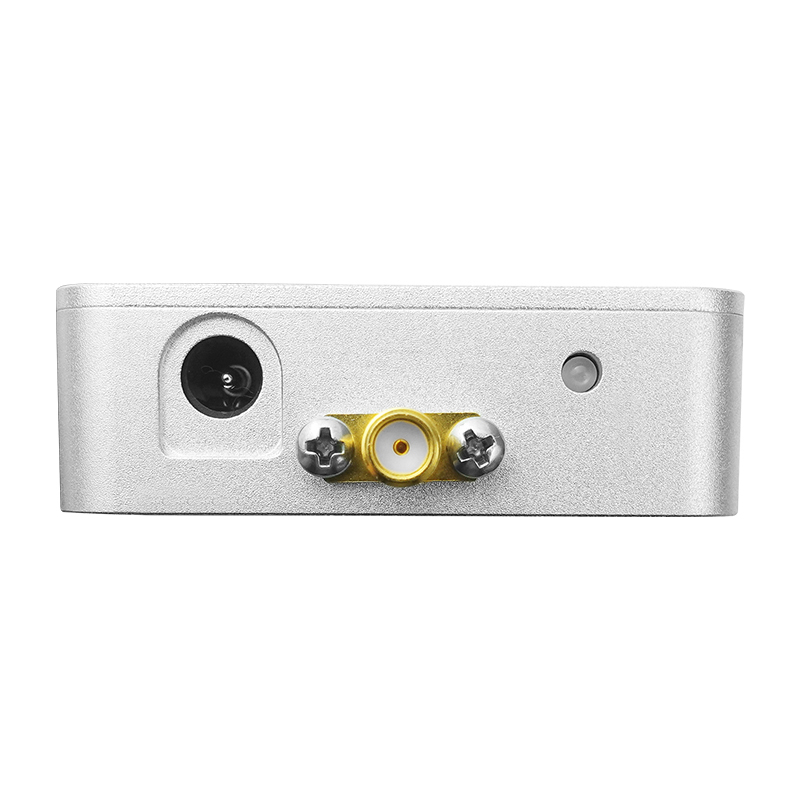

■ RFout +RFinput+enable wire
■ ingle-carrier modulation technology
Applications
■ Wireless communication field
■ Drone FPV enthusiasts

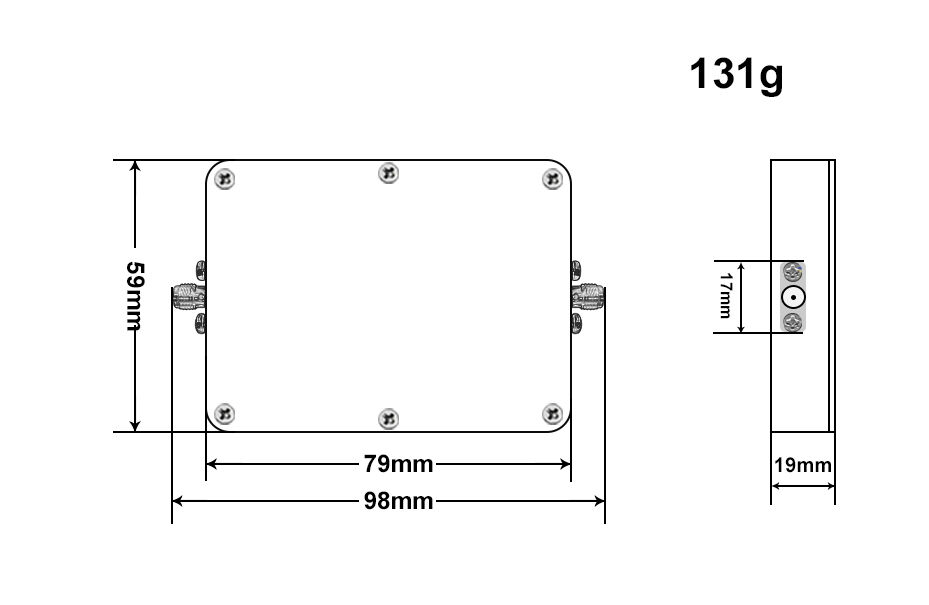

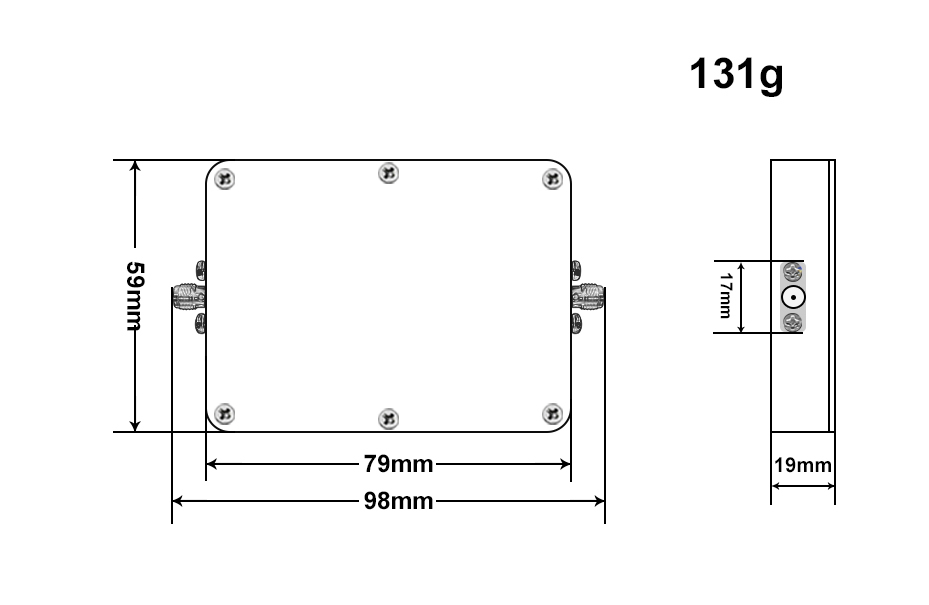

TXSZS520010 Data sheet
| Functional Unit |
parameter |
MINI |
Typical Value |
Max |
Unit |
Remark |
|
General
Requirements
|
Duplex mode |
TDD |
|
|
| Operating frequency |
5100 |
|
5800 |
MHz |
Customized |
| Supply voltage |
12 |
24 |
31 |
V |
|
| Operating temperature |
-40 |
|
70 |
℃ |
|
|
Transmitter way
|
Transmitter gain |
18±1 |
|
22±1 |
dB |
Customized |
| Maximum output power(P1dB) |
|
47 |
|
dBm |
|
| Linear output power |
|
31 |
|
dBm |
EVM<5% |
|
EVM@Pout=38dBm
|
|
-30
|
|
dB
|
|
| In-band fluctuation |
|
0.3 |
0.3 |
dB |
|
| Working current |
|
0.3 |
0.25 |
A |
@Pout=40dBm, VCC=24V |
| Switching delay |
|
|
1 |
us |
|
| Second Harmonic |
-65 |
|
-50 |
dBc |
|
| Second Harmonic |
|
|
-60 |
dBc |
|
|
Receiving way
|
Receive gain |
14 |
|
15 |
dB |
Customized |
| Noise Figure |
|
2.5 |
3 |
dB |
|
| Working current |
|
11 |
|
mA |
|
| In-band fluctuation |
|
|
0.2 |
dB |
|
TXSZS520010 Storage environment requirements
a) Temperature: -40～+70℃;
b) Operating relative humidity: 5%～95%, non-condensing;
c) Atmospheric pressure: (70～106) kPa;
d) Humidity and heat: Can operate in high-temperature and high-relative-humidity environments with temperatures not lower than 40℃ and relative humidity not lower than 95%;
e) Storage temperature: -40～+125℃;
f) Storage humidity: 5%～98%, non-condensing.
