| Place of Origin: | China |
|---|---|
| Brand Name: | TX TELSIG |
| Certification: | SGS, ISO9001 |
| Model Number: | TX-2.4G-5W-SMA |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Box |
| Delivery Time: | 2 Days |
| Payment Terms: | L/C, T/T, Paypal,etc. |
| Supply Ability: | 100000pcs/month |
| Frequency Range: | 2400-2483.5MHz | Operating Voltage: | 6-18V |
|---|---|---|---|
| Max Output Power(P1dB): | 37dBm(5W) | Input Trigger Power: | Min:3dBm Max:20dBm |
| High Light: | cell phone signal amplifier,internet signal amplifier |
||

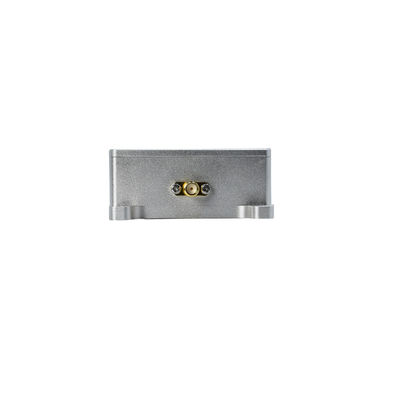

2.4GHz 5W Signal Booster SMA
Applications
IEEE 802.11 b/g/n WLAN System
Bluetooth/Zigbee Signal Extender
Smart Home Systems Signal Extender
Wireless Cameras Signal Extender
Drone Signal Extender
Features
60X the power, improving the link quality and coverage of certified WLAN devices
2.5dB ultra-low noise
Wide 6V to 18V operating input range
Working with certified IEEE 802.11b/g/n Wireless LAN devices
Simply plug and play, no software is required
| Parameters | ||
| Number | Items | Specifications |
| 1 | Frequency Range | 2400-2483.5MHz |
| 2 | Operating Voltage | 6-18V |
| 3 | Receiving Gain | 17dB±1 |
| 4 | Transmission Gain: | 18dB±1 |
| 5 | Max Output Power(P1dB) | 37dBm(5W) |
| 6 | Input Trigger Power | Min:3dBm Max:20dBm |
| 7 | EVM | 3%@29dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
| 8 | Noise Figure | ＜2.5dB |
| 9 | Current Supply | 640mA@Pout 29dBm 12V |
| 10 | TX/RX Switch Time Delay | ＜1 us |
| 11 | LED Indicator | Transmitter: red; Receiver: Green |
| 12 | Operating Temperature | -30℃～+70℃ |
| 13 | Storage Temperature | -40℃～+150℃ |
| 14 | Operating Humidity | Up to 95% rel. humidity |
| 15 | RF Connector | Input: SMA-K; Output: RP-SMA-K |
| 16 | Power Socket | 5.5*2.1mm |
| 17 | Shell Size | 98.5*66.0*28.0(mm) |
| 18 | Shell Material | Aluminum |
| 19 | Net Weight | 0.27Kg |
Attentions
1 12V /1.5A power supply.
2 Heat dissipation is recommended, such as adding heat sink or radiator fan.
3 Antenna should be screwed first, then plug the power adapter, finally connect the device.
4 The output could reach 37dBm, when input power is 19dBm or 20dBm (default gain is 18dB).
