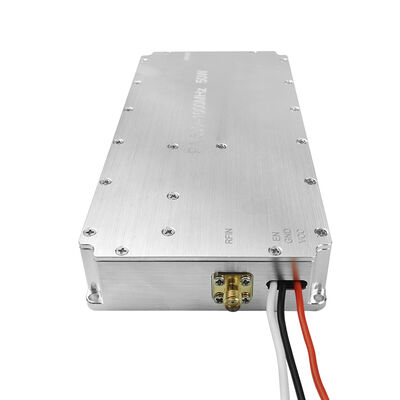

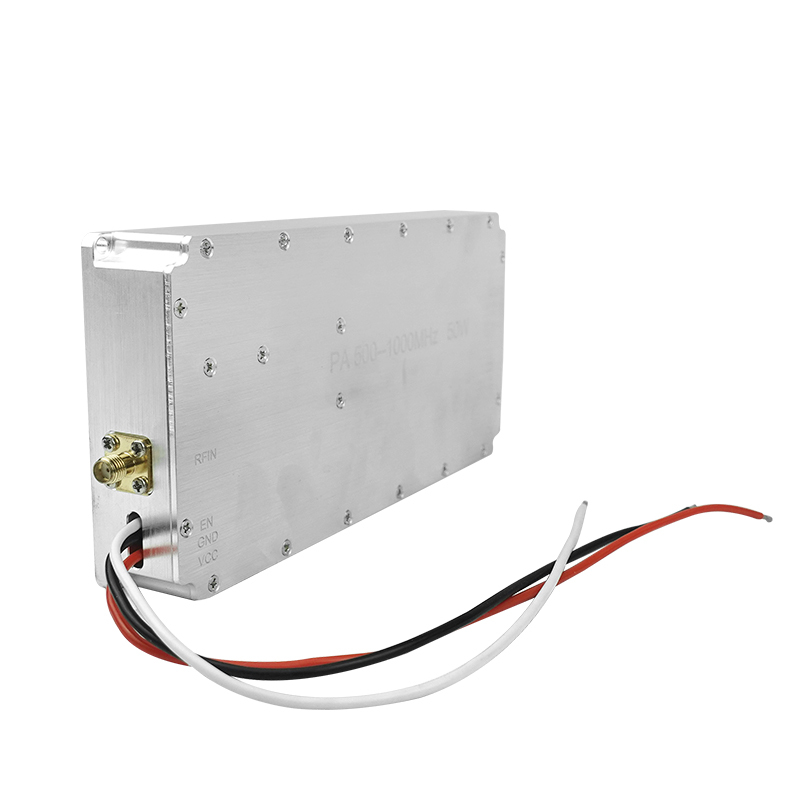

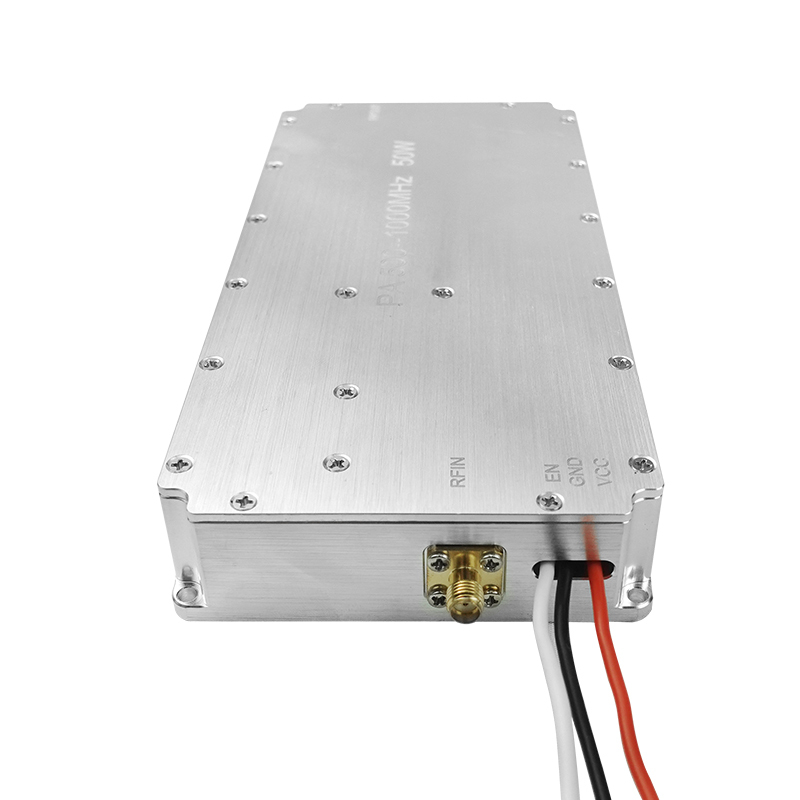

This wideband RF power amplifier module is a high-performance, all-solid-state linear amplifier designed for professional signal communication systems. With 100W high output power, 0dBm ultra-low input drive, 28V standard power supply and broadband operation, it provides stable, reliable and high-quality signal amplification for communication transmitters, signal coverage, telemetry, data links and test applications.

The "Frequency&Antenna" be customized by different country standard and specific need.

TXtelsig is an expert in researching and developing innovative wireless signal jamming and coverage product.

Specification

Feature

1. 100W High Output Power

Stable 100W (50dBm) CW output power with excellent flatness across the full operating band, ensuring strong and consistent signal transmission.

2. 0dBm Ultra-Low Input Drive

Full power output with only 0dBm (1mW) input signal, eliminating the need for an external preamplifier and greatly simplifying system design and integration.

3. Broadband & High Gain

Wide frequency coverage supports multi-band communication systems. High gain up to 50dB ensures strong signal amplification and long-distance transmission capability.

4. Compact Module & High Reliability

Rugged module structure with integrated heat dissipation design. Built-in over-temperature, over-voltage, over-current and VSWR protection circuits, ensuring stable operation in harsh environments.

Application

• Professional wireless communication systems
• Signal coverage enhancement & repeater systems
• Radio transmitters & telemetry equipment
• Data & video transmission links
• RF test & measurement equipment
• Industrial & mobile communication applications
