TX new version N output 100-1000MHz 100W PA power amplifier module

Basic Information

Place of Origin:	China
Brand Name:	TX TELSIG
Certification:	SGS,ISO9001,ROHS
Model Number:	TX150W

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	Fumigation wooden case with alluminum alloy frame
Delivery Time:	In 2 work day
Payment Terms:	T/T,Paypal, Etc.
Supply Ability:	5000pcs/month

Get Best Price Contact Now

Detail Information

Brand:	Texin	Frequency:	100-1000MHz
Size:	20010021cm	Weight:	693g
Output:	100W	Material:	Aluminum
Voltage:	28V	Input:	0dbm
Application:	Key Area
Highlight:	100W broadband power amplifier module , 100-1000MHz PA amplifier with warranty , TX new version power amplifier

Product Description

TX New Version N Output 100-1000MHz 100W PA Power Amplifier Module

This upgraded TX version RF power amplifier module features a wide frequency band from 100MHz to 1000MHz, stable 100W output power, and standard N-type connectors. Designed for RF transmission, signal amplification, radio communication, and experimental testing applications. Offers high gain, low noise, and durable construction for long-term industrial use.

Key Features

Upgraded TX Version: Optimized internal structure for enhanced stability and reduced heat generation

Wide Frequency Band: Covers 100MHz to 1000MHz for universal RF signal amplification

100W High Power Output: Stable continuous power output for extended operation

N-Type Output Interface: Standard RF connector for easy installation and signal connection

High Gain & Low Noise: Purified signal with minimal signal distortion

Industrial Grade Material: Anti-interference, shockproof, and durable for outdoor and laboratory applications

Technical Specifications

Parameter	Symbol	Min	Typ	Max	Unit	Remark
Operating Frequency	BW	100		1000	MHz
Input Power	Pin		0		dBm
Output Power CW	Psat	50	51	52.5	dBm	Continuous Wave
Power Gain	Gp		51		dB	@ Pin=2 dBm
Power Gain Flatness	△Gp		±1.5		dB	@ Pin=2 dBm
Input Return Loss	S11		-15		dB
Operating Voltage	Vdc	28	32	32	V
Current Consumption	A		13	16	A	@ Pout＞100W
RF Connector Input		SMA, Female
RF Connector Output		SMA, Female
Size		200100100mm
Max Input Power	PinMax	≤10			dBm

Interface Definition (7W2 Female)

Pin	Function	Description
VDD	A1	Ground
GND	A2	28Vdc
Current Sense	1	Analog voltage relative to Module's current@100mV/A
Temp Sense	2	Analog voltage relative to Module's Temperature@10mV/℃
Enable	3	Amplifier Enable: TTL Logic High(3.3V) (Internally Pulled-Low)
GND	4	Ground

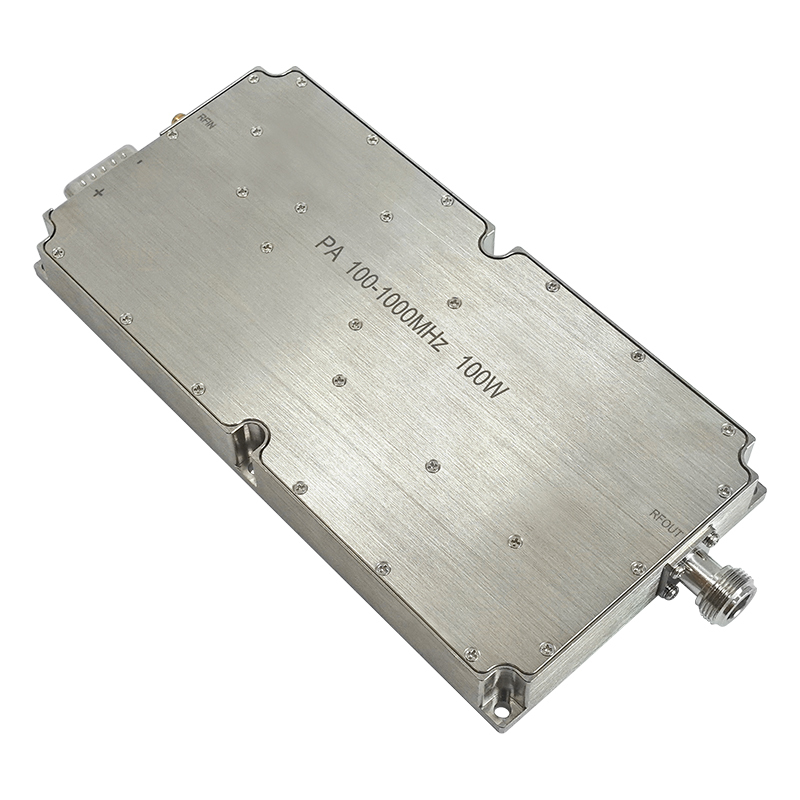

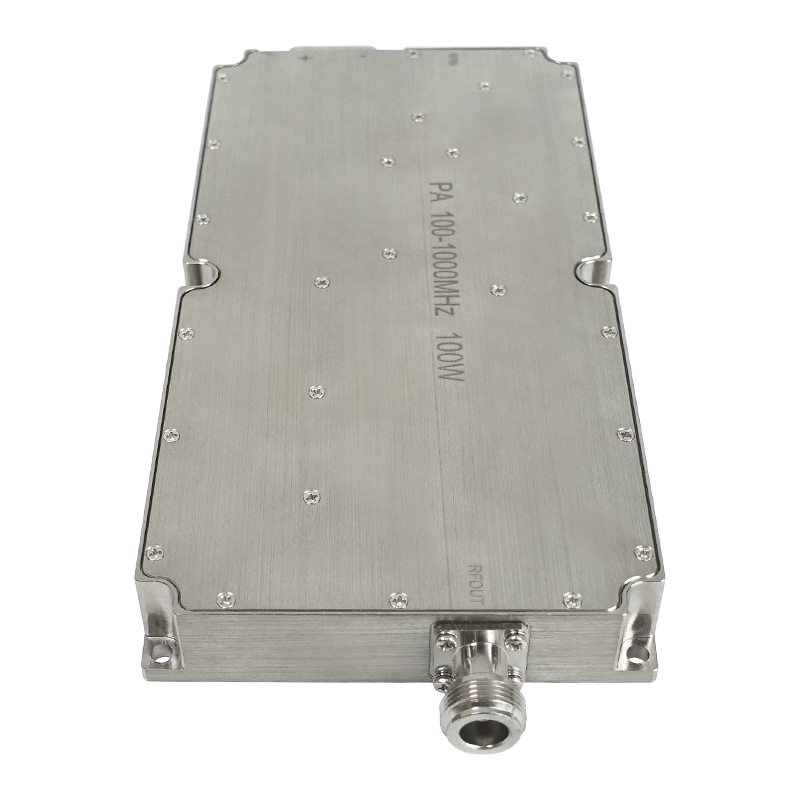

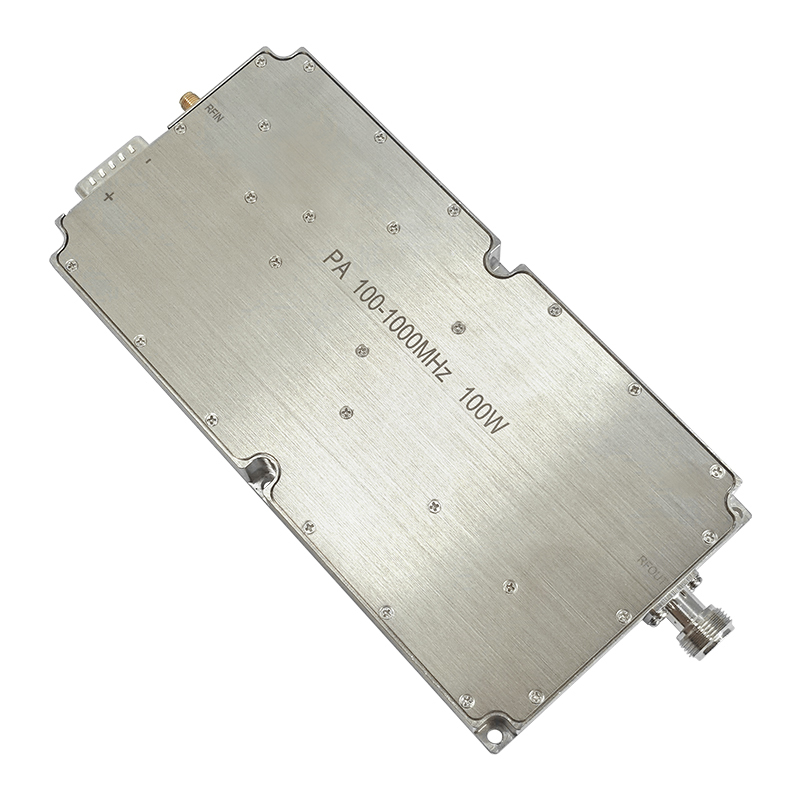

Product Images
