21.4kg OEM IP67 outdoors Signal Booster Drone Jammer Cast Aluminum Chassis
Product features
Texin molded outdoor cast aluminum chassis, high-performance aluminum alloy material, customizable structure, waterproof exterior. Strong anti-interference model, can support large equipment operation. Can be used in signal enhancement and drone prevention and control. Customers can design frequency bands and functions according to their needs.
Specifications :
| Model No. |
TX-PH-03 |
| Size |
524*423*37mm(including antenna ) |
| Weight |
21.4kg( not including antenna) |
| Effective Range |
about 1000-1500 meter,depends on real environment |
| Frequency*output power |
1) 600-700 (50w)
2) 700-800 (50w)
Customized
|
| Material |
IP67 |
| Working temperature |
-40ºC to +65ºC |
| Power Supply |
DC connect external car battery |
| Relative Humidity |
35~95% |
| Material |
Aluminium shell |
| Power |
100-150W |
| Life |
about 20years |
Features
High thermal conductivity aluminum,:good thermal conductivity, more than 3 times that of sheet metal
Corrosion protection:The surface has a dense oxide protective layer, and with the subsequent spray-coated surface treatment, it is not easily corroded in a high salt spray environment.
Anti-signal interference:The ingenious one-time molding structure has remarkable electromagnetic shielding properties and is resistant to EMP electromagnetic pulse surges.
High protection level:High-pressure integrated one-piece molding structure can prevent the intrusion of rain, dust and foreign objects, and the protection level can reach up to IP67/NEMA6.
High-strength IK10 impact resistance.

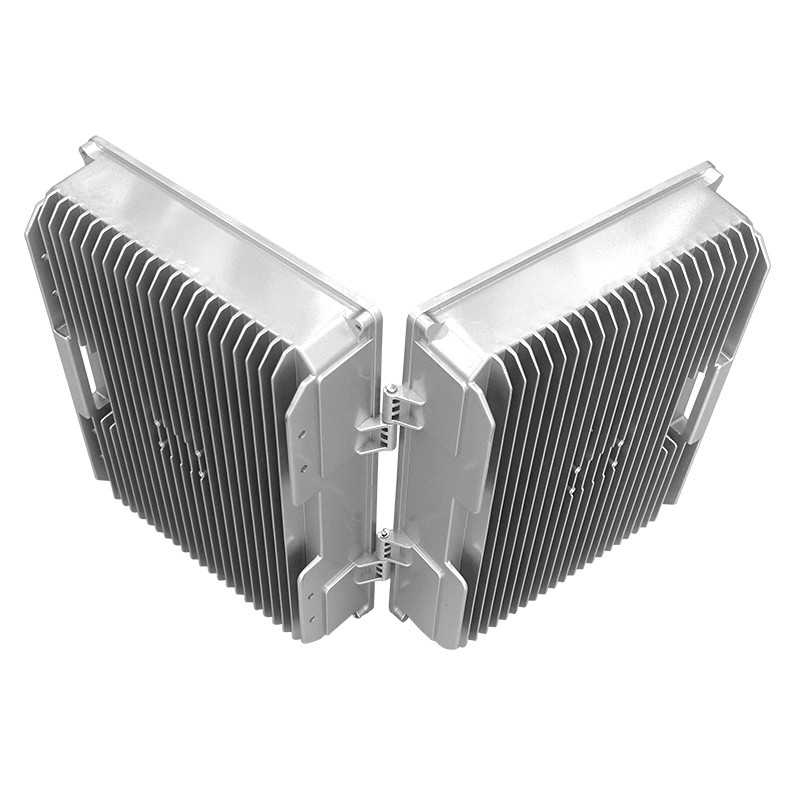

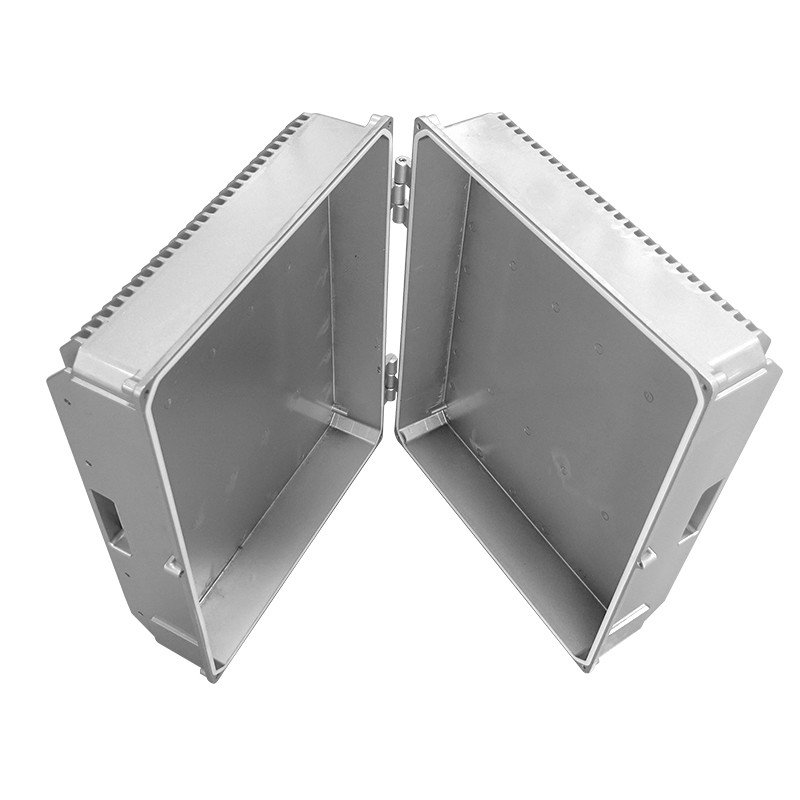

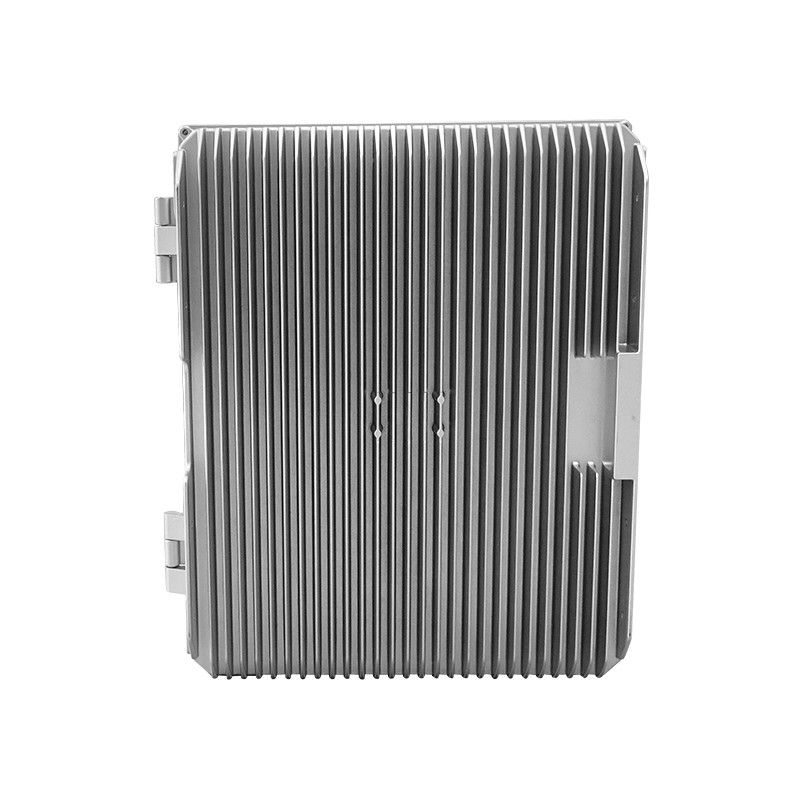

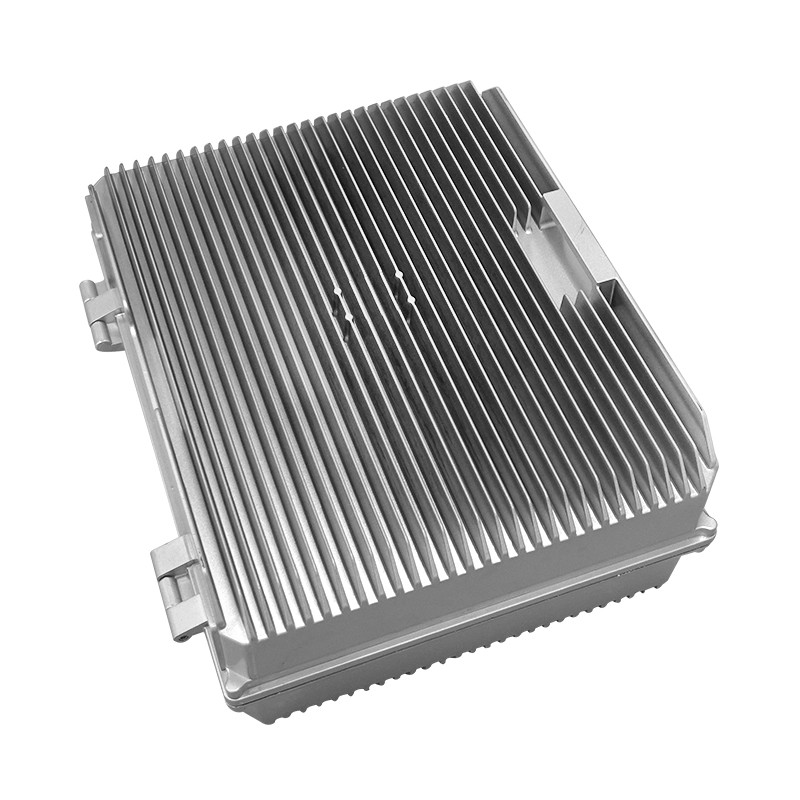

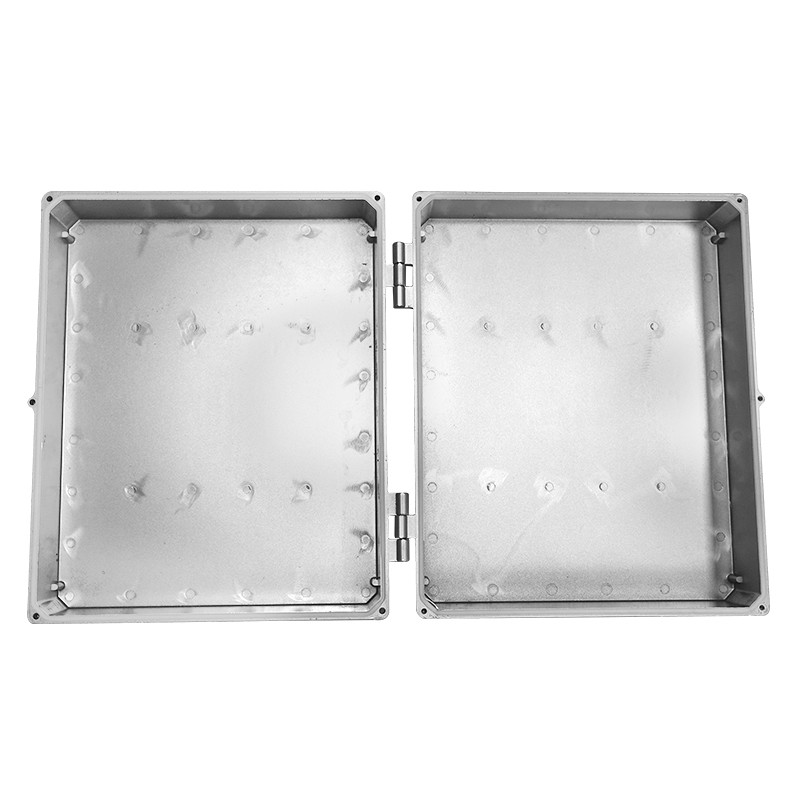

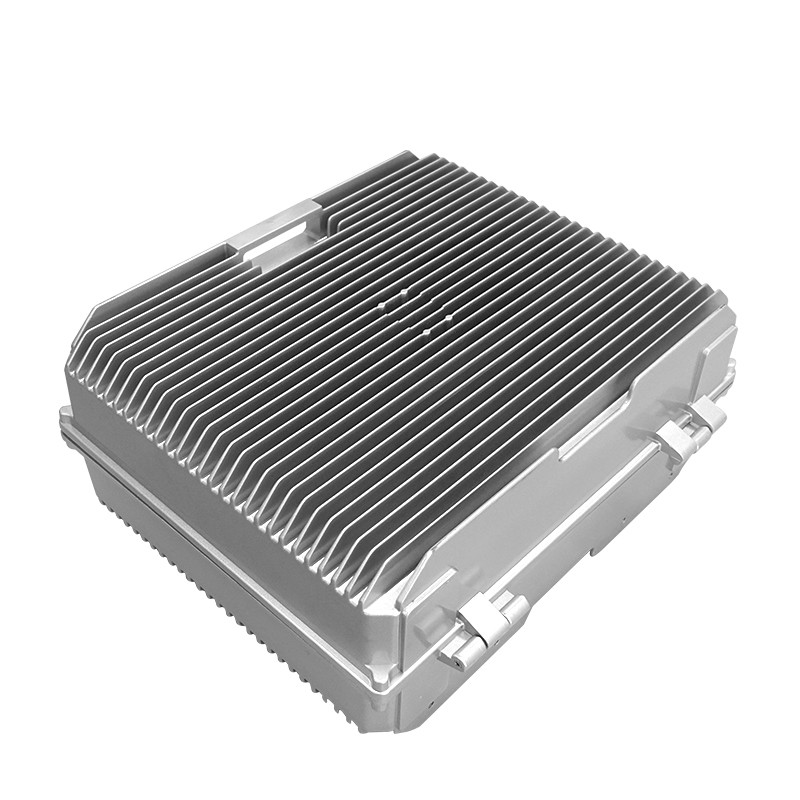

Pictures:
Usage scenarios
FAQ
Who we are?
Shen zhen Texin electronics co.,Ltd is a electronic communication type company which developed 2014,it has over 10 years in this field ,we sales WIFI signal reapeter and anti drone jammer ,most products can be customized .
How many assemblies you have in your factory ?
TeXin factory has over 9 assemblies in our over 5000sqm 2 floor factory in Long area, Shenzhen city.
Do you have the engineer for the technical support when you are making the after sales service ?
TeXin engineer team can directly offer the customers with the techinical support online anytime customer need it.
How can i be a your distributor in our own country ?
For the TeXin distribution authorization,we can definitely offer it for some customer after the details negotiation, it depends on the real situation of each side.
