Detail Information

Warranty:	1 Year	Frequency:	Customized
Test Voltage:	28v	Out Shell Material:	Aluminum
Vibration Need:	Car Load OK	Work Temperature:	-20~+70℃
Enable Control:	High ON Low Off	Power Supply Wire:	Red+Black+Enable Wire
Highlight:	10 Channel Wifi Signal Jammer Blocker , OEM Wifi Signal Jammer Blocker , military place phone signal jammer

Product Description

Product Description

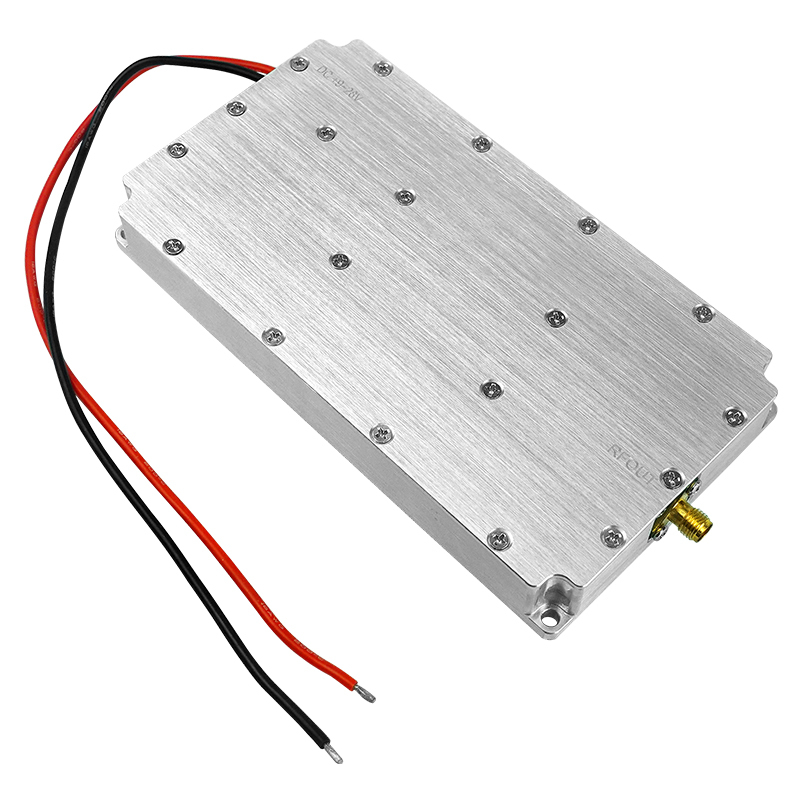

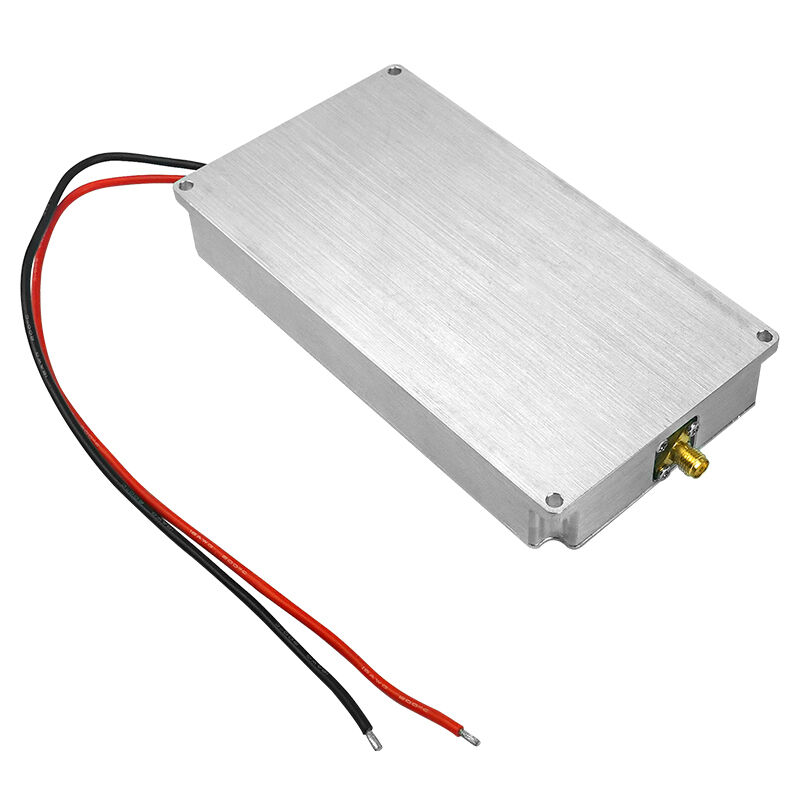

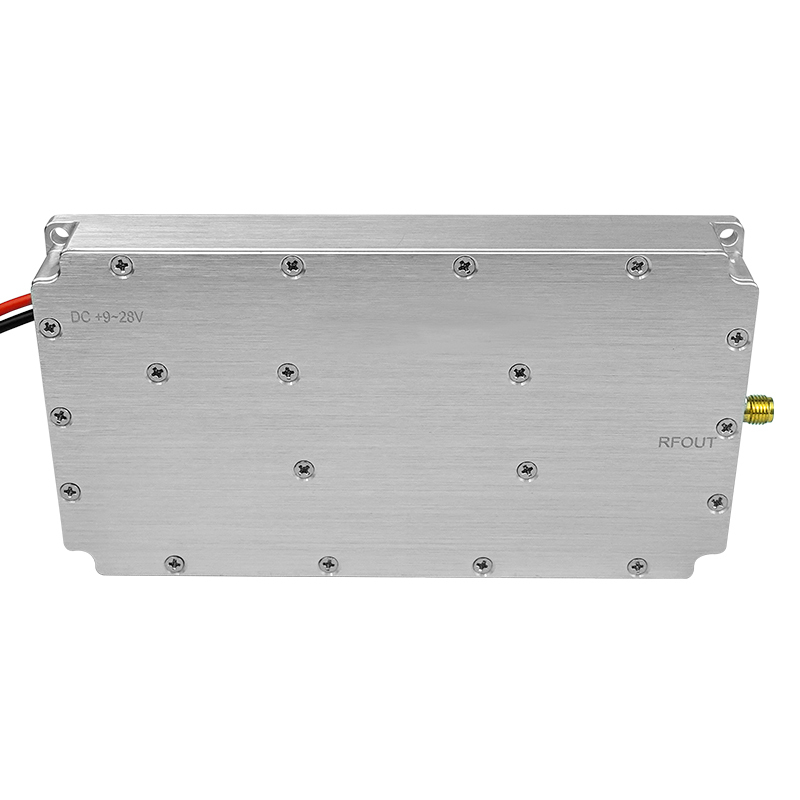

This wideband signal source module is a high-power RF jamming module specially used for drone and FPV jamming systems. With external VCO design, it can generate stable interference signals to effectively block drone remote control, FPV video transmission and navigation signals.

Powered by DC 9–28V wide voltage, it supports vehicle power supply and mobile use. The aluminum shell has excellent heat dissipation performance to ensure long-time high-power jamming work. Standard SMA interface allows direct connection with antennas to form a complete anti-drone jamming system.

It is widely used in UAV jamming, FPV signal blocking, airport protection, important area security and other scenarios that need to disable drones and FPV equipment.

Core Features

1.Targeted Jamming Performance: Optimized for disrupting drone control, FPV video, and navigation signals, ideal for anti-drone and security applications.
2.External VCO Tuning: Flexible frequency configuration to cover 1.2G/2.4G/5.8G and other common drone/FPV bands.
3.High Power & Reliability: All-aluminum brushed housing for maximum heat dissipation, ensuring continuous high-load operation.
4.Standard SMA Interface: 50Ω impedance for direct connection to high-gain antennas and jamming system arrays.
5.Wide Power Compatibility: DC 9–28V input works with vehicle batteries, portable power supplies, and fixed power setups.
6.Rugged & Compact: Shock-resistant metal enclosure designed for harsh field environments.

Technical Specifications

No.	Item	Data	Unit
1	Frequency	Customized	MHz
2	Test voltage	28	V
3	Current	4	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB
7	Connector	SMA / Female
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Power supply wire	Red+Black+Enable wire+yellow protect
10	Enable Control	High ON Low Off

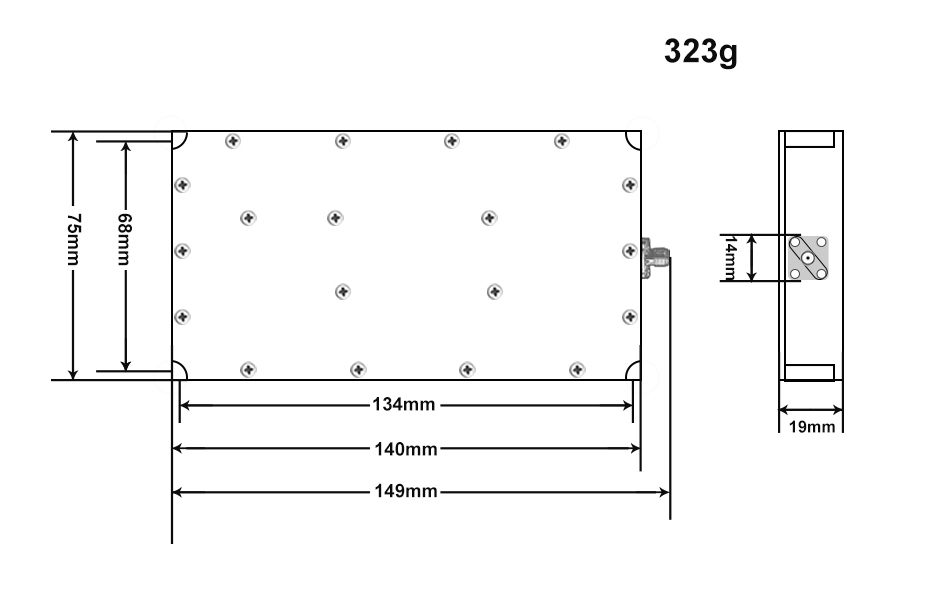

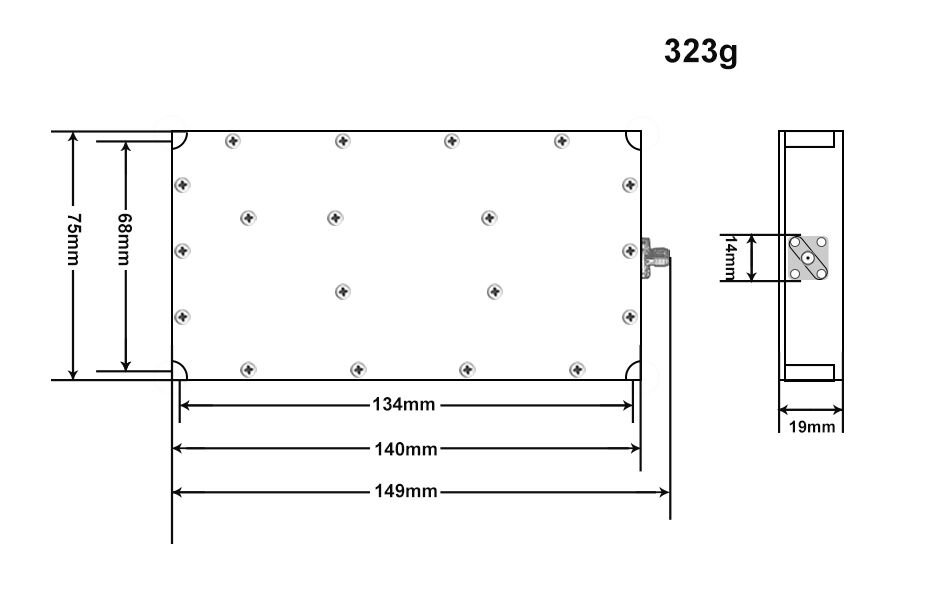

11	Out shell Size	1407519	mm
12	Mount hole	134*68	mm
13	Weight	323	g
14	Work Temperature	-40~+125	℃
15	Out shell material	Aluminum
16	Vibration need	Car load ok

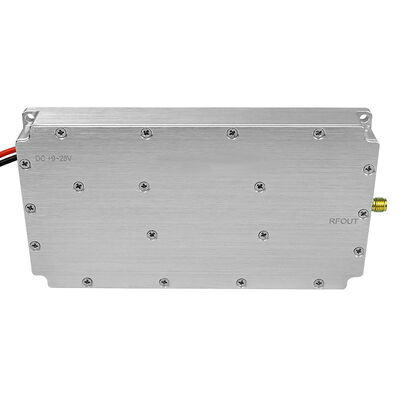

Wideband RF Signal Source Module 9-28V DC External VCO for UAV Drone FPV Jammer & Countermeasure System 0
