Signal Blocking28V 50W SMA female circulator 5.8ghz transmit module for anti drone system

Basic Information

Place of Origin:	China
Brand Name:	Texin
Certification:	ISO CE
Model Number:	TX-PD 50W

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Durable case or box
Delivery Time:	1-3 days
Payment Terms:	L/C, D/A, T/T, ,Paypal,etc
Supply Ability:	10000pcs per month

Get Best Price Contact Now

Detail Information

Features:	5.8ghz 50W Circulator	Brand:	Texin
Type:	Jamming Module	Power:	50W
Frequency:	5.8ghz	Connector:	SMA / Female
Application:	Office,Hotel , Car ,etc	Advantage:	Gan Circulator
Voltage:	28V	Current:	4.8A
Weight:	1050G
Highlight:	Waterproof Portable Cell Phone Signal Jammer , Shockproof Portable Cell Phone Signal Jammer , 12 Antennas Mobile Signal Jammer

Product Description

Signal Blocking28V 50W SMA female circulator 5.8ghz transmit module for anti drone system

It is a wirelessRF drone signal shield security module dedicated to 5725~5850MHz signals. This module has the advantages of high average output power (50W output in stable operation), good in-band flatness, and small offset between upper and lower sidebands.

We are a professional signal jammer module manufacturer , support frequency band customization based on the customers' requirements

Parameters

No.	Item	Data	Unit
1	Frequency	5800	MHz
2	Test voltage	28	V
3	Current	4.2	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB
7	Connector	N / male
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Power supply wire	Red+Black+Enable wire
10	Enable Control	High ON Low Off
11	Out shell Size	1505320mm	mm
12	Mount hole	48*126	mm
13	Weight	316	g
14	Work Temperature	-40~+65	℃
15	Out shell material	Aluminum
16	Vibration need	Car load OK

Features:

*Working frequency band: 5.7~5.9GHz
*Working voltage: 32V
*Maximum output power (P1dB): 50W (47dBm)
*Working current: 4500mA@Pout 47dBm 28V
*Average efficiency: 40%
*Working temperature: -20℃～60℃

Physical Structure

Shell size: 53*130*19mm
RF interface: the output end is SMA external thread and internal needle
Power supply port: red and black wire
Shell: aluminum material, natural color oxide sandblasting
Fixed holes: four fixed positions around the shell
Net weight: 0.254KG

Pictures:

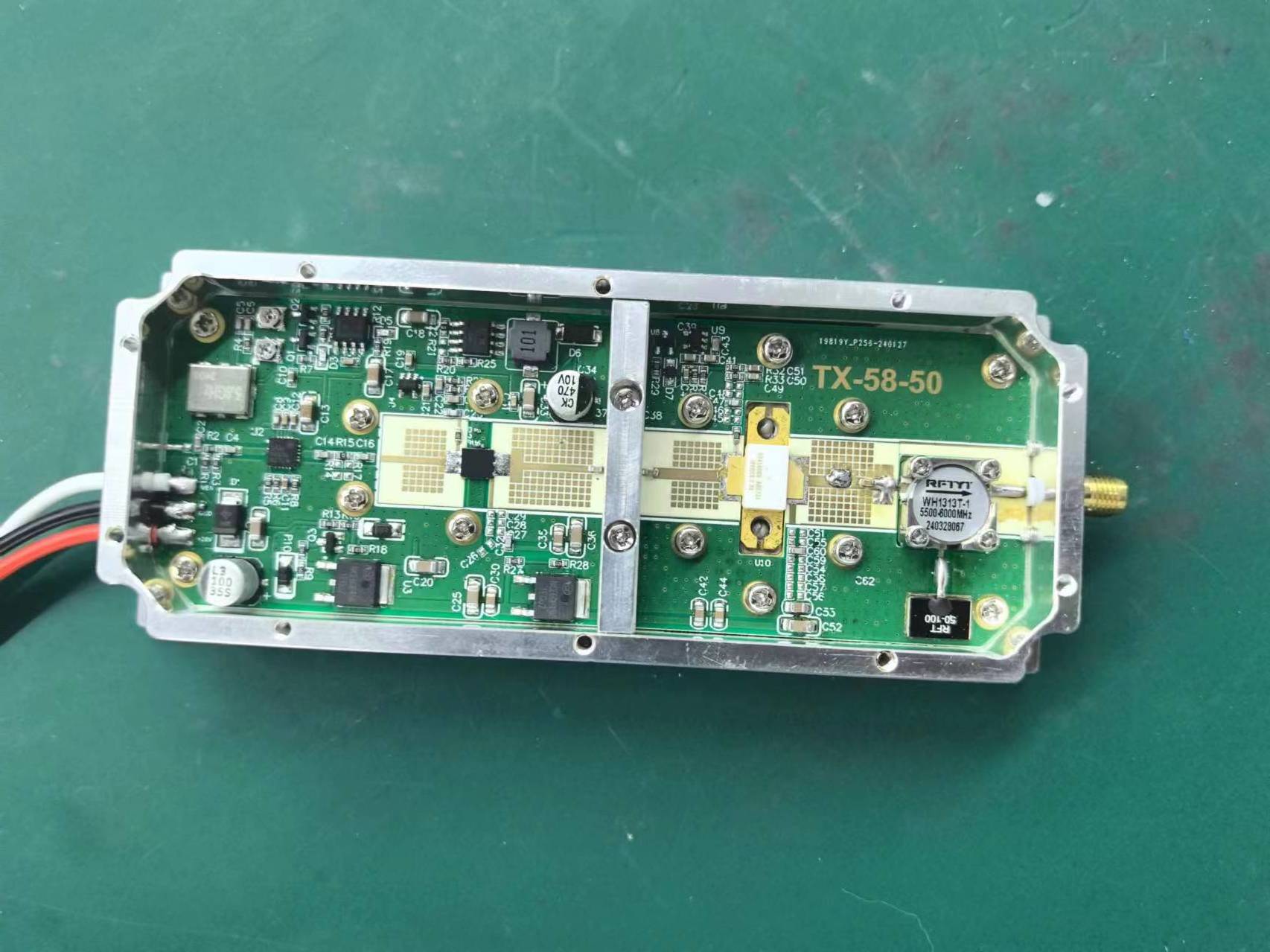

Signal Blocking28V 50W SMA female circulator 5.8ghz transmit module for anti drone system 0

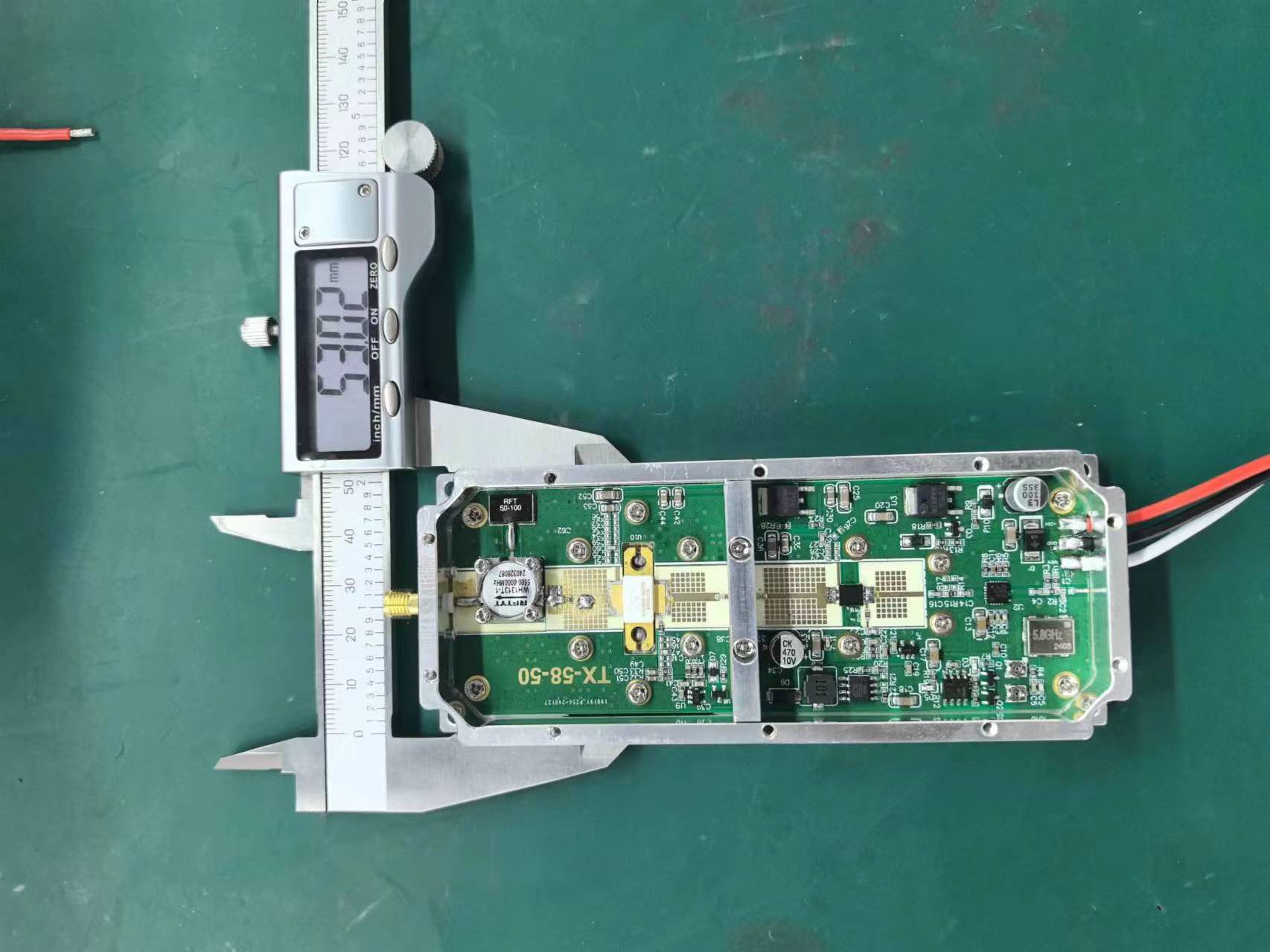

Signal Blocking28V 50W SMA female circulator 5.8ghz transmit module for anti drone system 1

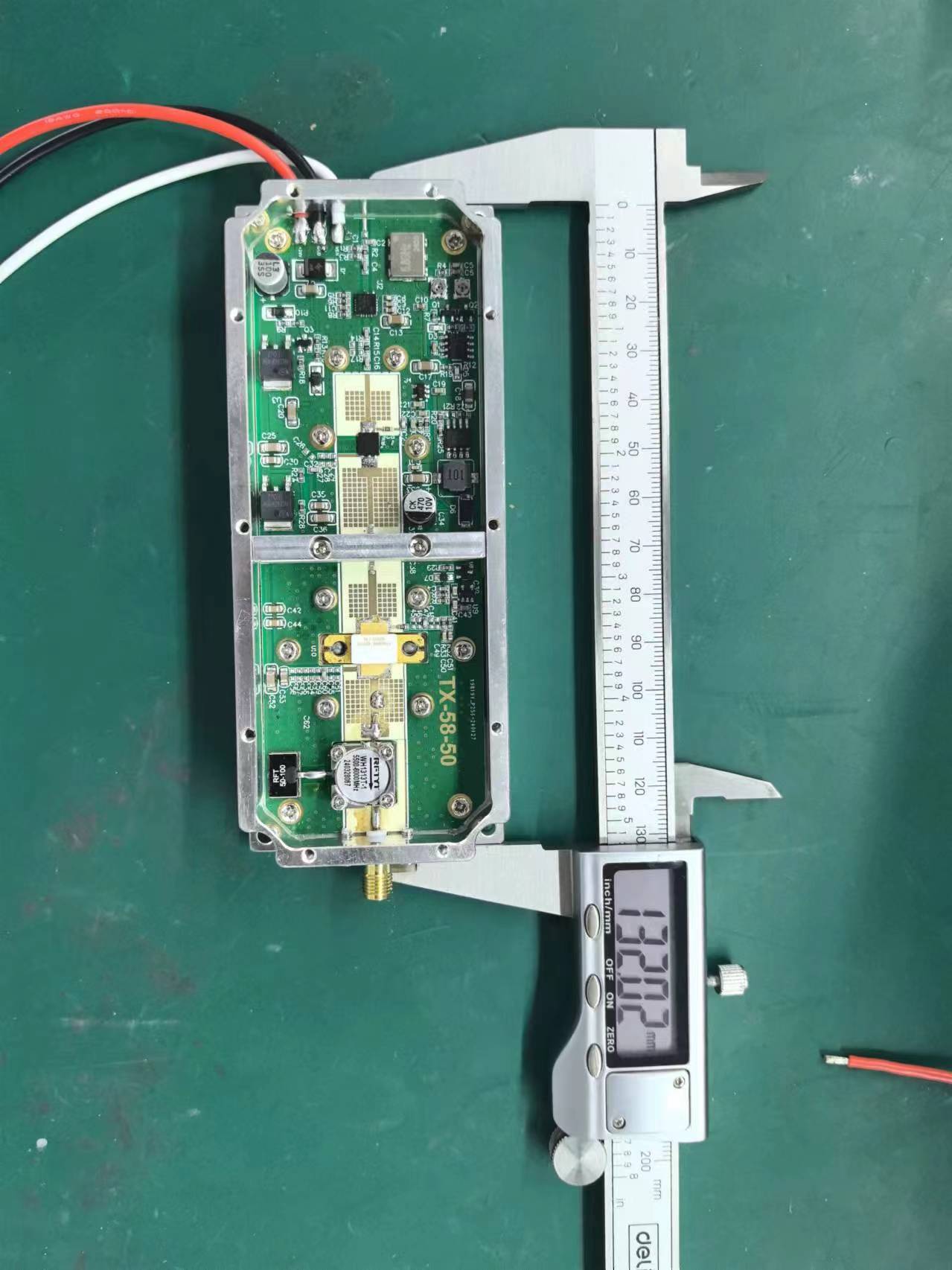

Signal Blocking28V 50W SMA female circulator 5.8ghz transmit module for anti drone system 3
