Detail Information

Brand:	Texin	Frequency:	Customized
Size:	2009025cm	Weight:	1022g
Case Type:	Die Case Alluminum Alloy	Output Power:	High Power 150W (customized)
Voltage:	28V	Connector:	N-female
Highlight:	150W UAV FPV jammer module , 300MHz drone jammer module , 2700MHz high-performance block jammer

Product Description

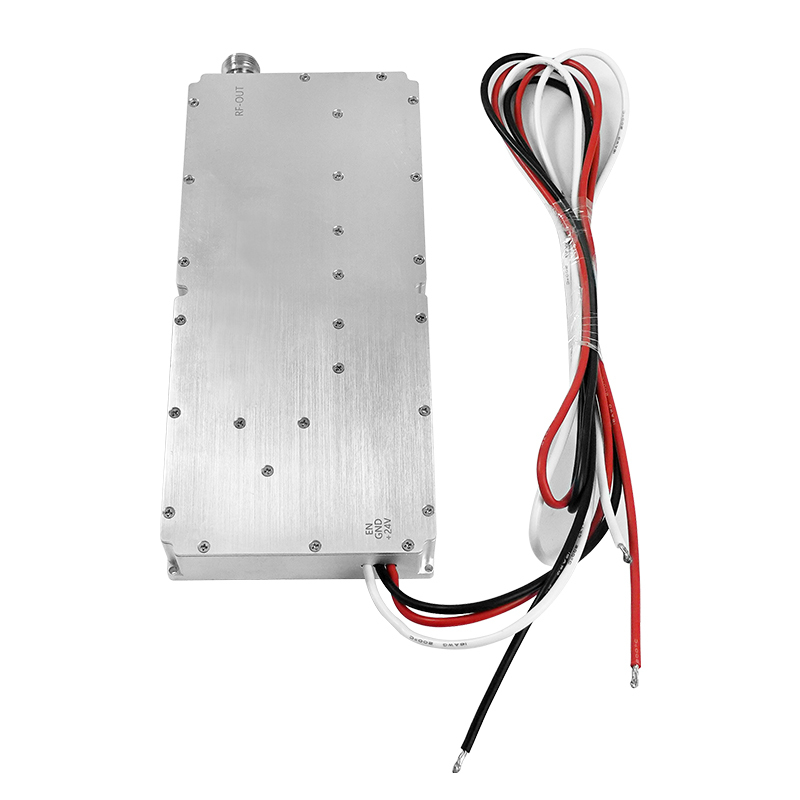

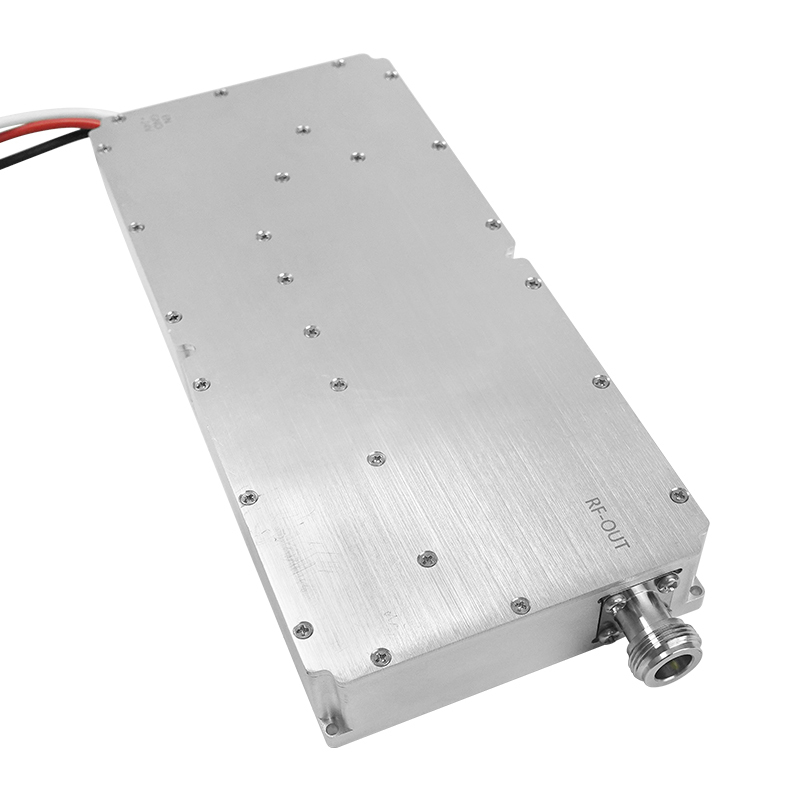

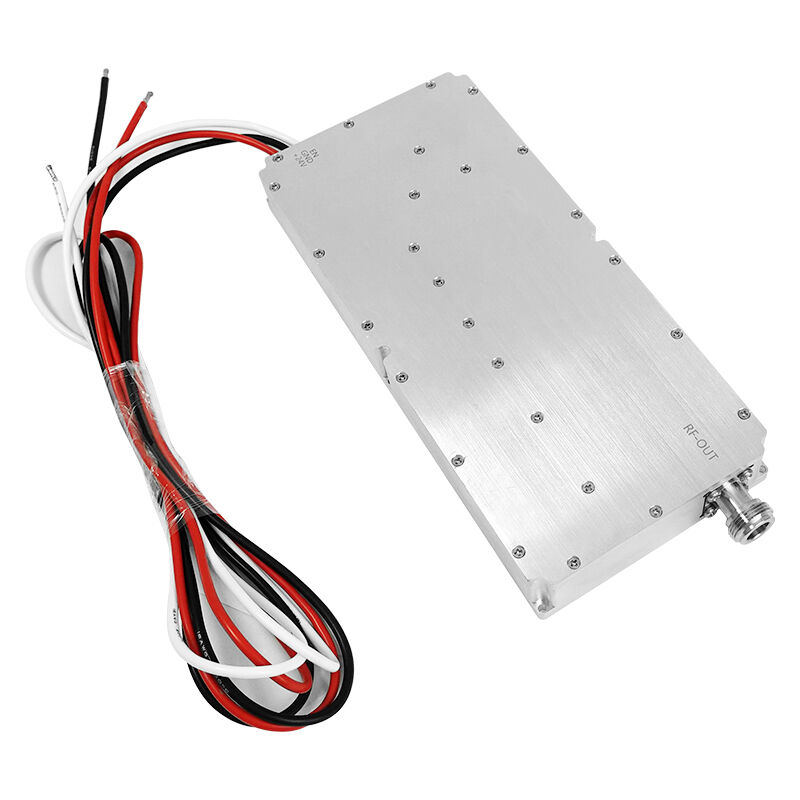

High-Performance 150W 300MHz-2700MHz UAV FPV Block Jammer Module

This high-power 150W anti-drone module features multiple customizable frequency bands, specifically designed for large-scale anti-drone systems. The module delivers high output power, stable performance, and flat bandwidth characteristics, supporting long-term operation and versatile installation options.

Key Specifications

Parameter	Value	Unit
Frequency Range	Customized	MHz
Operating Voltage	28	V
Current Consumption	10.2	A
Output Power	150	W
Gain	51.75	dB
Output Stability	1	dB
Connector Type	N / male	-
Output VSWR	≤1.30	-

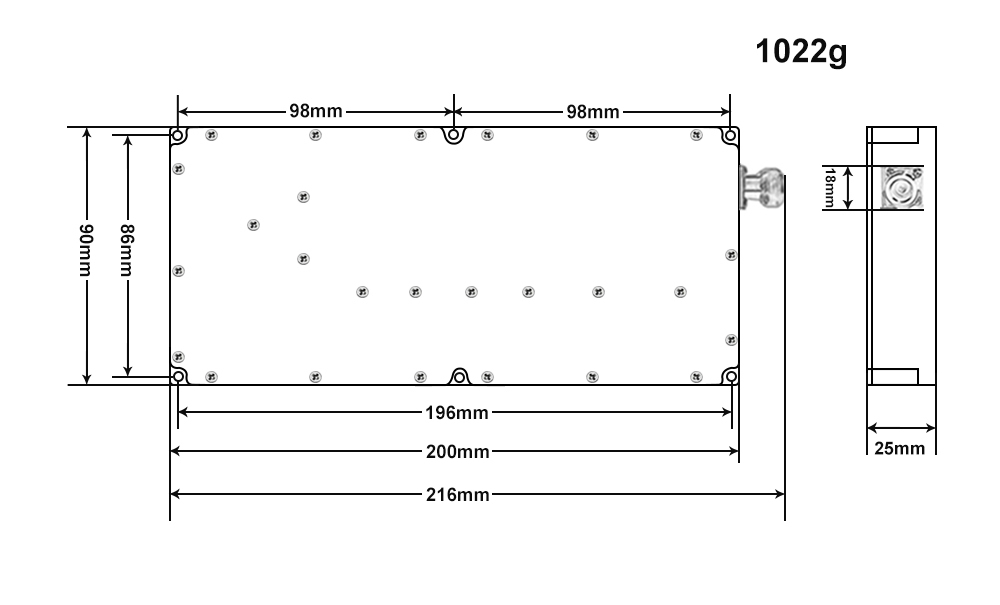

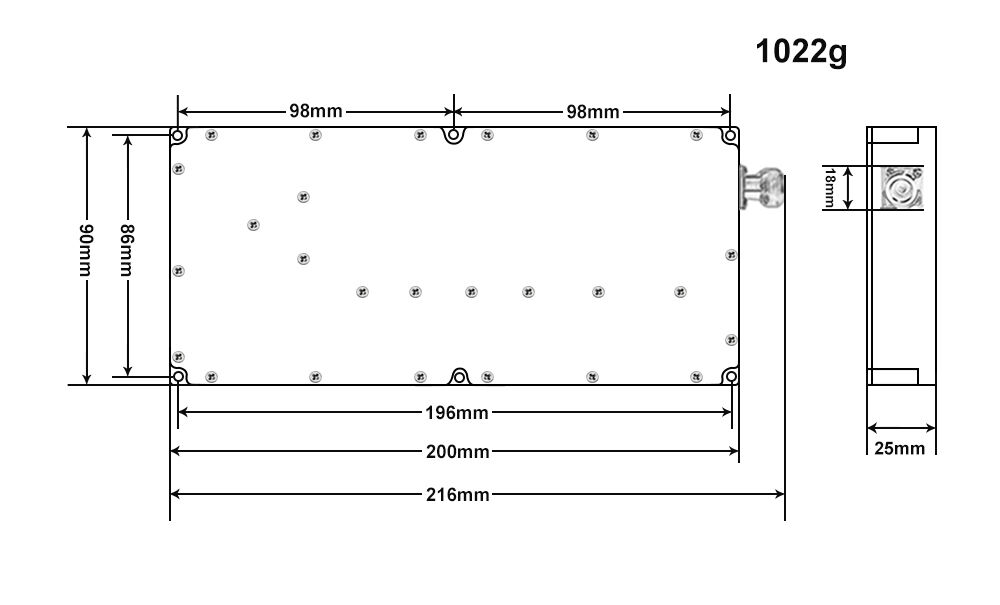

Dimensions	200×90×25	mm
Mounting Pattern	200×90	mm
Weight	1022	g
Operating Temperature	-40 to +65	℃
Housing Material	Aluminum Alloy	-

Operational Characteristics

Working Range: 360-degree coverage, 2000-3000 meters (dependent on installation method and environmental conditions)
Signal Blocking: WIFI 2.4G, WIFI 5.8G, GPS L1 (customizable frequency bands available)
Power Supply: Red+Black+Enable wire configuration
Enable Control: High ON / Low OFF logic
Vibration Resistance: Suitable for vehicle-mounted applications

Product Images
