Customized Radio amplifier 50W 28V 7300MHz 7800MHz 8000MHz drone signal jammer module

Basic Information

Place of Origin:	Shenzhen, China
Brand Name:	TX
Certification:	ISO9001,SGS,CE
Model Number:	TXC70008000

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	Durable case or box
Delivery Time:	1-3 days
Payment Terms:	L/C, D/A, D/P, T/T,
Supply Ability:	10000pcs per month

Get Best Price Contact Now

Detail Information

Product Name:	7ghz 8ghz Jammer Module	Type:	UHF Jammer Module
Frequency:	7000 8000MHz(customized )	Votage:	28V
Weight:	0.8KG	Application:	Privacy Protection, Prisons, Schools
Color:	Silver	Warranty:	1 Year
Highlight:	U Disk GPS Signal Jammer , Light weight GPS Signal Jammer , 5m GPS Signal Jammer

Product Description

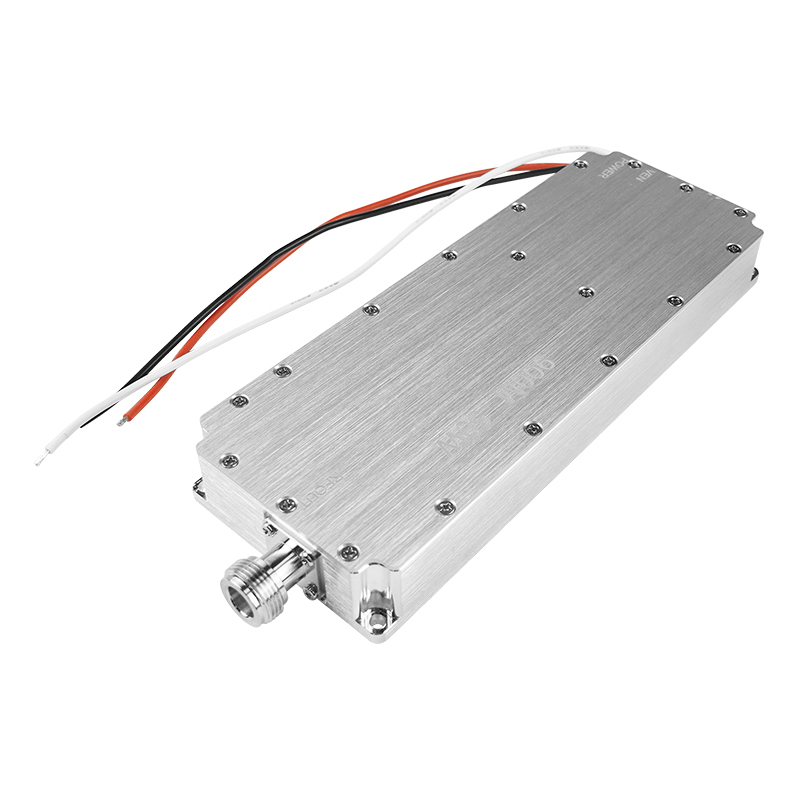

Customized Radio amplifier 50W 28V 7300MHz 7800MHz 8000MHz drone signal jammer module

1. Product Introduction

The 50W radio amplifier jammer module is a Ultra-high frequency 7300mhz 8000mhz ,it is high power out put in 28V voltage .It is good performance to jamming the drone in the market such as DJI ,DIY,FPV .This is the latest research achievement of Shenzhen Texin Electronics. It is also a unique product on the market. Therefore, if you have special needs, tell us, and we can provide you with a unique solution.

2. Specification

.	Item	Data	Unit
1	Frequency	(customized)7/ 8	GHz
2	Test voltage	24-28	V
3	Current	3	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB
7	Connector	SMA / Female
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Standard input	0-10DB
10	Power supply wire	Red+Black+Enable wire
11	Enable Control	High ON Low Off
12	Out shell Size	1765820	mm
14	Weight	800	g
15	Work Temperature	-40~+65	℃
16	Out shell material	Aluminum
17	Vibration need	Car load OK

3. Product Feature

28V 7300MHz 7800MHz 8000MHz drone signal jammer module

* Block the drone signal in few times

* UHF frequency band 7ghz 8ghz

* N type connector easy to carry around

* aluminum material high heat dissipation

3. Attention

* Connect the antenna when first use

* Need operate in 28V voltage

*when it long time operate need additional cooling equipment is needed.

Customized Radio amplifier 50W 28V 7300MHz 7800MHz 8000MHz drone signal jammer module 0
