| Place of Origin: | China |
|---|---|
| Brand Name: | TX TELSIG |
| Certification: | SGS,ISO9001,ROHS |
| Model Number: | TX-JZ01 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiated |
| Packaging Details: | Fumigation wooden case with alluminum alloy frame |
| Delivery Time: | In 2 work day |
| Payment Terms: | T/T,Paypal, Etc. |
| Supply Ability: | 5000pcs/month |
| Jamming Frequency: | Wifi2.4G Wifi5.8G GPSL1 Customized | Jamming Range: | Up To 3000 Meter |
|---|---|---|---|
| Size: | 53*41*23cm | Weight: | 35kg (not Including Antenna) |
| Case Type: | Die Case Alluminum Alloy | Output Power: | High Power 190W (customized) |
| High Light: | 190W Drone Frequency Scrambler,3000m Drone Jamming Device |
||

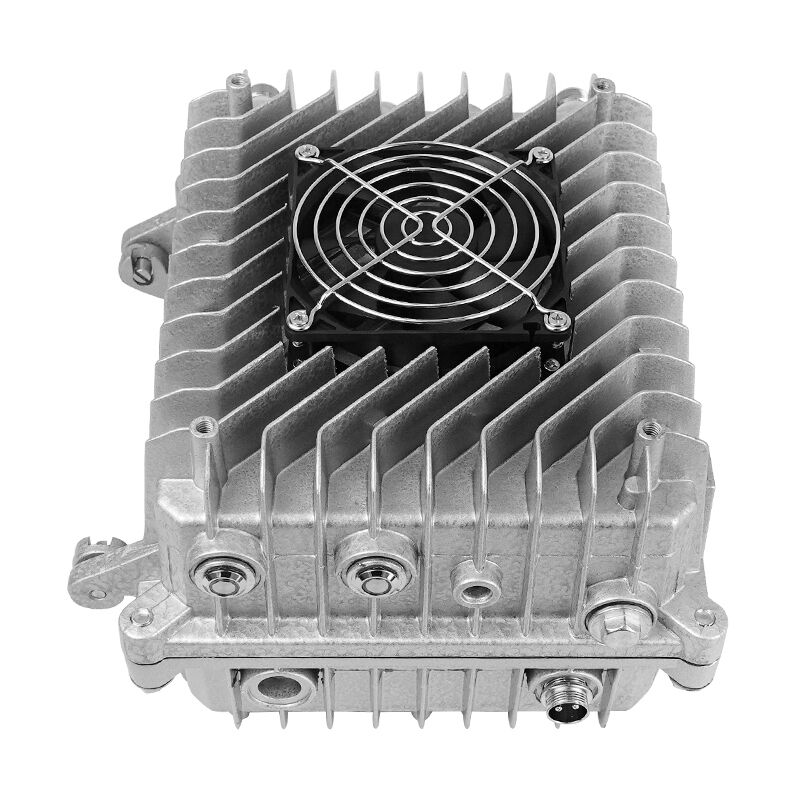

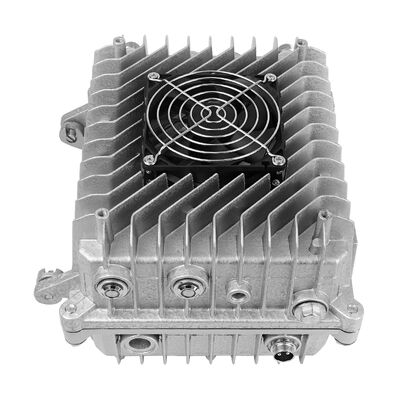

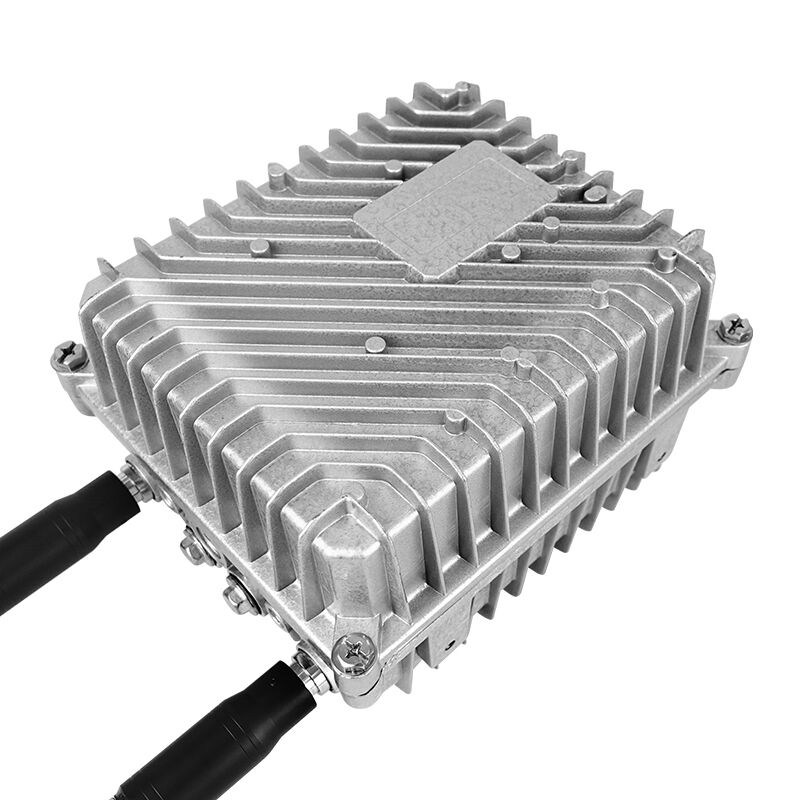

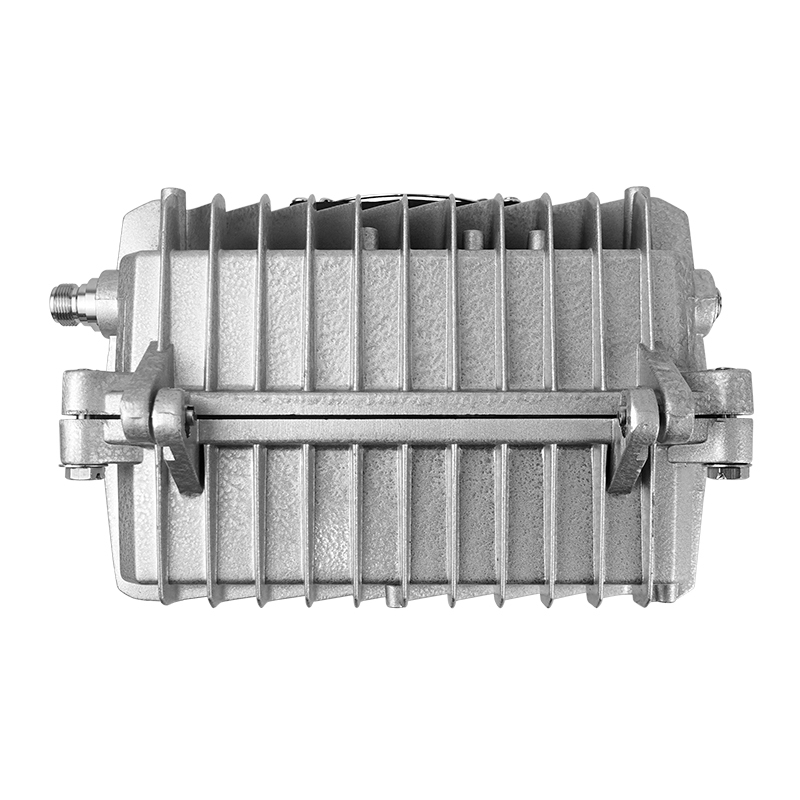

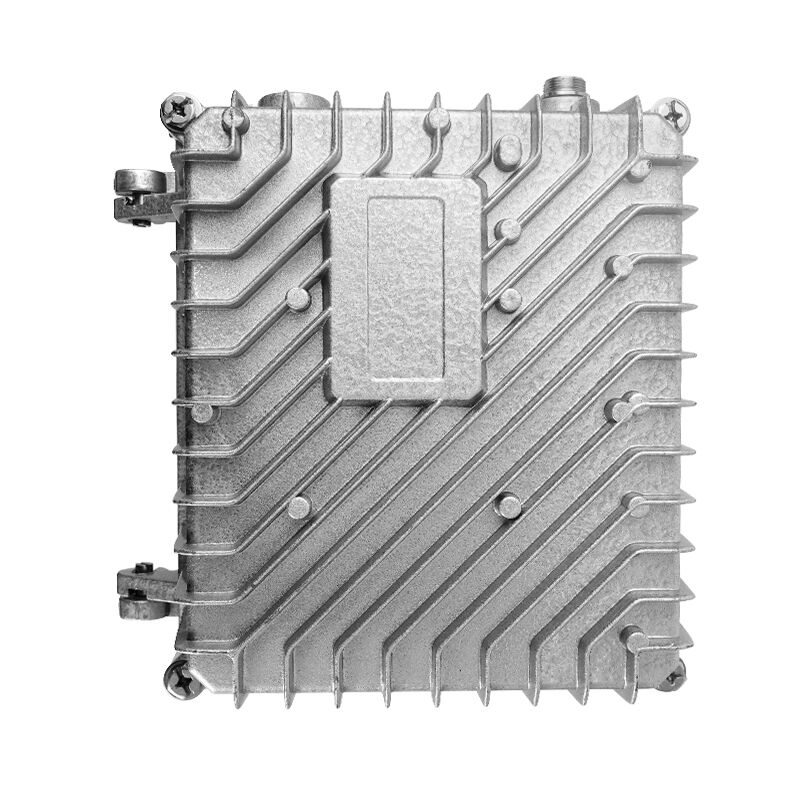

Radio frequency Drone Signal Jammer for Multicopter WIFI GPS
It TXtelsig JZ01 can block the frequency of drone within 3000m and drone will lose of the signal of user. The drone will be forced to descend slowly or go home and not able to send photo and video to user.
Shield range: 360 degree coverage, 2000-3000meter
Shield signal: WIFI 2.4G, WIFI 5.8G, GPSL1 (can be modified or added )
Output power: 190W (Max 650W )
Antenna: 4 directional antenna
Case: IP65 waterproof level die cast aluminum alloy
Network connection: computer, APP, drone detection system
* Efficient cooling system ensures long working hours
| Model | JZ-01 Drone Signal Jammer |
| Jamming frequencies | Band 1 WIFI2.4G |
| Band 2 WIFI5.8G | |
| Band 3 GPSL1 | |
| Other Band ( Customized: Modified or Added ) |
|
| Jamming radius | Up to 1000- 3000 meters ( Depends on real signal environment) |
| Power supply | AC Power plug |
| Total output power | 190W or customized |
| Voltage | AC100-240V DC12V |
| Operating temperature | -40℃ to +70℃ |
| Operating humidity | 5% to 80% |
| Device size | 53*41*23cm |
| Device weight | 35kg ( not including antenna ) |
