High power 100W 6GHz 18GHz 8GHz Wireless electronic jamming PA power amplifier module bidirectional RF module
Shenzhen Texin Electronics Co., Ltd. is a company dedicated to low-altitude economic safety, possessing its own factory and research team. Its main products include antennas, RF modules, and drone countermeasure equipment. This 6-18GHz broadband power amplifier is a customized solution to meet market demands. Its highlight features are high-efficiency output 100W and wide bandwidth coverage 6GHz-18GHz.
Product introductions :
High power amplifier module 100W 6GHz-18GHz is a wideband power amplifier ,the amplifier is a important part of anti drone jamming system .It need operate in 28V voltage ,matching the 0dbm input .The high power 100W 6-18ghz PA power amplifier module .It can effectively deal with most drone models on the market, is easy to operate, has a heat dissipation device on the bottom, and supports the installation and use of high-power countermeasure equipment.
| order number |
project |
specifications |
|
|
power |
100W |
|
|
model |
XSUN-618G100-SSPA |
|
|
service frequency |
6GHz~18GHz |
|
|
Output power (continuous wave) |
50dBm min. |
|
|
power gain |
50dB min. |
|
|
power gain flatness |
+2dB max (output power range: 50~52dBm) |
|
|
Enter the standing wave ratio |
1.5 max |
|
|
incoming signal |
0dBm typ.; 5dBm max. |
|
|
spurious suppression |
60dBc min. |
| Power supply and power consumption |
|
|
power input |
28 VDC |
|
|
additional efficiency |
15% typ. |
| joggle |
|
|
radio frequency input port |
SMA connector (F) |
|
|
radio frequency output port |
N connect (F) |
|
|
Power Supply and Monitoring Interface |
7W2 Gongwan Insert Plate |
| Interface Definition (7W2) |
|
|
A1 |
28VDC |
|
|
A2 |
GND |
|
|
1 |
Overcurrent protection: Normal: 0V, Abnormal: +5V Threshold: Imax+2A |
|
|
2 |
Overheat protection: Normal: 0V, Abnormal: +5V Threshold: 85°C |
|
|
3 |
Enable control: Off: 0V, On: (+3.3V~VDC) |
|
|
4 |
GND |
|
|
5 |
Status: Work: +5V, Silent: 0V |
| Temperature and Overall Machine Dimensions |
|
|
working temperature |
+25℃ |
|
|
outline dimension |
182*182.7*73.5 |
|
|
weight |
3.5Kg |
|
|
surface preparation |
nickelage |
Product features :
◆ Large coverage of 6-18ghz (It can cover the frequency like 5.2ghz 5.8ghz 6.2ghz .....)
◆ High power design, full wattage 100W in 28V voltage .
◆ Easy to put and use, not occupying space, convenient and fast
◆ Original chips and circuit boards ensure efficient, stable performance and long life
◆ Engineering and durable shell: waterproof, wear-resistant and heat-resistant
◆ Convection vent and built-in efficient radiator and fan prevent local heat accumulation and efficient heat removal
◆ Simple appearance, small volume and small space occupation
◆ Simple and convenient installation

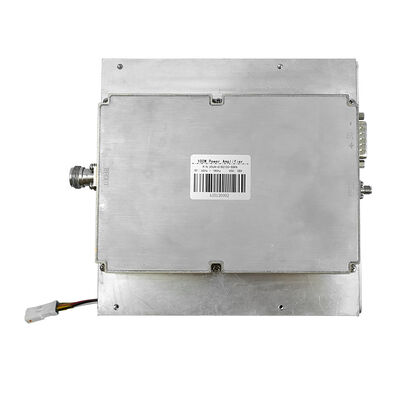

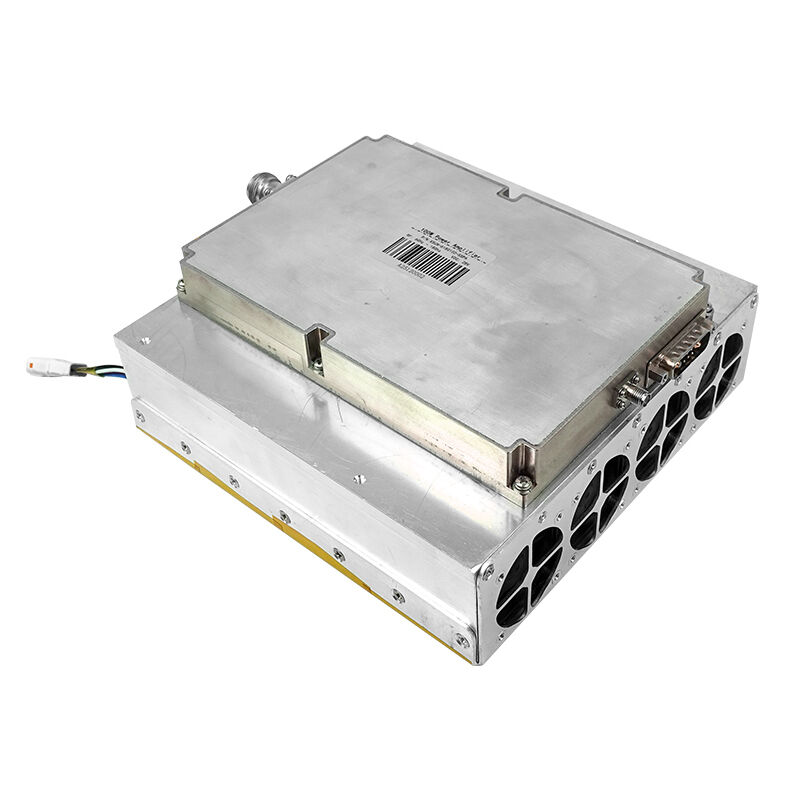

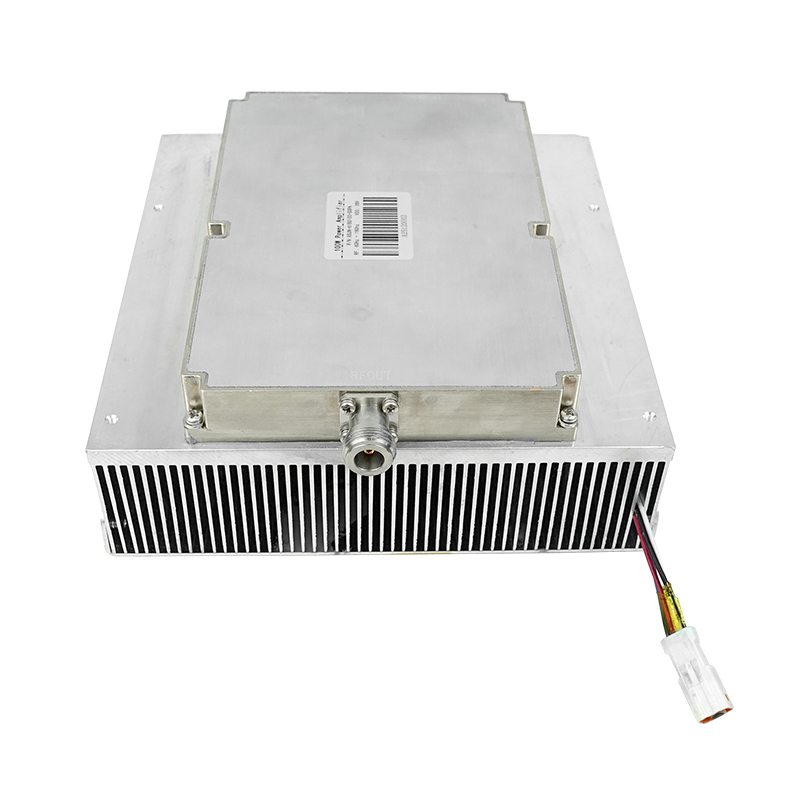

Pictures :
How to buy the product ?
Dear clinets ,if you interested this 100W wide band 6-18ghz PA power amplifier module ,you can leave the message on our chat window .Our sellers will contact you as soon as poosible .
Can the 100W power amplifier module customized ?
Of course ,we have our own factory ,if you have any requirement just tell us ,Shen Zhen Texin electronics Co.,ltd can offer the best solution to you.
How about the payment ?
We support the T/T ,Alibaba,Paypal,USTD,Alipay,Wechat,ect.It is depends on you which method convenient.
