Tri Band Cell Phone Signal Repeater Enhance Cellular Amplifier N Female Connector

Basic Information
Place of Origin: China
Brand Name: TX TELSIG
Certification: SGS, ISO9001
Model Number: TX-B-3P
Minimum Order Quantity: 1
Price: Negotiated
Packaging Details: Foam Box
Delivery Time: 2 Days
Payment Terms: L/C, T/T, Western Union, Paypal,etc.
Supply Ability: 100,000pcs/month
Detail Information
Name: Tri-Band Booster Output Power: 23dBm
Gain (dB): 65dB Coverage Range: Up To 500sqm
Connector: N-Female Improve Network Type: 2G Call Voice And 2G/3G/4G Internet Data
High Light:

cellular signal booster


mobile network signal booster

Product Description

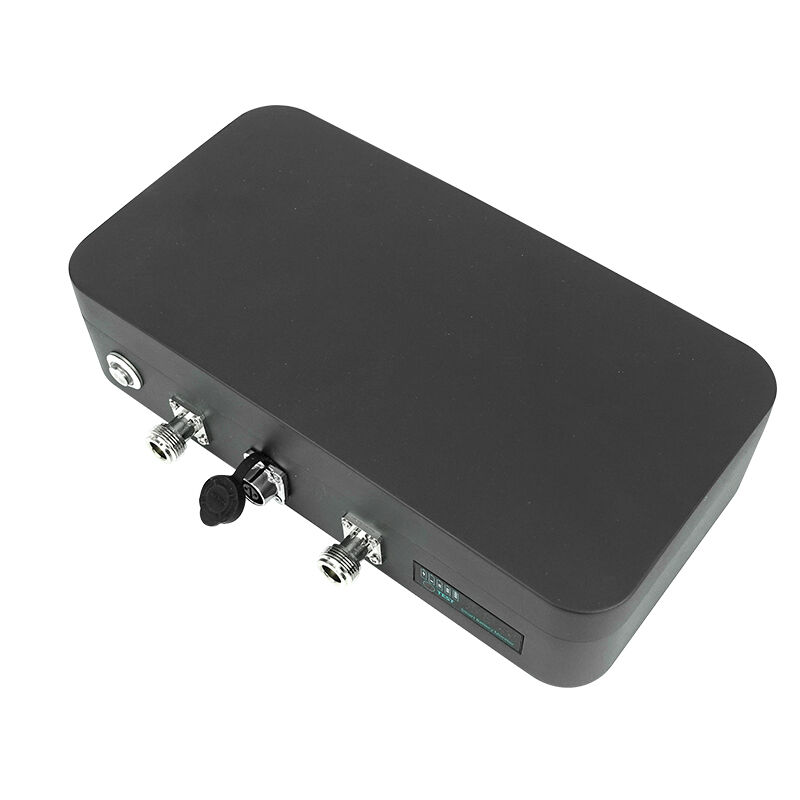

TXtelsig Tri Band Cell Phone Signal Repeater Enhance Cellular Amplifier N Female Connector


TX-B-3P is a signal booster with tri-band, which means you can choose to enhance 3 bands of signal at the same time with the signal repeater. usually, we have two style booster A is 800-900-2100MHz  B is 900-1800-2100MHz. if you need other frequencies welcome to contact us for customized.


Before buying please note!!!
Make sure that the frequency band you need of phone signal, if you have no clue about the band please click the link: to check the frequency band of your carriers
Signal Name Uplink Downlink
CDMA800  824 - 849 MHz 869 - 894 MHz
GSM900 880-915 MHz 925-960 MHz
DCS1800 1710-1788 MHz 1805-1880 MHz
WCDMA2100 1920-1980 MHz 2110-2170 MHz
Output Power 18±2dBm 20±2dBm
Gain  60±2dB 65±2dB
What we have Freqency A: 800-900-2100
Freqency B: 900-1800-2100
Other Frequency Customizable


Mechanical Specification
Product Name Tri-Bands booster
Brand TXtelsig
Model No. TX-B-3P
RF Connector N-Female
Switch Power Switch
Power 23dBm
Gain 65dB
Cooling Heatsink Convection cooling
Humidity < 90%
Operating Temperature -20°C ~ +55°C
Environment Conditions IP40
Installation Type Wall Installation
Size 192mm×145mm×20mm
Weight 0.85Kg
Power Suply AC:100~240V, 50/ 60Hz;DC:12V 2A
