Waterproof wifi 2.4ghz 5.8ghz 10W dual band drone signal extender outdoors Drone enthusiasts

Basic Information

Place of Origin:	Shenzhen,China
Brand Name:	TX TELSIG
Certification:	SGS, ISO9001
Model Number:	TX-CM12

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	Foam Box
Delivery Time:	2 Days
Payment Terms:	L/C, T/T, Paypal,etc.
Supply Ability:	100,000pcs/month

Get Best Price Contact Now

Detail Information

Brand:	Texin	Product Type:	Dual Band Drone Signal Extender
Frequency:	Wifi 2.4 5.8ghz	Warranty:	1year
Max Output Power:	10w	Applications:	FPV Signal Booster Drone Signal Extender
Highlight:	cellular signal booster , mobile network signal booster

Product Description

Waterproof wifi 2.4ghz 5.8ghz dual band drone signal extender outdoors Drone enthusiasts

The waterproof wifi 2.4ghz 5.8ghz dual band drone signal extender can enhence the image transmit of drone .Outshell using high performance waterproof material that Unaffected by harsh environments.The wifi 2.4ghz 5.8ghz dual band drone signal extender each output 10W .It is more competitive than ordinary 5W drone power boosters on the market.
Product Feature :

Maximum output power 10W

Ultra-large capacity battery, 6400mAh

2.4G/5.2G/5.8G Tri-band dual-port working at the same time, free switching

All-aluminum shell, better cooling effect

Specifications :

Number	Items	Specifications
1	Frequency Range	2400-2500MHz	5150-5850MHz
2	Max Output Power	40dBm(10W)	40dBm(10W)
3	Antenna Gain	15dB±1	18dB±1
4	Battery Capacity	6400mAh
5	Receiving Gain	16dB±1	16dB±1
6	Transmission Gain:	18dB±1	18dB±1
7	Input Trigger Power	Min:3dBm Max:23dBm	Min:3dBm Max:23dBm
8	EVM	3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz	3%@33dBm 802.11a54Mbps OFDM 64QAM BW 20MHz
9	Noise Figure	＜2.5dB	＜2.5dB
10	Current Supply	2.2A@Pout 40dBm 12V	2.2A@Pout 40dBm 12V
11	TX/RX Switch Time Delay	＜1 us
12	Charging Voltage	22V/1.2A
13	RF Connector	N
14	Operating Temperature	-30℃～+70℃
15	Storage Temperature	-40℃～+150℃
16	Operating Humidity	Up to 95% rel. humidity
17	Shell Size	(mm)
18	Shell Material	Aluminum
19	Net Weight	Kg

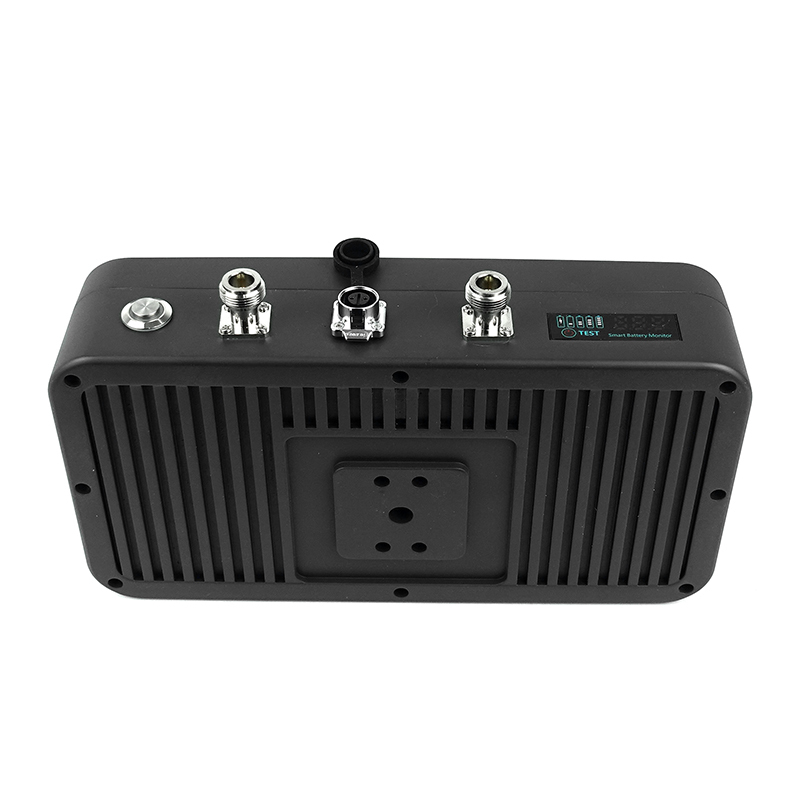

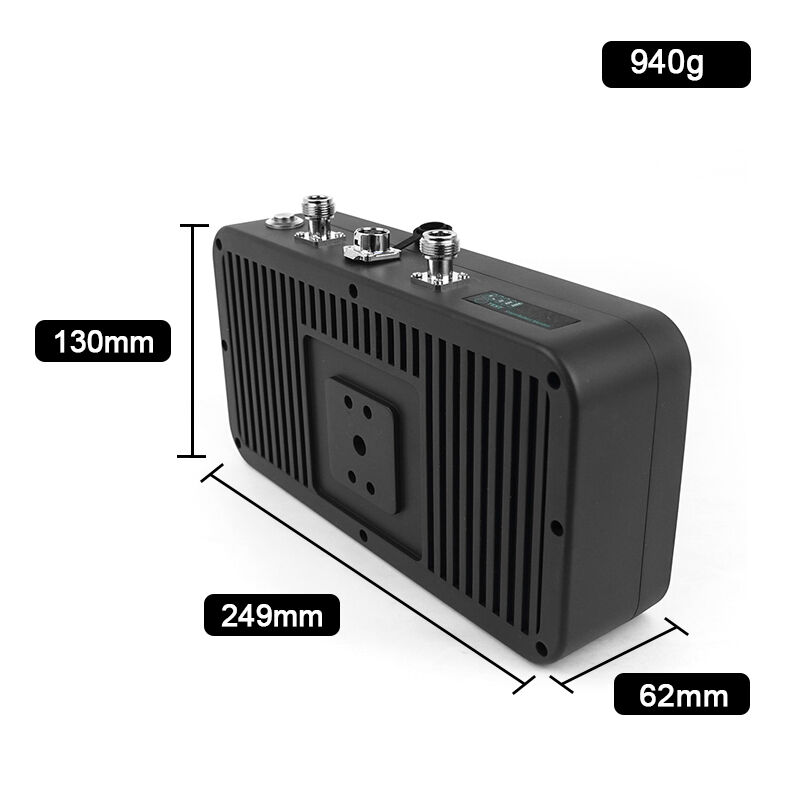

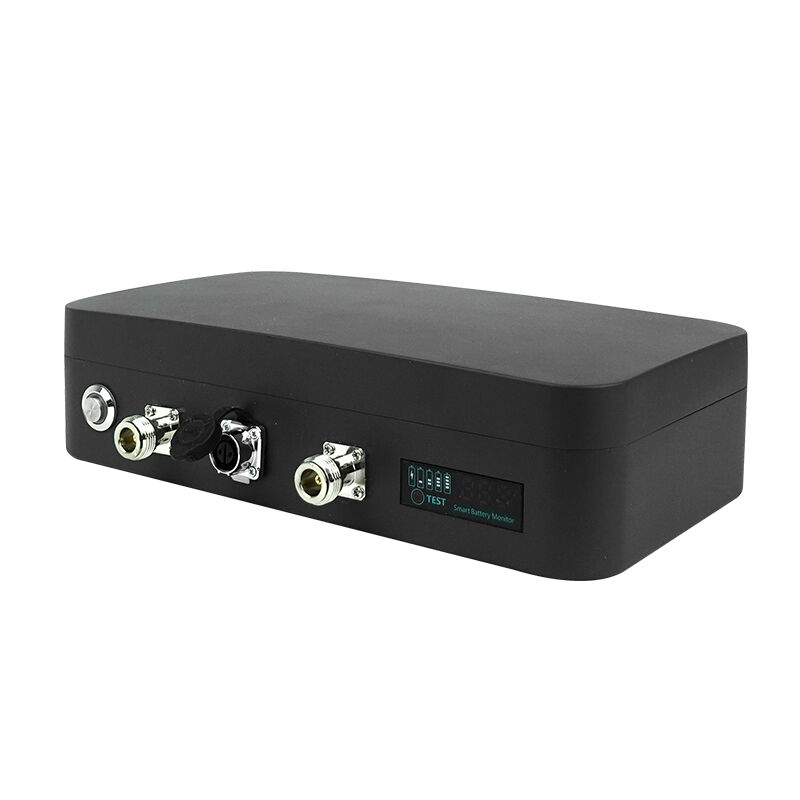

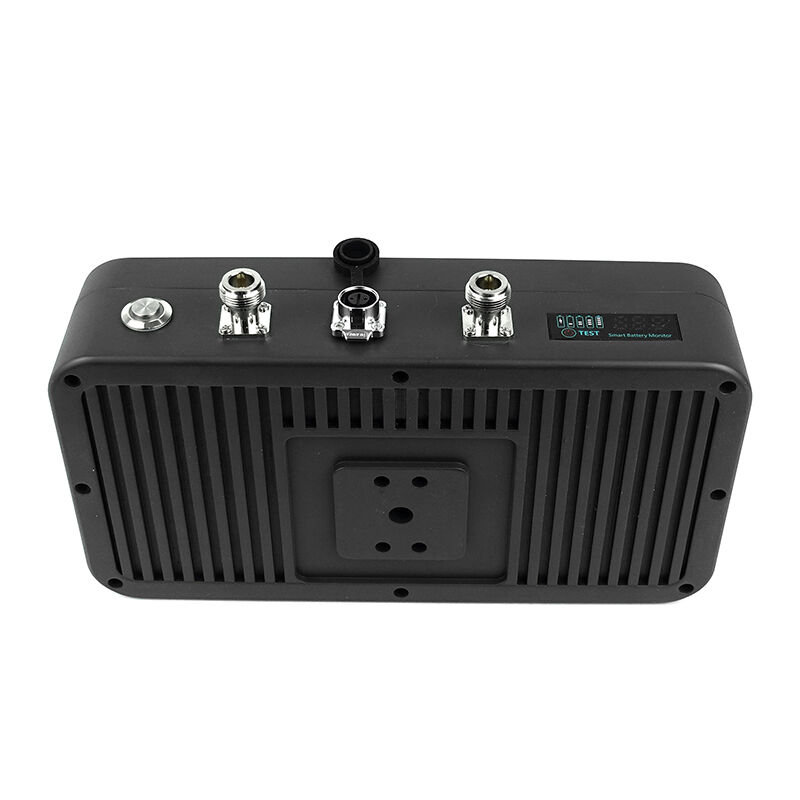

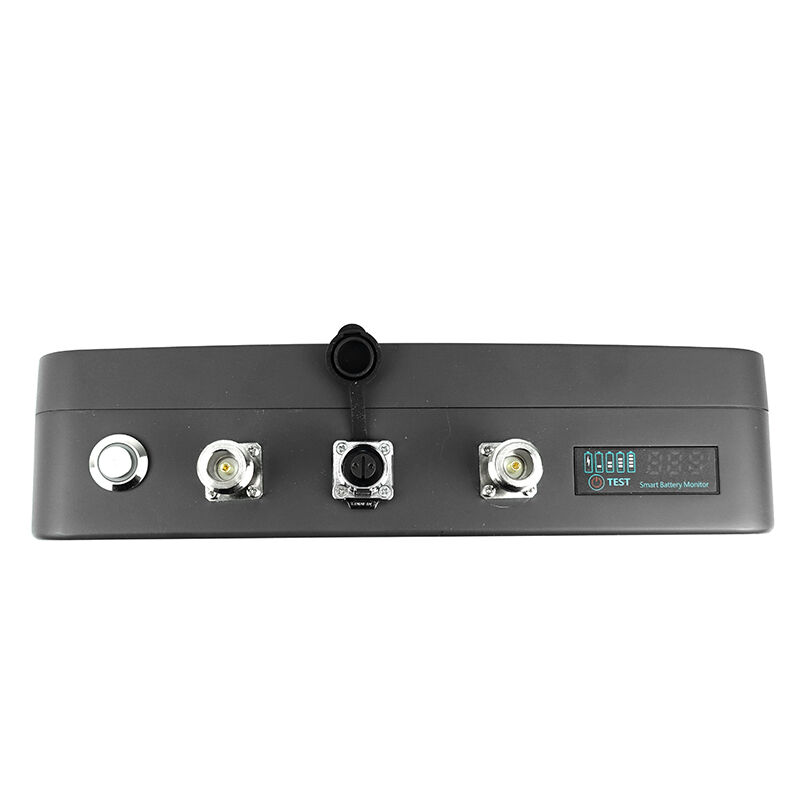

Pictures :

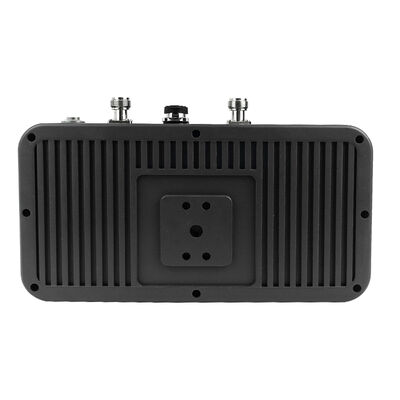

Waterproof wifi 2.4ghz 5.8ghz 10W dual band drone signal extender outdoors Drone enthusiasts 0
