802.11b / G / N Wlan Power Amplifier , 2.4GHz Rf Transistor Amplifier YP242434

Basic Information
Place of Origin: China
Brand Name: TX TELSIG
Certification: SGS, ISO9001
Model Number: YP242434
Minimum Order Quantity: 1
Price: Negotiation
Payment Terms: L/C, T/T, Western Union, Paypal,etc.
Detail Information
Frequency Range: 2400-2500MHz Operation: 3.3V~6.0V
Quiescent Current: 340mA Gain (Typ): 24dB
High Light:

rf power amplifier

,

radio frequency amplifier


Product Description

TXtelsig YP242434 Wifi RF Amplifier 2.4GHz 802.11b/g/n WLAN Power Amplifier

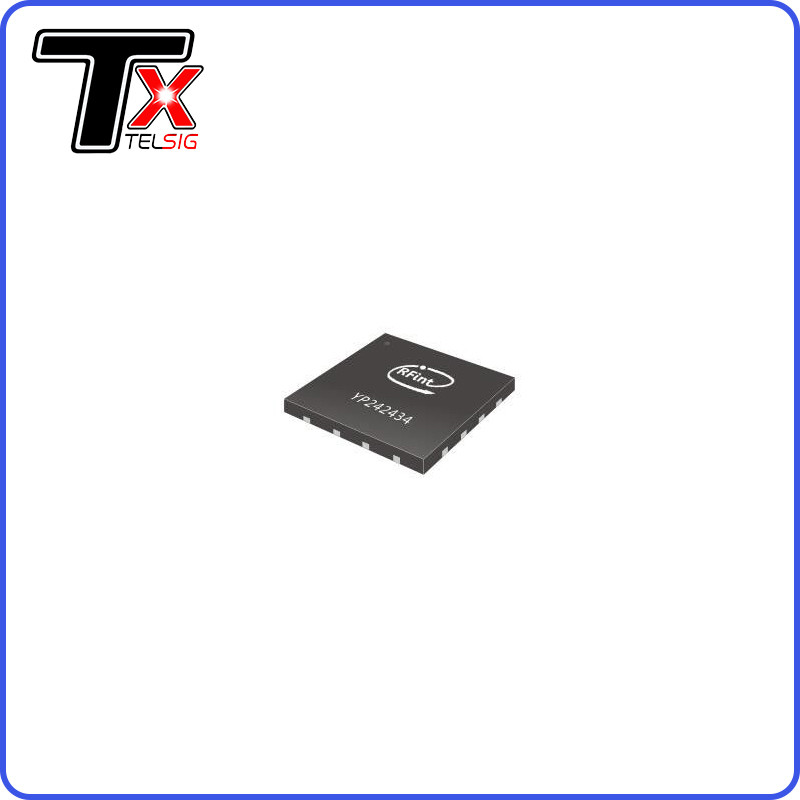

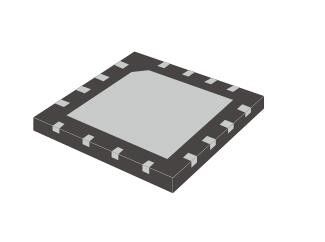

The YP242434 is a high-power, high- linearity power amplifier based on the highly-reliable InGaP/GaAs HBT technology. It can be easily configured for high-power, high- linearity applications with super power-added efficiency while operating over the 2.4~2.5GHz frequency band. The YP242434 is assembled in a 16-pin, 4×4mm2 QFN package. It is internally integrated with ESD protection unit.





Features
■ 2.4~2.5GHz Frequency Range
■ 3.3V~6.0V Operation
■ 24dB Gain (Typ)
■ 34dBm P1dB @VCC=6V
■ 340mA Quiescent Current
■ >15dB Input Return Loss
■ Integrated Output Power Detector



EVM for 802.11g 54Mbps
■ 2.5% EVM@28 dBm, 6.0V
■ 1.8% EVM@27 dBm 6.0V
■ 2.6% EVM@27 dBm, 5.0V
■ 2.2% EVM@25 dBm, 4.2V



EVM for 802.11n 81Mbps
■ 3% EVM@27.5 dBm, 6.0V
■ 2.3% EVM@27 dBm, 6.0V
■ 3.5% EVM@27 dBm, 5.0V
■ 3.0% EVM@23.5 dBm, 4.2V



Applications
■ IEEE 802.11b/g/n WLAN
■ 2.4GHz ISM Wireless Equipment





Ordering Information
■ YP242434 2.4GHz 802.11b/g/n WLAN Power Amplifier
■ YP242434EVB 2.4GHz to 2.5GHz Evaluation PCB



Caution! ESD sensitive device.

Exceeding any one or a combination of the Absolute Maximum Rating conditions may cause permanent damage to the device. Extended application of Absolute Maximum Rating conditions to the device may reduce device reliability.

Pin Description
Pin No.  Symbol  Description
2/5/14 DET Detector output signal
3 VR2 / VR1 / VR3 Bias current control voltage for the 2nd / 1st / 3rd stage
4, 8, 13, 15 RF IN RF input
6/7 NC No connection
9,10,11,12 VCC1 / VCC2 Stage 1 / Stage 2 collector voltage
16 VCCD Detector supply voltage



Parameter Rating  Unit
Input RF Power  20 dBm
Supply Voltage  -0.5 to +8.0  V
Bias Voltage  -0.5 to +3.0 V
DC Supply Current 1000 mA
Operating Ambient Temperature  -40 to +85 °C
Storage Temperature  -40 to +150 °C
