High Linearity RF Amplifier 1.8GHz - 2.8GHz Frequency 320mA Operation YP233433

Basic Information
Place of Origin: China
Brand Name: TX TELSIG
Certification: SGS, ISO9001
Model Number: YP233433
Minimum Order Quantity: 1
Price: Negotiation
Payment Terms: L/C, T/T, Paypal,etc.
Detail Information
Frequency Range: 1.8GHz-2.8GHz Operation: 320mA
Power Supply: 3~5V Gain (Typ): 35dB
High Light:

rf power amplifier

,

radio frequency amplifier


Product Description

TXtelsig YP233433 Wifi RF Amplifier 1.8GHz-2.8GHz High Linearity Power Amplifier

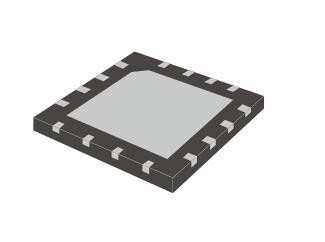

The YP243433 is a three-stage, high-linearity, high-gain power amplifier. The device is manufactured on an advanced InGaP/GaAs HBT process. This amplifier provides a typical gain of 35dB and P1dB power of 33dBm, typical bias condition is 5V at 320mA. The input are internally matched to 50Ω and require a minimum of external matching components to cover the entire 1.8GHz to 2.8GHz. The YP243433 is assembled in a 16-Pin, 4×4mm2, QFN package. It is internally integrated with ESD protection circuitry on all ports.



Applications

■ IEEE 802.11b/g/n WLAN

■ WiBro 2.3 GHz to 2.4GHz Applications

■ WiMAX 2.5 GHz to 2.7GHz Applications



Features

■ 35dB Gain(Typ)

■ 33dBm P-1dB @ VCC=5V

■ 2.5% EVM WLAN @Pout=27dBm, VCC=5V

■ 320mA Quiescent Current@ VCC=5V

■ 3~5V Power Supply

■ Integrated Output Power Detector

■ ESD protection all ports above 1000V HBM, forward and reverse voltage



Caution! ESD Sensitive Device.



ESD Rating: Class1C
Value: Passes≥1000V min.
Test: Human Body Model (HBM)
Standard: JEDEC Standard JESD22-A114



ESD Rating: Class IV
Value: Passes ≥1000V min.
Test: Charged Device Model (CDM)
Standard: JEDEC Standard JESD22-C101



MSL Rating: Level 3 at +260 °C convection reflow
Standard: JEDEC Standard J-STD-020



Pin Description
Pin No. Symbol Description
1, 3, 13, 16  NC No connection or connect to ground
2 RF IN RF input
4, 6 VREF1/VREF2 Bias current control voltage
5 VCTR Power on/off control voltage
7 VCCB Supply voltage for bias circuit
8 PDET Output power detector
9, 10, 11, 12 RFOUT&VCC3 RF output and Stage3 supply voltage
14, 15 VCC2/VCC1 Stage 2/Stage 1 supply voltage
