Spread Spectrum Solid State Linear Amplifier , Rf Driver Amplifier YP552228

Basic Information
Place of Origin: China
Brand Name: TX TELSIG
Certification: SGS, ISO9001
Model Number: YP552228
Minimum Order Quantity: 1
Price: Negotiation
Payment Terms: L/C, T/T, Paypal,etc.
Detail Information
Frequency Range: 4.9~5.9GHz Operation: 3.3V~5.5V
Quiescent Current: 240mA Gain (Typ): 22dB
High Light:

radio frequency amplifier


mmic power amplifier

Product Description

TXtelsig YP552228 Wifi RF Amplifier

The YP552228 is a 2-stage 4.9-5.9GHz high efficiency, high linearity power amplifier based on InGaP/GaAs HBT technology. The amplifier provides a typical gain of 22 dB and P1dB power of 30.5 dBm, typical bias condition is 5.5V at 240 mA. The input and output are internally matched to 50Ω and require a minimum of external matching components to cover the entire 4.9GHz to 5.9GHz. The YP552228 is assembled in a 16-pin, 4mm×4mm, QFN package.



■4.9~5.9GHz Frequency Range
■3.3V~5.5V Operation
■3.0% EVM@24dBm for 802.11a 54Mbps, 5.5V
■3.0% EVM@22.5dBm for 802.11a 54Mbps, 5V
■2.5% EVM@18dBm for 802.11a 54Mbps, 3.3V
■240mA Quiescent Current
■22dB Gain (Typ)
■>20dB Input Return Loss@5.8GHz
■On-Chip Power Detector


Ordering Information
■YP552228 5.8GHz Linear Power Amplifier
■YP552228EVB-1 5.2GHz to 5.8GHz Evaluation PCB
■YP552228EVB-2 5.6GHz to 5.9GHz Evaluation PCB



       ■ IEEE 802.11a/n WLAN

■ IEEE 802.16 WiMax

■ 5.8GHz RFID

■ Spread-Spectrum and MMDS Systems


Aution! ESD sensitive device:
ESD Rating: Class1C
Value: Passes≥1000V min.
Test: Human Body Model (HBM) Standard: JEDEC Standard JESD22-A114
ESD Rating: Class IV
Value: Passes ≥1000V min.
Test: Charged Device Model (CDM) Standard: JEDEC Standard JESD22-C101
MSL Rating: Level 3 at +260 °C convection reflow
Standard: JEDEC Standard J-STD-020

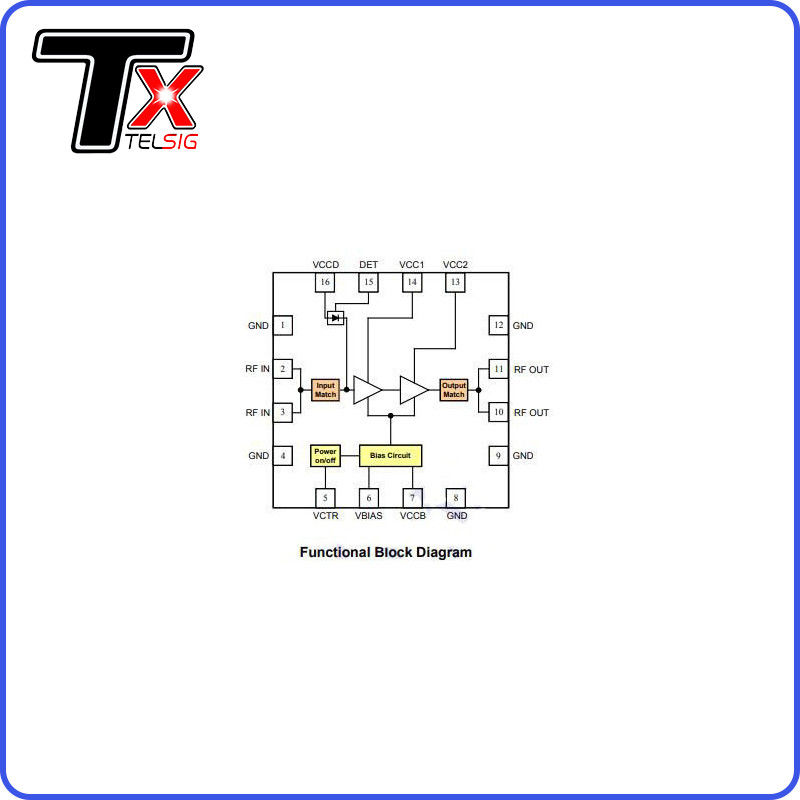

Pin Description
Pin No. Symbol Description
1, 4, 8, 9, 12 NC/GND No connection or Ground connection
2, 3 RF IN RF input
5 VCTR Power on/off control voltage
6 VBIAS Bias voltage
7 VCCB Supply voltage for bias
10, 11 RF OUT RF output
13 / 14 VCC2 / VCC1 Supply voltage for the 2nd / 1st stage
15 DET Provides an output voltage proportional to the RF level
16 VCCD Supply voltage for power detector
Pkg Base GND Ground connection


Absolute Maximum Ratings
Parameter Rating Unit
Input RF Power 15 dBm
Supply Voltage -0.5 to +7.0 V
Bias Voltage -0.5 to +4.0 V
DC Supply Current 1000 mA
Operating Ambient   °C
Temperature -40 to +85
Storage Temperature -40 to +150 °C
