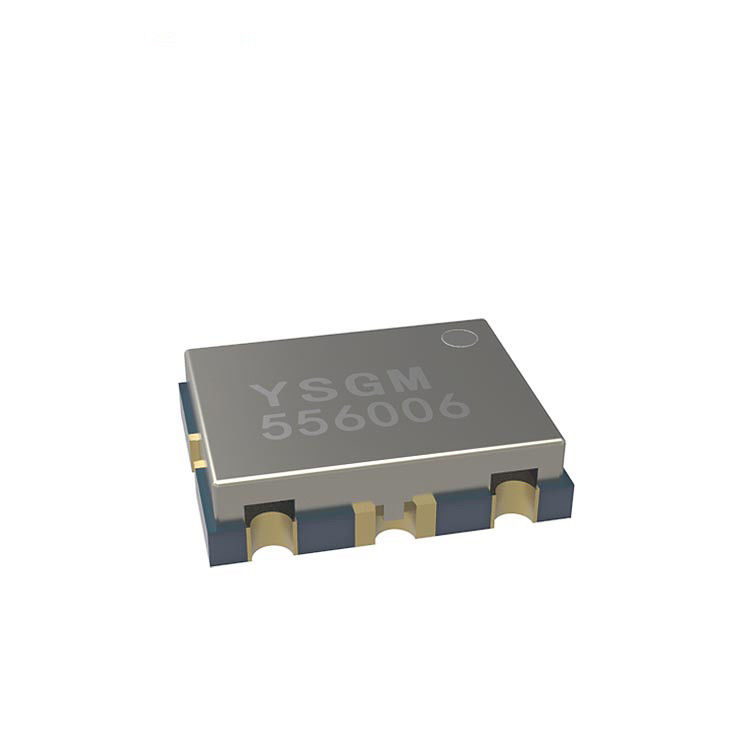

2 Stage VCO Voltage Controlled Oscillator 1200MHz - 1400MHz Frequency YGS121410

Basic Information
Place of Origin: China
Brand Name: TX TELSIG
Certification: SGS, ISO9001
Model Number: YGS121410
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Durable Case or Customized
Delivery Time: 2 work days
Payment Terms: T/T,Paypal,L/C,D/A,D/P,Etc.
Supply Ability: 200,000pcs/per month
Detail Information
Name: VCO Average Output Power: ≥ 10dBm
Flatness In Band: ± 0.3dB Working Current: 45mA
High Light:

analog devices vco

,

voltage controlled sine wave oscillator


Product Description

TXtelsig​ YGS121410 VCO 1200MHz to 1400MHz Voltage Controlled Oscillator



VCO Application:
1. Signal generator.
2. Used in electronic music to create transposition.
3. Phase lock loop.
4. Frequency synthesizer in communication equipment.



TXtelsig VCO features:
1. High integration and standard package size;
2. Arcade structure of two-stage transistor, small working current, high output power and good isolation;
3. Use high stability oscillating circuit structure, high precision varactor and high output power RF triode to ensure stable starting waveform and high output power
4. The system uses 5V standard voltage for power supply, and the maximum tuning voltage can reach 9V, thus realizing wide-band output;
5. The integrated rectifier filter unit and RF output matching unit only need a few peripheral components and have good output power flatness. The RF output terminal can be directly connected to 500 RF lines, which is convenient to use;
6. The device package adopts 7mm × 9mm × 2mm general package size, which can directly replace the products of the same type in the market.



Main performance indexes
Nominal tuning frequency band  1200-1400AHz
Average output power  ≥ 10dBm
Flatness in band  ± 0.3dB
Voltage  5V
Tuning voltage  0 ~ 9V
Working current  45mA
Frequency deviation caused by voltage change  ≤ 3mhzn
Frequency shift caused by change of output impedance  < 3 MHz PP
Frequency deviation caused by ambient temperature change  ≤ 0.2mhzc
Second harmonic suppression  ≤ - 25BC
Third harmonic suppression  ≤ - 25dB



Vco Corresponding To Different Frequency Bands
Band Frequency Corresponding VCO
CDMA800 869-894 YSGM081010
GSM900 925-960 YGSM081010
DCS 1805-1880 YGSM182010
LTE-F 1880-8920 YGSM182010
TD-SCDMA 2010-2025 YGSM202210
WCDMA 2110-2170 YGSM202210
LTE2300 2300-2390 YGSM232510
LTE2600 2550-2655 YGSM252710
2.4G WIFI 2400-2485 YGSM232510
5.8G WIFI 5700-5850 YGSM556006
Walkie talkie 135-175 Customizable
400-470
others



VCO Model & Specification
NO. Model Freqency
MHz
Work Voltage Tuning Voltage Ave Output Work Current Flatness in band
(BW≤120MHZ)
Second Harmonic Suppression Third Harmonic Suppression Output Resistance
1 YSGM081010 800-1000 5V 0-5V ≥10 dBm 43 mA ±0.5dB ≤-30dBc ≤-25dBc 50Ω
2 YGSM121410 1200-1400 5V 0-5V ≥10 dBm 43 mA ±0.5dB ≤-25dBc ≤-25dBc 50Ω
3 YSGM151710 1500-1700 5V 0-5V ≥10 dBm 43 mA ±0.5dB ≤-30dBc ≤-25dBc 50Ω
4 YSGM182010 1800-2000 5V 0-5V ≥10 dBm 43 mA ±0.5dB ≤-25dBc ≤-25dBc 50Ω
5 YSGM202210 2000-2200 5V 0-5V ≥10 dBm 43 mA ±0.5dB ≤-25dBc ≤-25dBc 50Ω
6 YSGM232510 2300-2500 5V 0-5V ≥10 dBm 38mA ±0.5dB ≤-25dBc ≤-25dBc 50Ω
7 YSGM252710 2600-2700 5V 0-5V ≥10 dBm 38mA ±0.5dB ≤-25dBc ≤-20dBc 50Ω
8 YGSM333606 3300-3600 5V 0-9V ≥6dBm 25mA ±0.5dB ≤-25dBc ≤-20dBc 50Ω
9 YGSM455006 4800-5000 5V 0-9V ≥6dBm 25mA ±0.5dB ≤-25 dBc ≤-20 dBc 50Ω
10 YGSM505506 5150-5350 5V 0-9V ≥6dBm 21mA ±0.5dB ≤-25 dBc ≤-20 dBc 50Ω
11 YSGM556006 5725-5850 5V 0-5V ≥6dBm 21mA ±0.5dB ≤-20 dBc ≤-25 dBc 50Ω
