Name: Customized High power power supply 3000W 30V32V36V 100A with fans AC to DC
Brand: Shenzhen TeXin electronic Co., Limited
SKU: TXDC3000W
Price: 4,004.00 USD
Availability: InStock

Detail Information

Brand:	Texin	Type:	AC DC Power Supply
Voltage:	Customized	Current:	100A
Marterial:	Durable Alluminum Alloy	Size:	29215265mm
Weight:	2.65kg	Application:	Drone Jammer
Highlight:	Customized High power power supply , 3000W High power power supply

Product Description

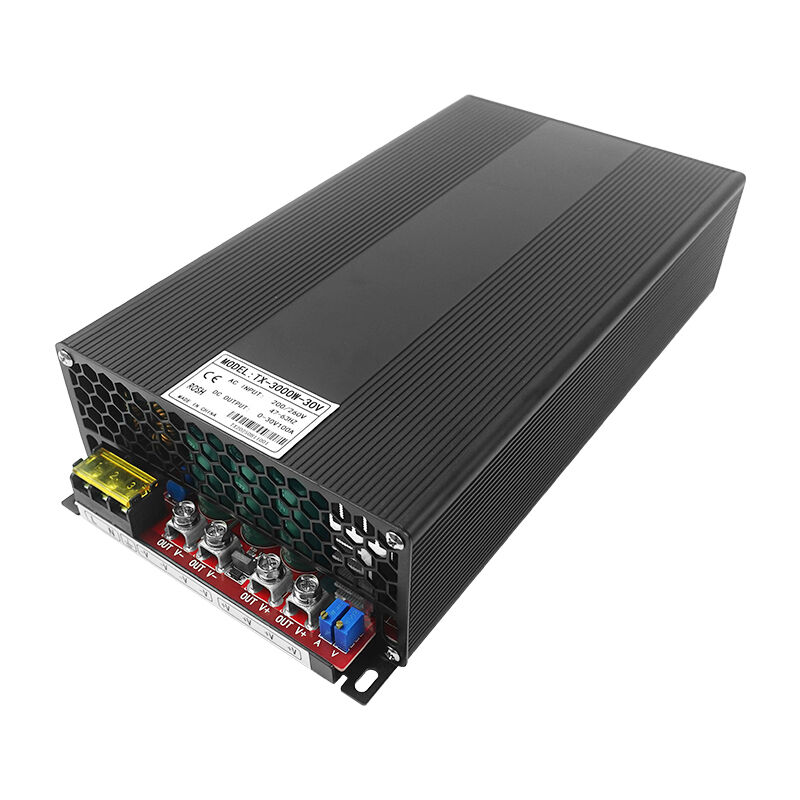

Customized High power 3000W 30V32V36V 100A with fans power supply AC to DC

TXDC3000W AC to DC power supply can applicate various kinds of area that it produce by Shen Zhen Texin electronics Co.,ltd which has a battery factory in Shen Zhen China .We can meet your requirement customized like 600W 700W 1000W 2000W 300W ect .The TXDC3000W AC to DC power supply can use in multiple area like drone signal jammer ,the signal communication device .

TheTXDC3000W has passed quality testing and possess various certifications. Inquiries and orders are welcome.

Product Feature

1. Factory manufactured for safety and reliability

2. Low power consumption and high efficiency

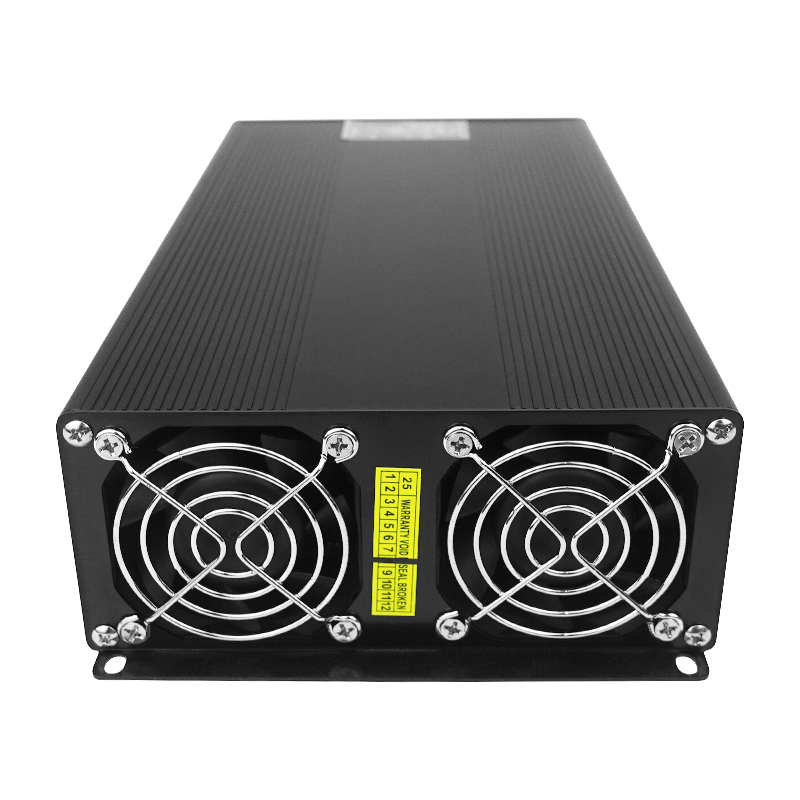

3. Built-in fan design for efficient heat dissipation

4. Ultra-high power 3000W, supporting the operation of large equipment

Specification

Parameter
model Parameter		TXDC2000W
Fetures	Output voltage	0-30Vadjustable
	Output current	100A
	Current range	0-100A
	Wave	320mVp-p
	Output accuracy	±1%
	Line adjustment rate	±100%
	Load regulation	±100%
	Rated power	3000W
	Output adjustable range	±100%
	Establish, rise, and maintain time	250ms,30ms,20ms/220VAC
Input Fetures	Input voltage range	200-260VAC
	Input current	22A
	Frequency	47-63HZ
	efficiency	92%
	Inrush current	40A/230V
	Leakage current	＜2Ma/230V
Protective features	Overload protection	105-110%Rated power, constant current step-down
Other functions		Fan temperature control speed adjustment
Environment		-40℃-+50℃@100%LOAD,+60℃@60%LOAD,20%-90%RH
	Storage temperature	-20℃-+85℃,10%-95%RH
	Humidity drift	±0.03%/℃(0-50℃)
	vibration	10-500HZ,2G 10min/1cycle,PERLOD ROR 60min.EACHAXES
Safety		MEET GB4943
	Pressure resistance	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O-P/FG:0.5KVAC 1min
	Insulation resistance	I/P-O/P,I/P-FG,O/P-FG : 500VDC/100M Ohms

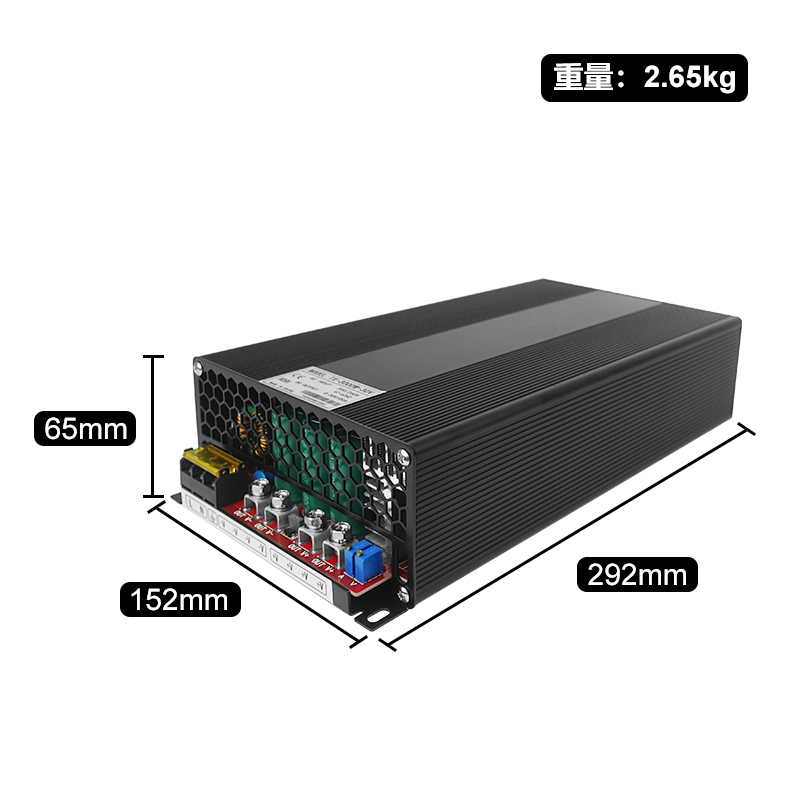

Other	Size	29215265mm
Other	Single weight	2.65kg
Packing	6pcs/pieces	17KG/pieces

Application

1. Movie, Theatre, Hospital, Religion Places, Churches

2. School, University, Class room, Libraries

3. Prison, Police forces, Military and Government

4. Petrochemical Industry

5. Sports V enues

6. VIP convoy protection

7. Bomb Prevention&Disposal

Details

Customized High power power supply 3000W 30V32V36V 100A with fans AC to DC 0

Tag:

Place of Origin:	China
Brand Name:	TX TELSIG
Certification:	SGS,ISO9001
Model Number:	TXDC3000W

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Durable case or box
Delivery Time:	In 2 work day
Payment Terms:	T/T,Paypal, Etc.
Supply Ability:	100,000pcs/month
