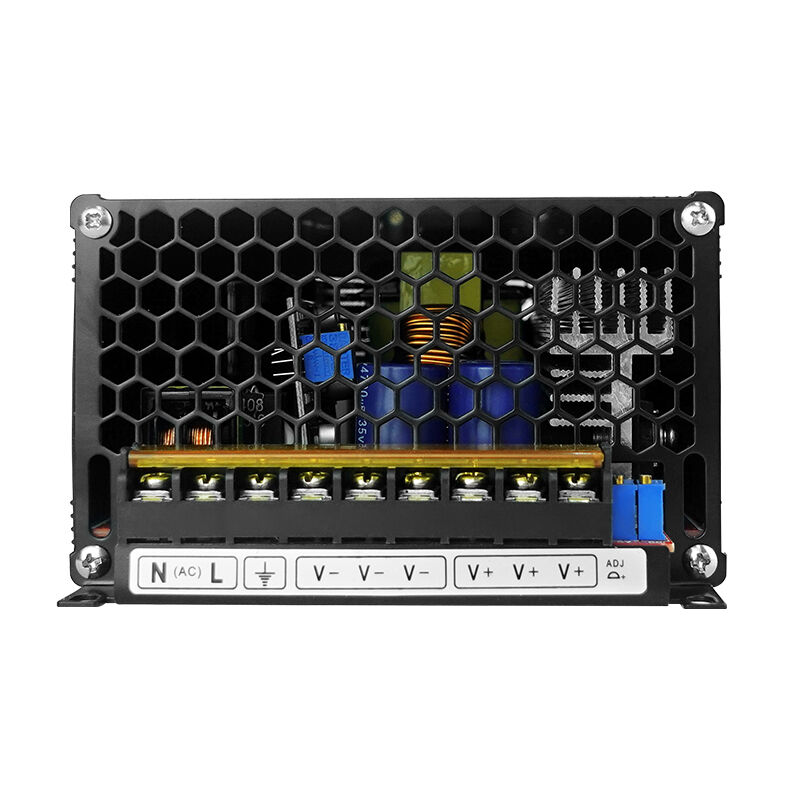

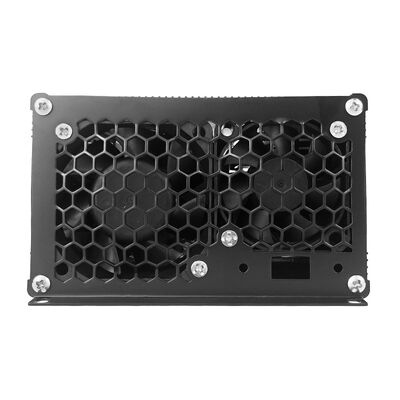

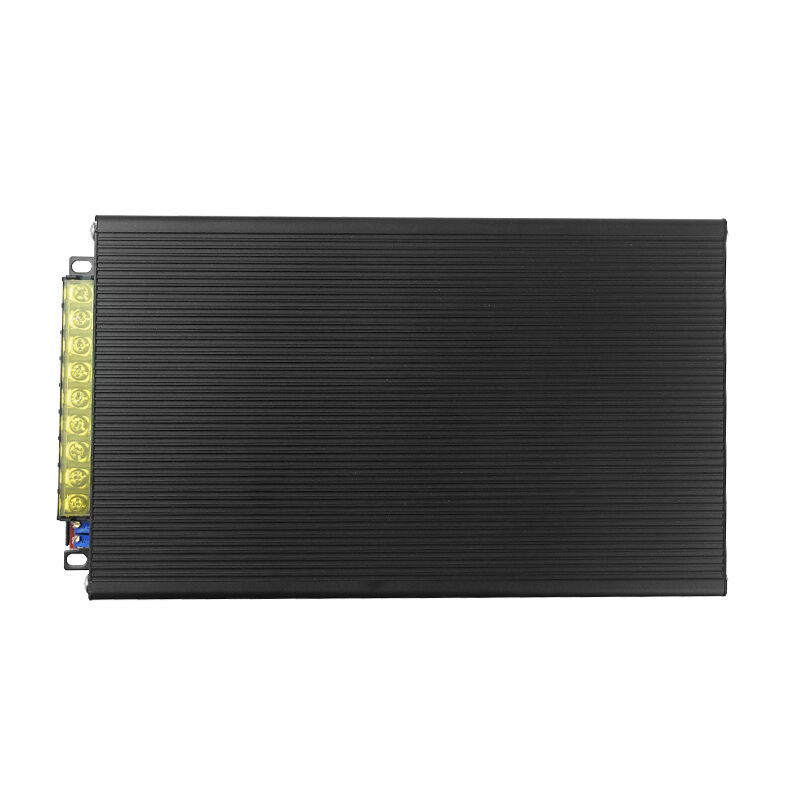

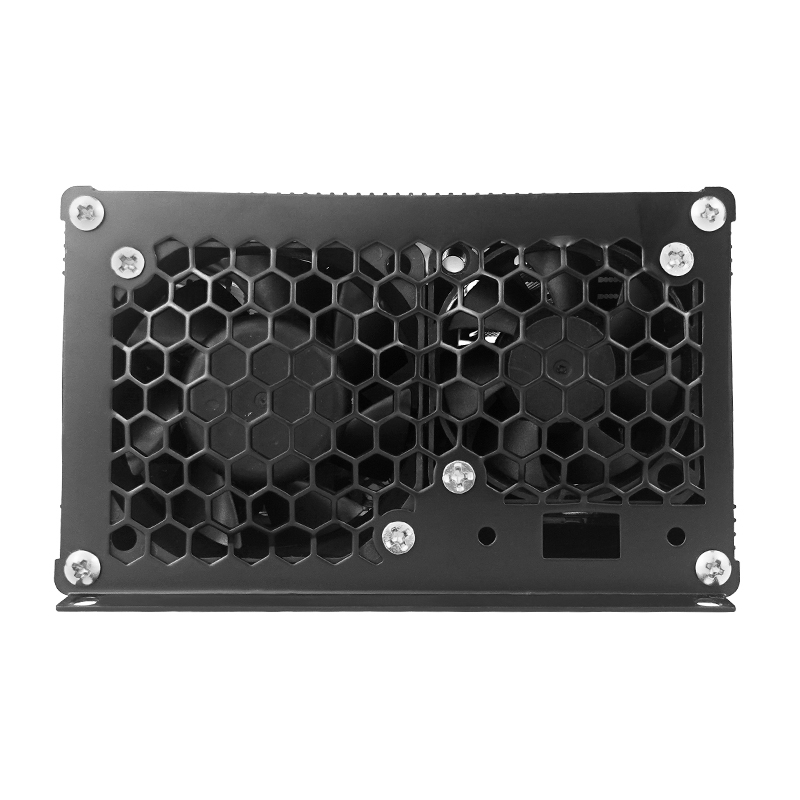

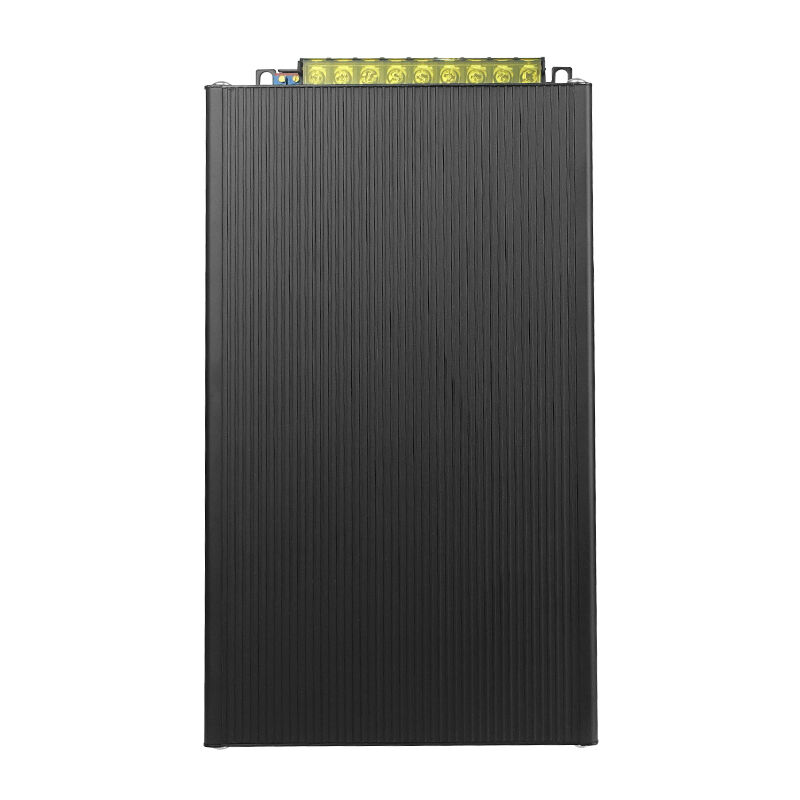

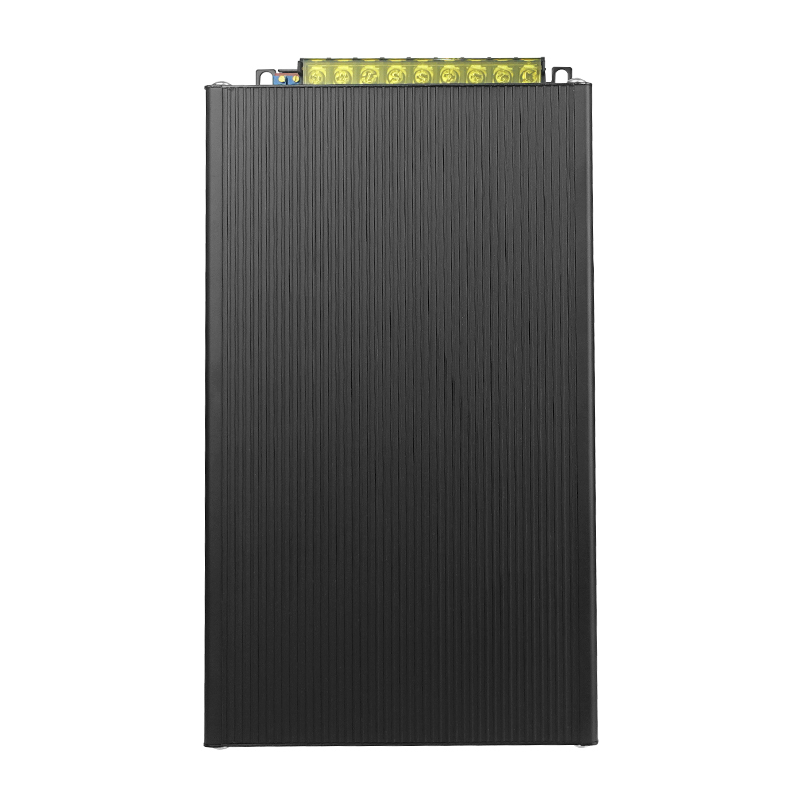

Portable power supply 1500W 28V 53A base station device applicated

Basic Information
Place of Origin: China
Brand Name: TX TELSIG
Certification: SGS,ISO9001
Model Number: TX1500W
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Durable case or box
Delivery Time: In 2 work day
Payment Terms: T/T,Paypal, Etc.
Supply Ability: 100,000pcs/month
Detail Information
Type: Power Supply Wattage: 1500W
Current: 53A Voltage: 28V
Weight: 1.61kg Size: 241*124*76mm
Application: Electronics Device Outshell Material: Aluminum
Highlight:

cell phone frequency jammer

,

high power cell phone jammer

,

100W Mobile Network Jammer Device


Product Description

Portable power supply 1500W 28V 53A base station device applicated





TX1500W  is a high power 1500W  portable power supplier with advanced heat cooling system. It is a high power power supply , the power up to 100W for more significant effect. The power supply can  meet your needs as much as possible. And the power supply  with cooling fans even if high operate it will not effectve . that means you can choose it as equipment parts .



TXtelsig is the leading manufacturer to design and produce signal jamming and wireless coverage product with professional and experienced research and development teams. We have the strength to provide you with the most cost-effective products and plan.



Feature

1. Factory manufactured for safety and reliability

2. Low power consumption and high efficiency

3. Built-in fan design for efficient heat dissipation

4. Ultra-high power 1500W, supporting the operation of large equipment



Application
The Desktop mobile phone signal shielding device can be used for security of important leading VIP, individual combat, special police team, security checkpoint, anti-terrorism unit, anti-drug unit, anti-riot team, security checkpoint, administrative law enforcement, appointment negotiation, border control And military security forces and other applications





Parameter

model

Parameter

TX1500W
Fetures Output voltage 0-30Vadjustable
Output current 53A
Current range 0-100A
Wave 320mVp-p
Output accuracy ±1%
Line adjustment rate ±100%
Load regulation ±100%
Rated power 1500W
Output adjustable range ±100%
Establish, rise, and maintain time 250ms,30ms,20ms/220VAC
Input Fetures Input voltage range 200-260VAC
Input current 22A
Frequency 47-63HZ
efficiency 92%
Inrush current 40A/230V
Leakage current <2Ma/230V
Protective features Overload protection 105-110%Rated power, constant current step-down
Other functions   Fan temperature control speed adjustment
Environment   -40℃-+50℃@100%LOAD,+60℃@60%LOAD,20%-90%RH
Storage temperature -20℃-+85℃,10%-95%RH
Humidity drift ±0.03%/℃(0-50℃)
vibration 10-500HZ,2G 10min/1cycle,PERLOD ROR 60min.EACHAXES
Safety   MEET GB4943
Pressure resistance I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O-P/FG:0.5KVAC 1min
Insulation resistance I/P-O/P,I/P-FG,O/P-FG : 500VDC/100M Ohms

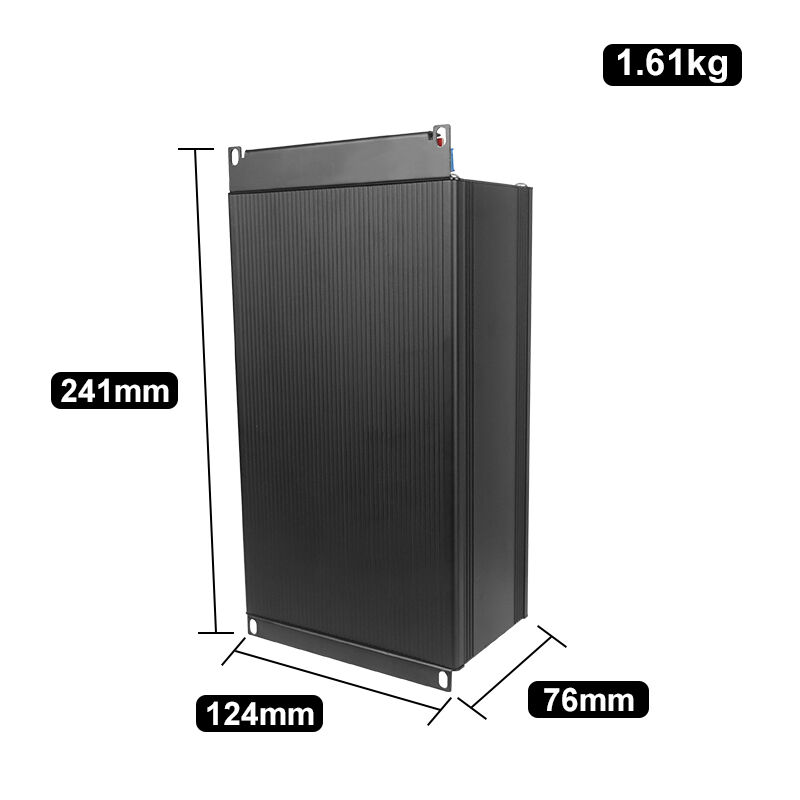

Other Size 241*124*76mm
Single weight 1.61kg
Packing 6pcs/pieces 17KG/pieces



Portable  power supply 1500W 28V 53A base station device applicated 0
