Long Range WIFI 5.8ghz 50W drone Signal Jammer Jammer For Jamming illegal drones

Basic Information
Place of Origin: Shenzhen,China
Brand Name: TX TELSIG
Certification: SGS,ISO9001
Model Number: TX-N12
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Durable case or box
Delivery Time: In 2 work day
Payment Terms: T/T,Paypal, Etc.
Supply Ability: 100,000pcs/month
Detail Information
Brand: Texin Type: Drone Jammer Module
Power: 50W Frequency: Wifi 5.8ghz
Size: 150*53*20mm Weight: 316g
Application: Anti Drone System
Highlight:

dual band signal booster

,

mobile network signal booster


Product Description

Long Range WIFI 5.8ghz 50W drone Signal Jammer Jammer For Jamming illegal drones

If you are being harassed by illegal drones, this WiFi 5.8GHz N-connector drone countermeasure module is the best solution. This drone countermeasure module uses wireless radio frequency technology and has a built-in signal source chip that can transmit interference signals over long distances, cutting off the drone's image transmission channel and forcing the drone to return to base.

Shen Zhen Texin electronics Co.,ltd focus on the RF wireless fields more  than 10 years ,all the products can provide customizatiuon service and we can offer the unique solution to you.



Product features:



1.The frequency operating wifi 5.8ghz 50W

2.28V volatge current 6A

3.With aluminum alloy material , antirust , anti-fall , very rugged and durable .

4.Good heat dissipation , which can make jammer work normally , and have good performance.

5.The jamming range is up to500-1000meters ,(up the real environment)can meet daily needs .

6.Support vehicles ,fixed jammer system ,portable



Specifications :

No. Item Data Unit
1 Frequency 5800 MHz
2 Test voltage 28 V
3 Current 4.2 A
4 Output 50 W
5 Gain 47 dB
6 Output stability 1 dB
7 Connector N / male
8 Output connector VSWR ≤1.30 (No power and VNA test)
9 Power supply wire Red+Black+Enable wire
10 Enable Control High ON Low Off
11 Out shell Size 150*53*20mm mm
12 Mount hole 48*126 mm
13 Weight 316 g
14 Work Temperature -40~+65
15 Out shell material Aluminum
16 Vibration need Car load OK



Application:

School :The 5.8ghz 50W jammer module as the teaching tool can learn the RF Knowledge

Sovernment departments:The 50W 5.8GHz can jamming the fpv that can protect the pravicy of the government

Jail:To prevent prison staff from using drones to transmit information to the outside world

Concert:As a security facility to ensure the concert can proceed normally.

Pictures:

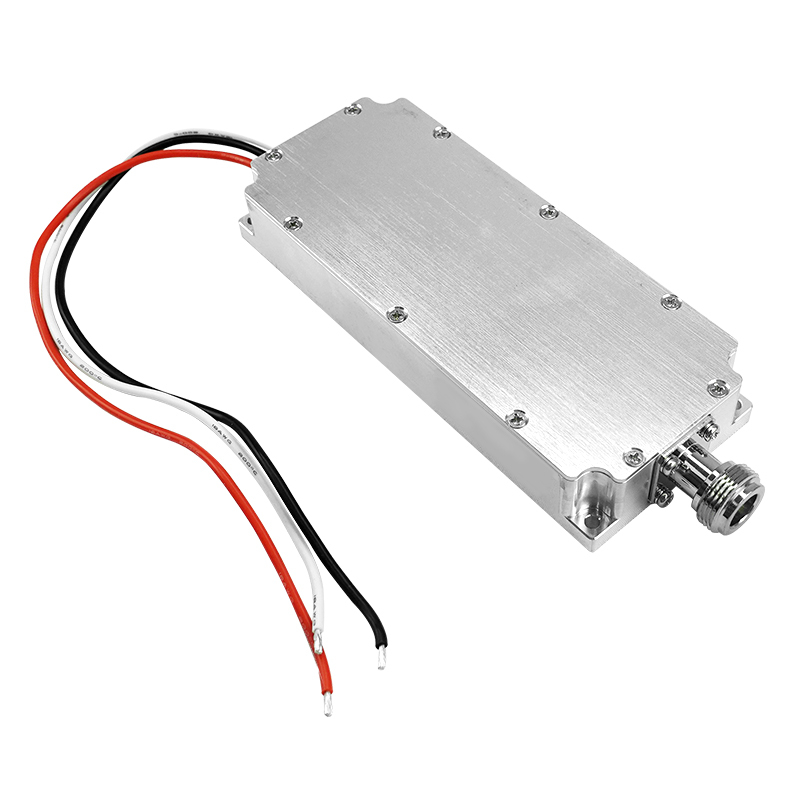

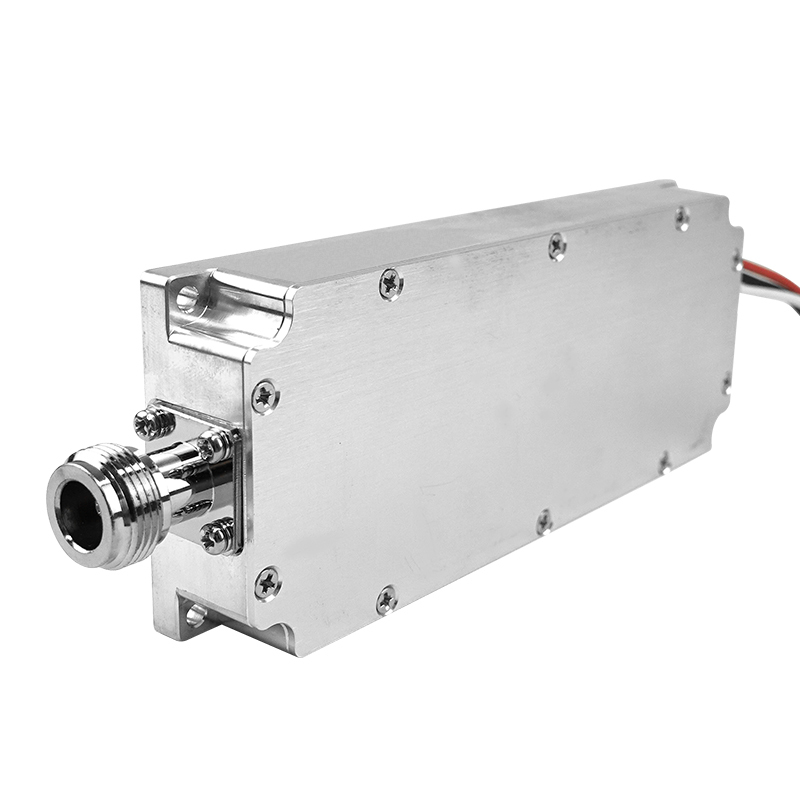

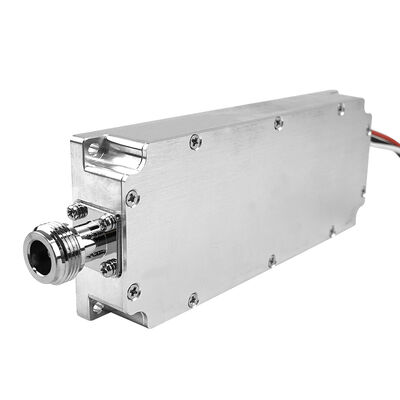

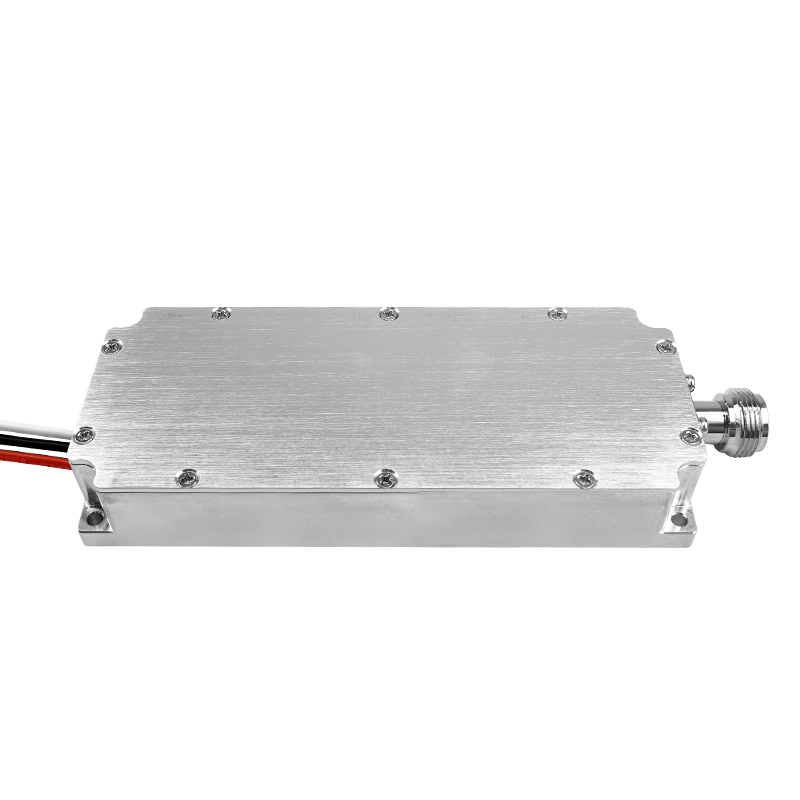

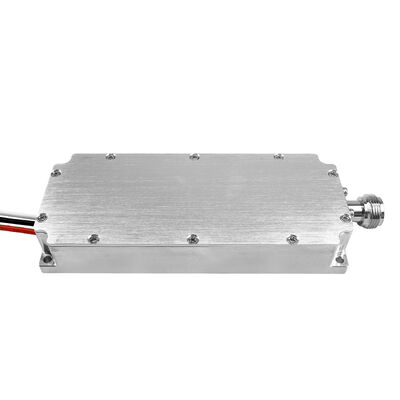

Long Range WIFI 5.8ghz 50W  drone Signal Jammer  Jammer For Jamming illegal drones 0

Long Range WIFI 5.8ghz 50W  drone Signal Jammer  Jammer For Jamming illegal drones 1

Long Range WIFI 5.8ghz 50W  drone Signal Jammer  Jammer For Jamming illegal drones 2
