| Place of Origin: | China |
|---|---|
| Brand Name: | TX TELSIG |
| Certification: | SGS,ISO9001 |
| Model Number: | TX-B8H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Durable case or box |
| Delivery Time: | In 2 work day |
| Payment Terms: | T/T,Paypal, Etc. |
| Supply Ability: | 50,000pcs/month |
| Type: | Phone Signal Blocker | Antenna: | 8 Band (max To 16) |
|---|---|---|---|
| Jamming Type: | 2G,3G, 4G,GPS,Wifi,Customized | Customized Frequency: | 20Mhz-6.5Ghz By Different Country&customer Need |
| Jamming Range: | 5-20 Meter | Marterial: | Durable Alluminum Alloy |
| Size: | 310*110*40 Mm | Weight: | 3.0kg |
| High Light: | cell phone frequency jammer,high power cell phone jammer |
||

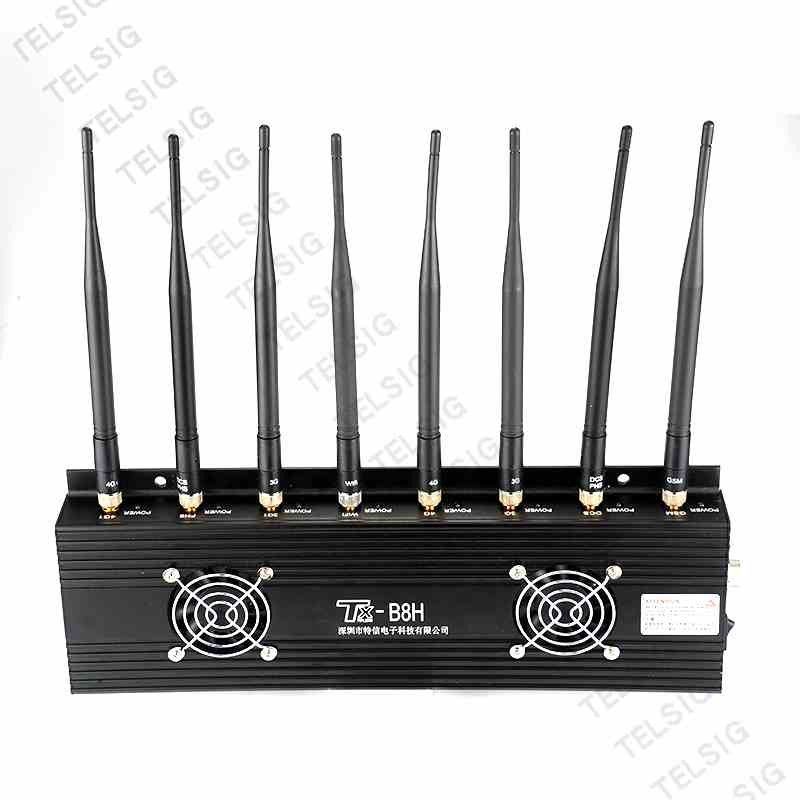

8 Channel Signal Jamming Device , Anti GPS Tracking Cell Phone Blocker OEM / ODM Service
TX-B8H this GPS signal jammer can high effectively anti GPS tracking and threatening at range of 5-20
meter continuously 24hours at good performance.
Also, it can block various customized signals of Phone,WIFI etc.
The "Frequency&Antenna" be customized by different country standard and specific need.
TXtelsig is specialized in designing and producing the signal jamming and wireless coverage product.
Feature
1. High Power Output to jam GPS tracking quickly and effectively
2. 8 frequency band to be customized to jam the specific signal as required
3. Stable signal-blocking effect
4. Wide jamming range of 5-20 meter
5. Aluminum alloy shell helps the heat dissipation and keep the device in a low temperature for long time
operation
Specifications
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | CDMA | 851-894MHz | 39dBm/8W |
| 2 | GSM | 925-960MHz | 39dBm/8W |
| 3 | DCS or PCS | 1805-1880 or | 38dBm/6W |
| 1920-1990MHz | |||
| 4 | 3G | 2110-2170MHz | 38dBm/6W |
| 5 | 4G1 LTE | 700-803 or | 37dBm/5W |
| 790-862MHz | |||
| 6 | 4G LTE1700 | 1700-1800MHz | 37dBm/5W |
| 7 | 4G Wimax | 2500-2690 | 36dBm/4W |
| or 2300-2400MHz | |||
| 8 | WIFI2.4G | 2400-2500MHz | 36dBm/4W |
| 9 | GPS1.5G | 1570-1580 MHz | 32dBm/2W |
| Power supply: AC adapter 50 to 60Hz, (110-240V AC-24V DC) | |||
| Dimensions: 310*110*40mm | |||
| Weight: 3.0KG | |||
| Total power:25W | |||
| Shielding radius: 5-20 meter (depends on signal environment ) | |||
| Warranty: one year from delivery date | |||
