Detail Information

Frequency:	Customized	Work Temperature:	-20~+70℃
Max Output Power:	50	Weight:	396g
Work Voltage:	DC28v	Size:	1455420mm
Standing Wave Protection:	OK	Power Amplifier Efficiency:	45(when Max Output)
Highlight:	wifi cellphone jammer , mobile phone signal jammer

Product Description

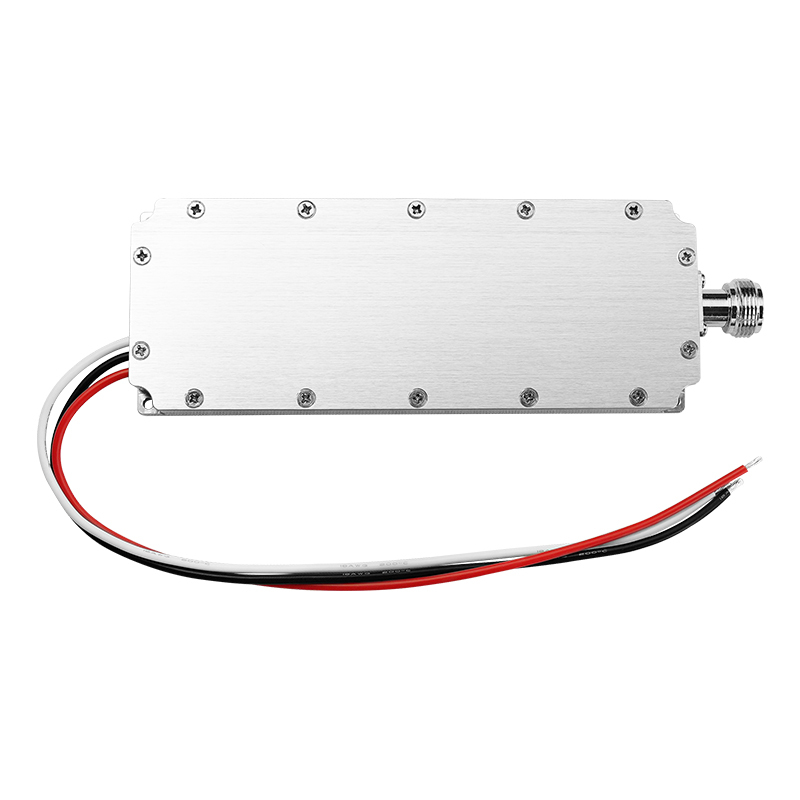

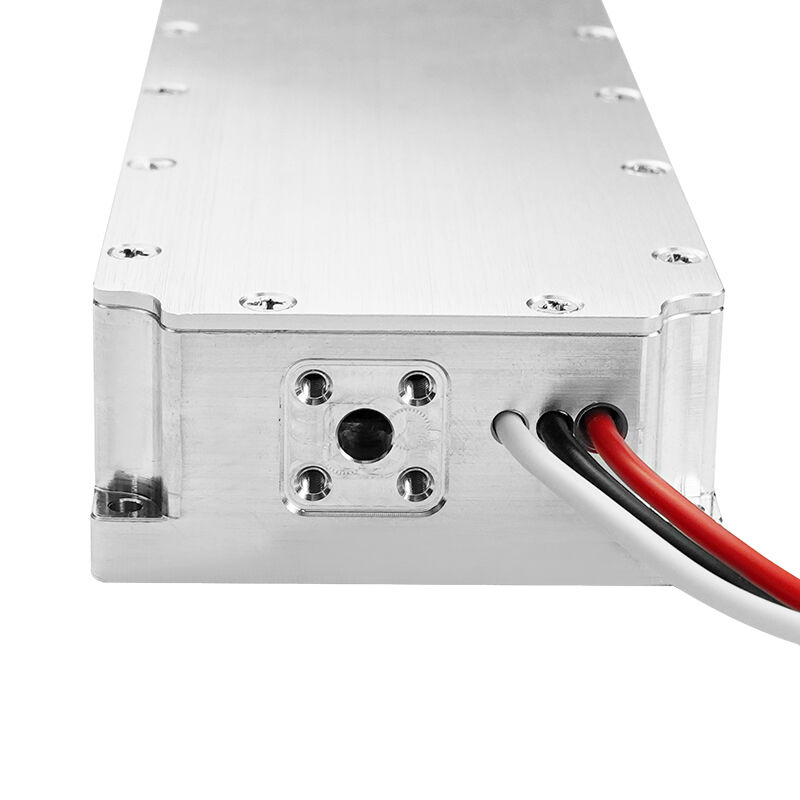

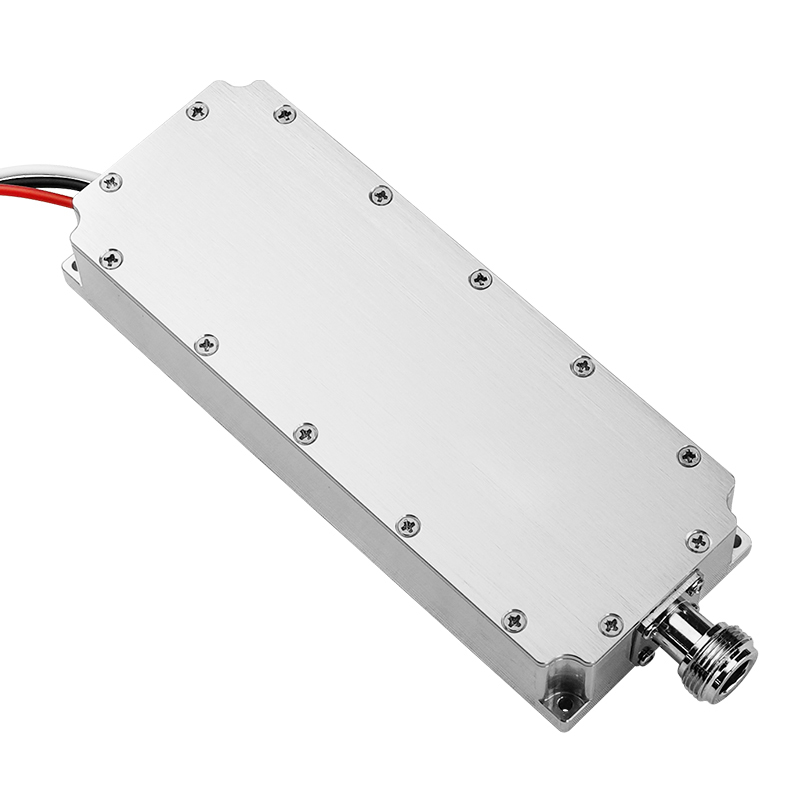

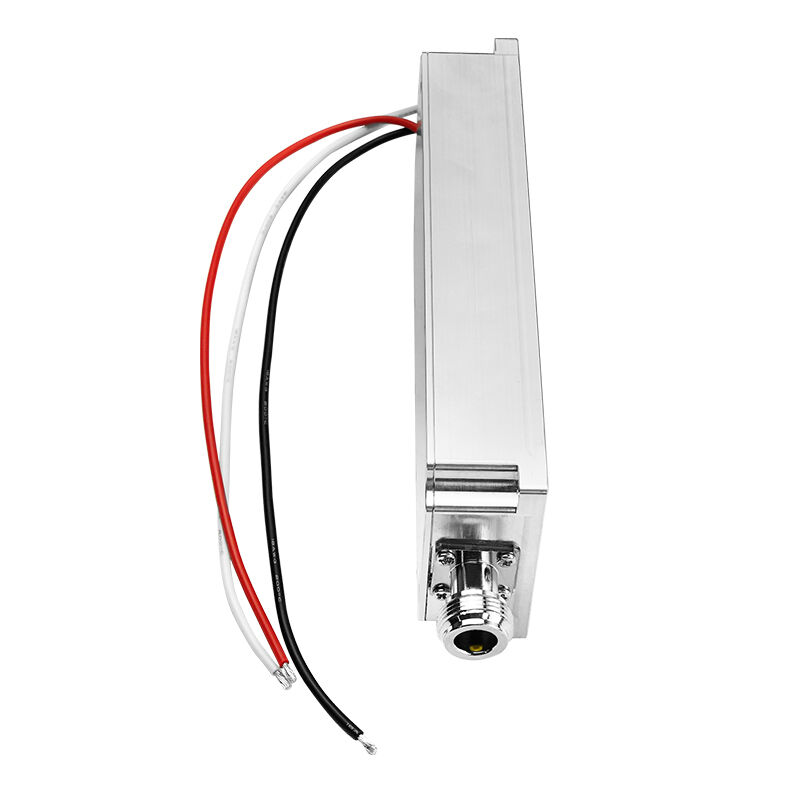

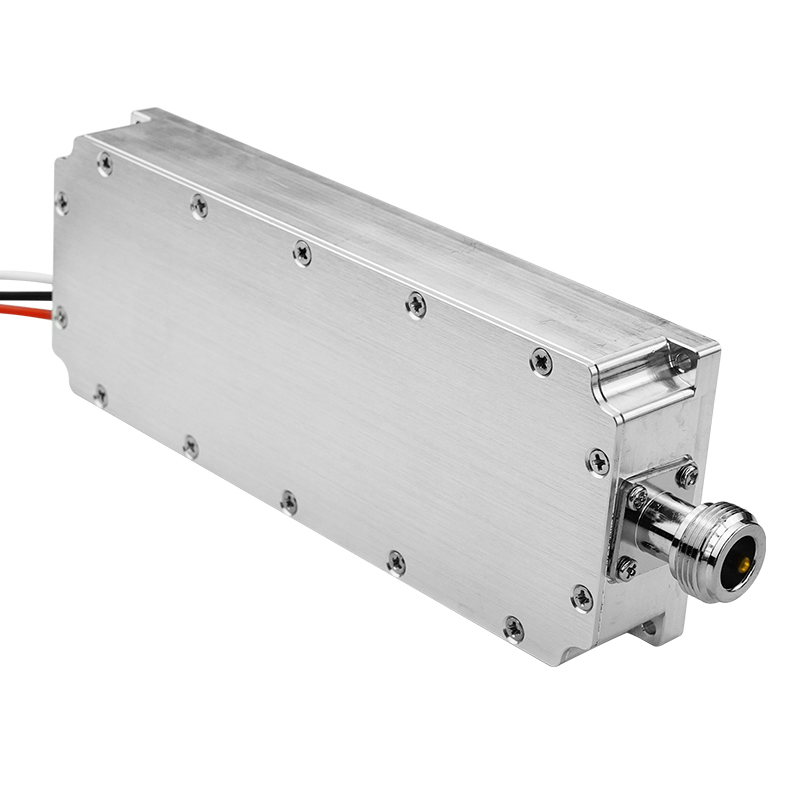

TX Long Distance Jamming 50W 100-7200MHz Anti-Drone Power Amplifier Module for Government

It is a wireless information security module dedicated to 100-7200MHz signals. This module has the advantages of high average output power, good in-band flatness, and small offset between upper and lower sidebands.

Regular type with signal source,if you want without signal source type also can offer(input signal 0-10dBm)

Technical Specifications

No.	Item	Data	Unit
1	Frequency	Customized	MHz
2	Test Voltage	28	V
3	Current	4	A
4	Output	50	W
5	Gain	47	dB
6	Output Stability	1	dB
7	Connector	SMA / Female
8	Output Connector VSWR	≤1.30 (No power and VNA test)
9	Power Supply Wire	Red+Black
10	Enable Control	High ON Low Off

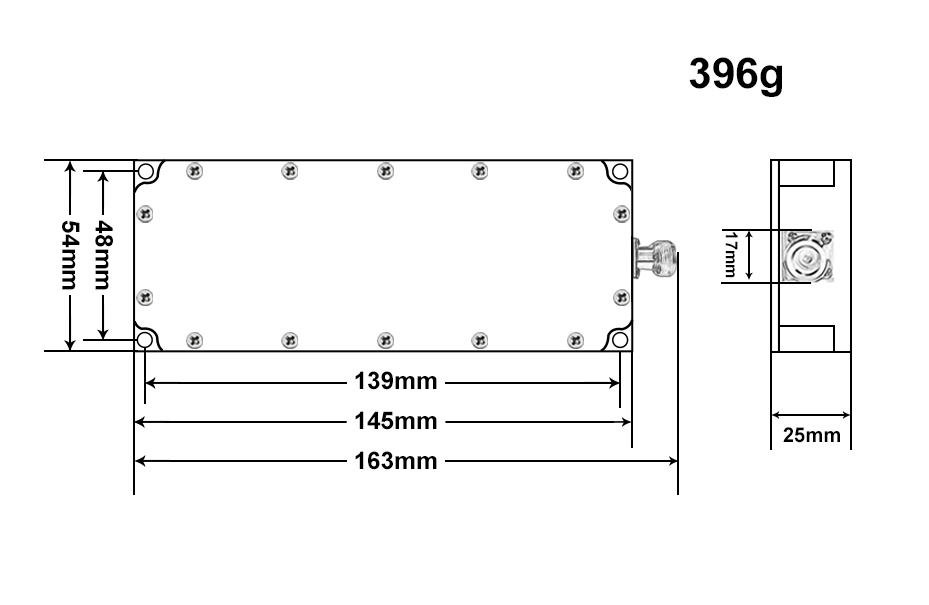

11	Out Shell Size	1455420	mm
12	Mount Hole	17*25	mm
13	Weight	396	g
14	Work Temperature	-40~+125	℃
15	Out Shell Material	Aluminum
16	Vibration Need	Car load ok
17	Input	0-10dbm

Key Features

50W output with low power consumption
Lightweight 396g design suitable for FPV jammer devices
Aluminum shell with waterproofing and excellent heat dissipation
Industrial grade construction with no built-in signal source
Capable of amplifying signals over long distances
Power amplifier with built-in signal source capability

Usage Precautions

Thorough testing required before deployment
Always connect antenna before powering on
Install separate close band modules when required
Use appropriate cooling devices when output power exceeds recommended levels

Frequently Asked Questions

Are you an anti-drone module and jammer manufacturer?

Shenzhen TeXin Electronic Co., Ltd. has over 10 years of experience in China. We independently develop and produce high-tech, professional anti-drone modules, anti-drone signal jammers, and drone detectors. We also provide antennas, heat sinks, and power supplies.

What is the customized frequency range and output power of the anti-drone jammer module?

TeXin anti-drone modules typically offer 5W to 300W output with frequency ranges from 100MHz to 6300MHz. The usual bandwidth is approximately 200MHz (for example, 2300-2500MHz). We can customize specifications according to specific customer requirements, even if they fall outside these standard ranges.

Tag:

Place of Origin:	China
Brand Name:	TX TELSIG
Certification:	SGS, ISO9001
Model Number:	TX-SJ

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Box with PE Foam
Delivery Time:	2 Days
Payment Terms:	L/C, T/T, Paypal,etc.
Supply Ability:	100000pcs/month
