Detail Information

Frequency:	2.4ghz 5.2ghz 5.8ghz (customized)	Gain:	43dbm
VSWR:	≤2	Power:	20W
Input:	0-5dbm	Input Power:	100W
Operating Temperature:	40～80 º	Out Shell Size:	1307519mm
Weight:	0.373Kg	Connector:	SMA Connector
Out Shell Material:	Aluminum
Highlight:	20W RF amplifier module , Bidirectional WiFi signal booster , 12-24V DC power amplifier

Product Description

Bidirectional 20W 2.4GHz/5GHz RF Power Amplifier Module

This 5G 20W bidirectional power amplifier module provides power amplification and signal enhancement in both transmit and receive modes. Designed for communications and radar applications, it features customizable input parameters (0-5dBm) and output power to suit various operational requirements.

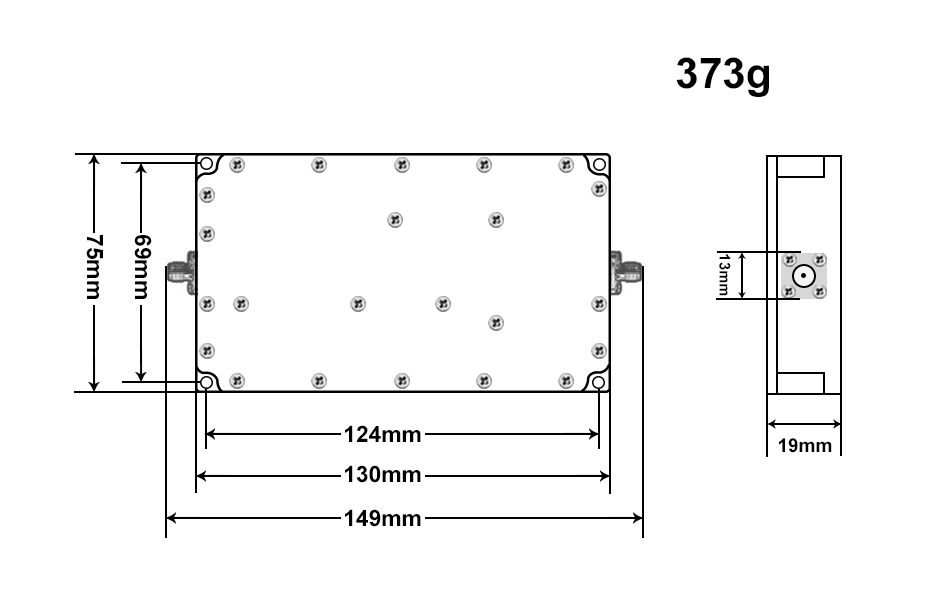

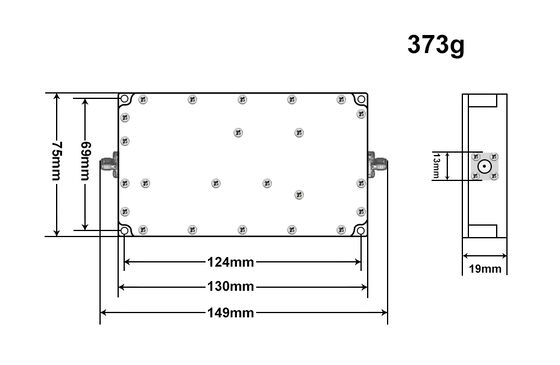

Dimensions: 130×75×19mm
Weight: 0.373kg

Technical Specifications

Parameter	Value	Unit
Frequency	2.4GHz, 5.2GHz, 5.8GHz (customizable)	MHz
Output	20W (customizable)	-
Gain	43	dBm
Flatness	±3	dBm
Work Voltage	50Ω	dB
Input Connector Type	N	-
Lightning Protection	DC Ground	dB
Cable Type	RG316	-
Output Connector VSWR	≤1.50 (No power and VNA test)	-
Outer Shell Size	130×75×19	mm
Material	Aluminum	-
Weight	0.373	kg
Work Temperature	-40 to +65	℃
Installation	Machine installation	-
Vibration Requirement	Car load OK	-

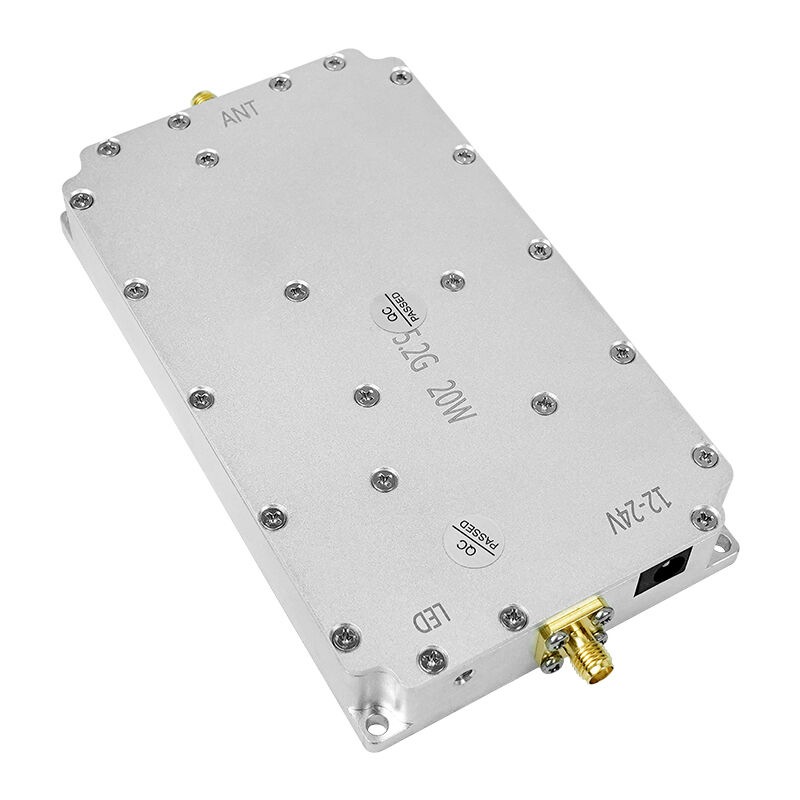

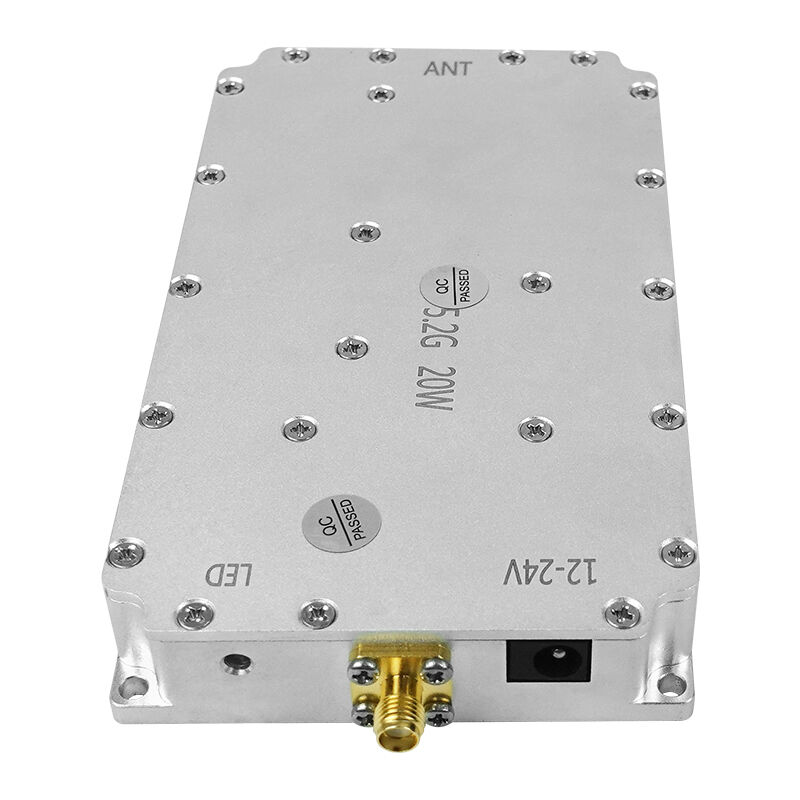

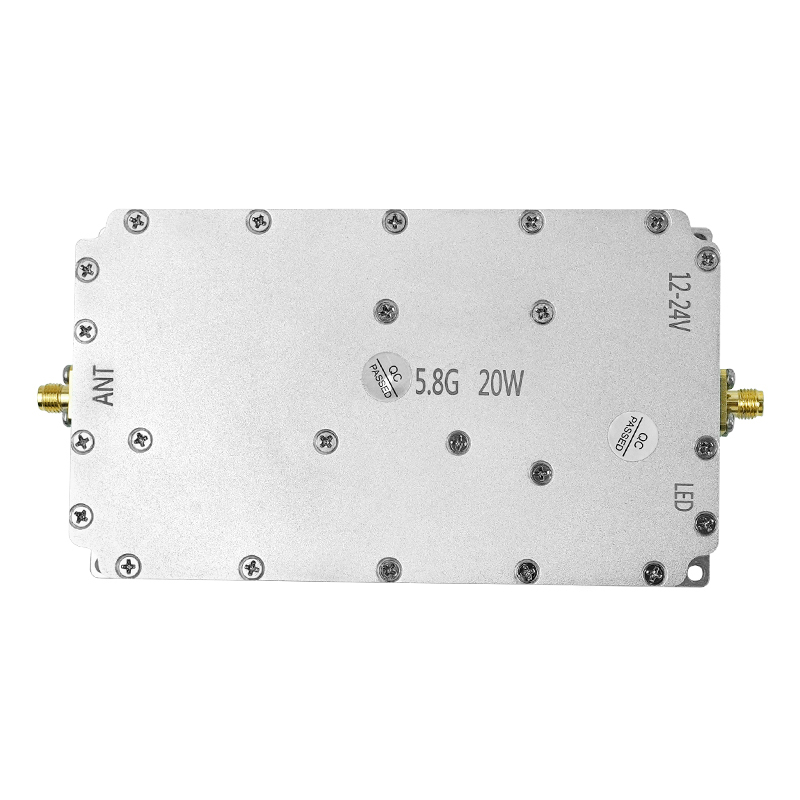

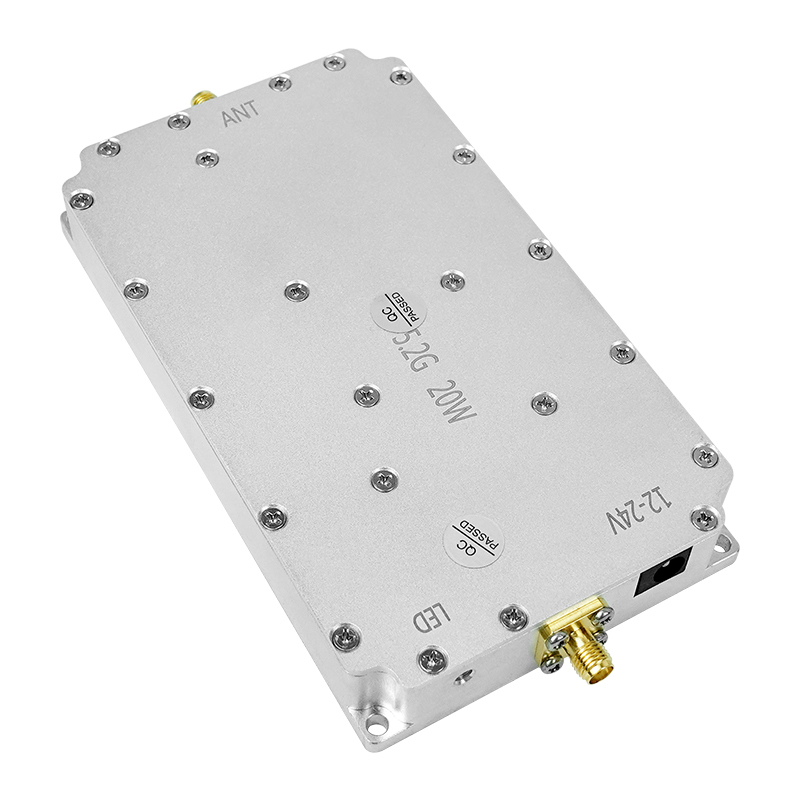

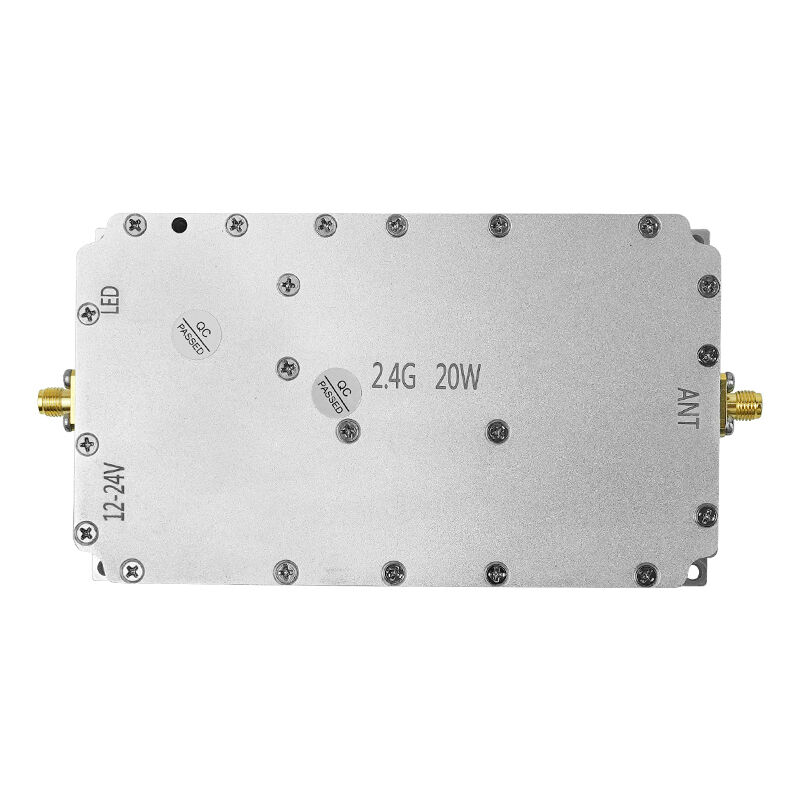

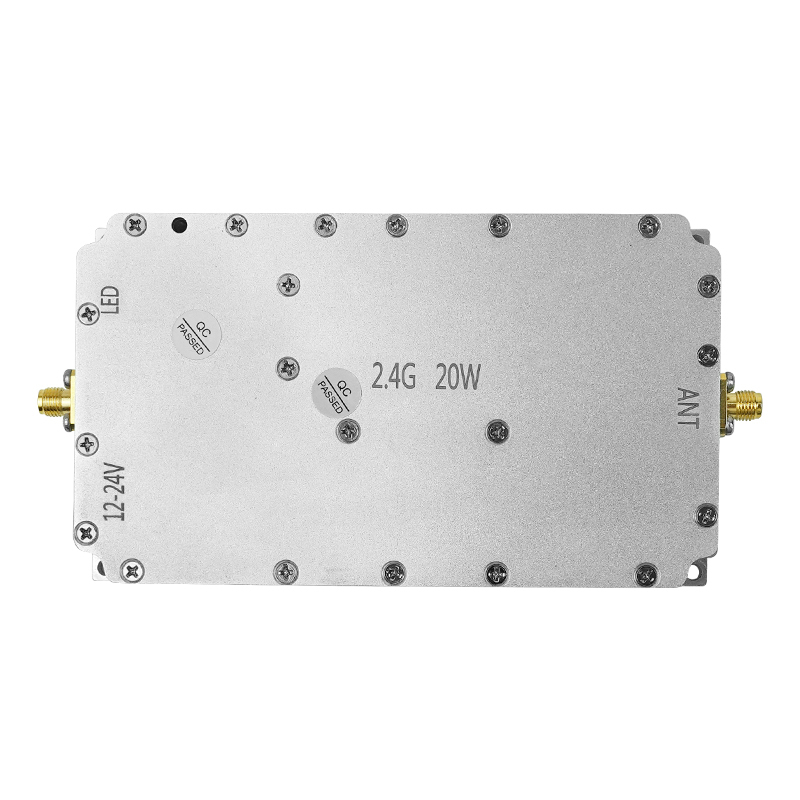

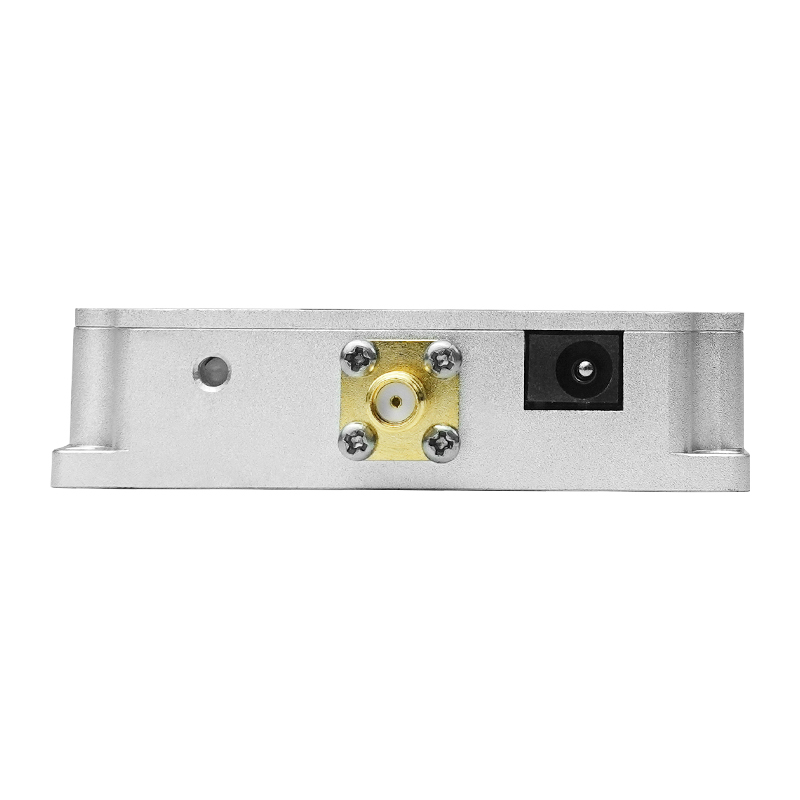

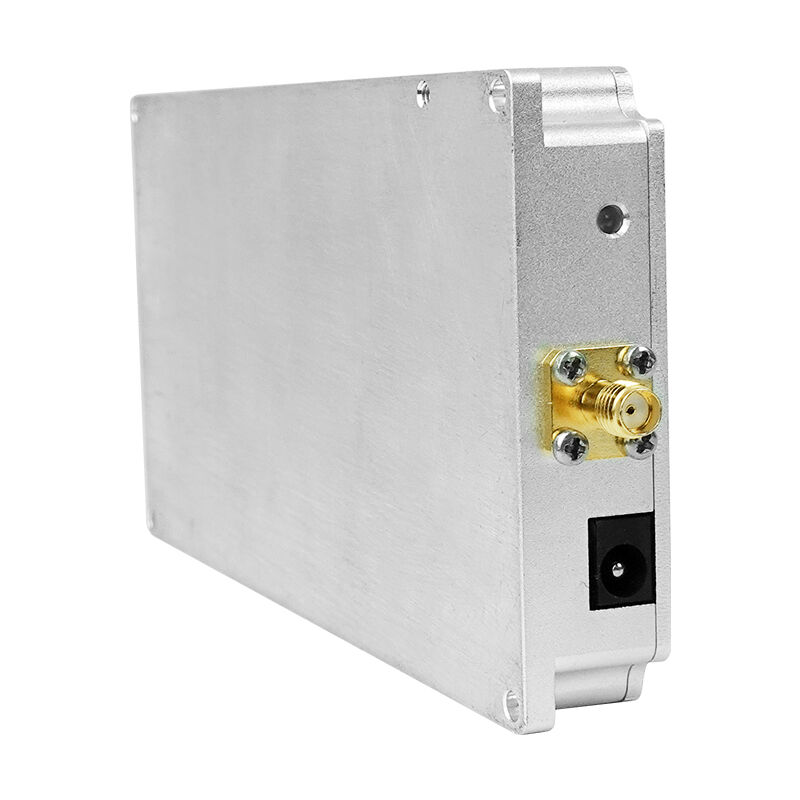

Product Images

Product Features

20W bidirectional power amplifier module
2.4GHz, 5.2GHz, 5.8GHz frequency bands (customizable)
Aluminum casing for durability in complex environments
Input range: 0-5dBm

Product Application
