Home > Products> High Gain Antenna> Wide band 100-1000mhz 100Wdirectional Waterproof outdoor Horn antenna for signal base station

Wide band 100-1000mhz 100Wdirectional Waterproof outdoor Horn antenna for signal base station

Basic Information

Place of Origin:	China
Brand Name:	TeXin
Certification:	SGS,ISO9001

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Durable case or box
Delivery Time:	3-5days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50,00pcs/month

Get Best Price Contact Now

Detail Information

Frequency:	100-1000mhz (customzied)	Gain:	5-10dBi
VSWR:	≤2	Polarization:	Vertical
Input Impedance:	50Ω	Input Power:	100W
Operating Temperature:	40～80 º	Out Shell Size:	302237333mm
Weight:	1.95kg	Connector:	N Connector
Out Shell Material:	Copper
Highlight:	wide band directional antenna 100-1000MHz , waterproof outdoor antenna for base station , high gain antenna 100W with warranty

Product Description

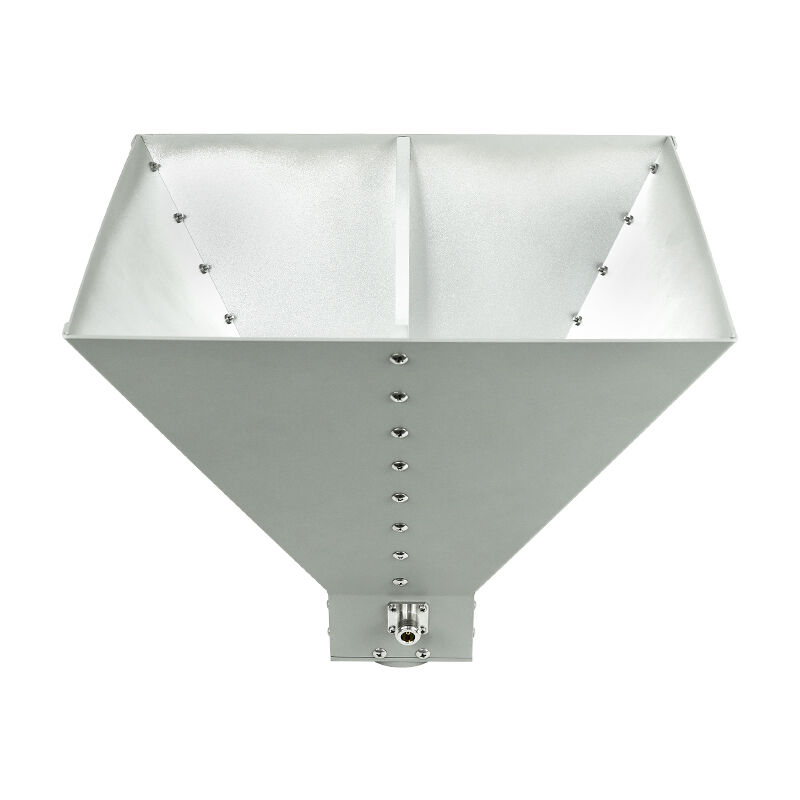

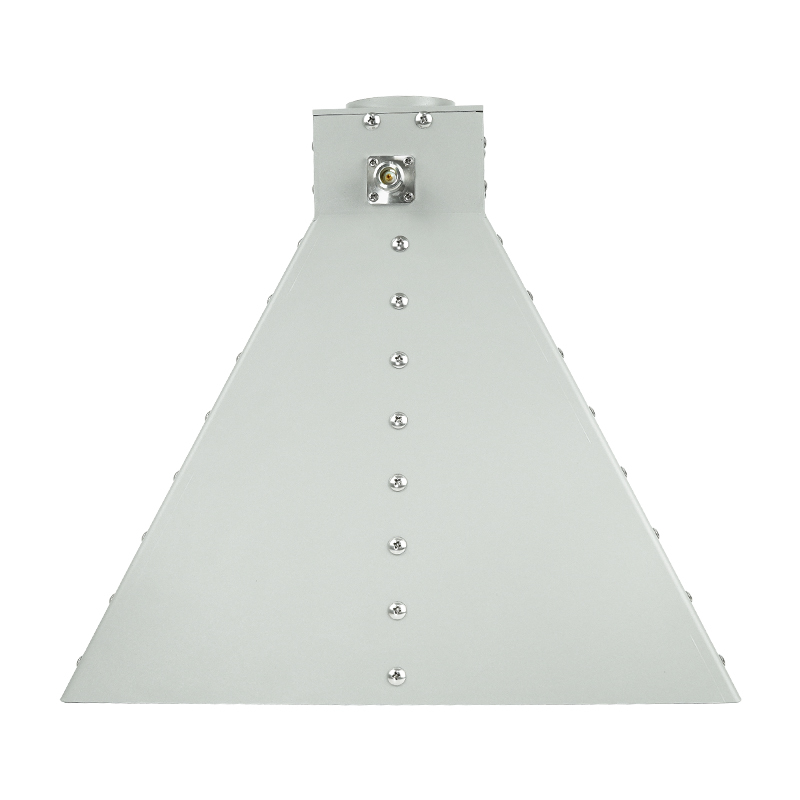

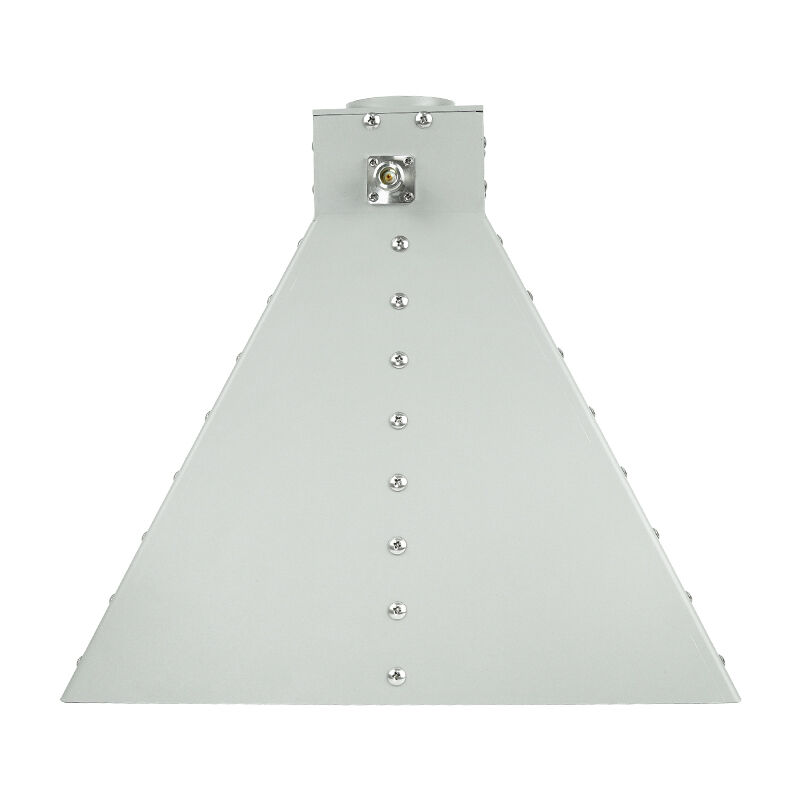

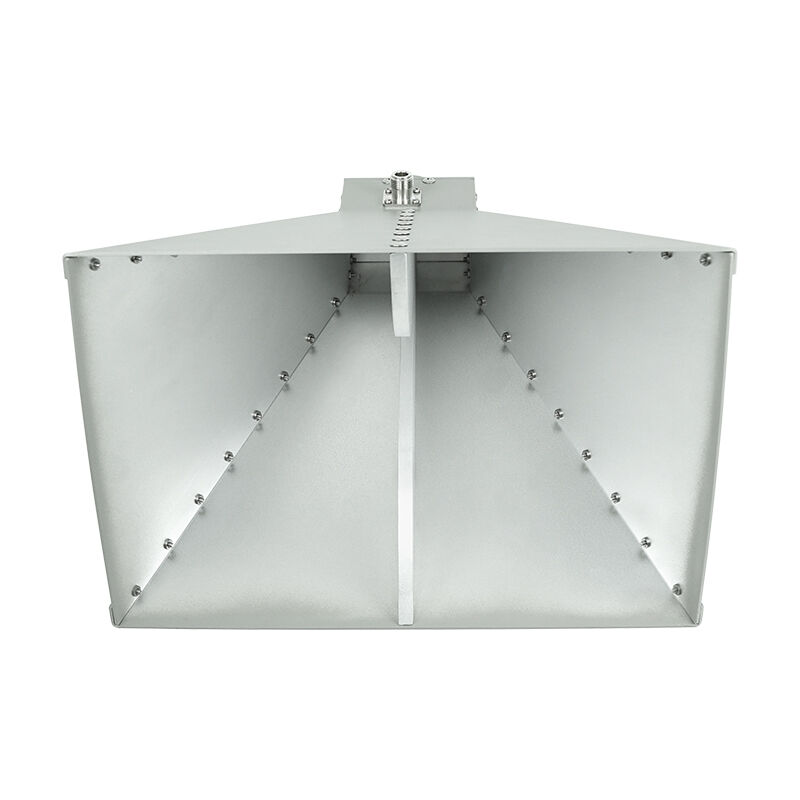

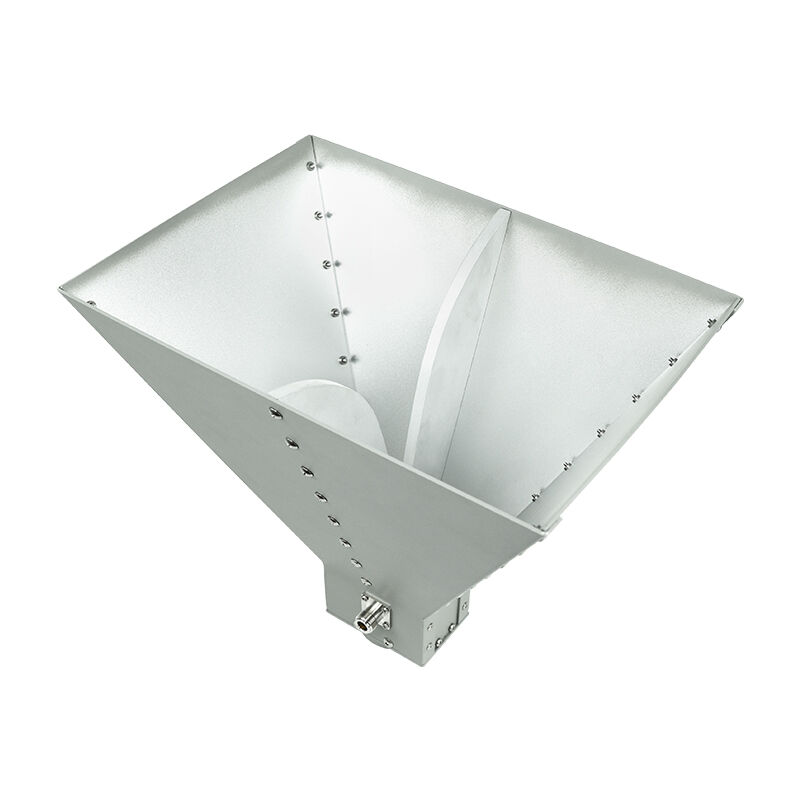

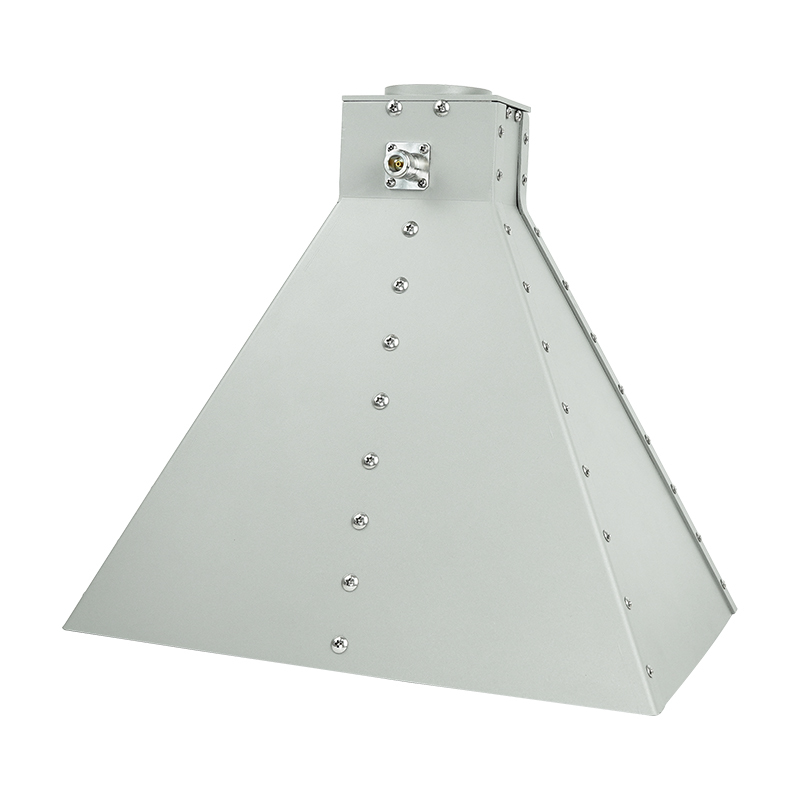

Wide Band 100-1000MHz 100W Directional Waterproof Outdoor Antenna

This 100W 100-1000MHz double-ridged horn antenna provides stable output in complex and harsh environments without interference. Commonly used in satellite communications, signal base station construction, and drone countermeasure equipment.

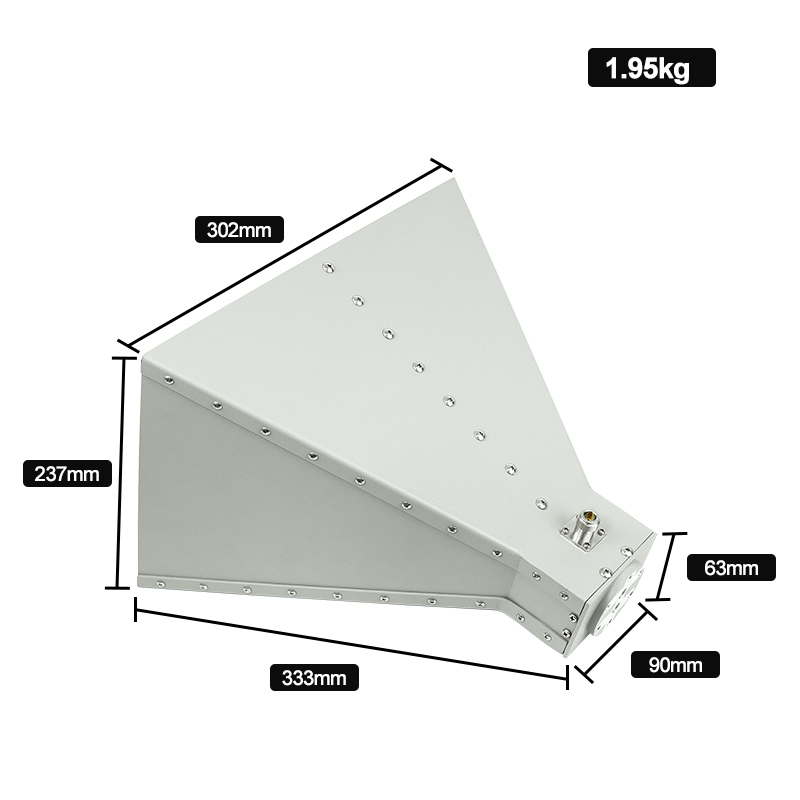

Dimensions: 302×237×333mm
Weight: 1.95kg

Technical Specifications

Item	Data	Unit
Frequency	100-1000	MHz
Output	100W	-
Gain	5-10	dBm
Polarization	Vertical	-
Input Impedance	50Ω	dB
Input Connector Type	N	-
Lightning Protection	DC Ground	dB
Cable Type	RG316	-
Output Connector VSWR	≤1.50 (No power and VNA test)	-
Outer Shell Size	302×237×333	mm
Material	Copper	-
Weight	1.95	kg
Work Temperature	-40~+65	℃
Installation	Machine installation	-
Vibration Requirement	Car load OK	-

Product Images

Product Features

1.ultra band cover 100-1000mhz in one horn antenna

2. One receiving port, the signal radiates 360°.

4. The aluminum casing allows it to adapt to complex environments.

5.High power 100W less than2.5of VSWR

Product Application

Frequently Asked Questions

Are you a manufacturer?

Yes, our factory is located in Longgang District, Shenzhen. Welcome to visit us here.

1 to 100pcs

Payment term?

T/T, Alibaba Trade Assurance (Visa, Master card, E-checking, etc), WestUnion, Paypal, etc.

How to proceed with an order?

A. Let us know your requirements and product application through inquiry on Alibaba website
B. We quote according to your specification
C. Customers agree with the quotation and make the payment

What to do if I receive defective products?

Our strict quality control ensures a 100% pass rate. However, products can be damaged in transit. Please share photos or videos of any defective products, and we will provide compensation or send replacement parts.
