Detail Information

Type:	Horn Antenna	Maximum Input Power:	100W
Antenna Frequency:	100-6000mhz(customized)	Antenna Gain:	6.4-18.1dBi
Polarization:	Vertical	Contector:	N
Size:	90028080mm	Weight:	1.3kg
Material:	Aluminum	VSWR:	≤2.0
Highlight:	dual ridge horn antenna for signal jammer , 50W 100W ultra band antenna , aluminum 800MHz-10GHz high gain antenna

Product Description

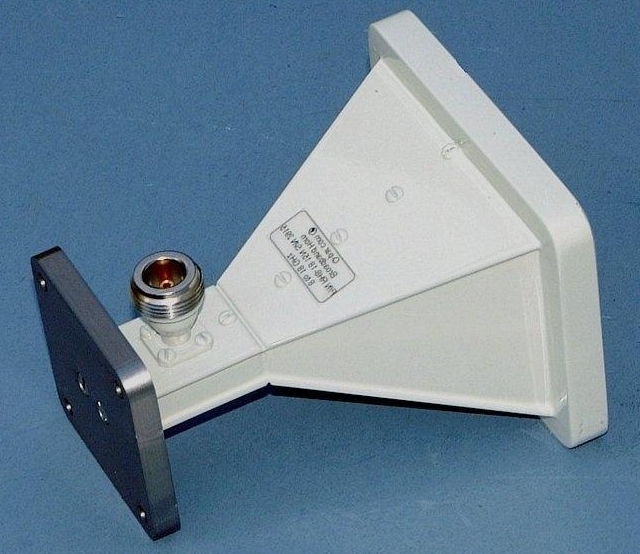

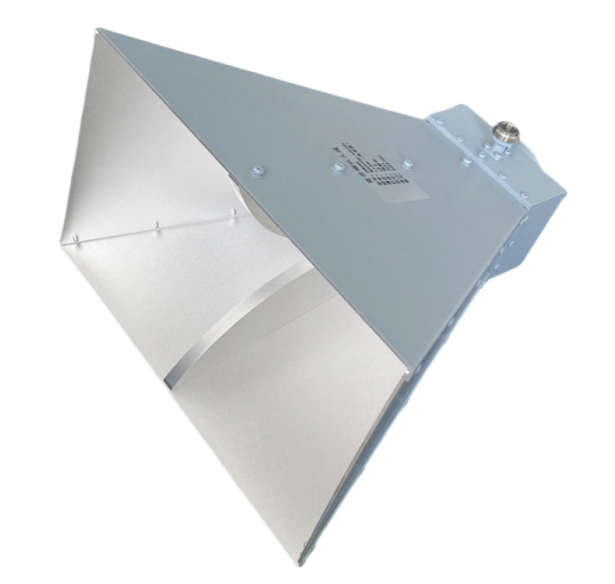

Aluminum800MHz~10GHz 2g 3g 4g 5g 50W 100W ultra band dual Ridge Horn Antenna for signal jammer

This outdoor 800MHz~10GHz frequency Horn Antenna is a directional antenna developed manufactured by Texin specifically for mobile communication base stations, drone countermeasures, and satellite communications. Its 18dBi gain significantly improves signal strength, and its internal copper and PTFE materials ensure efficient reception of RF signals.

The product has N-female RF connector , users can customize 2G, 3G, WIFI, 5.2ghz 5.8ghz according to their needs.The outer cover is waterproof and windproof and can adapt to various complex environments and outdoor installation and use.

Aluminum800MHz~10GHz 2g 3g 4g 5g 50W 100W ultra band dual Ridge Horn Antenna for signal jammer 0

Product specification

Frequency (GHz)	Gain(dBi)	E-Plane(3dB)	H-Plane(3dB)
0.8	6.44	101.5	71.1
0.9	6.82	98.0	67.4
1.0	7.19	93.6	63.3
1.5	9.51	65.5	53.7
2.0	10.8	44.3	41.1
2.5	10.9	36.6	51.2
3.0	12.1	42.9	36.3
3.5	12.9	34.4	30.1
4.0	13.6	27.3	29.4
4.5	13.2	35.8	29.7
5.0	14.6	28.5	21.8
5.5	14.6	28.8	22.6
6.0	14.5	38.9	24.1
6.5	14.4	42.8	21.6
7.0	14.1	41.2	26.6
7.5	14.7	38.3	22.9
8.0	14.4	36.5	26.3
8.5	14.8	34.9	26.7
9.0	15.8	27.7	23.5
9.5	17.3	20.2	19.0
10.0	18.1	18.3	15.5

Product Feature

* ultra band 800-10GHz 2G 3G 4G 5G

*Strong anti interference ability

*Waterproof high high performance transmission

*High gain 18dBi strong signal transmission capability

Application

Tag:

Place of Origin:	Shenzhen China
Brand Name:	TeXin
Certification:	CE ISO

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	durable case
Delivery Time:	5-8 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000/month
