Outdoors 2g 3g 4g band sector antenna for communication antenna

Basic Information

Place of Origin:	Shenzhen China
Brand Name:	TeXin
Certification:	CE ISO

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	durable case
Delivery Time:	5-8 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000/month

Get Best Price Contact Now

Detail Information

Type:	Sector Antenna	Maximum Input Power:	100W
Antenna Frequency:	100-6000mhz(customized)	Antenna Gain:	12dbi
Polarization:	Vertical	Contector:	N
Size:	90028080mm	Weight:	4.5Kg
Material:	ABS	Lightning Protection:	DC Ground
Highlight:	outdoor 4g sector antenna , high gain communication antenna , 2g 3g band sector antenna

Product Description

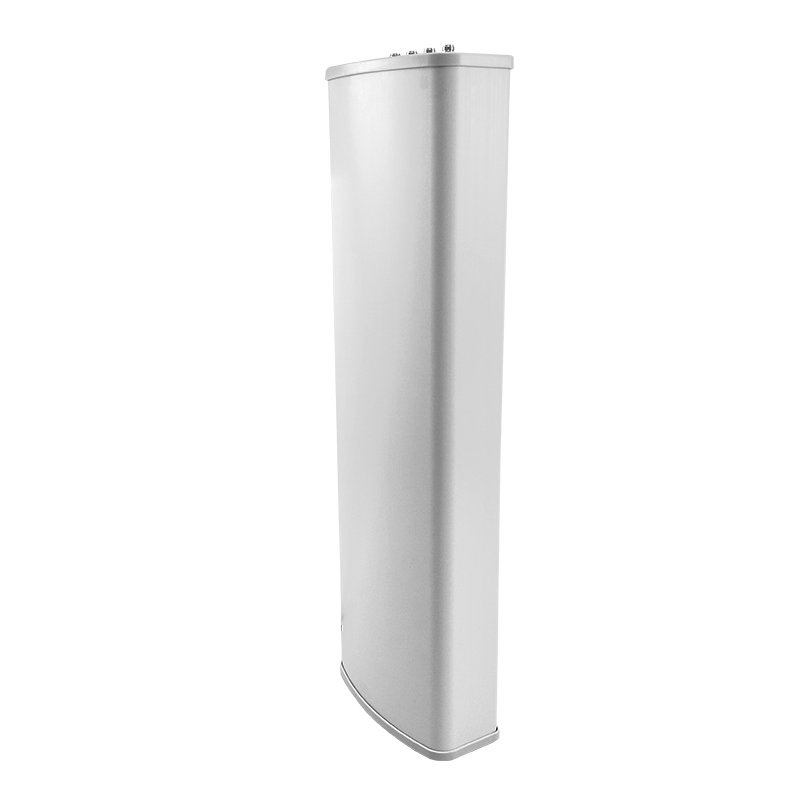

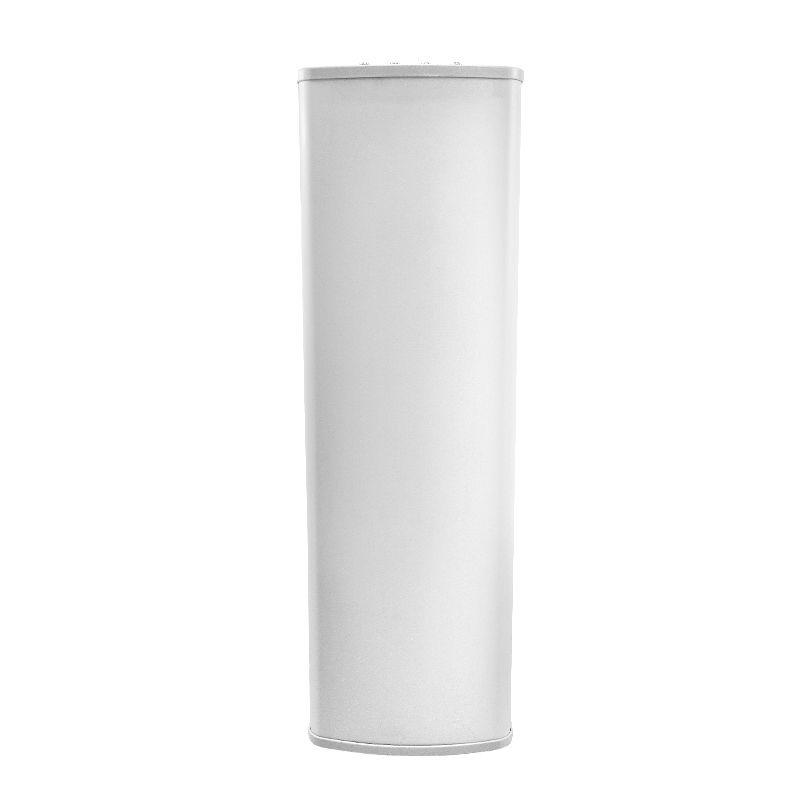

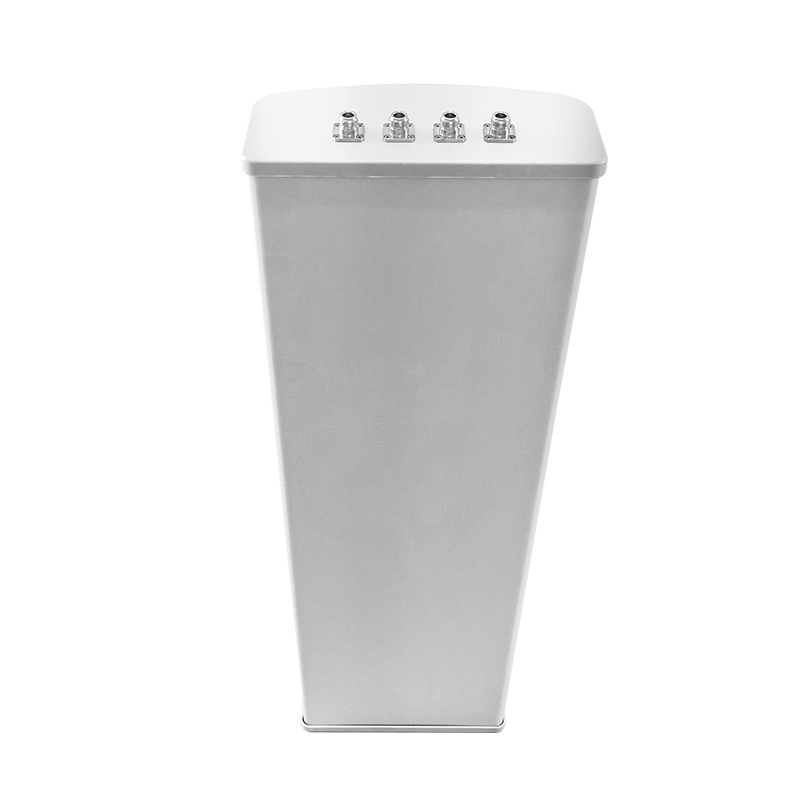

Outdoors 2g 3g 4g band sector antenna for communication antenna

This outdoor 2G, 3G, and 4G frequency sector antenna is a directional plate antenna developed and manufactured by Texin specifically for mobile communication base stations, drone countermeasures, and satellite communications. Its 12dBi gain significantly improves signal strength, and its internal copper and PTFE materials ensure efficient reception of RF signals.

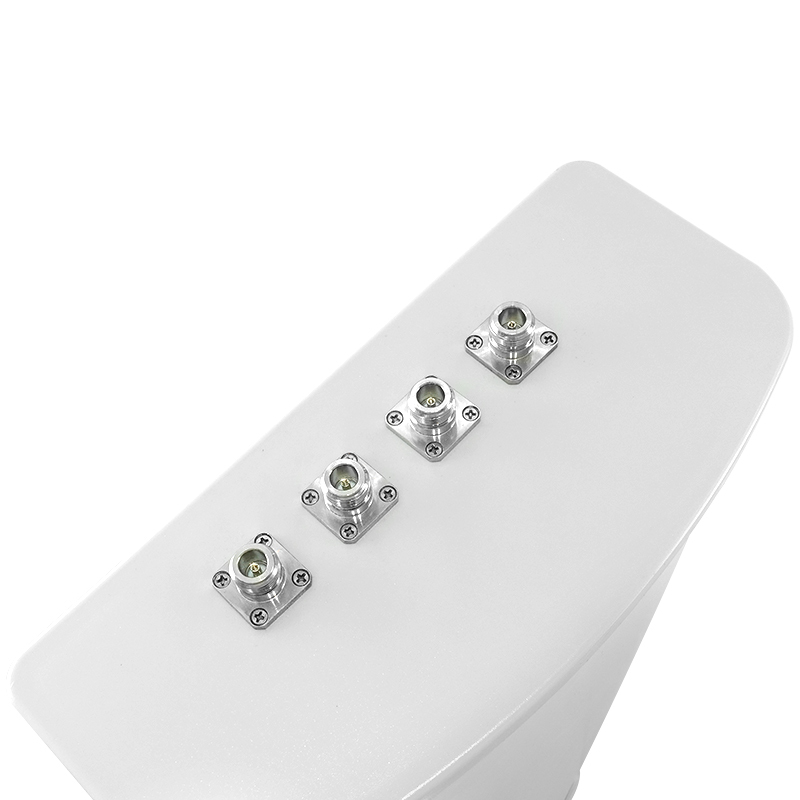

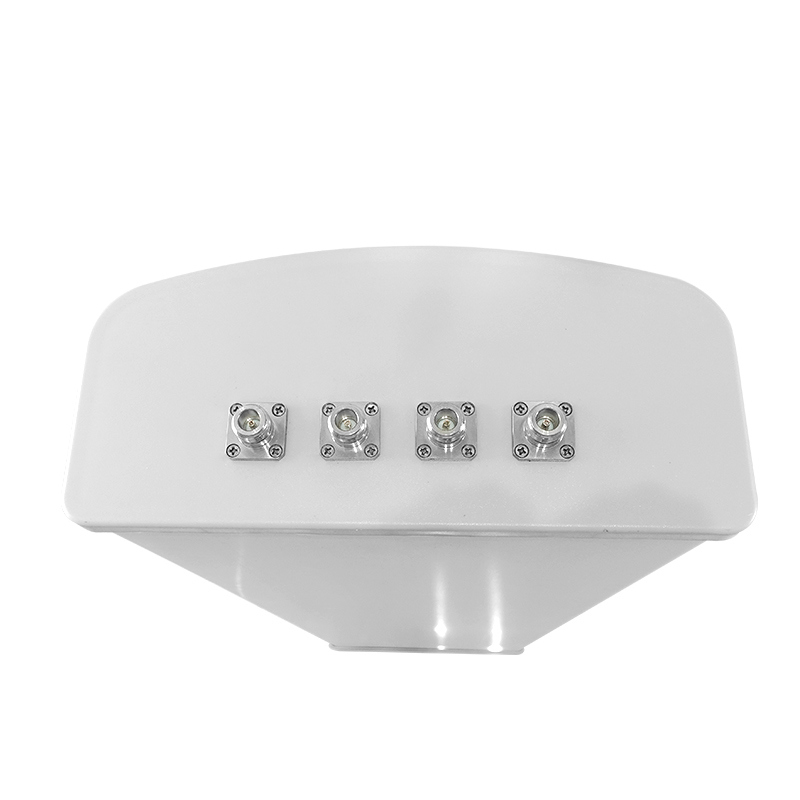

The product has 4 RF interfaces, users can customize 2G, 3G, WIFI, 5.2ghz 5.8ghz according to their needs.The outer cover is waterproof and windproof and can adapt to various complex environments and outdoor installation and use.

Outdoors 2g 3g 4g band sector antenna for communication antenna 0

Product specification

Brand	Texin
Product Type	Sector directional antenna
Gain(dBi)	12±1dBi
Frequency Range	( Customized )
Output Power	50W/100W/300W
Max Gain	13dbi (customized)
Inpur connector type	2*N-K

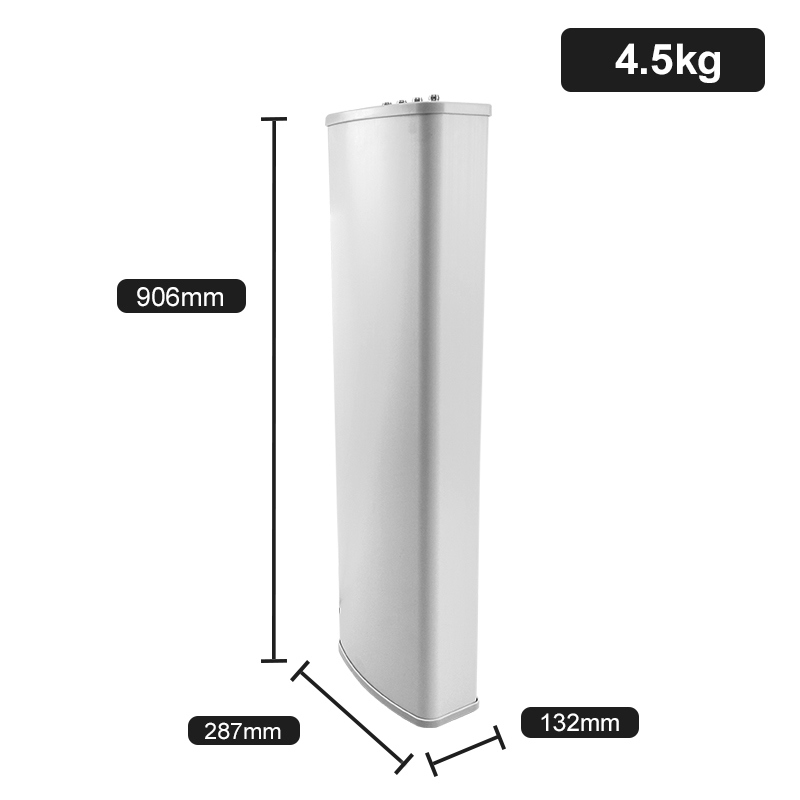

Product Size	90028080mm
Product Weight	4.5Kg
Polarization	Vertical
Horizontal Beamwidth	65±8º
Vertical Beamwidth	35±5º

Product Feature

* 4 band 2G 3G 4G 5G

*Strong anti interference ability

*Waterproof high high performance transmission

*Vertical polarization

Application
