Detail Information

Frequency:	2000-7200MHz(customzied)	Test Voltage:	28-32V
Current:	9A	Output:	100W
Gain:	53 DBm	Output Stability:	1db
Connector:	N/ Female	Out Shell Size:	22011026mm
Weight:	1316g	Work Temperature:	-40~+65
Out Shell Material:	Aluminum	Application:	Drone Jammer
Highlight:	RF amplifier module 100W , drone jammer power amplifier , Ultra band amplifier 2000-7200MHz

Product Description

Professional Ultra band 2000-7200mhz 100W Power Amplifier Module for Drone Jammer

Professional Ultra band 2000-7200mhz 100W power amplifier module designed by Texin, it is ultra band range 2000-7200mhz in one module. Users can install it by themselves to interfere with drones in the range from a distance, and the band 2000-7200mhz 100W power amplifier module supports customization.

The wide band power amplifier jammer module can be applied in areas with high requirements for low-altitude safety, such as airports, military restricted areas, large-scale event venues, chemical parks, and nuclear power plants. For example, at airports, it can prevent drones from entering no-fly zones, ensuring the normal takeoff and landing of flights; at large event venues, it can prevent illegal drone filming, maintaining safety and order at events.

Technical Parameters

Description	Symbol	Min	Typ	Max	Unit	Remark
Operating Frequency	BW	2000		7200	MHz
Input Power	Pin		0		dBm
Output Power CW	Psat	47	48	49.5	dBm	Continuous Wave
Power Gain	Gp		48		dBm	@ Pin=0 dBm
Power Gain Flatness	△Gp		±1.5		dB	@ Pin=0 dBm
Input Return Loss	S11		-15		dB
Operating Voltage	Vdc	28	28	36	V
Current Consumption	A		7	9	A	@ Pout=50~85W
RF Connector Input		SMA, Female
RF Connector Output		SMA, Female
Max Input Power	PinMax	≤10 dBm

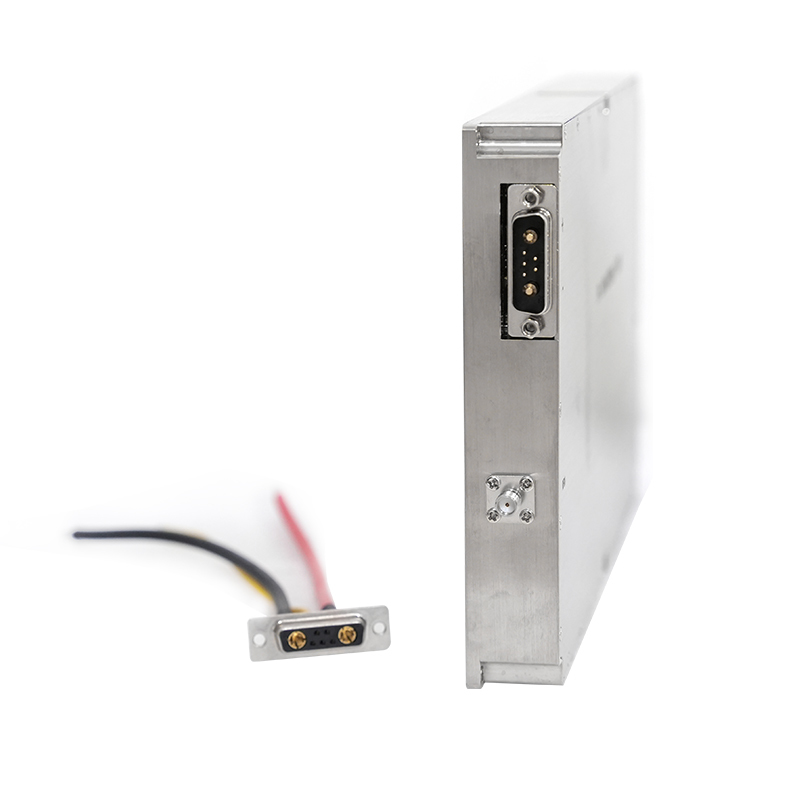

Interface Definition	VDD	A1: 28Vdc
	GND	A2: Ground
	Enable	1: 5V~Vdd:ON 0V:OFF

Note: 1. The overall dimensions are for reference only; 2. The size can be appropriately increased or decreased according to the customer's requirements; 3. The positions of the input interface, output interface and power supply interface can be changed according to the actual needs of the customers.

Product Features

Wideband, precise coverage, and strong adaptability: Focusing on the 300-2000MHz core frequency band, it's compatible with multiple brands and types of drones without additional debugging.
High power and high gain for outstanding transmission capabilities: 50W high power output paired with 47dB high gain.
Strong adaptability and high durability: Utilizing industrial-grade components and an anti-interference shielding design, it can withstand temperatures ranging from -20°C to 60°C and humidity levels of 5% to 95%.
Lightweight, easy to install, and highly practical: The module weighs less than 150g and is compact.

Product Application

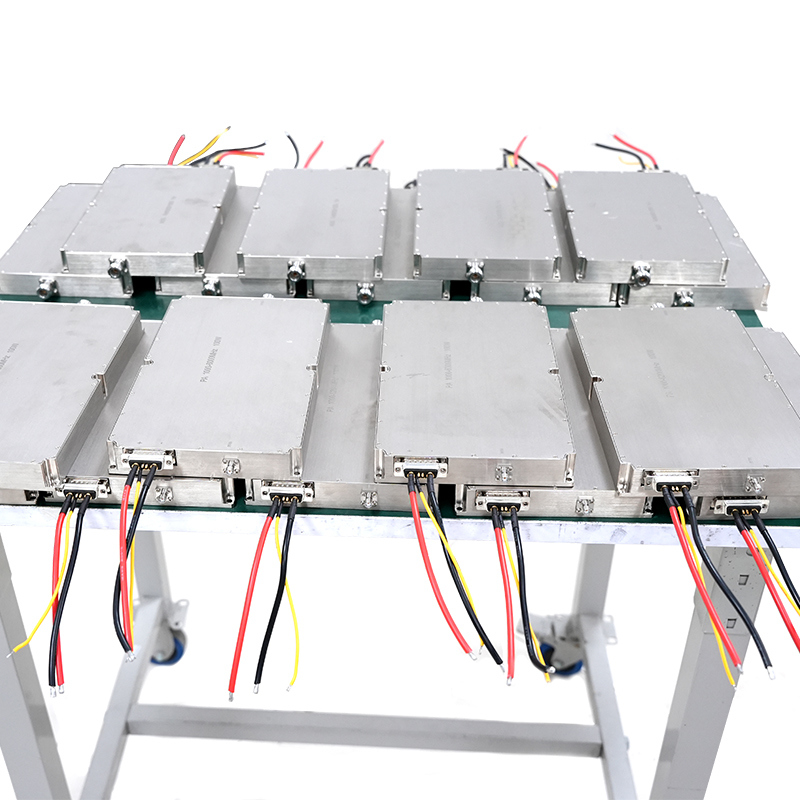

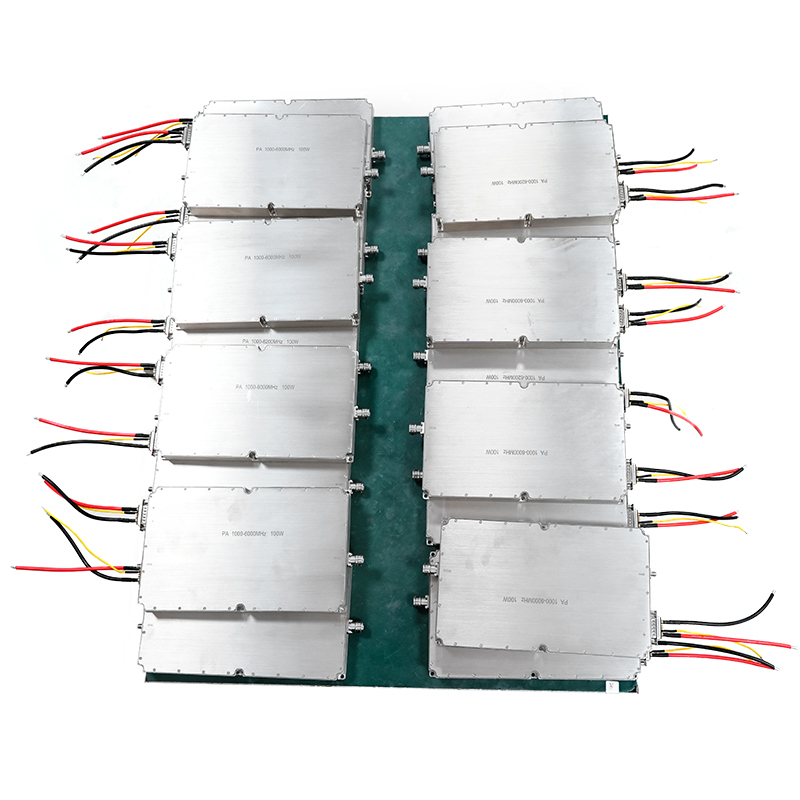

Factory Pictures

FAQ

Are you a manufacturer?
Yes, our factory is located in Longgang District, Shenzhen, welcome to visit us here
MOQ?
1 to 100pcs
Payment term?
T/T, Alibaba Trade Assurance(Visa, Master card, E-checking,etc), WestUnion, Paypal, etc
How to proceed with an order?
A. Let us know your requirements and product application through inquiry on Alibaba website
B. We quote according to your specification
C. Customers agree with the quotation and make the payment
What do if I receive defective products?
Our strict quality control will ensure a 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you a new electronic part or product.

Tag:

Place of Origin:	China
Brand Name:	TeXin
Certification:	SGS,ISO9001
Model Number:	TX-CD100W

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Durable case or box
Delivery Time:	3-5days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50,00pcs/month
