Detail Information

Frequency:	300-2000MHz(customzied)	Test Voltage:	28-32V
Current:	3.6A	Output:	50W
Gain:	47 DBm	Output Stability:	1db
Connector:	N/ Female	Out Shell Size:	1538022mm
Weight:	422g	Work Temperature:	-40~+65
Out Shell Material:	Aluminum
Highlight:	wide band RF amplifier module , 300-2000mhz power amplifier , FPV drone jammer module

Product Description

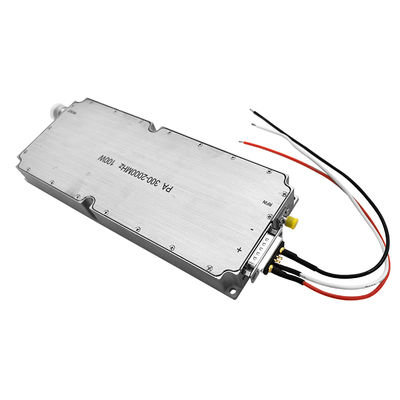

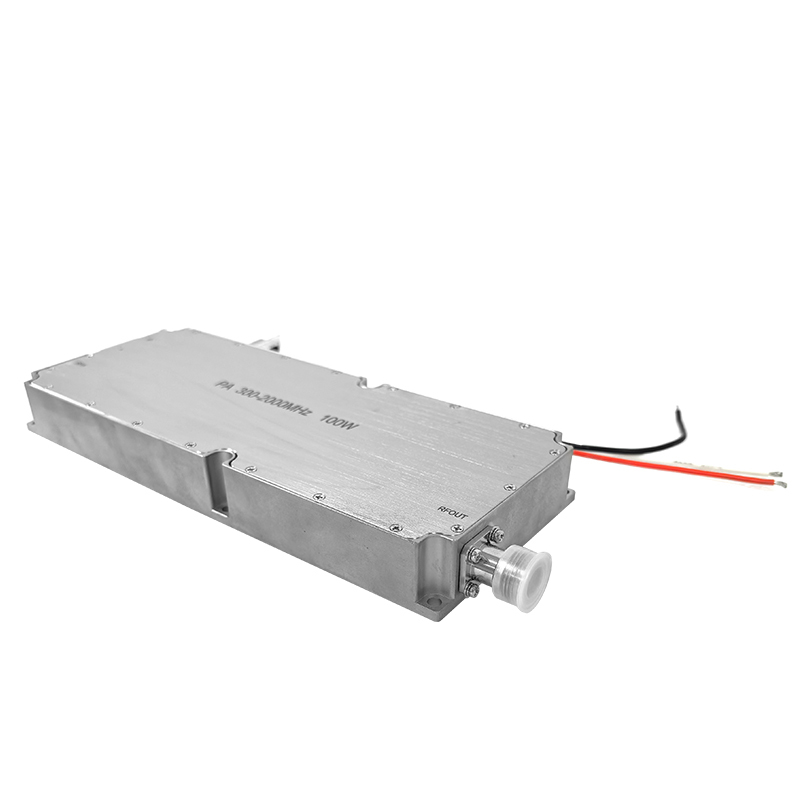

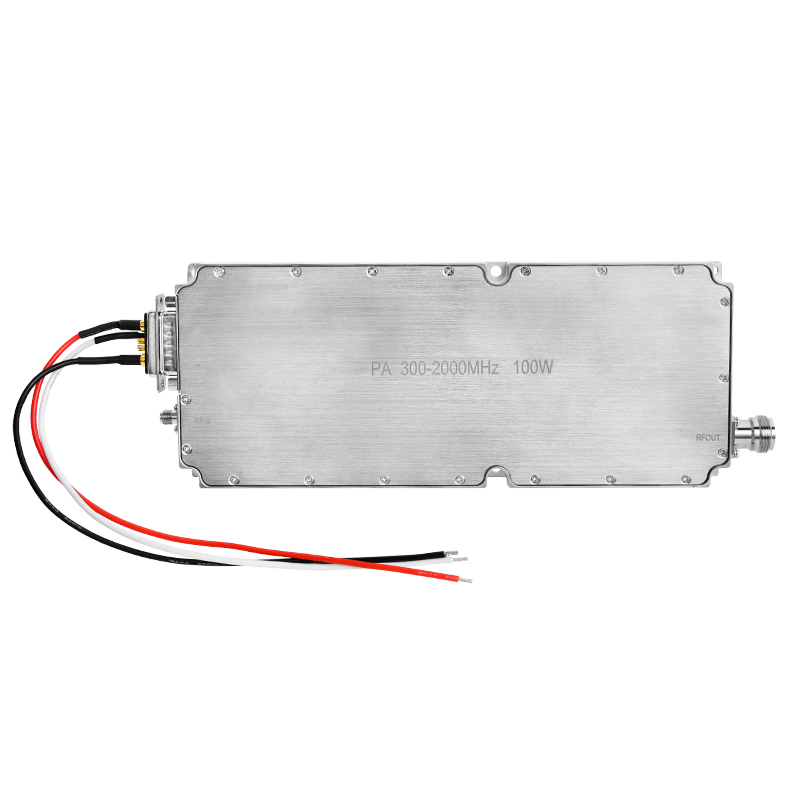

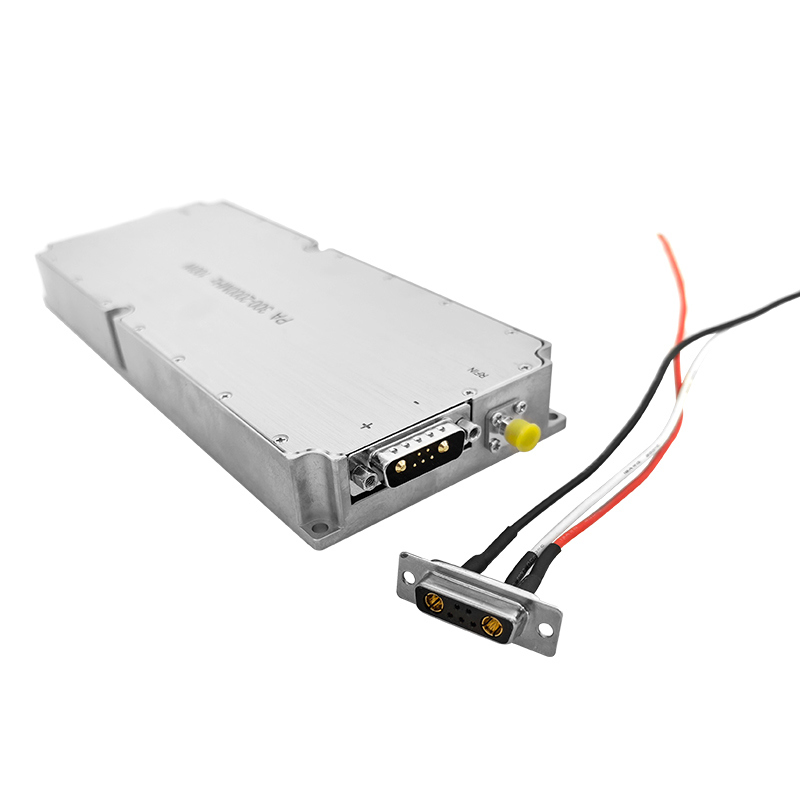

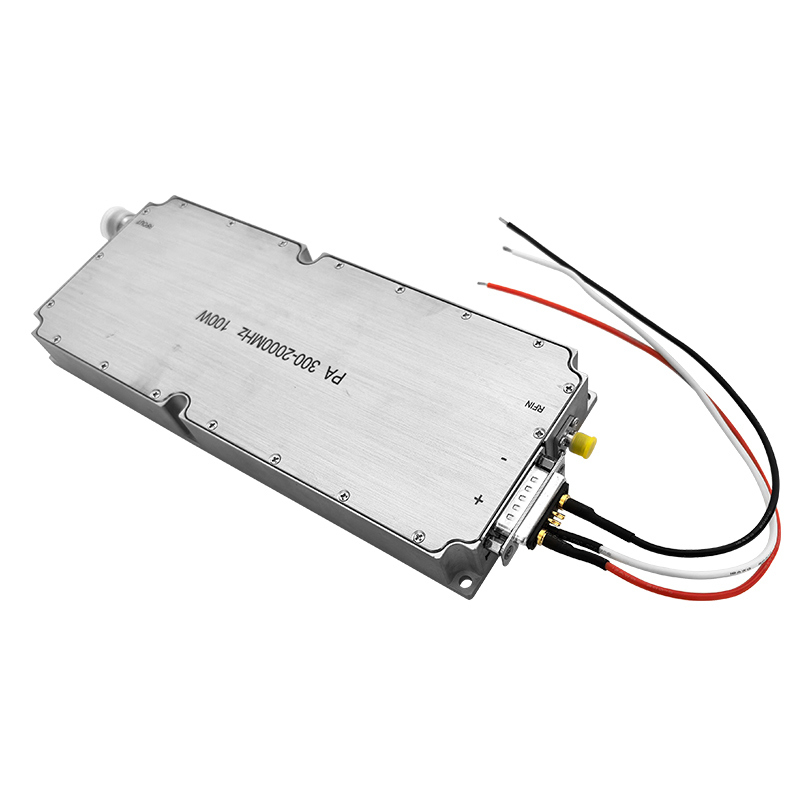

Wide band wireless 300-2000mhz 50W 100W power amplifier jammer module for FPV drone system

This wide band wireless 300-2000MHz 50W/100W power amplifier module covers most drone FPV signals and can effectively interfere with the communication link between the drone and control end. We provide solutions with different wattages (30W, 50W, 100W) according to customer needs.

The wide band power amplifier jammer module can be applied in areas with high requirements for low-altitude safety, such as airports, military restricted areas, large-scale event venues, chemical parks, and nuclear power plants. For example, at airports, it can prevent drones from entering no-fly zones, ensuring the normal takeoff and landing of flights; at large event venues, it can prevent illegal drone filming, maintaining safety and order at events.

Technical Parameters

206*117*21mm

1366g

28-32V

Product Specification

No.	Item	Data	Unit
1	Frequency	300-2000	MHz
2	Test voltage	28-32	V
3	Current	6.5	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB
7	Input stability	0-10	dB
8	Connector	F/ Female
9	Output connector VSWR	≤1.30 (No power and VNA test)
10	Power supply wire	Red+Black+Enable wire
11	Enable Control	High ON Low Off
12	Out shell Size	20611721	mm
13	Mount hole	199*110	mm
14	Weight	1366	g
15	Work Temperature	-40~+65	℃
16	Out shell material	Aluminum
17	Vibration need	Car load OK

Product Features

Wideband, precise coverage, and strong adaptability: Focusing on the 300-2000MHz core frequency band, it's compatible with multiple brands and types of drones without additional debugging.
High power and high gain for outstanding transmission capabilities: 50W high power output paired with 47dB high gain.
Strong adaptability and high durability: Utilizing industrial-grade components and an anti-interference shielding design, it can withstand temperatures ranging from -20°C to 60°C and humidity levels of 5% to 95%.
Lightweight, easy to install, and highly practical: The module weighs less than 150g and is compact.

Product Application

FAQ

Are you a manufacturer?

Yes, our factory is located in Longgang District, Shenzhen, welcome to visit us here

MOQ?

1 to 100pcs

Payment term?

T/T, Alibaba Trade Assurance(Visa, Master card, E-checking,etc), WestUnion, Paypal, etc

How to proceed with an order?

A. Let us know your requirements and product application through inquiry on Alibaba website
B. We quote according to your specification
C. Customers agree with the quotation and make the payment

What do if I receive defective products?

Our strict quality control will ensure a 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you a new electronic part or product.

Factory Pictures

Tag:

Place of Origin:	China
Brand Name:	TeXin
Certification:	SGS,ISO9001
Model Number:	TX-CD50W

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Durable case or box
Delivery Time:	3-5days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50,00pcs/month
