Detail Information

Name:	RF Module	Frequency:	900-1400MHz(customized)
Test Voltage:	28V	Current:	2.5A
Output:	30W	Gain:	43dbm
Connector:	SMA / Female	Output Connector VSWR:	≤1.30 (No Power And VNA Test)
Power Supply Wire:	Red+Black+Enable Wire	Out Shell Size:	1605020mm
Weight:	300g
Highlight:	30W RF amplifier module , 900-1400MHz drone signal jammer , high gain RF amplifier for FPV

Product Description

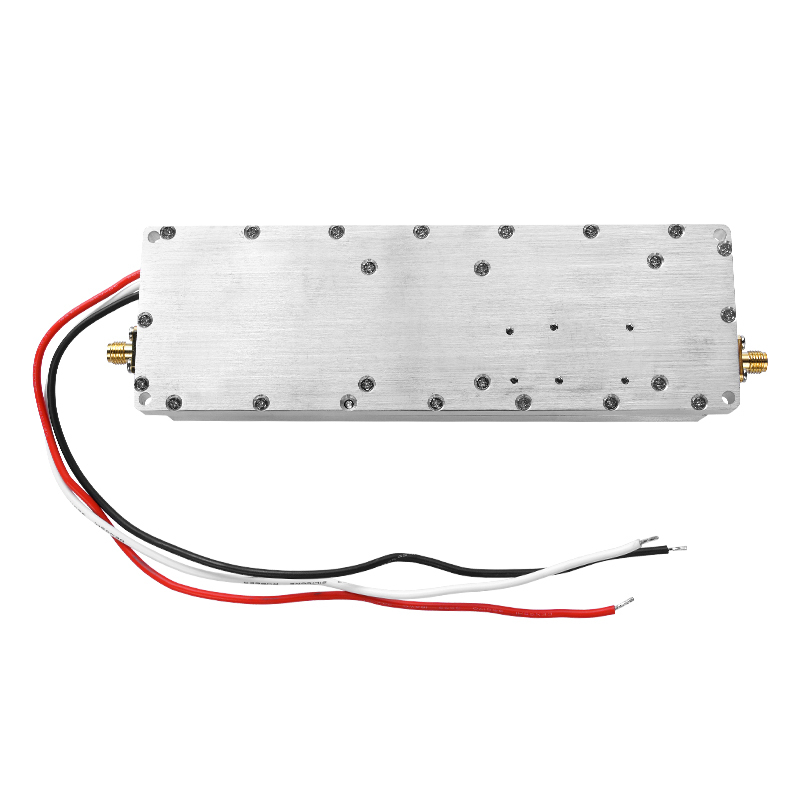

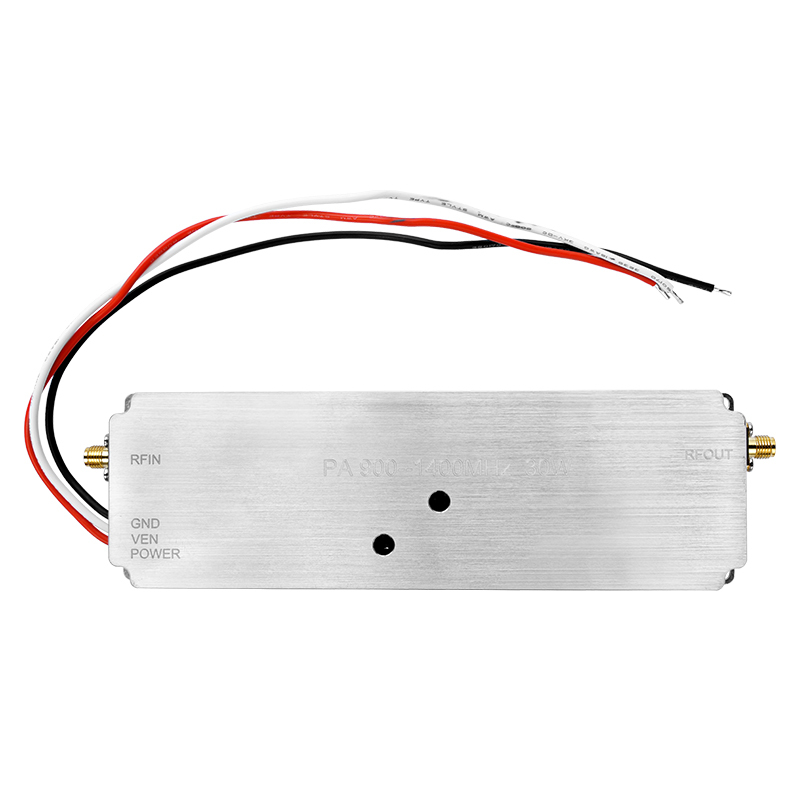

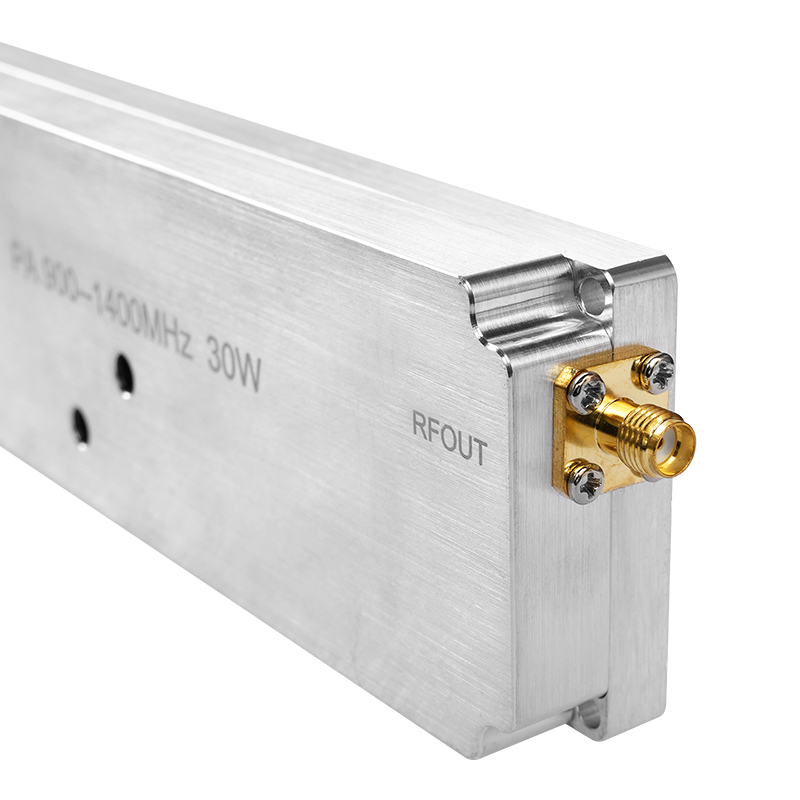

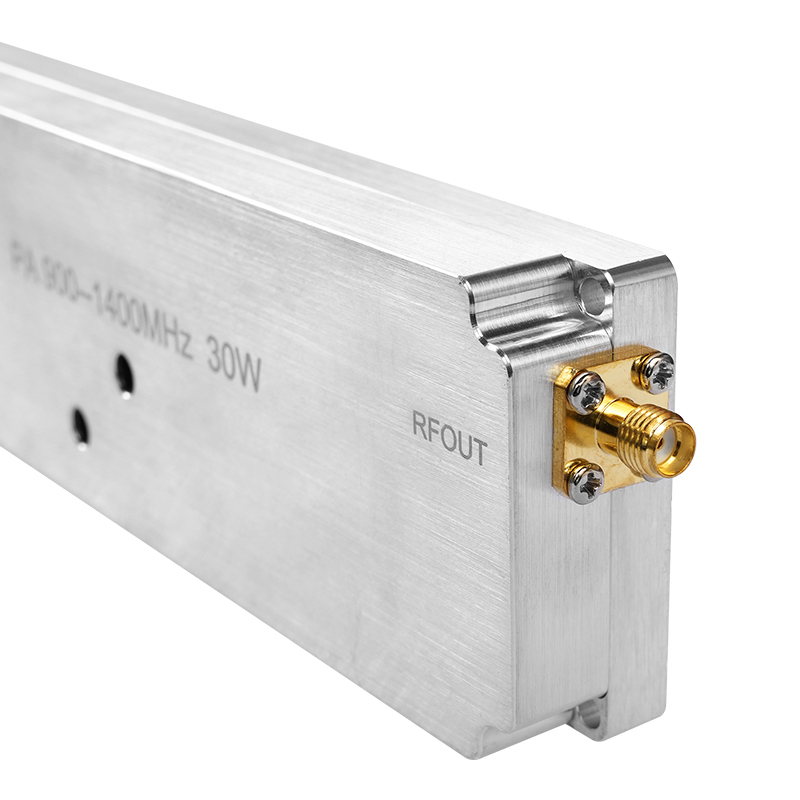

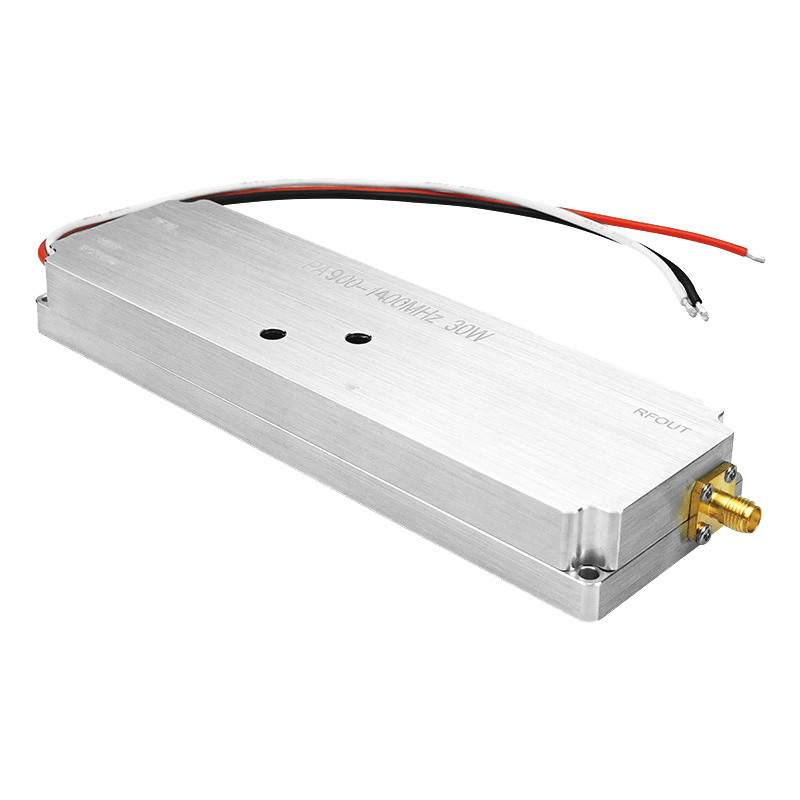

High Gain 45dBm 30W RF Amplifier Module 900-1400MHz For Drone Signal Jammer And FPV Booster

This module precisely covers the commonly used 900-1400MHz frequency band, ensuring reliable operation for applications ranging from combating illegal drone flights by enhancing jamming signals to enhancing countermeasures, to strengthening transmission signals for FPV devices to reduce signal interruptions and latency during flight. Its 30W power output and 45dBm high gain ensure strong signals during transmission and interference, effectively extending its range and meeting the needs of medium and long-range use.

Product Attributes

Attribute	Value
Name	RF module
Frequency	900-1400MHz(customized)
Test voltage	28V
Current	2.5A
Output	30W
Gain	43dbm
Connector	SMA / Female
Output connector VSWR	≤1.30 (No power and VNA test)
Power supply wire	Red+Black+Enable wire
Out shell Size	1605020mm
Weight	300g

Product Specification

No.	Item	Data	Unit
1	Frequency	900-1400	MHz
2	Test voltage	28-32	V
3	Current	2.5	A
4	Output	30	W
5	Gain	43	dB
6	Output stability	1	dB
7	Input stability	0-10	dB
8	Connector	SMA/ Female
9	Output connector VSWR	≤1.30 (No power and VNA test)

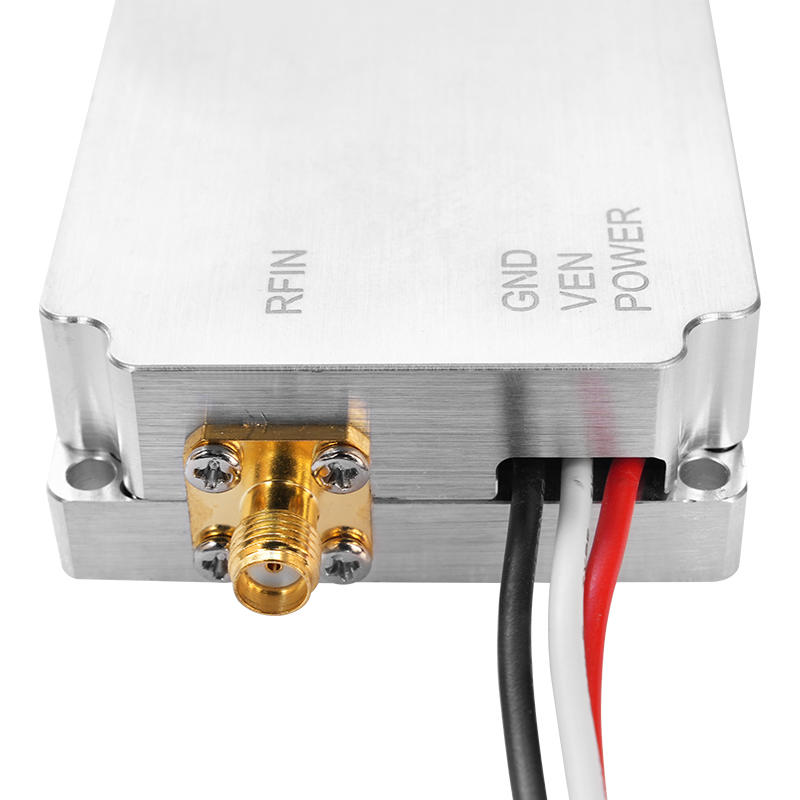

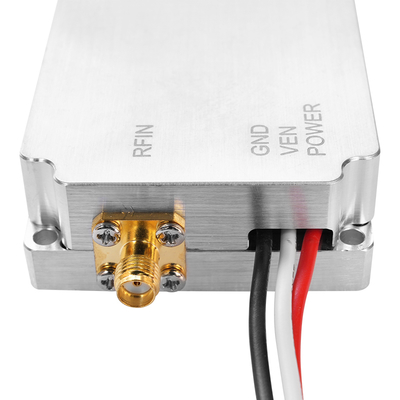

10	Power supply wire	Red+Black+Enable wire
11	Enable Control	High ON Low Off

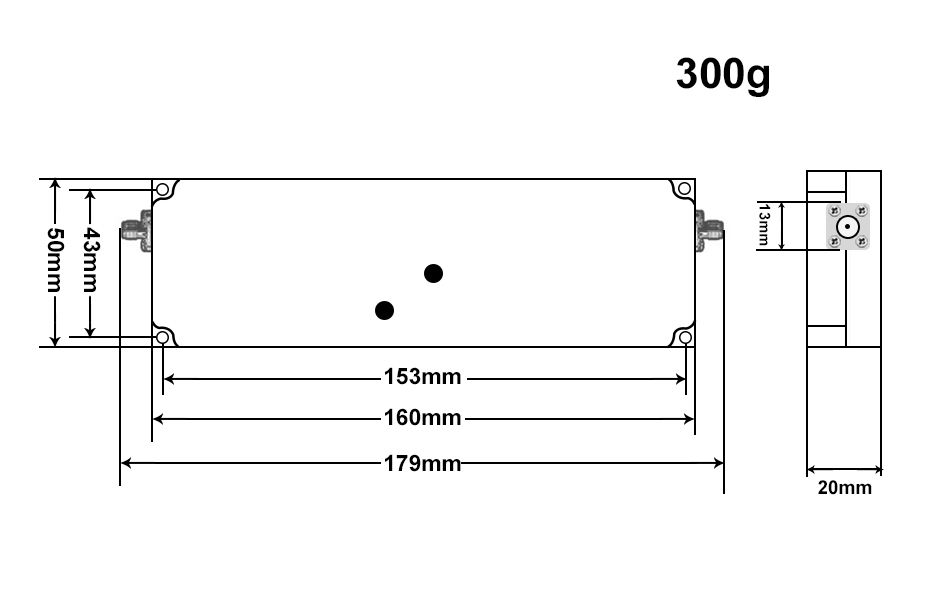

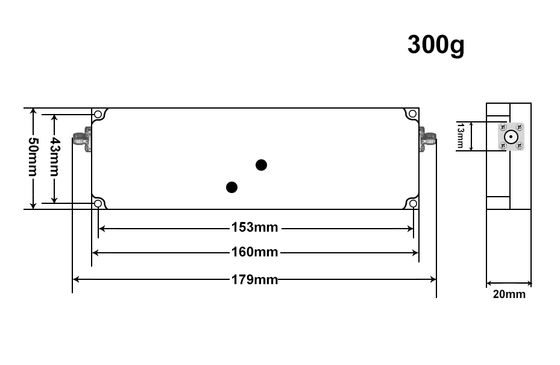

12	Out shell Size	1605020	mm
13	Mount hole	153*43	mm
14	Weight	300	g
15	Work Temperature	-40~+65	℃
16	Out shell material	Aluminum
17	Vibration need	Car load OK

Product Features

Mini size easy to carry
Lora source build in long distance jamming and low consumption
Frequency band and power can be customized
Made of aluminum material high heat dissipation
Light weight and small size easy to carry
The module support 24V-28V operate voltage

Applications

Military and Defense

In military operations, drone jammers play a vital role in counter-surveillance, protecting airspace, and neutralizing threats. They ensure operational security by preventing unauthorized drone activities.

Critical Infrastructure Protection

Airports, power plants, and government facilities rely on drone jammers to safeguard sensitive areas. These devices prevent potential disruptions and ensure uninterrupted operations.

Event Security

Public events like concerts, sports gatherings, and political rallies often face drone-related risks. Jammers provide effective solutions to prevent drone intrusions, ensuring participant safety.

FAQ

1. Are you a manufacturer?

Yes, our factory is located in Longgang District, Shenzhen, welcome to visit us here

2. MOQ?

1 to 100pcs

3. Payment term?

T/T, Alibaba Trade Assurance(Visa, Master card, E-checking,etc), WestUnion, Paypal, etc

4. How to proceed with an order?

AA. Let us know your requirements and product application through inquiry on Alibaba website B. We quote according to your specification C.Customers agree with the quotation and make the payment

5. What do if I receive defective products?

Our strict quality control will ensure a 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you a new electronic part or product.

Tag:

Place of Origin:	Shenzhen China
Brand Name:	TeXin
Certification:	CE ISO
Model Number:	TX-30W

Minimum Order Quantity:	2
Price:	Negotiable
Packaging Details:	durable case
Delivery Time:	5-8 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000/month
