High gain outdoors sector panel 4 port antenna for wifi GPS radio communication

Basic Information
Place of Origin: China
Brand Name: TX TELSIG
Certification: SGS, ISO9001
Model Number: LY-7080-5.5Q55VBLG
Minimum Order Quantity: 1
Price: Negotiation
Payment Terms: L/C, T/T, Paypal,etc.
Detail Information
Frequency Range: 700-2700MHz Power: 100 W
Gain(dBi): 15dBi VSWR: ≤2
Input Impedance(Ω): 50Ω Packing Size(mm): 906*287*132mm(20PCS)
Antenna Weight(kg): 4.5kg Application: Signal Interference

Product Description

High gain outdoors sector panel 4 port antenna for wifi GPS radio communication



The 4port sector panel antenna support GSM /GPS/WIFI /phone /drone frequency band .It is high gain outdoors for use antenna that  highly efficient output and reception, with waterproof structure on the outside, suitable for outdoor extreme weather.It produced by Shen Zhen Texin electronics Co.,ltd ,welcome to our store for consultation.



Features

1)GSM /EGSM/ CDMA800/DCS/PCS/ 3G/ AWS

2)Wireless communications and data transmission system Repeater

3)Outdoor Antenna Receiver.

Applications
■ Wide band frequency 700-2700mhz
■ 4 port integarated
■ High gain 15dbi directional transmit signal
■ Able to work in extreme weather

■ Support customized frequency and power
■ Light weight 4.5kg portable to carry and install

Outdoor antenna
Frequency Range 700-2700MHz(customized)
Recommend Cover area 1-30 kilometers
Bandwidth 160/790MHz
Gain 15dBi
F/B ratio ≥25dB
VSWR ≤1.7
Polarization Vertical
Max power 100 W
Nominal Impedance 50Ω
MECHANICAL
Connector N female

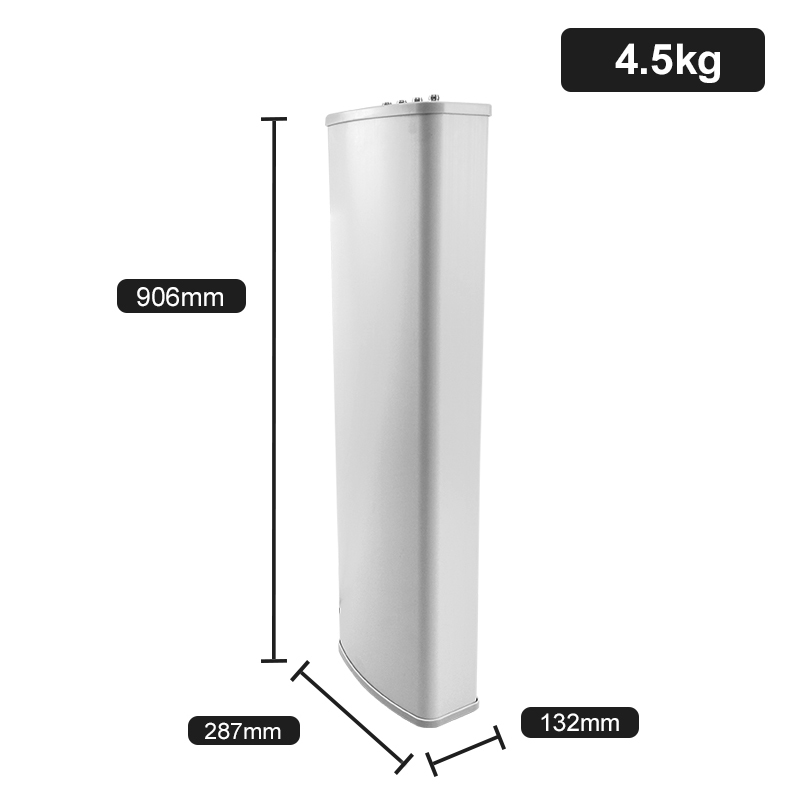

Antenna Dimension 906*287*132mm
Weight 4.5kg
Rated Wind Velocity 60m/s
Vertical Beamwidth 15/9

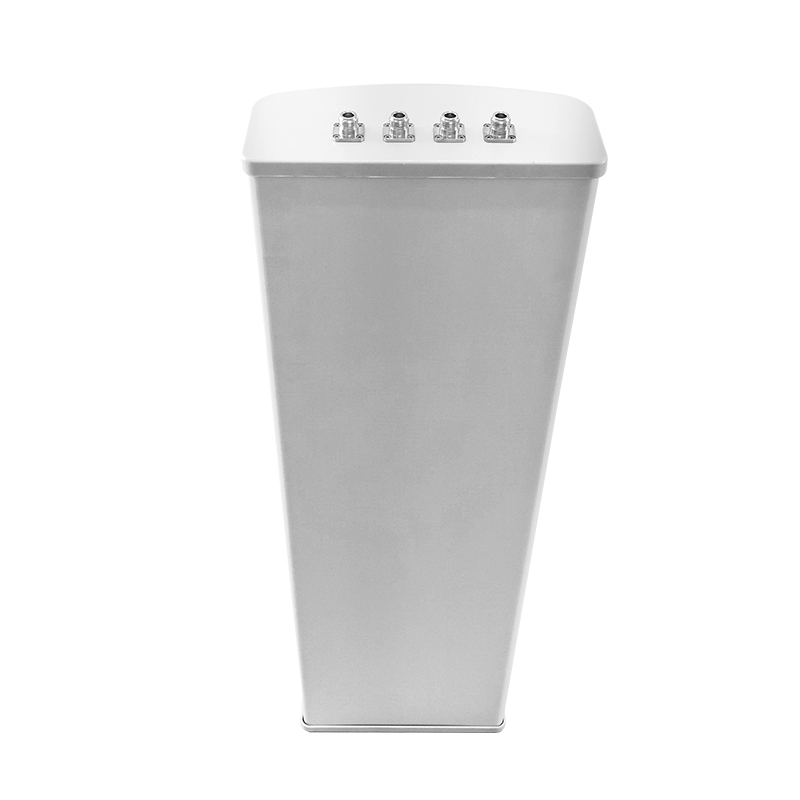

High gain outdoors sector panel 4 port antenna for wifi GPS radio communication 0

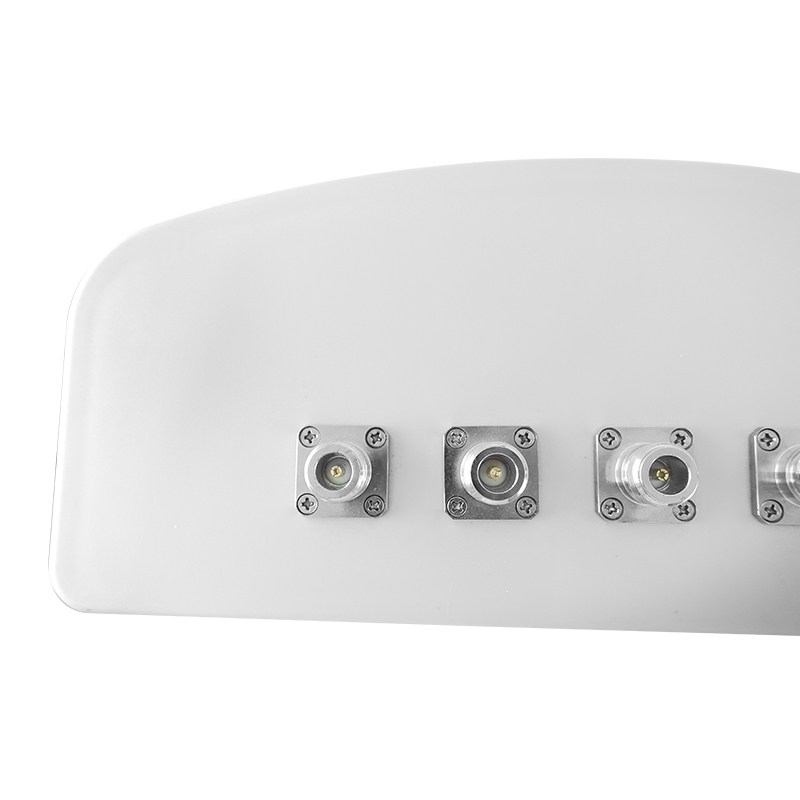

High gain outdoors sector panel 4 port antenna for wifi GPS radio communication 1





High gain outdoors sector panel 4 port antenna for wifi GPS radio communication 2

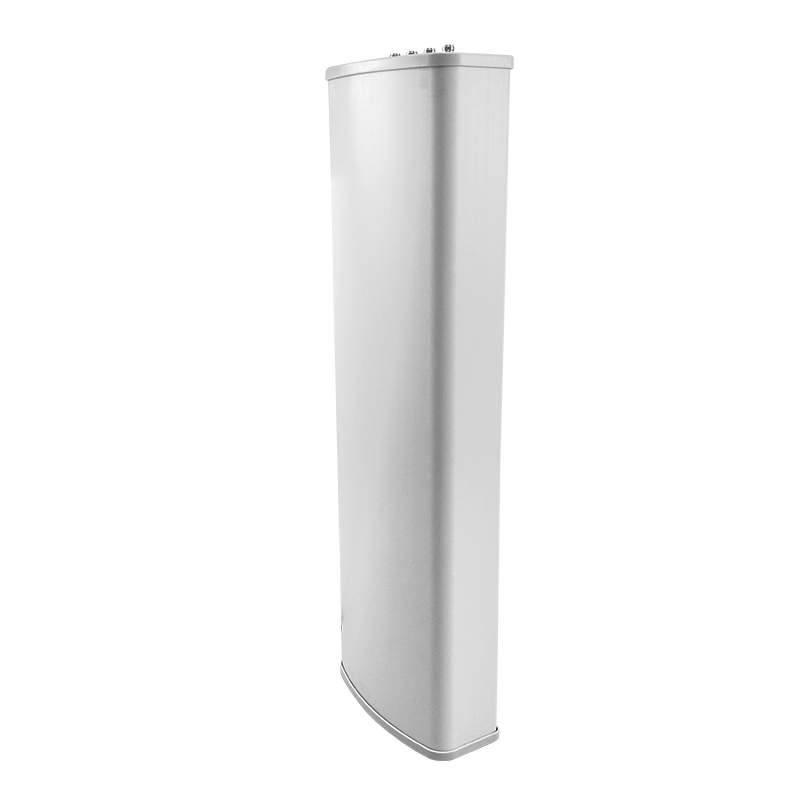

High gain outdoors sector panel 4 port antenna for wifi GPS radio communication 3

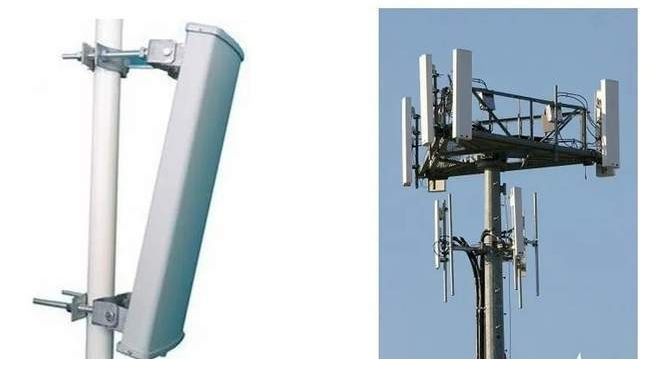

High gain outdoors sector panel 4 port antenna for wifi GPS radio communication 4



1.Are you a manufacturer?
Yes, our factory locates in LongGang District, Shenzhen, welecom to visit us here
2.MOQ?
1 to 100pcs
3.Payment term?
T/T,(Visa, Mastercard, E-checking,etc), WestUnion, Paypal, etc)
4.How to proceed an order ?
A.Let us know your requirement and product application through inquiry on website B.We quote according to your specific need C.Customers agree with the quotation and make the payment
5.How to do if I receive defective products?
Our strict quality control will ensure 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you new electronic part or product.
