Indoor ceiling WIFI phone omindirectional Nfemale antenna for communication antenna

Basic Information

Place of Origin:	China
Brand Name:	TX TELSIG
Certification:	SGS, ISO9001

Minimum Order Quantity:	1
Price:	Negotiation
Payment Terms:	L/C, T/T, Paypal,etc.

Get Best Price Contact Now

Detail Information

Frequency Range:	WIFI 4g 5g Ceiling Antenna	Gain (Typ):	1.5dbi
Output Power (Typ):	50W	Type:	Ceiling Antenna
Application:	Indoor Mount	Feature:	Wide Band Light Weight
Connector:	N -female

Product Description

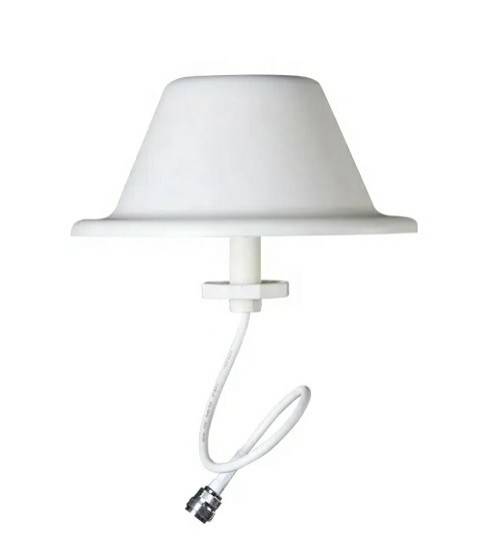

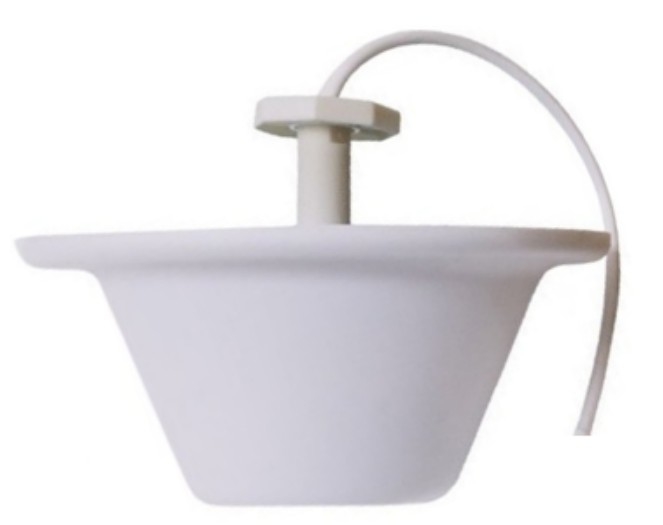

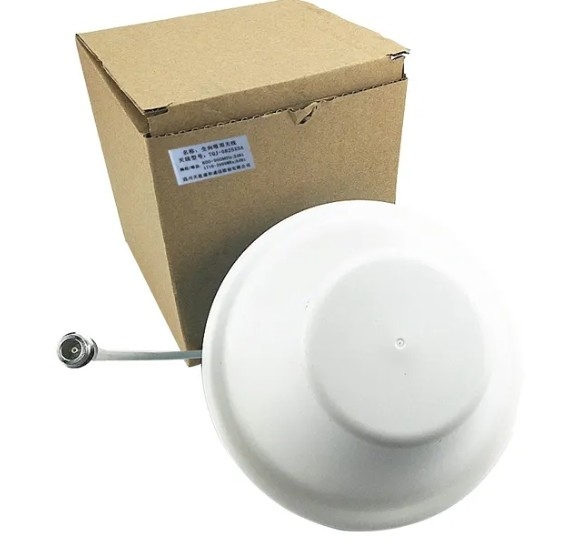

Indoor ceiling WIFI phone omindirectional Nfemale antenna for communication antenna

The antenna is omindirectional antenna using for communication field ,the frequency band 2G/3G/4G WIFI 5G the ceiling antenna need to be installed indoors, such as within the range of a signal blocker or signal booster. Lightweight structure Supports self-installation by customers.

Features
■ Wide band 698~960 / 1710~2700MHz, supports 2G/3G/4G.
■ Gain around 1.5dBi
■ VSWR≤2.5
■ABS waterproof material Industrial grade waterproof material
■ Cell phone ,WIFI,GPS application

Applications

■ Class room to cut phone signal

■ Meeting room applicated for signal booster
■ Home signal enhancement

█Electrical Specifications
Frequency Range	300-400MHz
Gain(dBi)	1.5dBi
VSWR	≤2.5
Polarization	Vertical
Horizontal Beam width(0º)	360º
Vertical Beam width(0º)	75º
ovality(dB)	≤±2dB
Input Impedance(Ω)	50Ω
Maximum input power(W)	50W
Input connector type	N-K
Lightning Protection	DC Ground
█Mechanical Specifications
Dimensionsmm(Height/Width/Depth)	ɸ180*86mm
Packing size(mm)	270120270mm
Antenna weight(kg)	0.22Kg
Rated Wind Velocity(m/s)	60m/s
Operational Humidity(％)	10- 95
Radome Color	White
Radome material	ABS
Operating temperature(ºC)	-40～55 º
Installation Method	Ceiling mounting

Ordering Information

■ Indoor for use

■ Match amplifier is best
■ WIFI ,GPS ,Drone defense antenna

Indoor ceiling WIFI phone omindirectional Nfemale antenna for communication antenna 0
