360-Degree Coverage 200-300MHz High Gain Antenna With 300W Power Output

Basic Information
Place of Origin: Shenzhen China
Brand Name: TeXin
Certification: CE ISO
Model Number: TX-300W
Minimum Order Quantity: 2
Price: Negotiable
Packaging Details: durable case or box
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000/month
Detail Information
Antenna: Omnidirectional Antenna Lightning Protection: DC Ground
Vswr: ≤1.5 Working Range: 360°
Material: Fiberglass Weigh: 61g
Gain: 3dBi(customized) Input Impedance: 50Ω
Size: 93*19mm OutPower: 300W
Highlight:

360-Degree High Gain Antenna

,

300W High Gain Antenna

,

200-300MHz High Gain Antenna


Product Description

360-Degree Coverage 200-300MHz High Gain Antenna with 300W Power Output

This antenna has a powerful power output of up to 300W, which can ensure the strength and stability of signal transmission, and maintain excellent communication effects even in complex electromagnetic environments or long-distance transmission scenarios. The omnidirectional antenna design can achieve 360-degree signal coverage. This means that it can evenly transmit and receive signals in all directions without having to precisely align the receiving end like a directional antenna, greatly increasing the flexibility and convenience of use. 200 - 300MHz Omnidirectional Antenna High Power 300W antenna with high power, omnidirectional coverage, specific frequency band adaptation, and other characteristics.

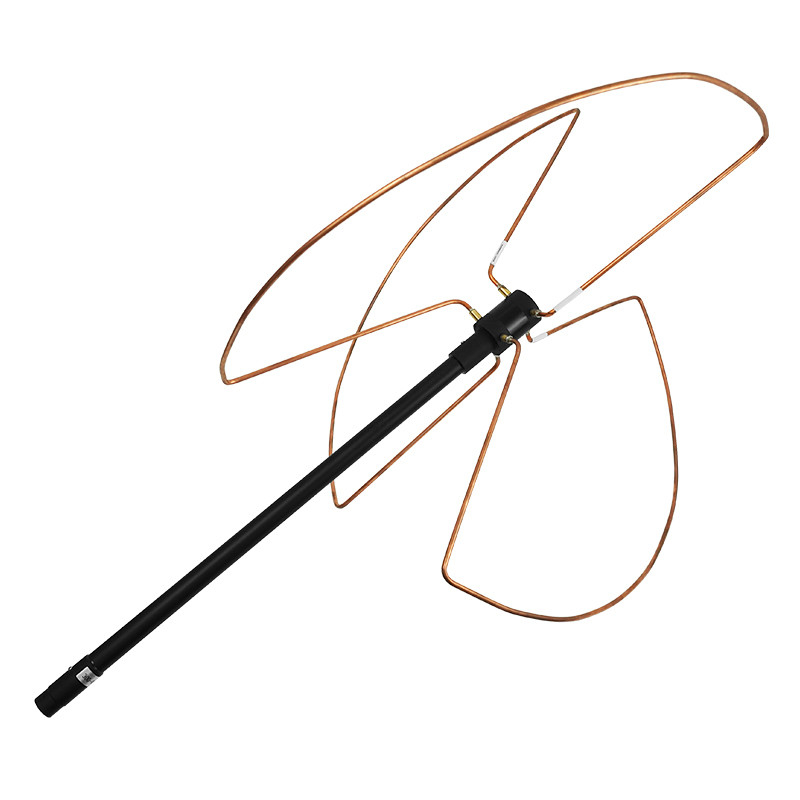

360-Degree Coverage 200-300MHz High Gain Antenna With 300W Power Output 0

Product specification



Electrical Specifications
Frequency Range (MHz) 200-300MHz
Bandwidth (MHz) 250
Input Impendence (Ω) 50
V.S.W.R ≤1.5
Gain (dBi) 3.0/5.0
Polarization Type Vertical
Lightning Protection DC ground
Power Capacity (w) 300w
Mechanical Specifications
Antenna Length (mm) 93*19mm
Radiator copper
Connect Type SMA/RP SMA/TNC/BNC/N
Working Temp(℃) -40~60
Storage Temperature(℃) -20~40
Radome Color Black
Weight (g) 61g



Product feature

1. a high gain

2. Good anti-interference ability

       3. 360-degree omnidirectional coverage

4. The antenna is designed with circular polarization

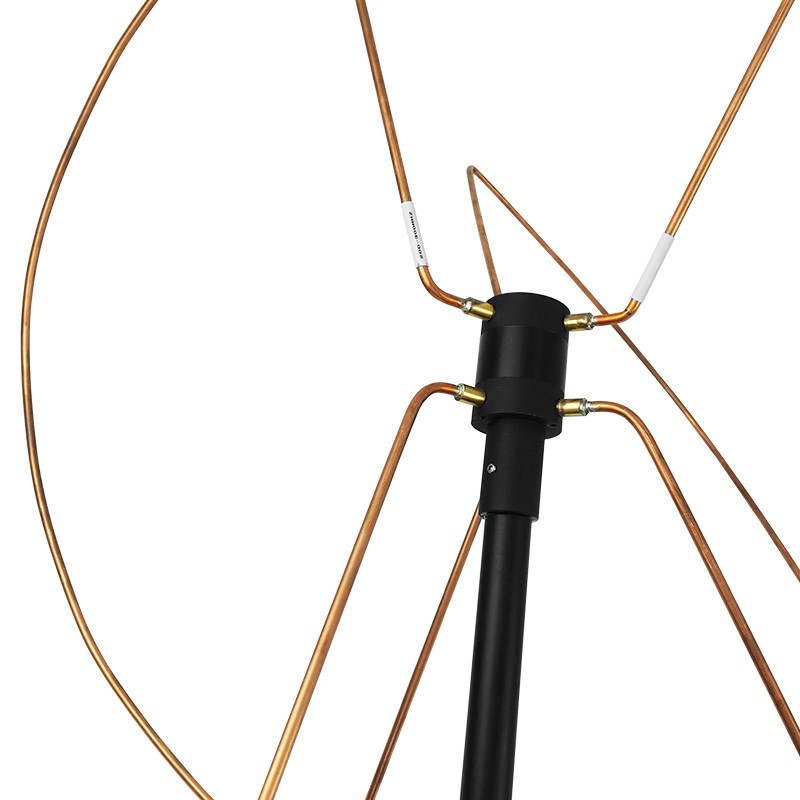

360-Degree Coverage 200-300MHz High Gain Antenna With 300W Power Output 1

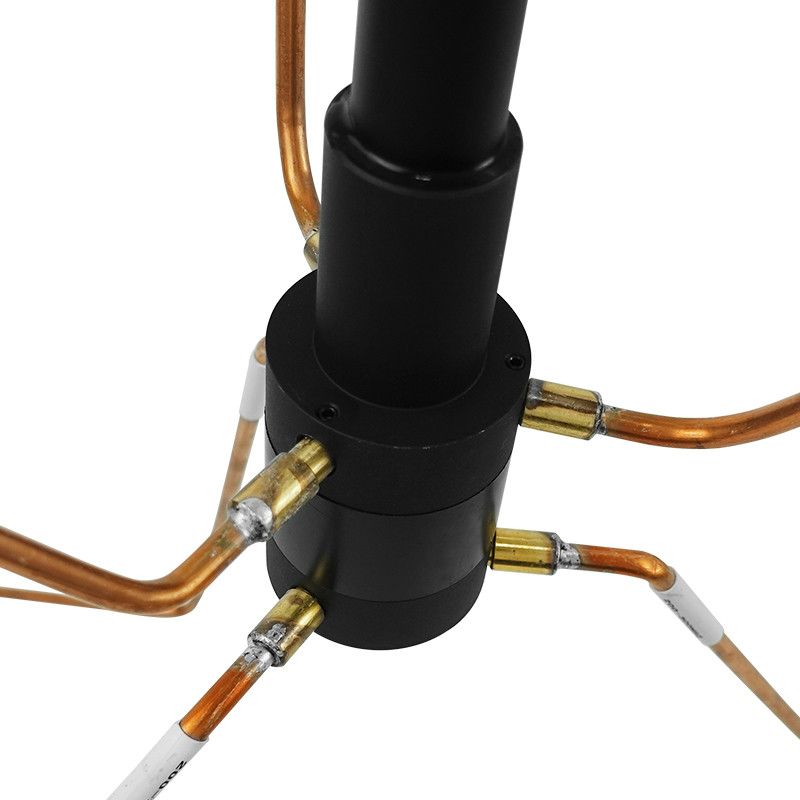

360-Degree Coverage 200-300MHz High Gain Antenna With 300W Power Output 2

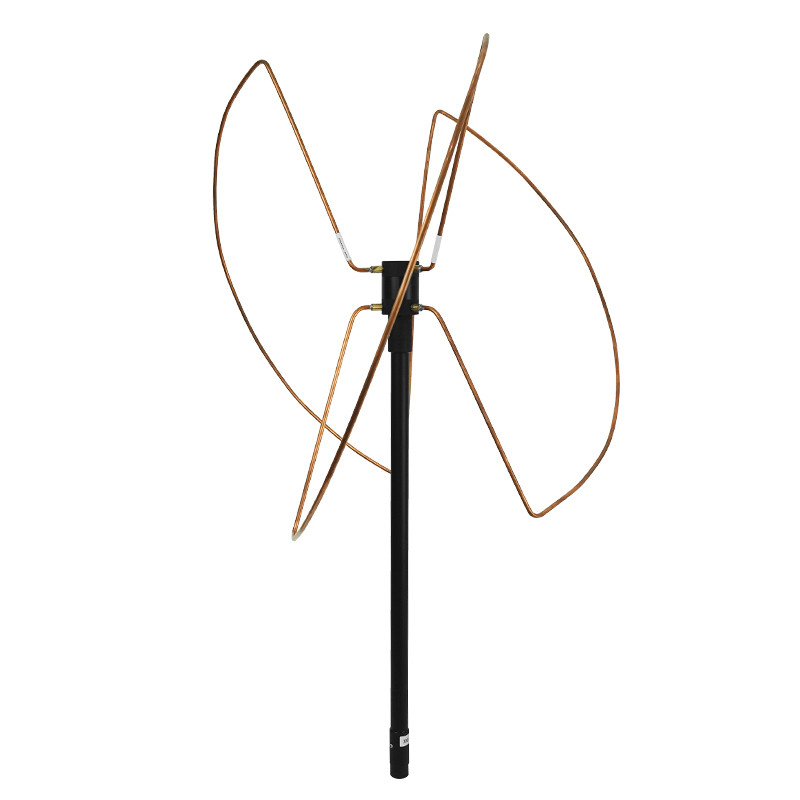

360-Degree Coverage 200-300MHz High Gain Antenna With 300W Power Output 3
