400-500MHz Copper Waterproof Four Leaf Clover Antenna For Interference Drone

Basic Information

Place of Origin:	Shenzhen China
Brand Name:	TeXin
Certification:	CE ISO
Model Number:	TX-Omni antenna

Minimum Order Quantity:	2
Price:	Negotiable
Packaging Details:	durable case or box
Delivery Time:	5-8 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000/month

Get Best Price Contact Now

Detail Information

Antenna:	Omni Antenna	Lightning Protection:	DC Ground
Vswr:	≤1.5	Working Range:	360°
Radome Color:	Yellow	Gain:	3dBi(customized)
Weigh:	1KG	Size:	5025462mm
Input Impedance（Ω）:	50Ω
Highlight:	waterproof four leaf clover antenna , interference drone four leaf clover antenna , 400-500MHz four leaf clover antenna

Product Description

factory supply 400-500MHz waterproof four leaf clover antenna interference drone

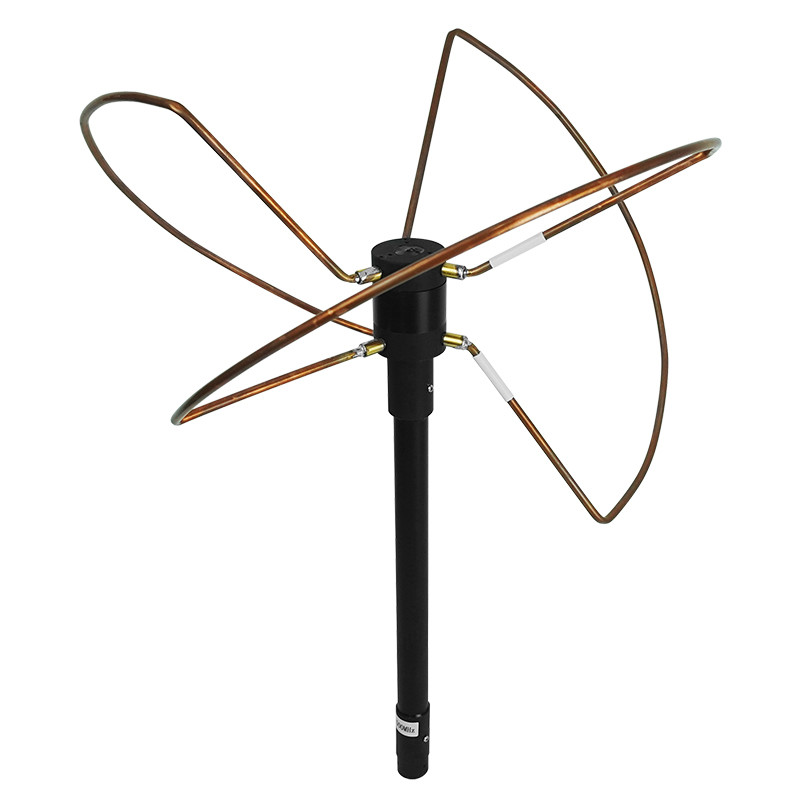

This is a large four leaf clover antenna weight around 1Kg,it is support independent installation by users and takes circular polarization method that full range 360 degree signal of drone can be interferenced .The biggest highlight is that the shape is similar to a four-leaf clover,frequency band can be customized.Such as 800MHz 3g 4g easy to achieve.

Shen Zhen Texin electronics Co.,Ltd devoted provide high quality antenna and good service to clients ! Hope to we can be a partners of business .

Features

Produced by antenna original factory 100% quality guarantee
Omnidirectional antenna full range to emit
Waterproof suit for outdoor use
Circular polarization method anti-interference ability that can woking complex environment

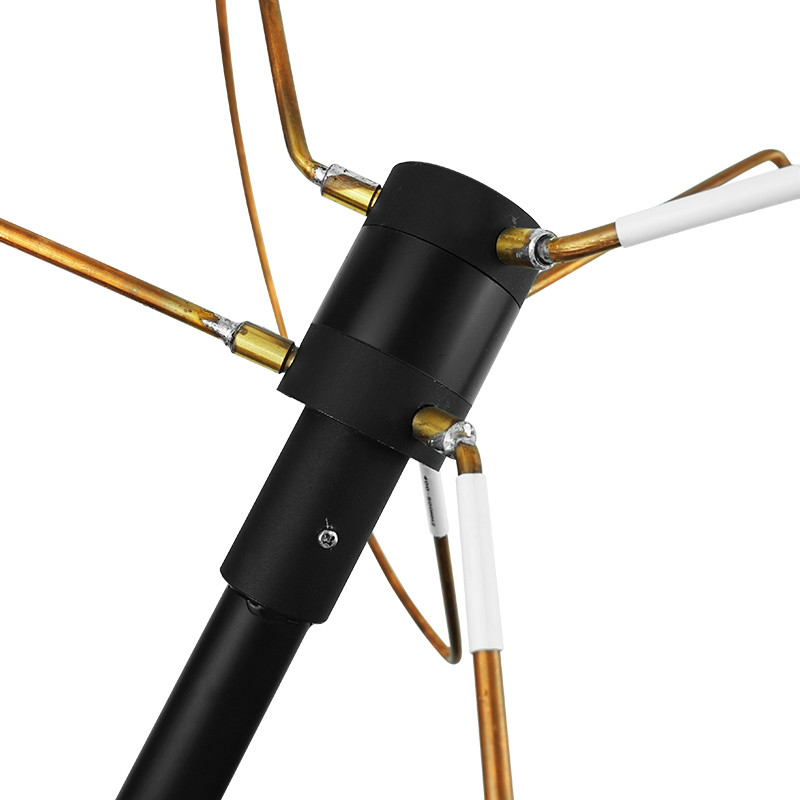

The antenna root is reinforced, and the connection is more reliable and durable.
Simple operation and easy installation

400-500MHz Copper Waterproof Four Leaf Clover Antenna For Interference Drone 0

400-500MHz Copper Waterproof Four Leaf Clover Antenna For Interference Drone 2

400-500MHz waterproof four leaf clover antenna parameter

█Electrical Specifications
FrequencyRange	3500-3700 MHz
Gain(dBi)	3±0.5dBi
VSWR	≤1.5
Polarization	Circular
Horizontal Beamwidth(0º) Vertical Beamwidth(0º)	360º 55±5º
ovality(dB)	≤±2dB
Input Impedance(Ω)	50Ω
Maximum input power(W)	300W
Inpur connector type	N-male
█Mechanical Specifications
Dimensionsmm(Height/Width/Depth)	ɸ93*19mm
Antenna weight(kg)	0.61KG
Radome Color	yellow
Operating temperature(ºC)	-40～80 º
Installution Method	Threaded docking
