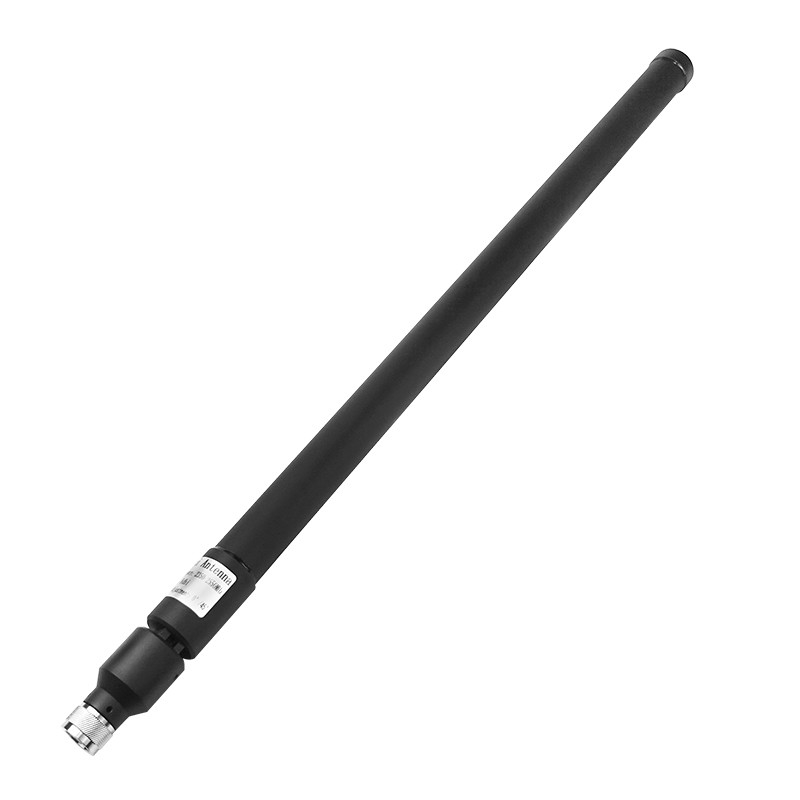

Collapsible Fiberglass Antenna 3G 4G WIFI 5G 8dBi Communication Antenna

Basic Information
Place of Origin: Guang Dong china
Brand Name: Texin
Model Number: TX00-2425-8Q15VBLG
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 5-8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000per month
Detail Information
Brand: TEXIN Frequency: 400-6300MHZ (Customized)
Color: Black Size: ɸ35*693mm
Jammer Type: DJI、quadrotor、Fixed Wing、DIY、FPV Detector Weight: 450g
Packing: Box Working Temperature: -40~55 º
Vibration Need: Car Load OK Out Shell Material: Fiberglass
VSWR: ≤1.5
Highlight:

3G 4G Collapsible Fiberglass Antenna

,

WIFI Collapsible Fiberglass Antenna

,

5G Collapsible Fiberglass Antenna


Product Description

Factory price collapsible fiberglass antenna 3G 4G WIFI 5G 8dBi communication antenna
product Introduction

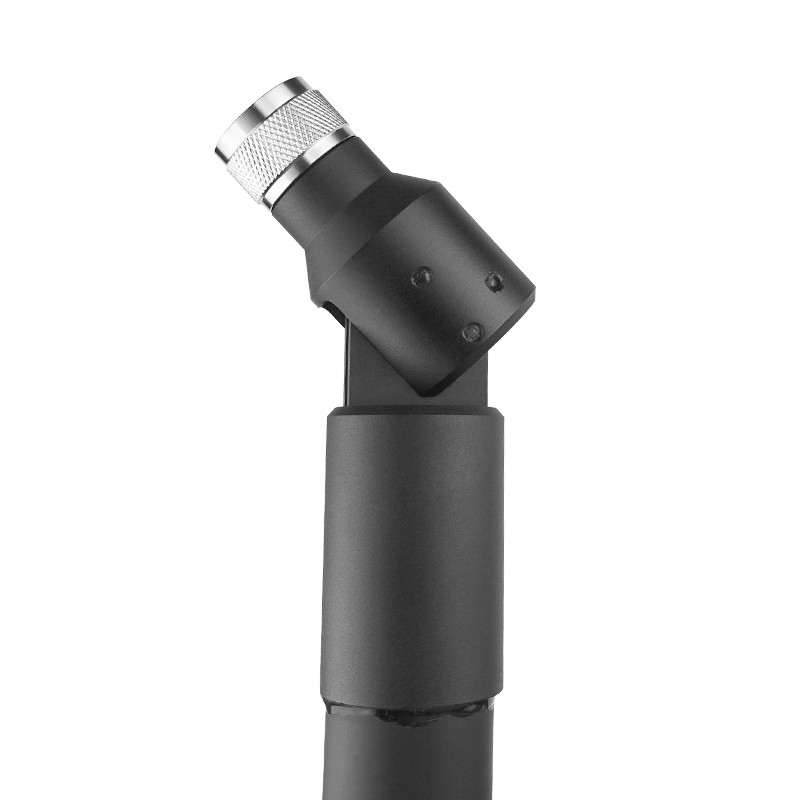

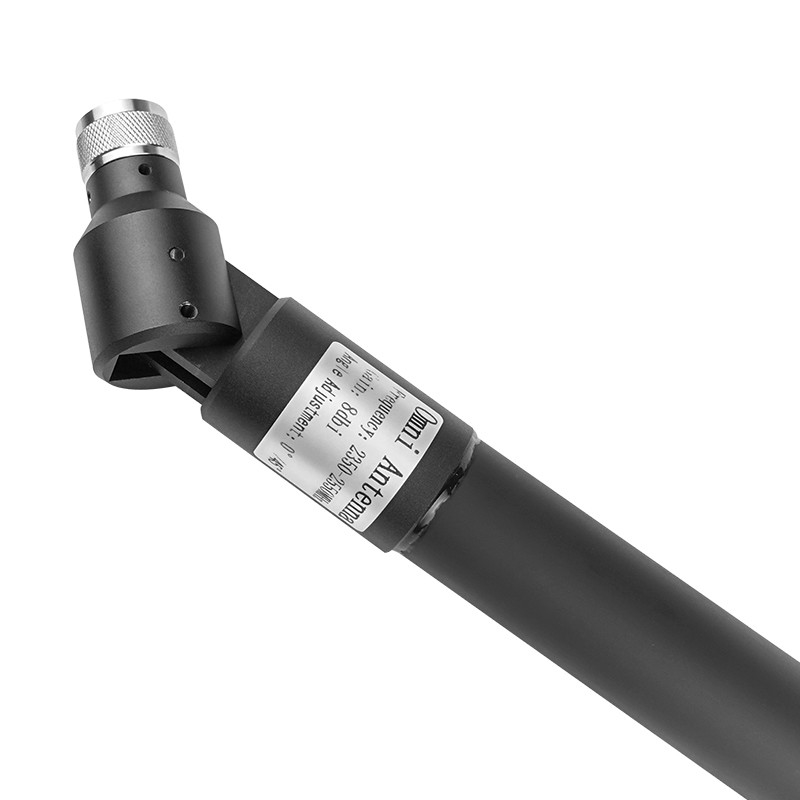

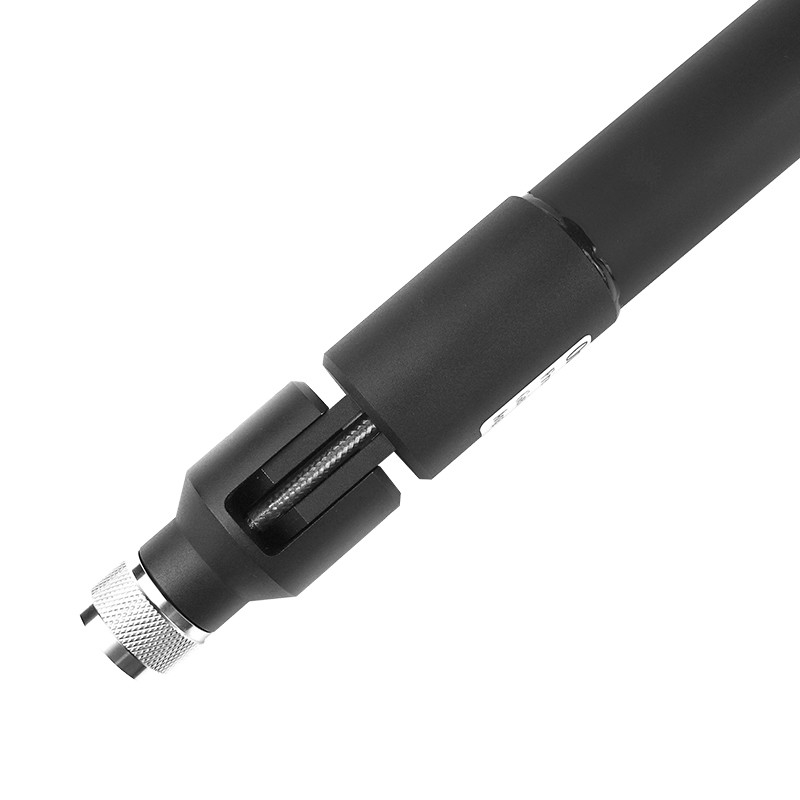

This is a unique design in which the bottom has a folding switch that you operate can adjust directional anywhere ,and when installed in device the folding switch can form a protection for the device .High gain 8dBi makes the signal steady emit .It is directly sold by manufacturer so that the power and frequency band can be customized .It is suitable for communication field ,fiberglass material  waterpoof ,windproof ,anti shocked ,no matter use at home or outdoors there was no influence at all .

Electrical Specifications
Frequency Range 2350-2550MHz
Gain(dBi) 8±1dBi
VSWR ≤1.5
Polarization Vertical
Horizontal Beam width(0º) 360º
Vertical Beam width(0º) 45º
Ovality(dB) ≤±2dB
Input Impedance(Ω) 50Ω
Maximum input power(W) 100W
Input connector type N-J
Lightning Protection DC Ground
Mechanical Specifications
Dimensions­mm(Height/Width/Depth) ɸ35*693mm
Antenna weight(kg) 0.45KG
Rated Wind Velocity(m/s) 60m/s
Operational Humidity(%) 10- 95
Ra dome Color Black
Ra dome material glassed steel
Operating temperature(ºC) -40~55 º
Installation Method



Machine installation



Collapsible Fiberglass Antenna 3G 4G WIFI 5G 8dBi Communication Antenna 0



 Collapsible Fiberglass Antenna 3G 4G WIFI 5G 8dBi Communication Antenna 1


Collapsible Fiberglass Antenna 3G 4G WIFI 5G 8dBi Communication Antenna 2Collapsible Fiberglass Antenna 3G 4G WIFI 5G 8dBi Communication Antenna 3

Features

  • Fiberglass material anti shocked ,waterproof ,Anti-fall
  • 8dBi 100W high gain and high power operate
  • Widely use in many places such as school,government ,entertainment venues
  •  Factory produced that can be ordered in bulk
  • It is a communication antenna that can intefere drone signal
  • N-Female connector is maintain stable signal transmission and electrical connection in various harsh environments

​FAQ

Do you have the self development capacity to design the new and creative anti drone solution?

yes, TeXin is with the key know-how and thousands of project experience to offer a new anti drone solution from shape to inside design according to customer specific need.

How many assemblies you have in your factory ?

TeXin factory has over 9 assemblies in our over 5000sqm 2 floor factory in Long area, Shenzhen city.

Do you have the engineer for the technical support when you are making the after sales service ?

TeXin engineer team can directly offer the customers with the techinical support online anytime customer need it.

How can i be a your distributor in our own country ?

For the TeXin distribution authorization,we can definitely offer it for some customer after the details negotiation, it depends on the real situation of each side.
