Home > Products> High Gain Antenna> Customized 3dBi-8dBi Omni Antenna High Speed 20MHz 2G For Outdoors Air Security

Customized 3dBi-8dBi Omni Antenna High Speed 20MHz 2G For Outdoors Air Security

Basic Information

Place of Origin:	Shenzhen,China
Brand Name:	TeXin OEM
Certification:	CE ISO

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Durable case or box
Delivery Time:	Within 3 work days
Payment Terms:	L/C, D/A, D/P, T/T,
Supply Ability:	100000/month

Get Best Price Contact Now

Detail Information

Brand:	TEXIN	Application:	Signal Interference
Power:	50W	Frequency:	840-930MHz (Customized)
Size:	600350220mm	Weight:	0.34KG
Gain:	8dBi	Input Impedance:	50Ω
Maximum Input Power:	50W	Rated Wind Velocity:	31m/s
Mechanical Tilt(º):	0-10º	Installation Method:	Machine Mount
Highlight:	20MHz omni antenna , high speed omni antenna , 2G omni antenna

Product Description

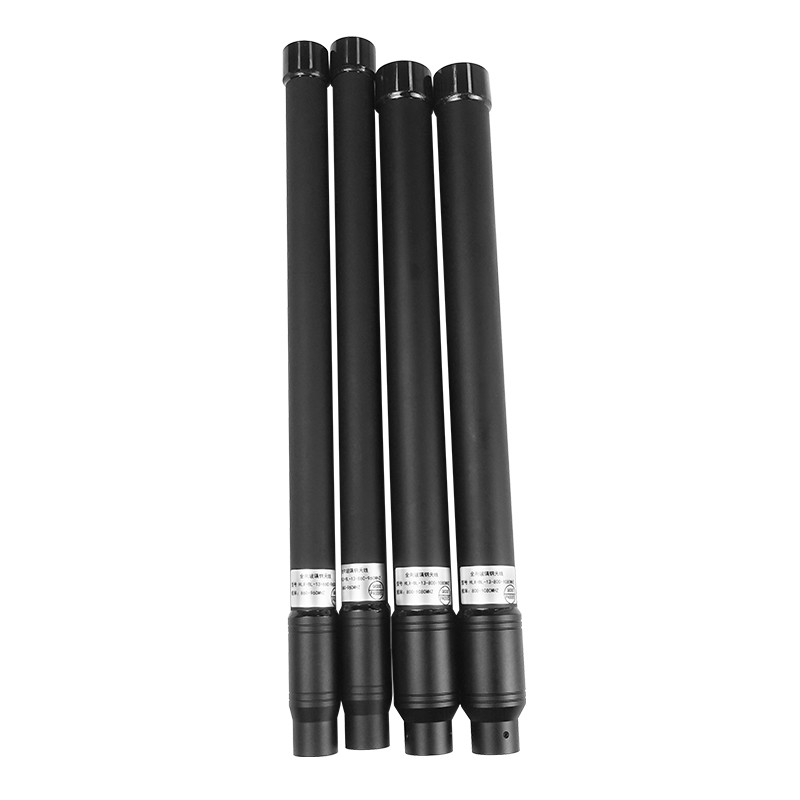

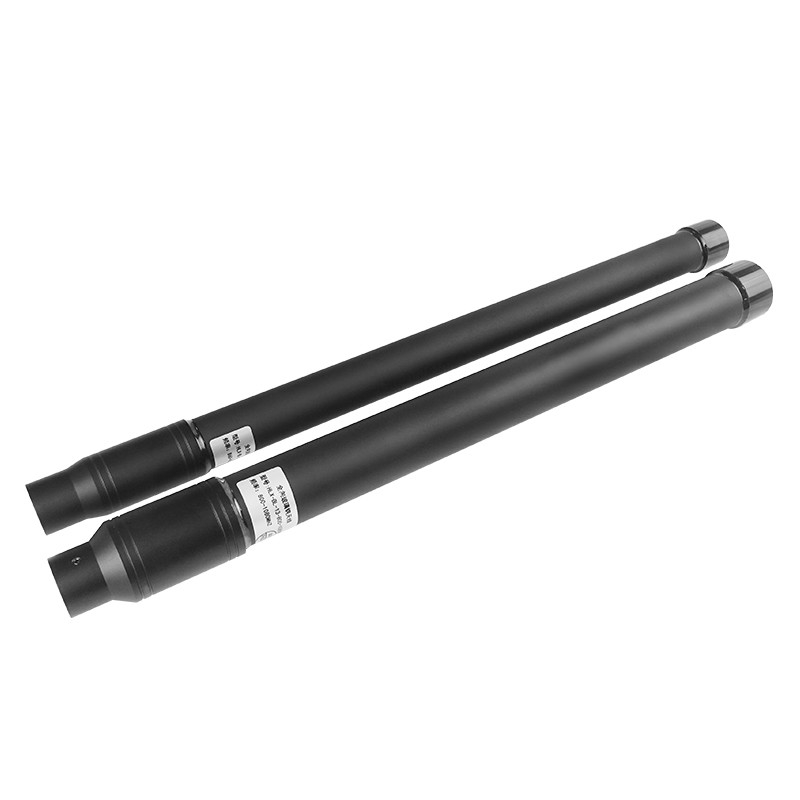

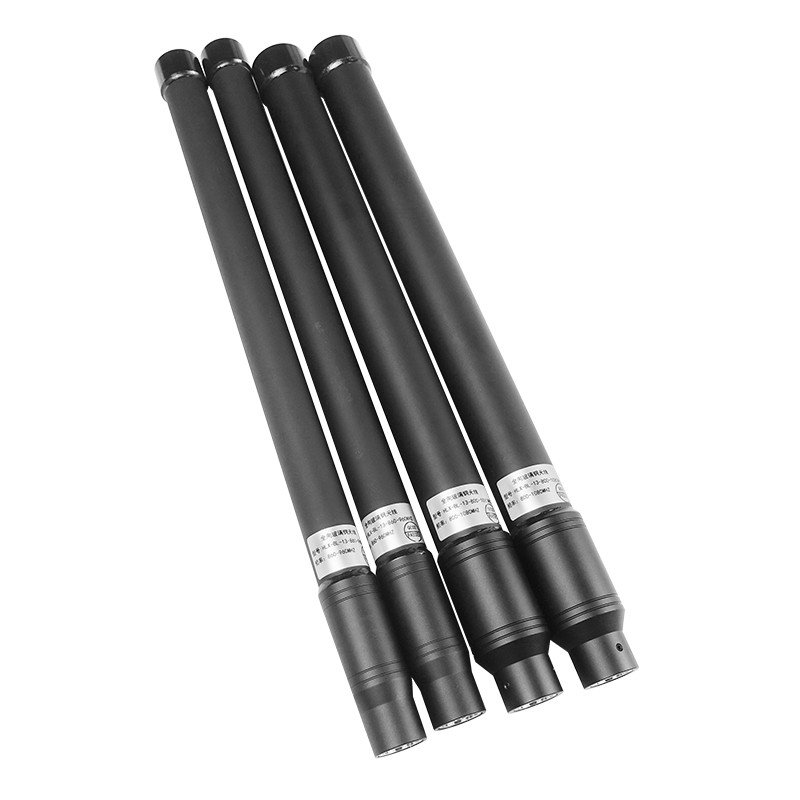

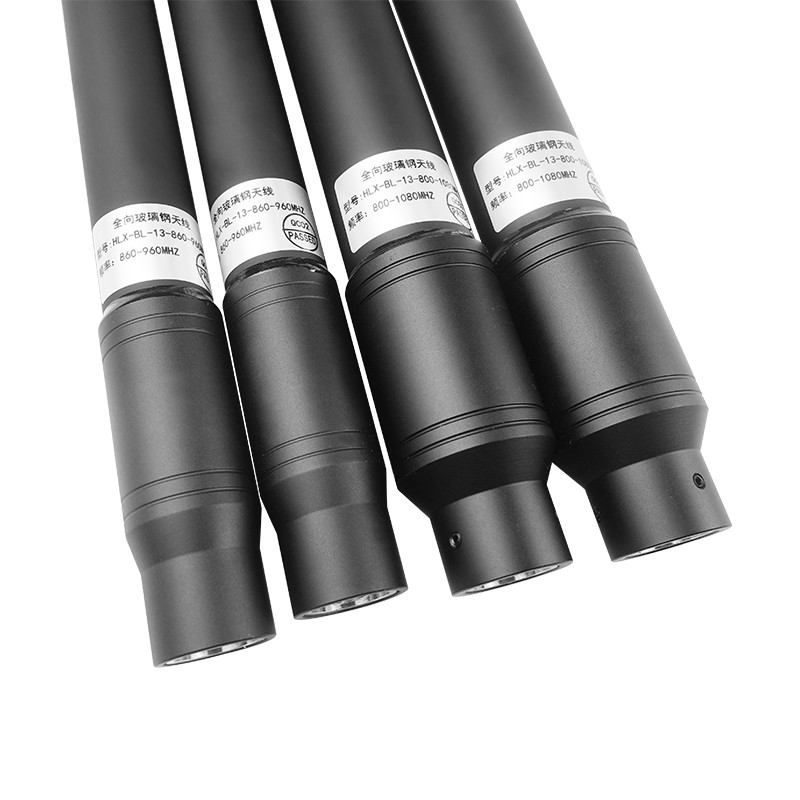

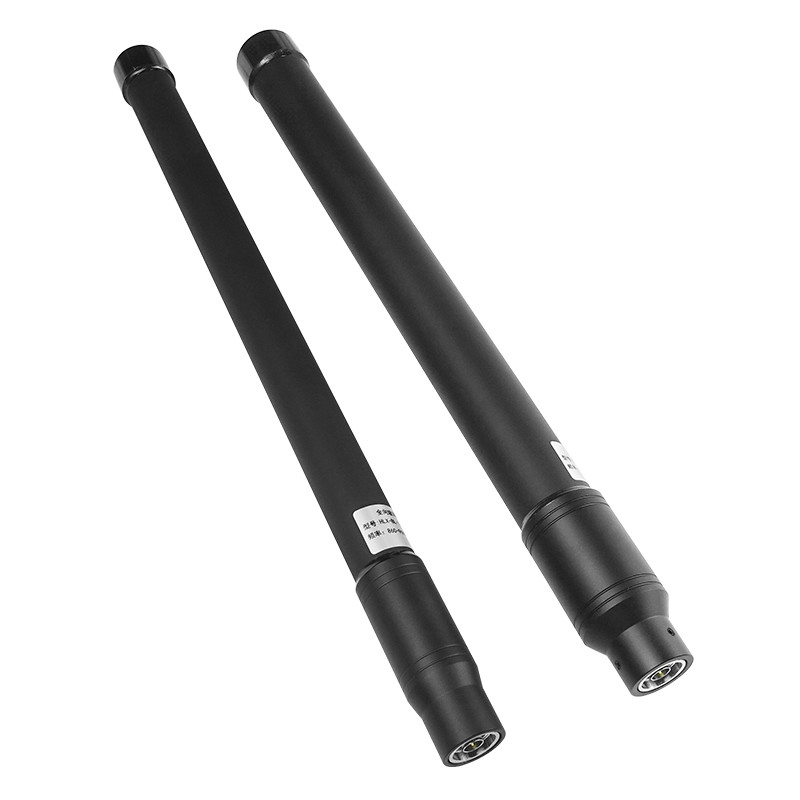

Customized 3dBi-8dBi omni antenna high speed air security

The Omni Antenna features an impressive **8dBi fiberglass omni** design, delivering superior signal coverage and enhancing your outdoor connectivity solutions effectively.Crafted for convenience, this antenna is lightweight and easy to carry, making it an ideal choice for outdoor applications where mobility and ease of installation are required.Purchase the Omni Antenna with confidence, as Shen Zhen Electronics Co. Ltd. provides excellent after-sales support, ensuring your satisfaction and assistance with any product inquiries or issues.

parameter:

█Electrical Specifications
FrequencyRange	2010-2170MHz
Gain(dBi)	8±0.5dBi
VSWR	≤2
Polarization	vertical
Horizontal Beamwidth(0º) Vertical Beamwidth(0º)	360º 12±3º
ovality(dB)	≤±2dB
Input Impedance(Ω)	50Ω
Maximum input power(W)	50W
Inpur connector type	N-J
Lightning Protection	DC Ground
█机械参数Mechanical Specifications
天线尺寸Dimensionsmm(Height/Width/Depth)	ɸ25*570mm
包装尺寸Packing size(mm)	600350220mm(50PCS)
天线重量Antenna weight(kg)	0.34KG
极限风速Rated Wind Velocity(m/s)	60m/s
工作湿度Operational Humidity(％)	10- 95
天线罩颜色Radome Color	black
天线罩材料 Radome material	fiberglass
工作温度Operating temperature(ºC)	-40～55 º
安装方式Installution Method	machine mount

Features :

1.Max gain around 3dBi-8dBi

2.Tiny size light weight and high quality

3. Designed lightning protect can use in out doors

4.Directional sthrong signal

Application

Customized 3dBi-8dBi Omni Antenna High Speed 20MHz 2G For Outdoors Air Security 0

Customized 3dBi-8dBi Omni Antenna High Speed 20MHz 2G For Outdoors Air Security 1

Factory real display

Customized 3dBi-8dBi Omni Antenna High Speed 20MHz 2G For Outdoors Air Security 2
