High Gain 12dBi Signal Blocker Tiny Size 50W Yagi Antenna 1100-1300MHz

Basic Information
Place of Origin: Shenzhen,China
Brand Name: TeXin OEM
Certification: CE ISO
Model Number: TX008-1113-12D50VBM
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Durable case or box
Delivery Time: Within 3 work days
Payment Terms: L/C, D/A, D/P, T/T,
Supply Ability: 100000/month
Detail Information
Brand: TEXIN Application: Signal Booster
Power: 50W Frequency: 100-1000MHz 4000-5000MHz(Customized)
Size: 450*120*55mm Weight: 0.4 Kg
Material: Aluminium Gain: 12dBi
Maximum Input Power: 50W Rated Wind Velocity: 31m/s
Mechanical Tilt(º): 0-10º Polarization: Vertical
Highlight:

1100-1300MHz Yagi antenna

,

Tiny Size Yagi antenna

,

12dBi Yagi antenna


Product Description

High gain 12dBi signal blocker tiny size 50W Yagi antenna 1100-1300MHz

This is high gain 12dBi siganal blocker Yagi antenna ,it produce by Shen Zhen Texin Electronics Co.,Ltd .that the company has over 10years of producing  antennas.Providing high-quality services  products to customers around the world .this antenna is used in signal booster,set lightning protection when installed out side the antenna transmition not unaffected .And it produced by manufactureso that frequency band can be customized.

parameter:

Electrical Specifications
FrequencyRange 1100-1300MHz
Gain(dBi) 12dBi
VSWR ≤2
Polarization Vertical
Horizontal Beamwidth(0º) 50±10º
Vertical Beamwidth(0º) 30±10º
Front-to-back ratio(dB) ≥18
Input Impedance(Ω) 50Ω
Maximum input power(W) 50W
 Inpur connector type N-K
Lightning Protection DC Ground
Mechanical Specifications
Dimensions­mm(Height/Width/Depth) 450*120*55mm
Packing size(mm) Mm(depend on real case)
Antenna weight(kg) 0.4K
Rated Wind Velocity(m/s) 31m/s
Operational Humidity(%) 10- 95
Radome Color Black
 Radome material aluminum
Operating temperature(ºC) -40~55 º
Installution Method Pole installation
Mounting hardware(mm) Φ30~Φ50mm

Features :

1.High gain around 12dBi

2.Tiny size light weight and high quality

3. Designed lightning protect can use in out doors

4.Directional sthrong signal

Application

Television Reception: Yagi antennas have been traditionally used for receiving television signals, particularly in rural areas where broadcast towers are not nearby.

Security Operations: Suitable for use in high-security areas, events, and critical infrastructure protection against potential drone threats.

Wireless Communication: In various wireless applications, Yagi antennas are used to establish point-to-point communication links.

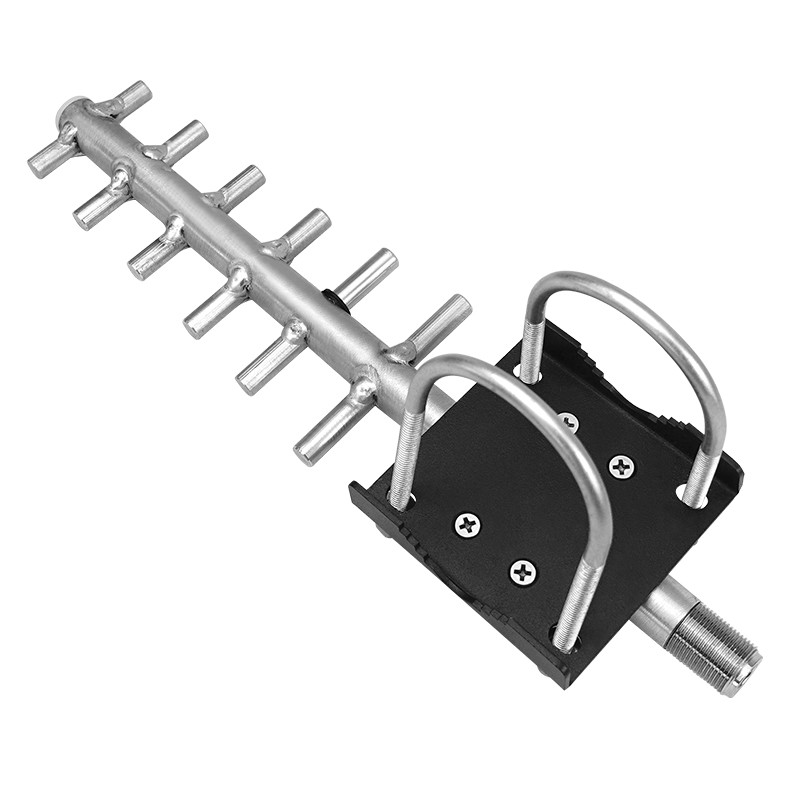

High Gain 12dBi  Signal Blocker Tiny Size 50W Yagi Antenna 1100-1300MHz 0

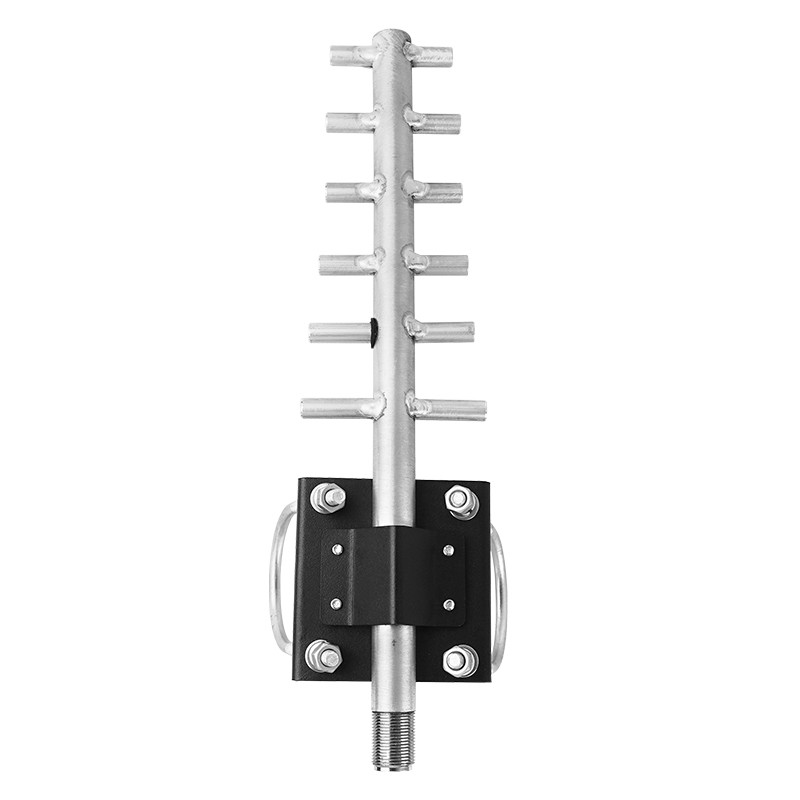

High Gain 12dBi  Signal Blocker Tiny Size 50W Yagi Antenna 1100-1300MHz 1





Factory real display

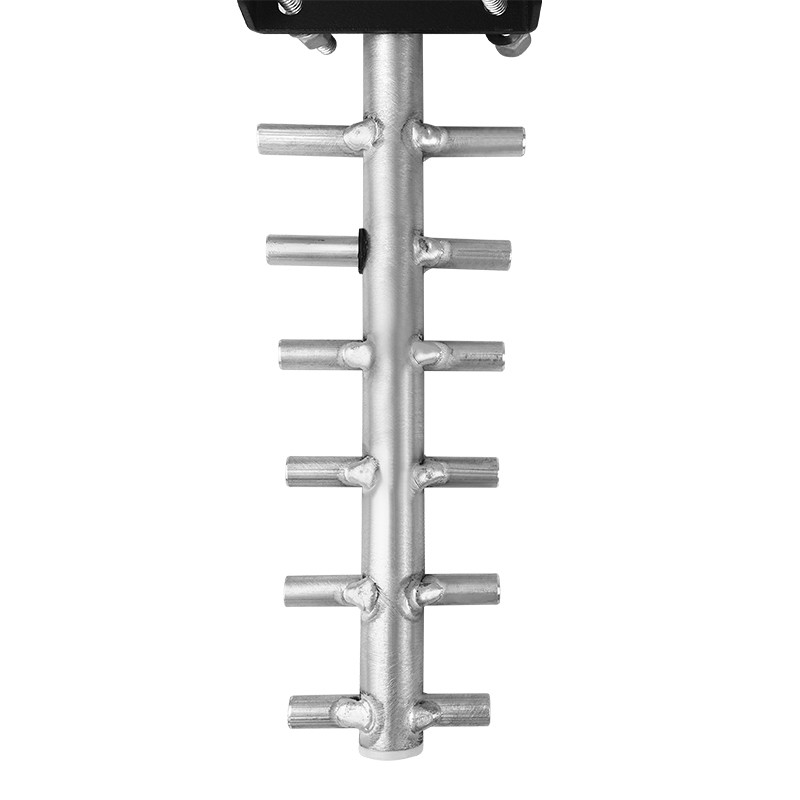

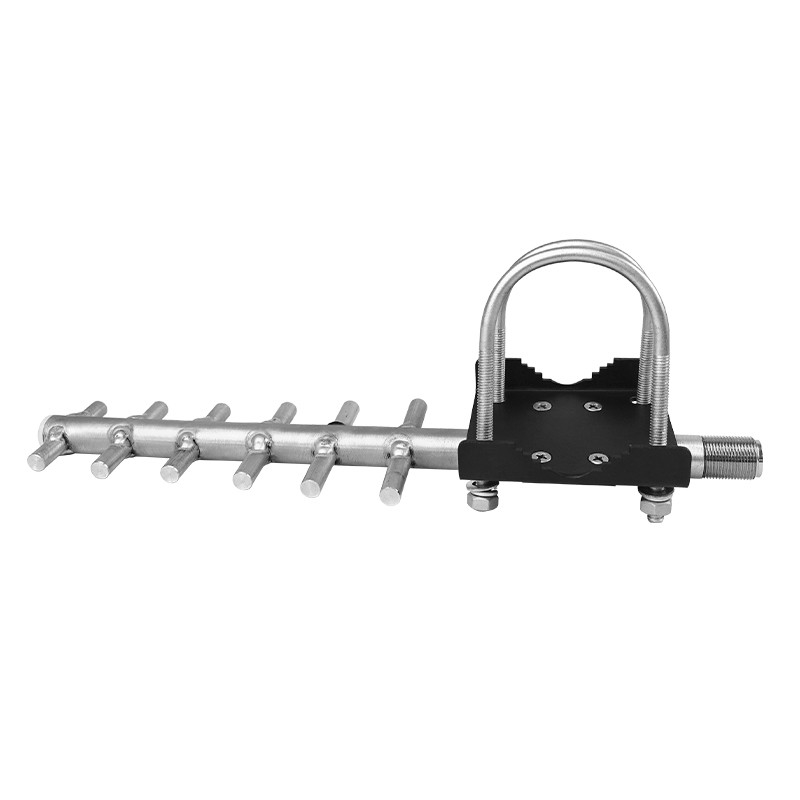

High Gain 12dBi  Signal Blocker Tiny Size 50W Yagi Antenna 1100-1300MHz 2High Gain 12dBi  Signal Blocker Tiny Size 50W Yagi Antenna 1100-1300MHz 3High Gain 12dBi  Signal Blocker Tiny Size 50W Yagi Antenna 1100-1300MHz 4
