| Place of Origin: | Guang Dong china |
|---|---|
| Brand Name: | Texin |
| Model Number: | LyAF-7010-3.5Q55VQX3 |
| Minimum Order Quantity: | 1 |
| Price: | negotiate |
| Packaging Details: | 160*120 cm*94cm |
| Delivery Time: | 5-8 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000per month |
| Type: | Omin Antenna | Application: | FPV Antenna |
|---|---|---|---|
| Frequency Range: | 800-1620Mhz | Gain: | 3dBi(customized) |
| VSWR: | ≤2 | Input Impedance: | 50Ω |
| Maximum Input Power: | 50W | Color: | Black (customized) |
| Material: | Fiberglass | Weight: | 186g |
| Brand: | TEXIN | Working Range: | 360° |
| High Light: | Circular Polarization BABS antenna,3.5dBi BABS antenna,800-1620MHz BABS antenna |
||

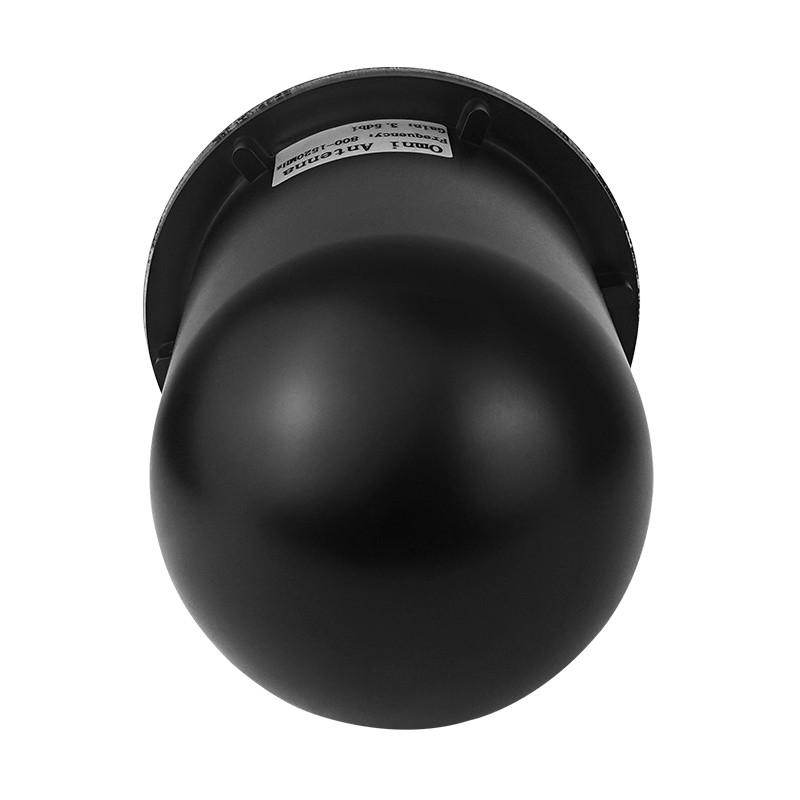

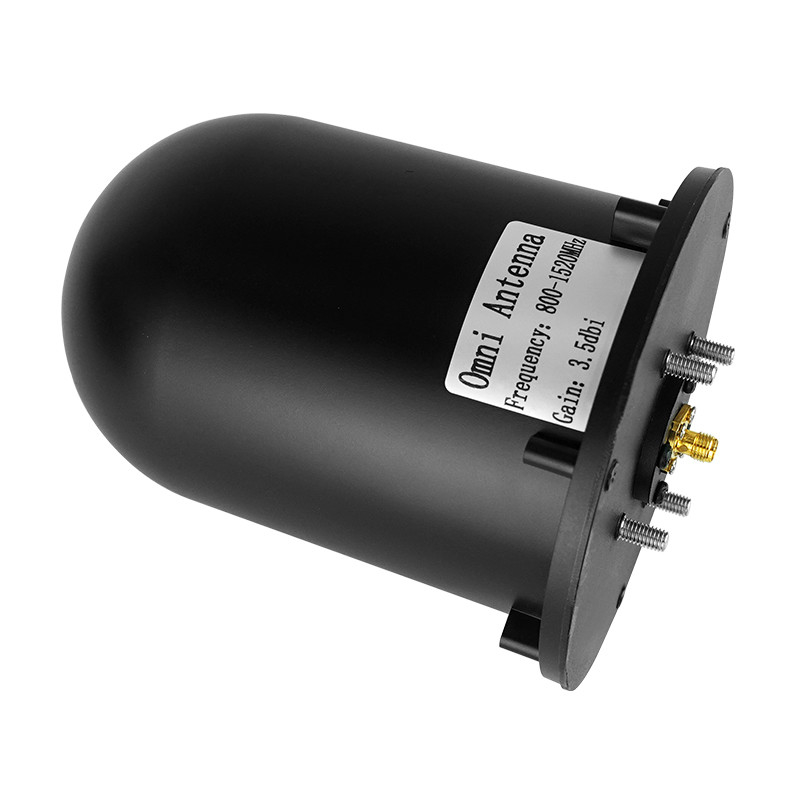

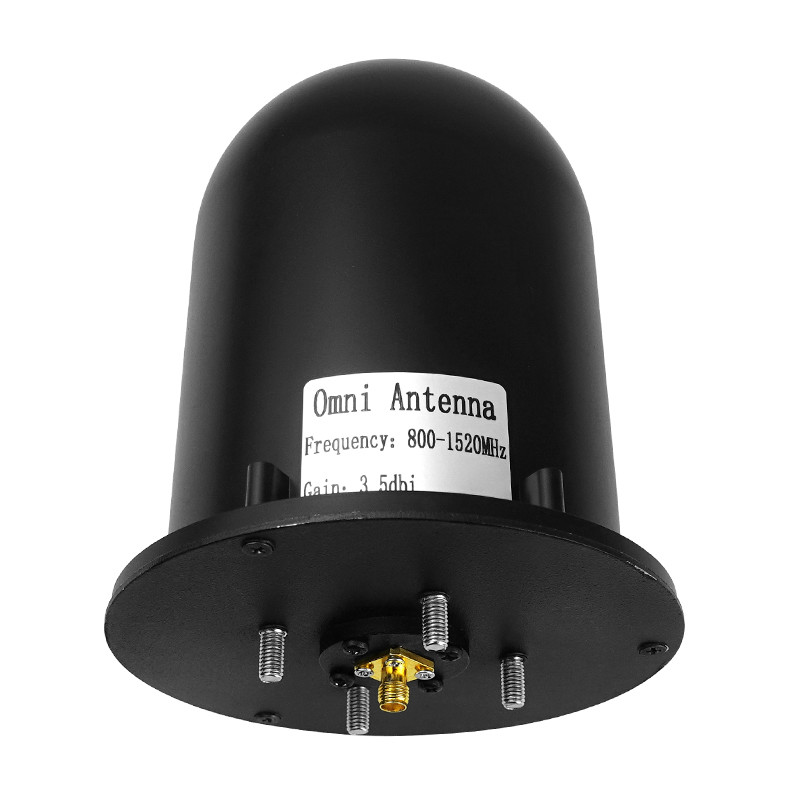

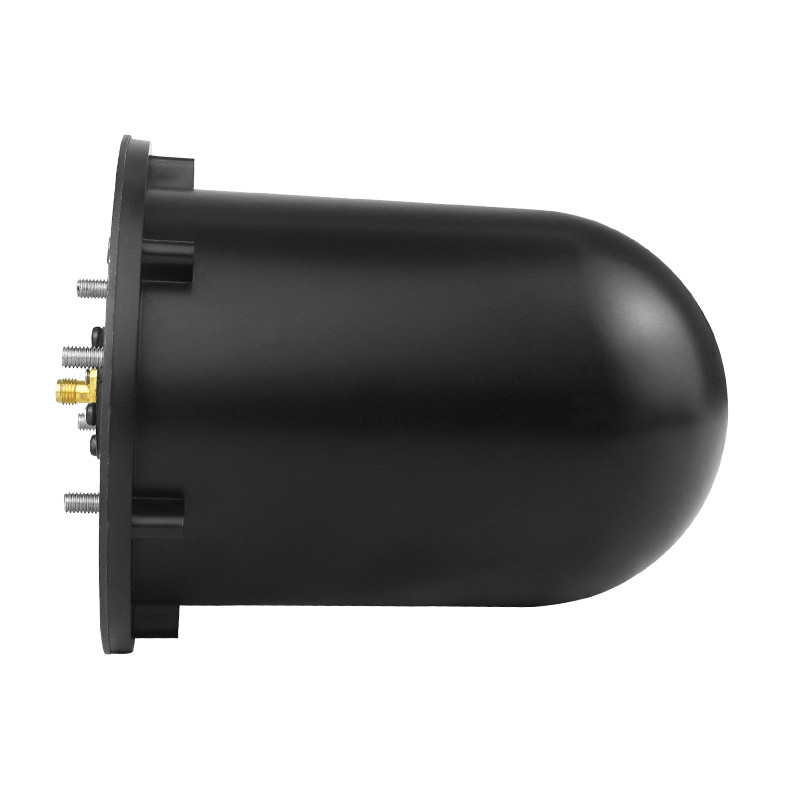

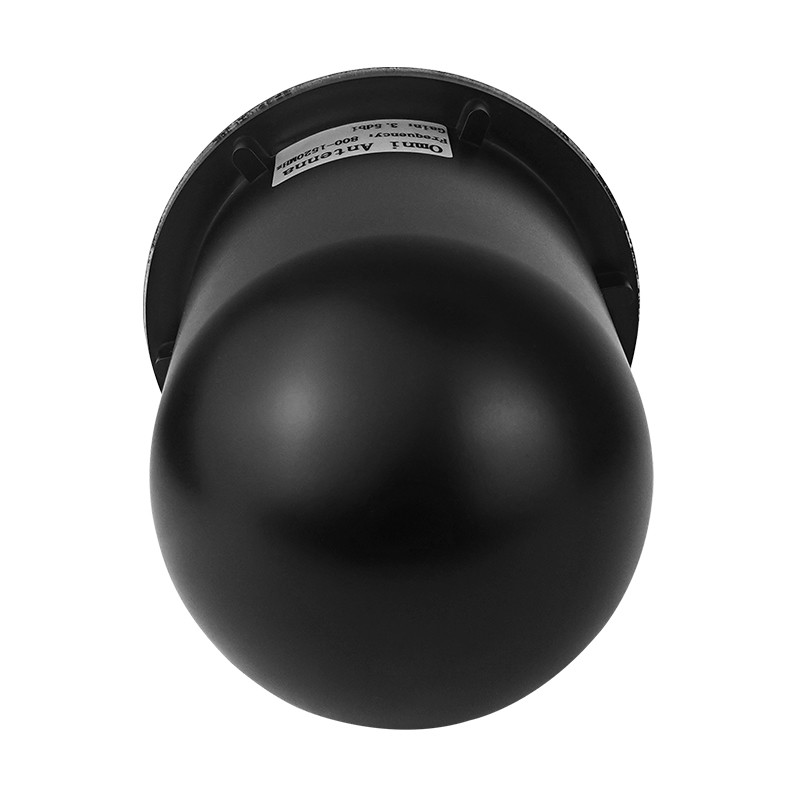

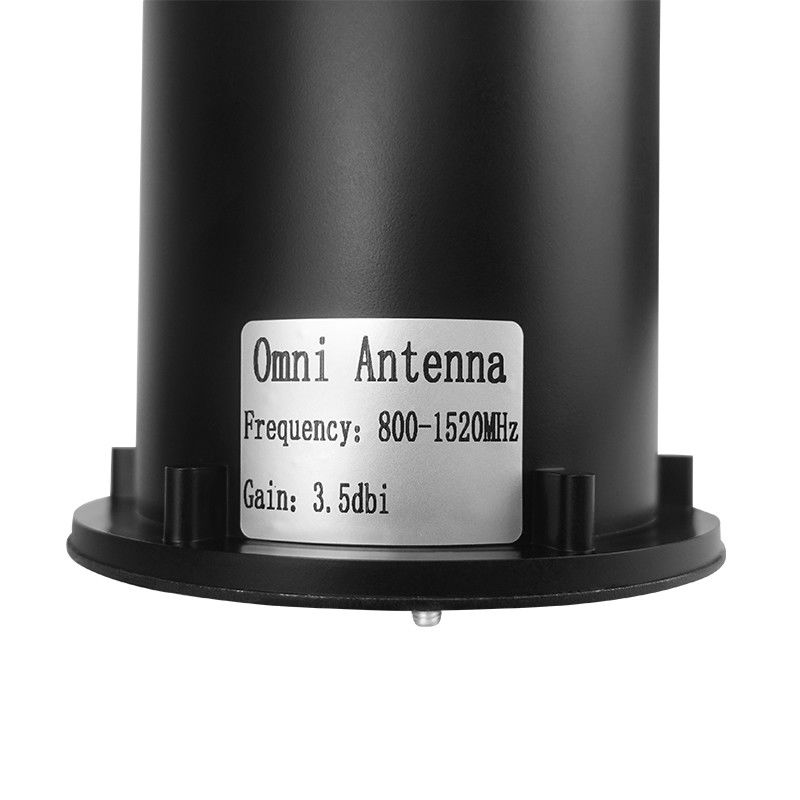

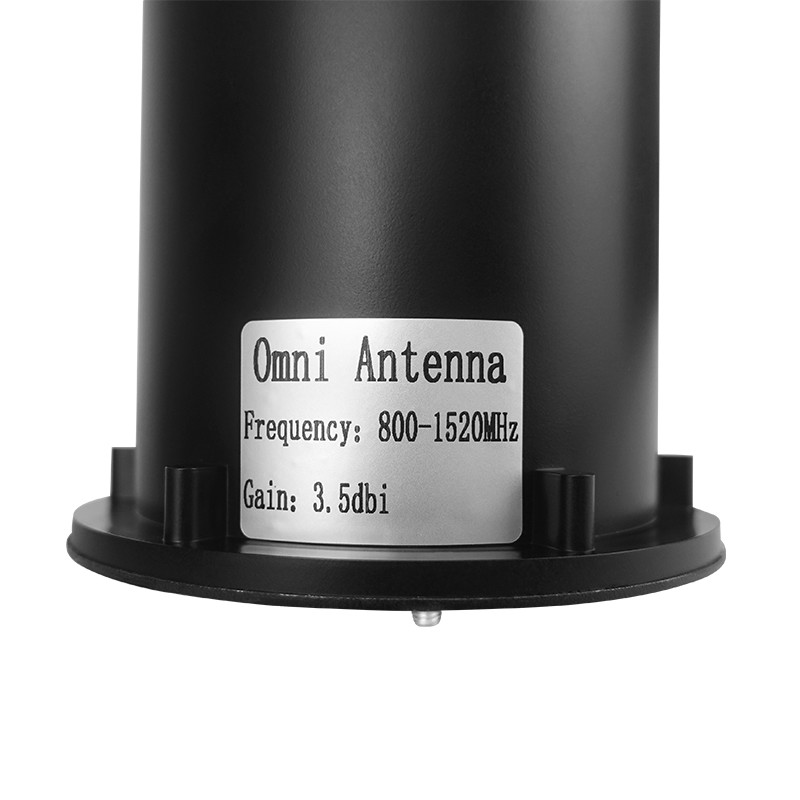

Circular Polarization type hat 800-1620MHz 3.5dBi omin fiberglass antenna for anti drone signal device

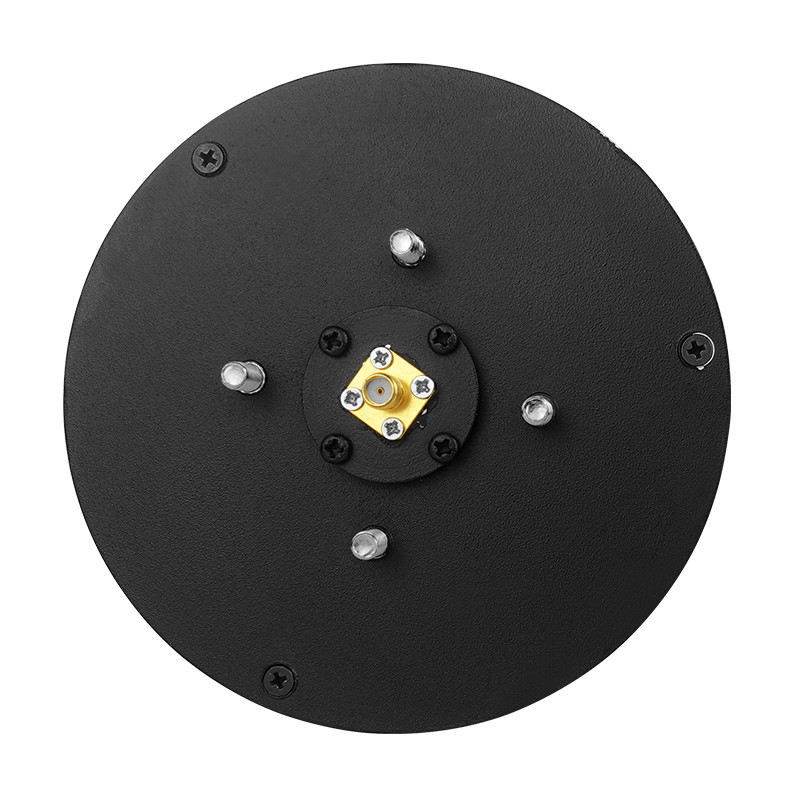

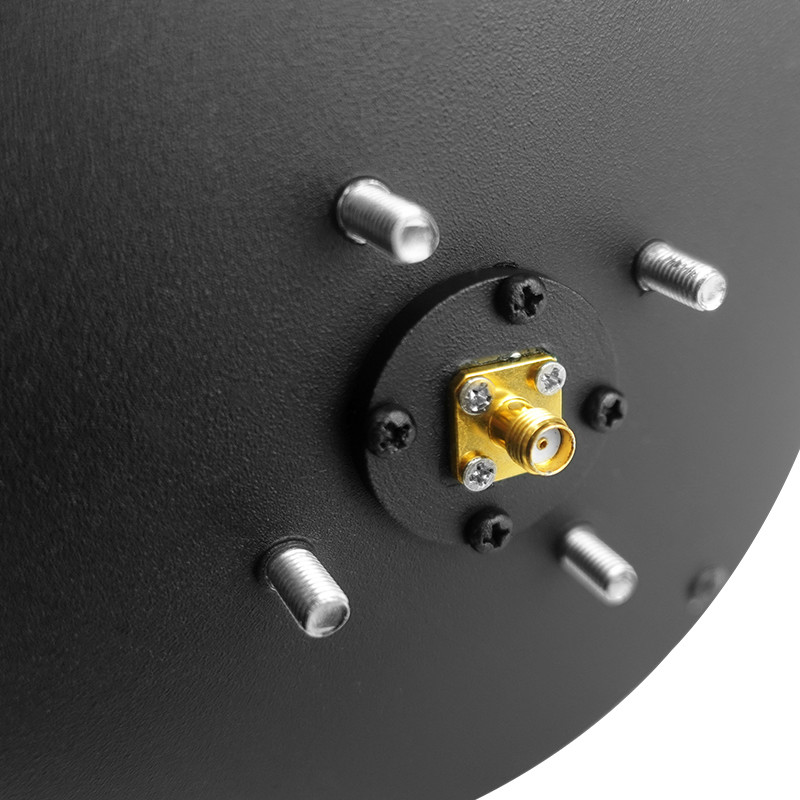

This circular polarization type hat antenna frequency band 800-1620Mhz,the gain is 3.5dBi.The bottom has set 5 S-end connector the connector using copper material which can transmit signal fluency.The polarization is virtical method ,360° horizontal beamwidth .It is a omin antenna working range .
product sepcification
| █Electrical Specifications | |
| FrequencyRange | 800-1620MHz |
| Gain(dBi) | 3.5±0.5dBi |
| VSWR | ≤2 |
| Polarization | virtical |
|
Horizontal Beamwidth(0º) Vertical Beamwidth(0º) |
360º 55±5º |
| ovality(dB) | ≤±2dB |
| Input Impedance(Ω) | 50Ω |
| Maximum input power(W) | 50W |
| Inpur connector type | Sma-K |
| █Mechanical Specifications | |
| Dimensionsmm(Height/Width/Depth) | ɸ115*140mm |
| Packing size(mm) | 470*350*220mm(20PCS) |
| Antenna weight(kg) | 0.35KG |
| Rated Wind Velocity(m/s) | 31m/s |
| Operational Humidity(％) | 10- 95 |
| Radome Color | Black |
| Radome material | ABS |
| Operating temperature(ºC) | -40～55 º |
| Installution Method | Machine mount |
