| Place of Origin: | Guang Dong china |
|---|---|
| Brand Name: | Texin |
| Model Number: | LyAF-7010-3.5Q55VQX1 |
| Minimum Order Quantity: | 1 |
| Price: | negotiate |
| Packaging Details: | 30*40*30cm |
| Delivery Time: | 5-8 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000per month |
| Type: | Directional Antenna | Application: | Drone Jammer 、signal Field |
|---|---|---|---|
| Frequency Range: | 700-1020MHz(customized) | Gain: | 14dBi(customized) |
| VSWR: | ≤2 | Input Impedance: | 50Ω |
| Maximum Input Power: | 50W | Color: | Black (customized) |
| Dimensions: | 1310*370*mm | Material: | Aluminium |
| Weight: | 0.4kg | Front-to-back Ratio(dB): | ≥18 |
| High Light: | 700-1020MHz Yagi Directional Antenna,50W Yagi Directional Antenna,14dBi Yagi Directional Antenna |
||
700-1020MHz 14dBi 50 W Yagi directional antenna For signal field
product introduction

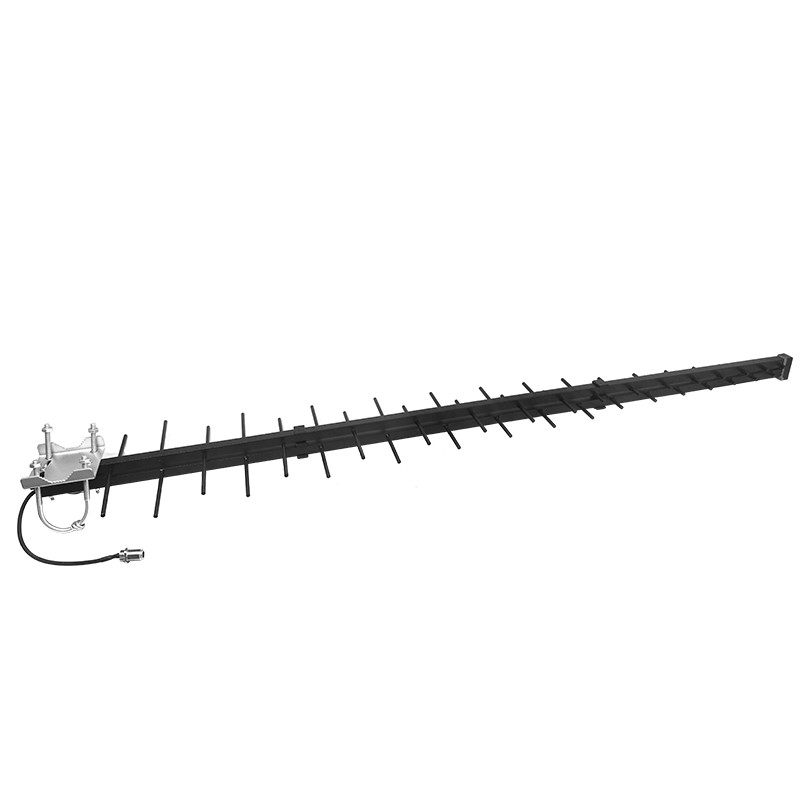

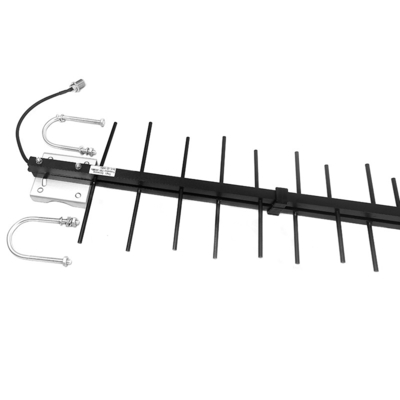

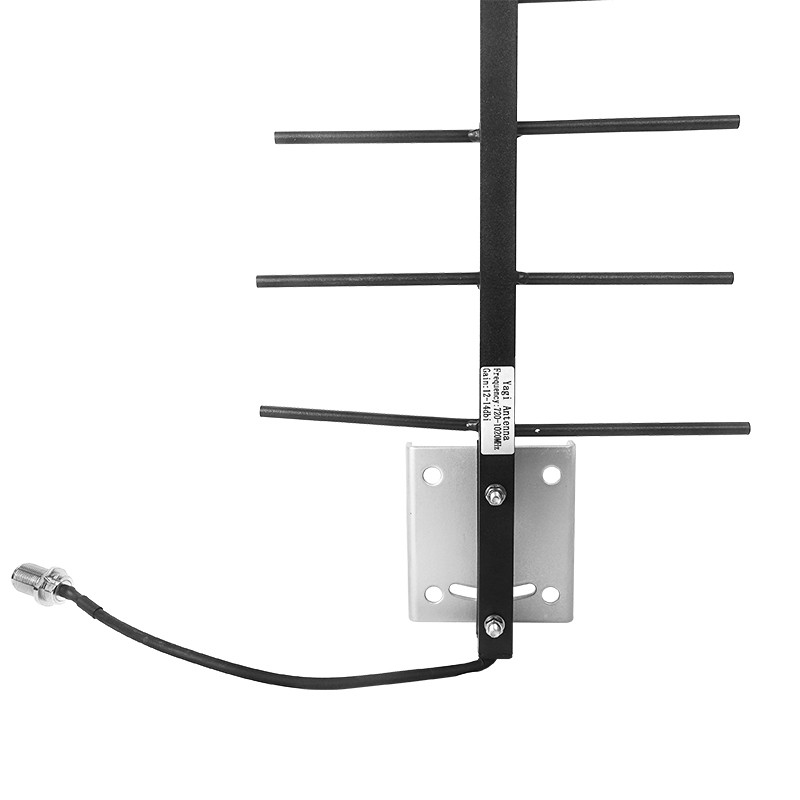

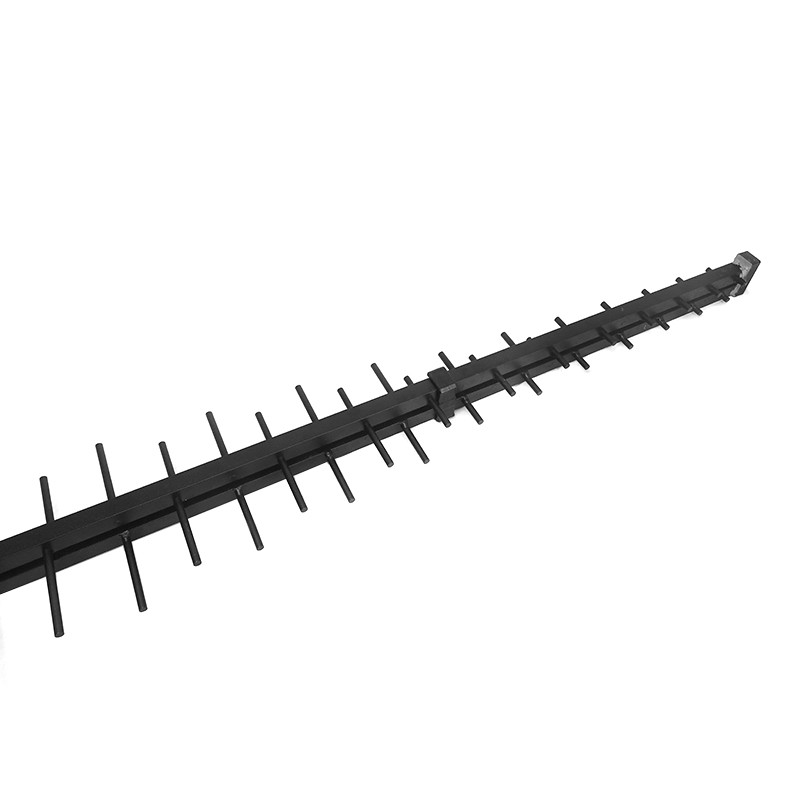

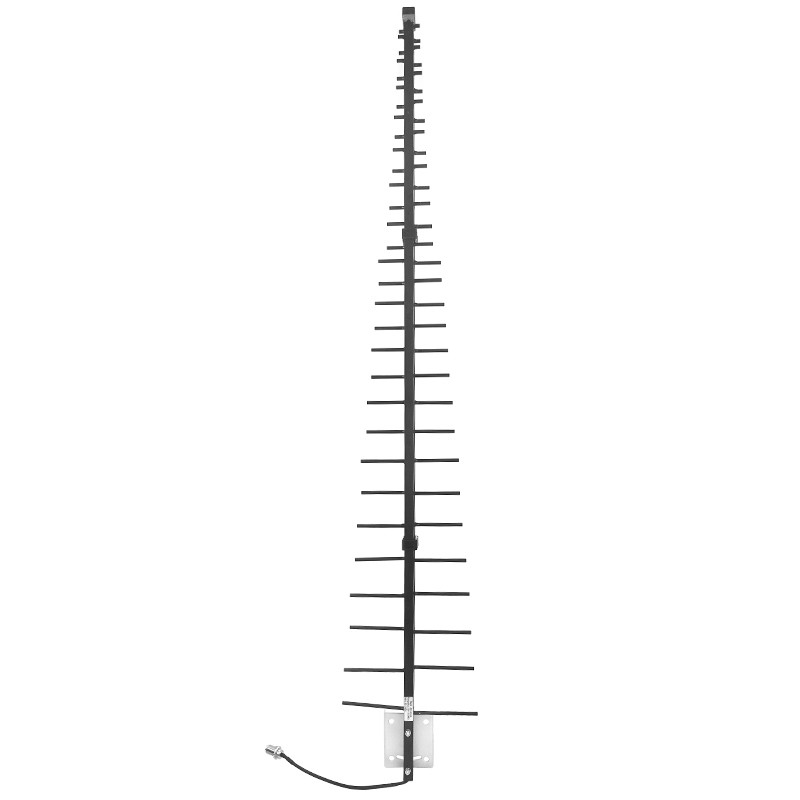

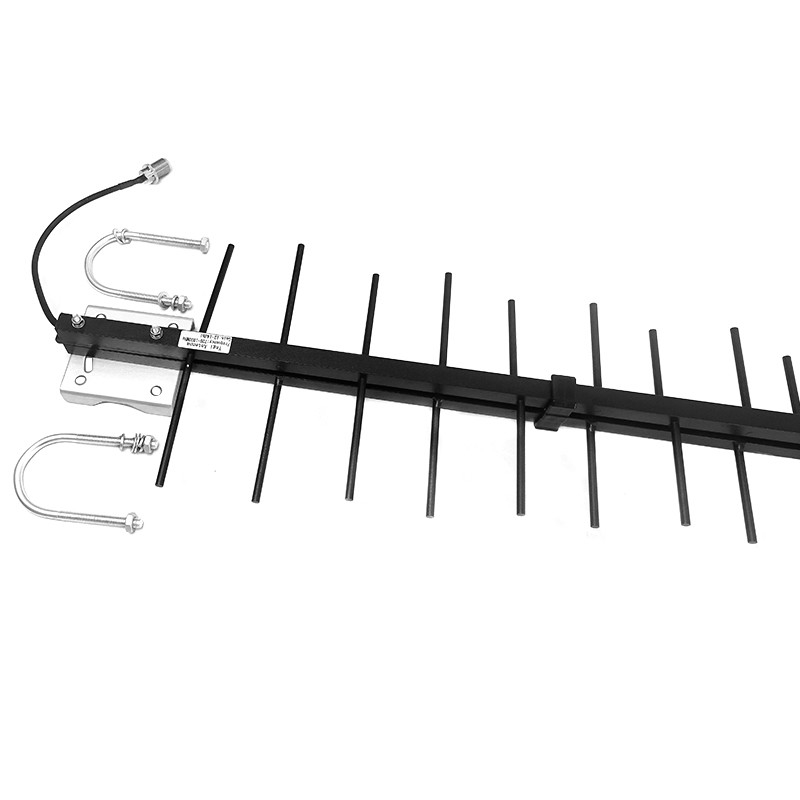

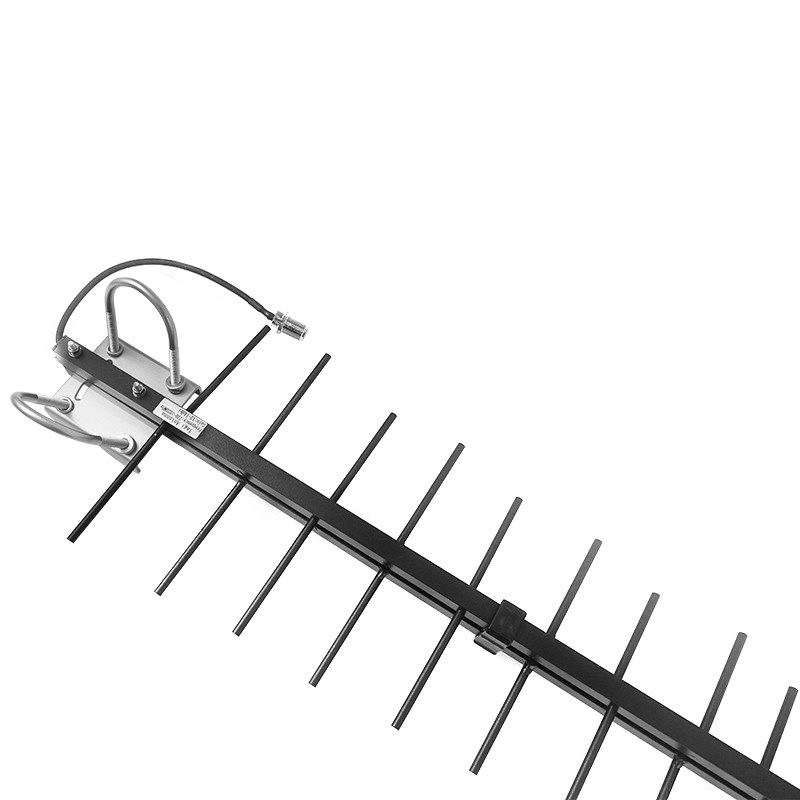

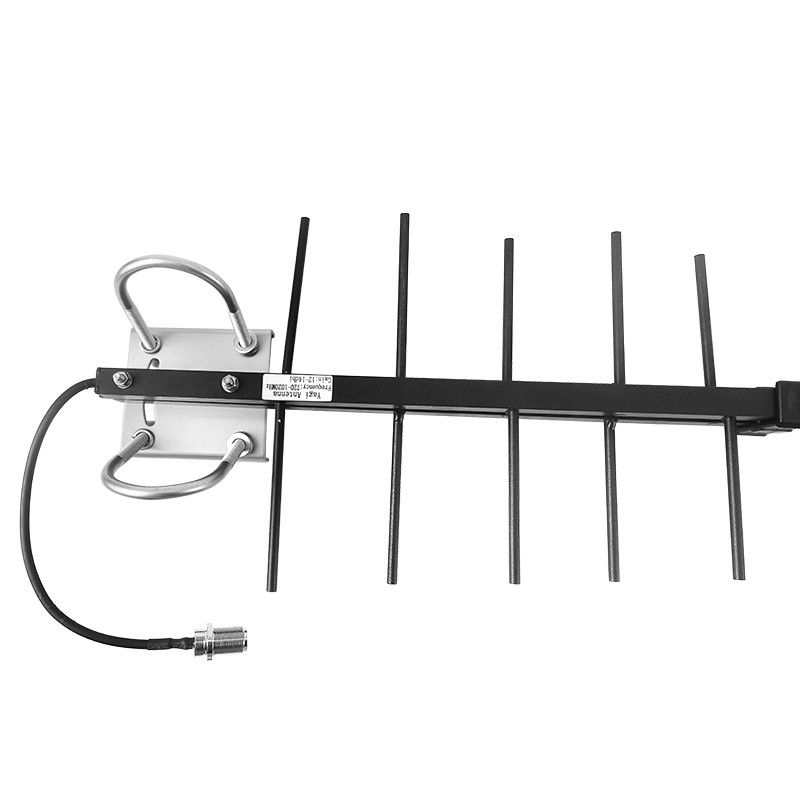

This 700-1020MHZ 14 dbi 50W Yagi directional antenna for signal field ,designed sepcial the shape like a christmas trees, it is wide use in signal communication field .And the product have high gain 14dbi Vswr ≤2. when it working it can support 50W power out put .The connector takes N-K solution compare with traditional antenna this Yagi directional high 131 cm ,almost Child height.Horizontal Beam width55±10º,Vertical Beam width30±10º.it is a super signal transfer directional antenna .
product sepcification
| Electrical Specifications | |
| FrequencyRange |
720-1020MHz |
| Gain(dBi) |
14dBi |
| VSWR | ≤2 |
| Polarization | virtical |
|
Horizontal Beamwidth(0º) Vertical Beamwidth(0º) |
55±10º 30±10º |
|
ovality(dB) |
≤±2dB |
| Input Impedance(Ω) | 50Ω |
| Maximum input power(W) | 50W |
| Inpur connector type | N-K |
| Mechanical Specifications | |
| Dimensionsmm(Height/Width/Depth) |
1310*370*mm |
| Packing size(mm) | 1320*380*mm |
| Antenna weight(kg) | 0.4KG |
| Rated Wind Velocity(m/s) |
31m/s |
| Operational Humidity(％) |
10- 95 |
| Radome Color | black |
| Radome material | aluminium |
| Operating temperature(ºC) | -40～55 º |
| Installution Method | Machine mounting |
Product advantages
FAQ
Who we are?
Shen zhen Texin electronics co.,Ltd is a electronic communication type company which developed 2014,it has over 10 years in this field ,we sales WIFI signal reapeter and anti drone jammer ,most products can be customized .
How many assemblies you have in your factory ?
TeXin factory has over 9 assemblies in our over 5000sqm 2 floor factory in Long area, Shenzhen city.
Do you have the engineer for the technical support when you are making the after sales service ?
TeXin engineer team can directly offer the customers with the techinical support online anytime customer need it.
How can i be a your distributor in our own country ?
For the TeXin distribution authorization,we can definitely offer it for some customer after the details negotiation, it depends on the real situation of each side.
