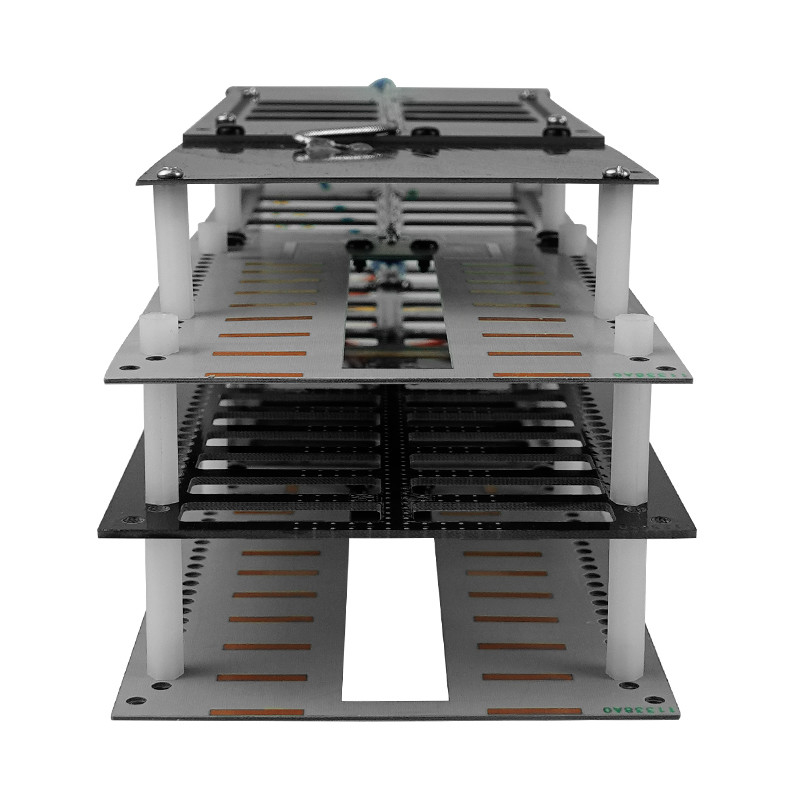

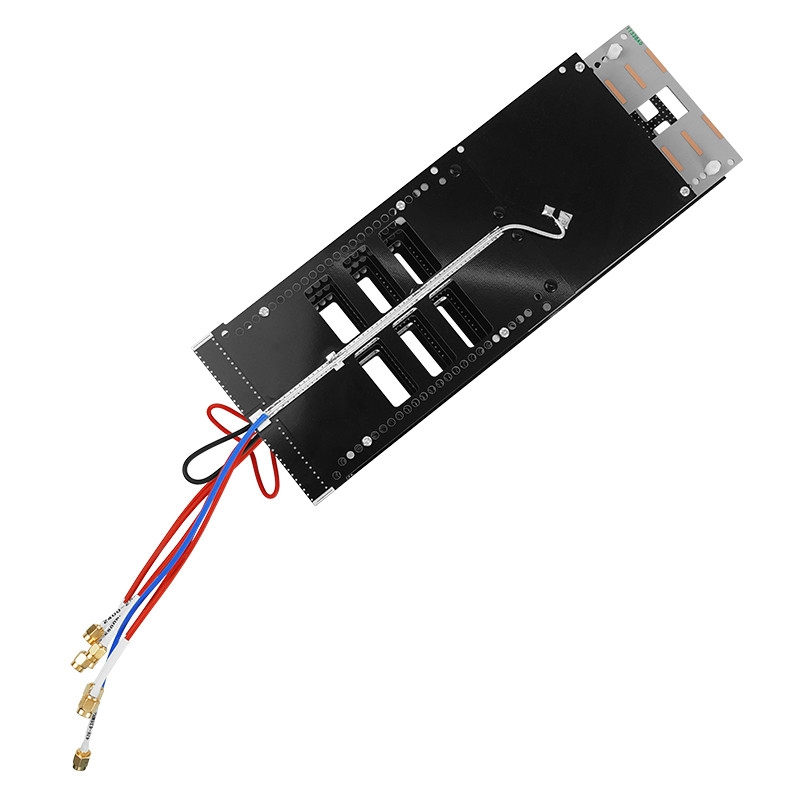

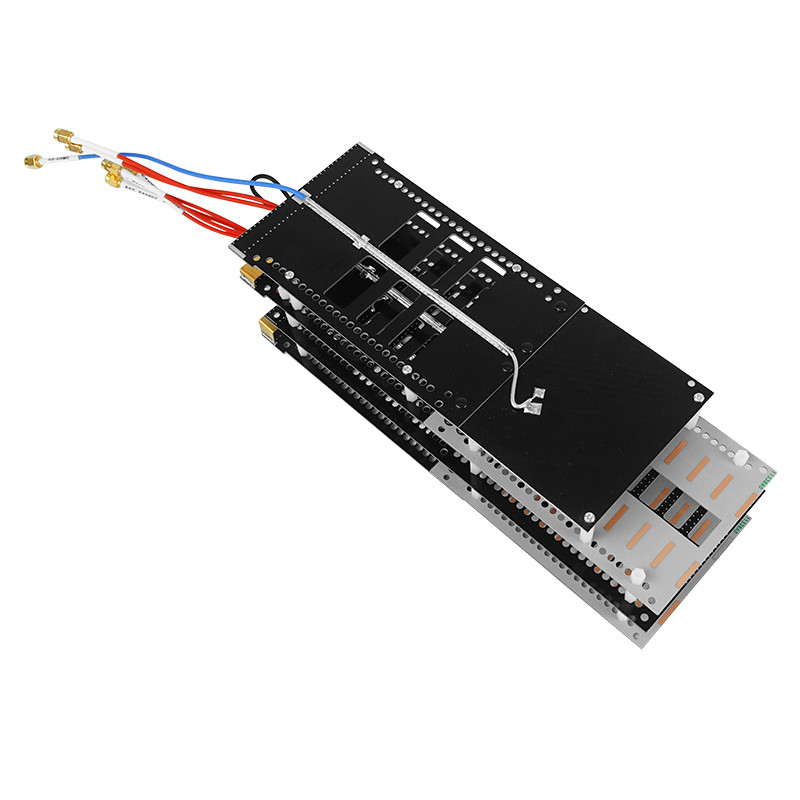

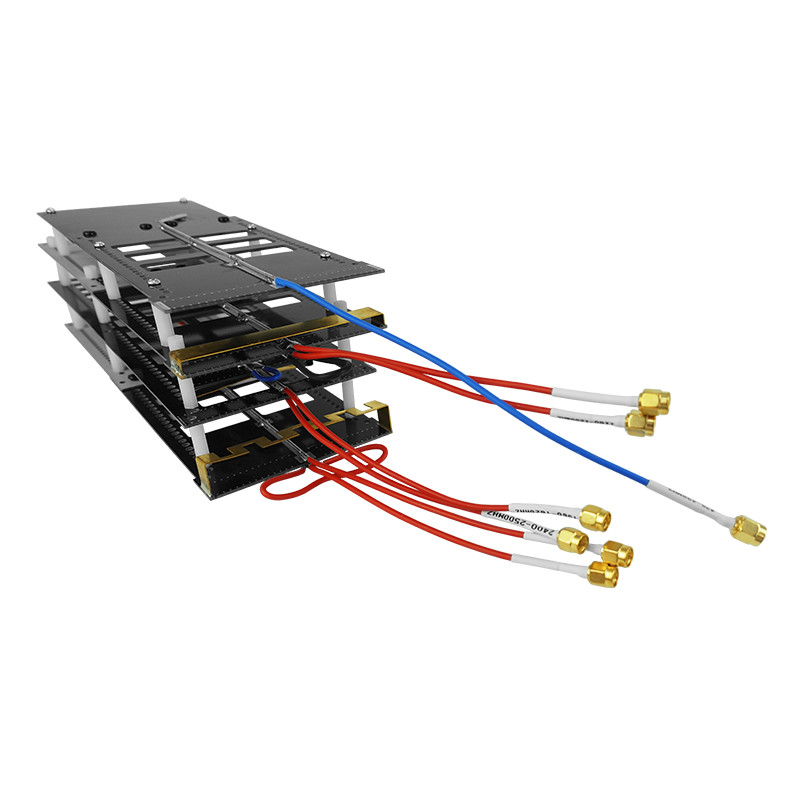

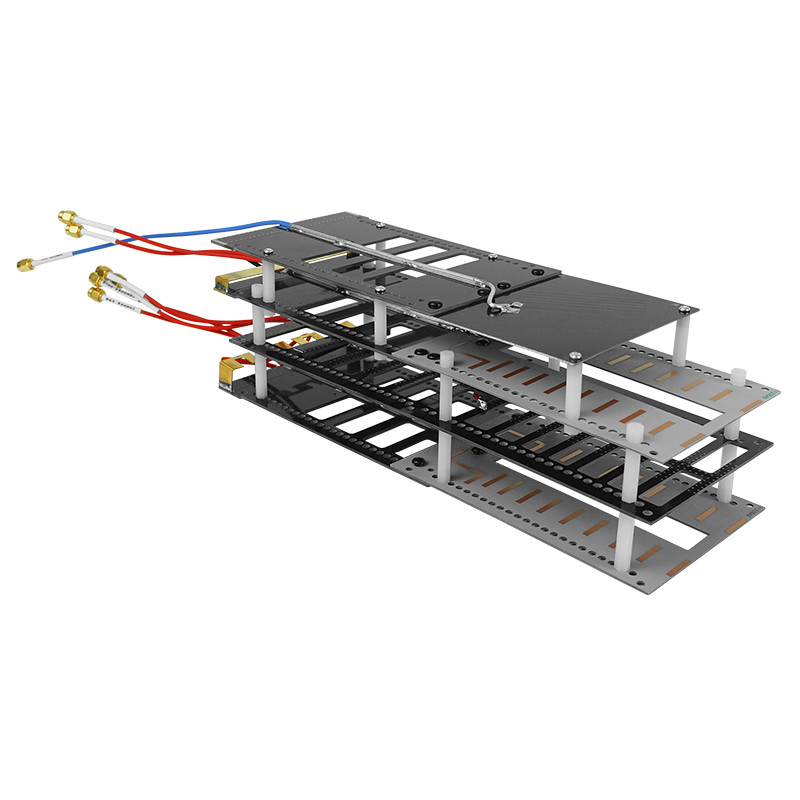

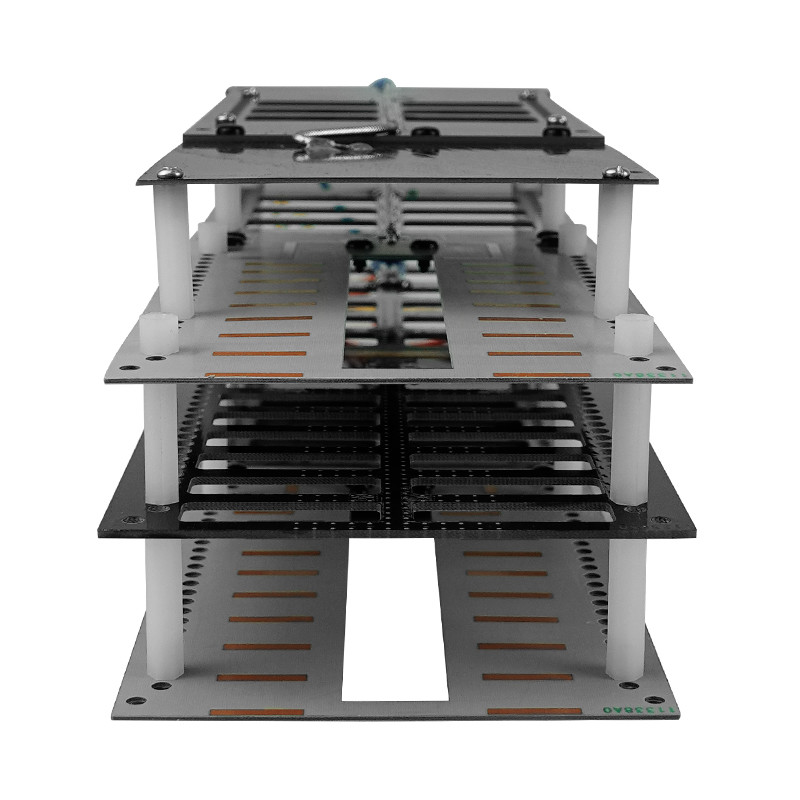

High Gain Multiple Band 433-5900 Mhz PCB Antenna with 50W Maximum Input Power

Basic Information
Place of Origin: Guang Dong china
Brand Name: Texin
Model Number: PCB 7
Minimum Order Quantity: 1
Price: Negotiatory
Packaging Details: 30*40*30cm
Delivery Time: 5-8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000per month
Detail Information
Type: Directional Antenna Application: Drone Jammer
Frequency Range: 433-5900 Mhz(customized) Gain: 1dBi-17dbi(customized)
VSWR: ≤1.5 Input Impedance: 50Ω
Maximum Input Power: 50W Dimensions: 284*97.5*60mm
Weight: 350g Material: PCB
Highlight:

Multiple Band PCB antenna

,

433-5900 mhz PCB antenna

,

High gain PCB antenna


Product Description

product desciption

This directional antenna special designed for drone jammer ,it itegrated 7bands ,Customers can choose different band depends on real environment.The product use PBC material that thermal conductivity enhanced.when operating the PBC antenna will not damge .The jammer signal transmit effectively.The band from 433mhz to 5800mhz is customized .

High Gain Multiple Band 433-5900 Mhz PCB Antenna with 50W Maximum Input Power 0

product sepcification



Performance Parameter
Type Frequency
(Customized)
Gain VSWR Horizontal
Beam width
Vertical
Beam width
433MHz 428-438 MHz 1 dBi ≤1.5 75-90º 68-80º
900MHz 803-930 MHz 5 dBi 72-88º 57-74º
1.2G 1160-1280 MHz 8 dBi 62-75º 55-68º
1.4/1.5/1.6G 1160-1620 MHz 8 dBi 55-75º 52-68º
2.4G 2400-2500 MHz 16 dBi 48-58º 27-38º
5.2G 5100-5350 MHz 17 dBi 35-45º 27-38º
5.8G 5700-5900 MHz 17 dBi 35-45º 27-38º

Front-to-back ratio ≥18 dB
Input Impedance 50Ω
Maximum input 50W
Input connector type 086 cable 7pcs*SMS-J




Mechanical Parameter

Dimension(L*W*H) 284*97.5*60mm
Antenna weight(kg) 160g
Work Humidity(%) 10%- 95%
Surface Color Black & grey color
Work temperature(ºC) -40~65 º





High Gain Multiple Band 433-5900 Mhz PCB Antenna with 50W Maximum Input Power 1









 Product advantages

  1. PBC material makes signal emit more efficient
  2. 7bands integrated one product that multi function
  3. weight 166g is easily to carry
  4. high gain 17 dbi
  5. widely use in drone jammer
