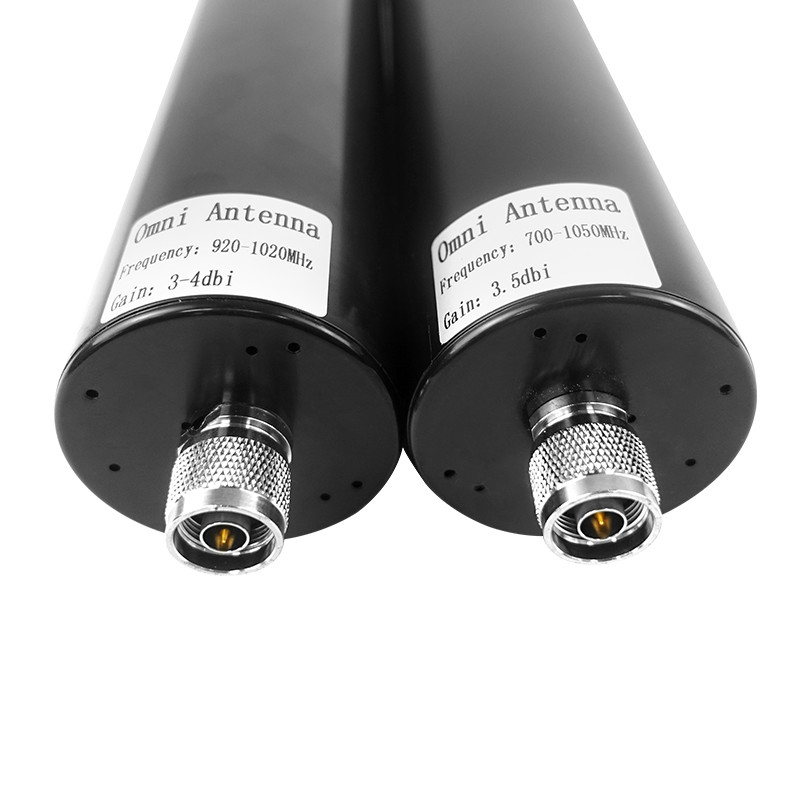

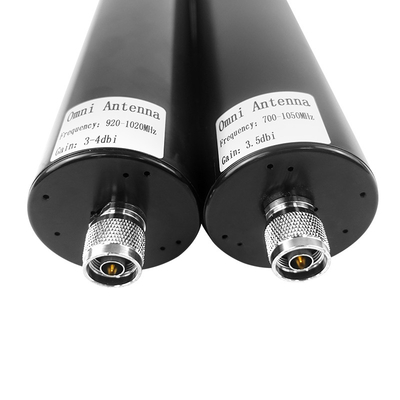

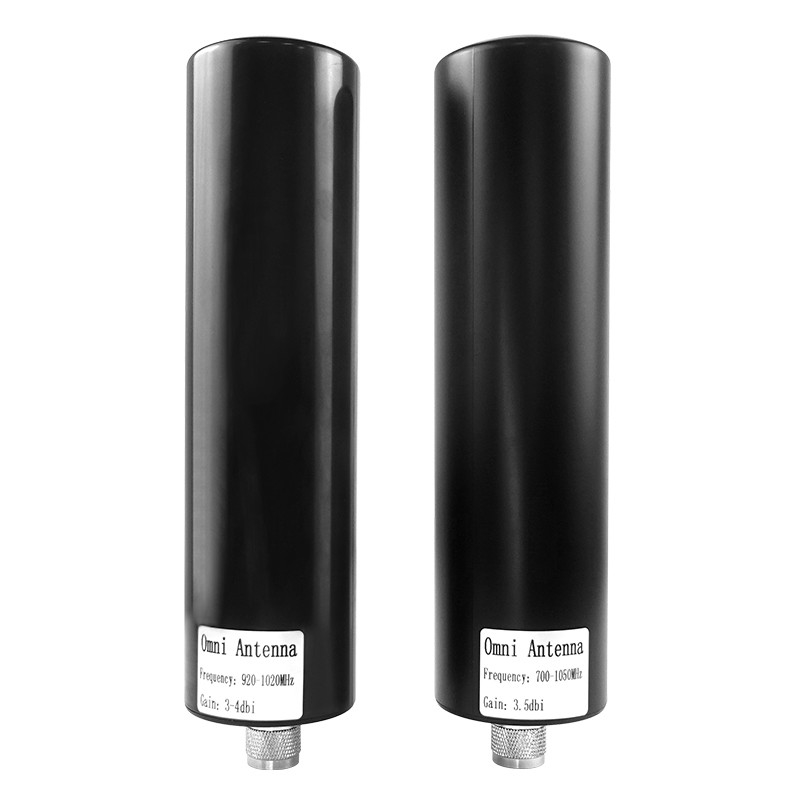

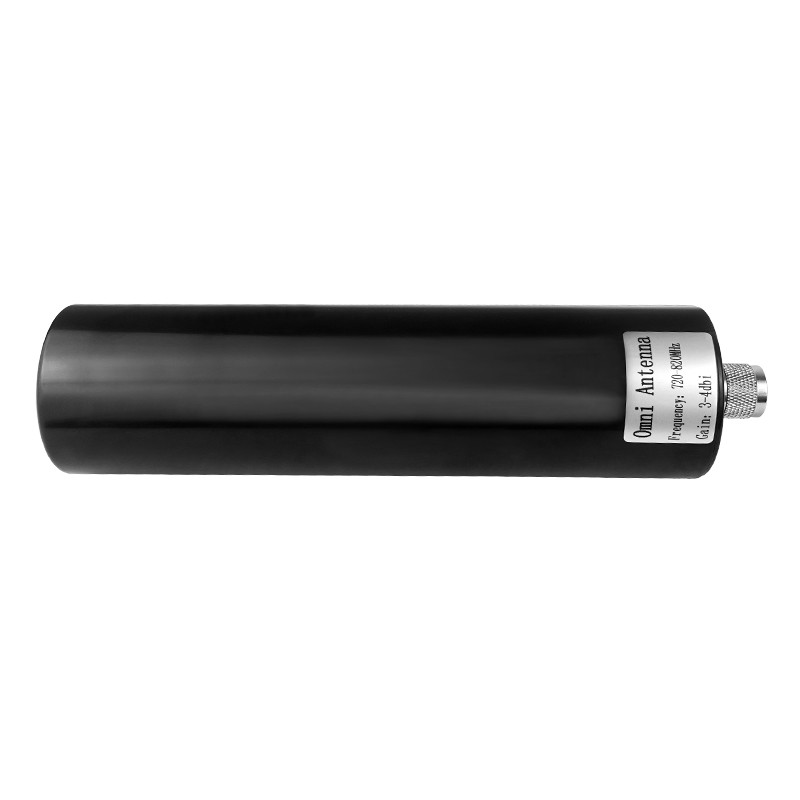

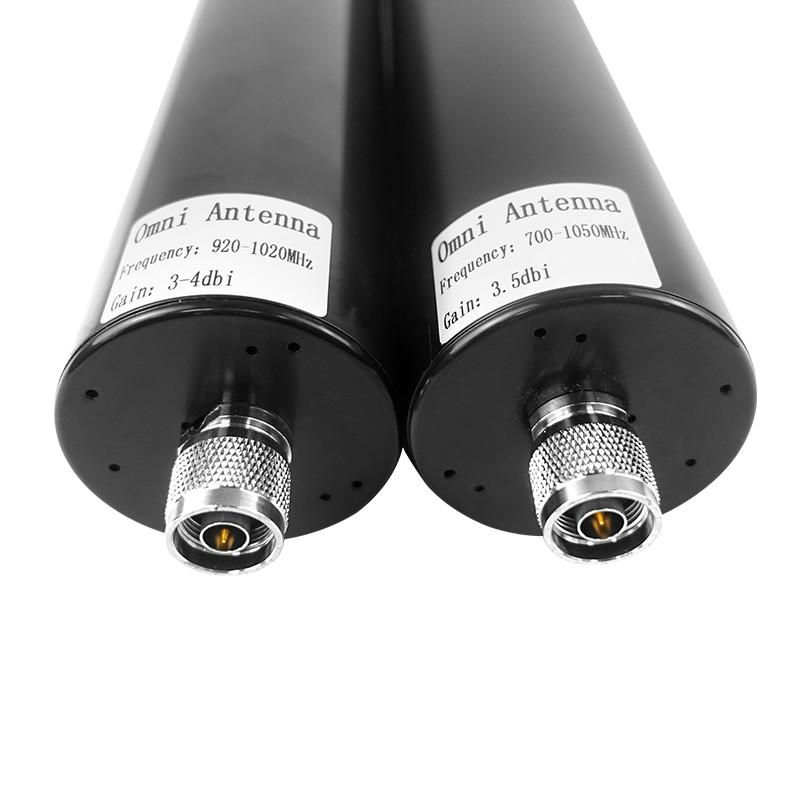

700-1050MHz 3.5dBi Fiberglass Omni Antenna For Drone Jammer

Basic Information
Place of Origin: Guang Dong china
Brand Name: Texin
Model Number: LyAF-7010-3.5Q55VQX
Minimum Order Quantity: 1
Price: US$35-40/pieces
Packaging Details: 30*40*30cm
Delivery Time: 5-8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000per month
Detail Information
Type: Omni Antenna Application: Drone Jammer
Frequency Range: 700-1050MHz(customized) Gain: 3.5±0.5dBi(customized)
VSWR: ≤2 Input Impedance: 50Ω
Maximum Input Power: 50W Color: Silver(customized)
Dimensions: 300*180*132mm Length: 23.5cm(customized
High Light:

3.5dBi fiberglass omni antenna

,

Drone jammer omni antenna

,

700-1050MHz omni antenna


Product Description

product desciption

This antenna made of fieberglass material that has high temperature resistance,adequate quality,and transmit signal frequently performance.It wider than common ,the wide design Make the heat dissipation effect good.700-1050MHz 3.5dBi fiberglass omni antenna can inteference relevant signal band of drone .



product sepcification

700-1050MHz 3.5dBi Fiberglass Omni Antenna For Drone Jammer 0

Electrical Specifications
FrequencyRange 960-1050MHz
Gain(dBi) 3.5±0.5dBi
VSWR ≤2
Polarization 垂直

Horizontal Beamwidth(0º)

Vertical Beamwidth(0º)

360º

55±5º

ovality(dB)

≤±2dB

Input Impedance(Ω) 50Ω
Maximum input power(W) 50W
 Inpur connector type N-J
Mechanical Specifications
Dimensions­mm(Height/Width/Depth) ɸ60*235mm
Packing size(mm) 250*350*250mm(20PCS)
Antenna weight(kg) 0.405KG
Rated Wind Velocity(m/s) 60m/s
Operational Humidity(%) 10- 95
Radome Color black
 Radome material ABS
Operating temperature(ºC) -40~55 º
Installution Method Machine mounting



700-1050MHz 3.5dBi Fiberglass Omni Antenna For Drone Jammer 1











 Product advantages

  1. Easily carry and install
  2. omni  antenna can emit 360°
  3. fiberglass material that durable
  4. 700-1050mhz offered or other band available
