Detail Information

Type:	Directional Antenna	Application:	Anti Drone Device
Frequency Range:	5700-5900MHz(customized)	Gain:	5dBi-15dbi(customized)
VSWR:	≤2	Input Impedance:	50Ω
Maximum Input Power:	50Ω	Color:	White(customized)
Dimensions:	300180132mm
Highlight:	Customized directional antenna , 15dbi directional antenna , 5700-5900MHz directional antenna

Product Description

product desciption

Customized 5700-5900MHz 15dbi directional antenna is a hardware composition of anti drone device. Most the most apparent feature is that many antenna intergrated together .860-930/1160-1280/1560-1620/2400-2500/5150-5350/5700-5900MHz ,5dbi-15dbi can easily achieved .we have offer customization band which can suit different type about drone . Using SMS-J connector that Maximum input power can reach 50W.it is highly power compare with typical and boundary dimension like Butterfly .

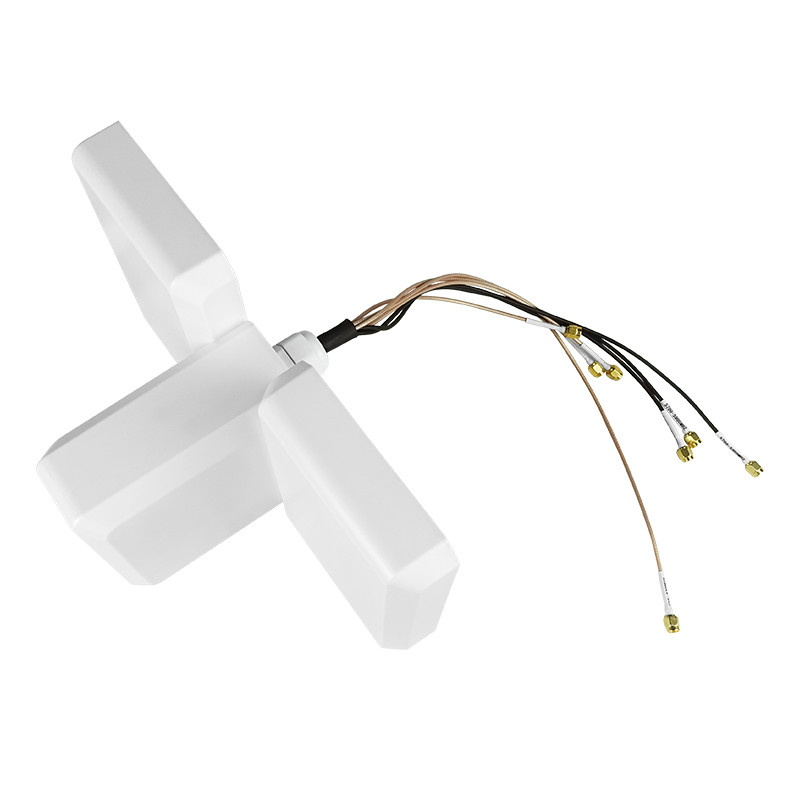

Customized 15dbi Directional Antenna 5700-5900MHz For Anti Drone 0

product sepcification

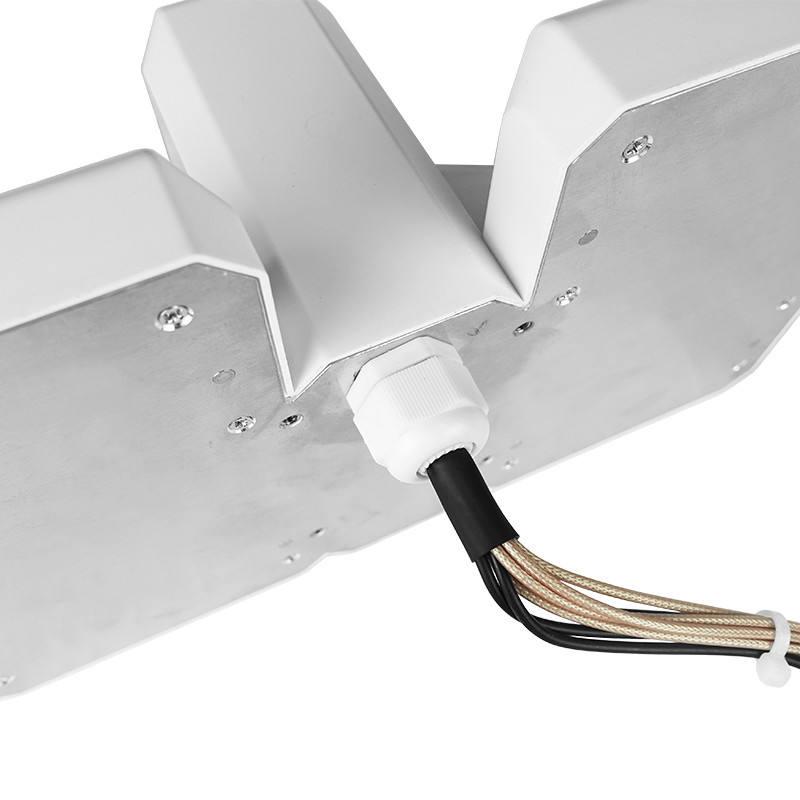

Customized 15dbi Directional Antenna 5700-5900MHz For Anti Drone 1

█Electrical Specifications
FrequencyRange	860-930/1160-1280/1560-1620/2400-2500/5150-5350/5700-5900MHz
Gain(dBi)	860-930MHz 5dbi 1160-1280MHz 8dbi 1560-1620MHZ 8dbi 2400-2500MHz 12dbi 5150-5350MHz 12dbi 5700-5900MHz 15dbi
VSWR	≤2
Polarization	860-930MHz V 1160-1280MHz V 1560-1620MHZ V 2400-2500MHz V 5150-5350MHz H 5700-5900MHz V
Horizontal Beamwidth(0º)	65±5º
Vertical Beamwidth(0º)	860-930MHz 65±5º 1160-1280MHz 65±5º 1560-1620MHZ 65±5º 2400-2500MHz 45±5º 5150-5350MHz 28±5º 5700-5900MHz 28±5º
Front-to-back ratio(dB)	≥18
Electrical lower inclination(0º)	0º
Input Impedance(Ω)	50Ω
Maximum input power(W)	50W
Inpur connector type	*SMS-J
Lightning Protection	DC Ground
█Mechanical Specifications

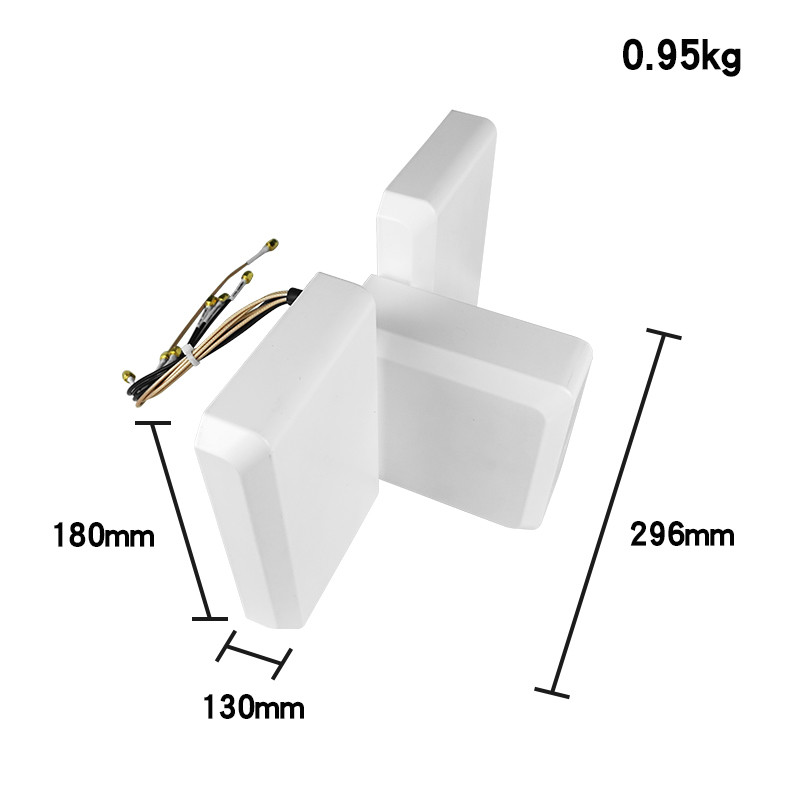

Dimensionsmm(Height/Width/Depth)	300180132mm
Antenna weight(kg)	0.35kg
Operational Humidity(％)	10- 95
Radome Color	white
Operating temperature(ºC)	-30～70 º

Product advantages

mutiple band antenna
directional antenna
lightning protection
using portable installed and different power customized

about us

Shenzhen TeXin Electronics Co., Ltd is an innovative developer and producer of the anti drone product, RF shield module, phoneWiFi
GPS shield device, antenna, etc.Shenzhen TeXin Electronics is a famous conpany which develop signal repeater .it has much product can be customized.such as WIFI2g/3g/4g/5g signal repeater.and nowadays the most popular Anti drone source we have provide.and the most important is that we havefactory which is located in shen zhen .

main product

welcome to contact us!

Tag:

Place of Origin:	Guang Dong china
Brand Name:	Texin
Model Number:	TX007-8059-5-15D65PCB

Minimum Order Quantity:	1
Price:	US$220-250/pieces
Packaging Details:	300180132cm
Delivery Time:	5-8
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000per month
