1.2G Unipolarization 65 dgree PCBA directional antenna for FPV drone jammer gun

Basic Information
Place of Origin: Shenzhen , China
Brand Name: TeXin OEM
Certification: CE ISO
Model Number: TX-1116-8D65VBZ
Document: Anti Drone product-TeXin.pptx
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Durable case or box
Delivery Time: Within 3 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100000/month
Detail Information
Warranty: 1 Year Signal Bands: 1160-1280MHz
Jamming Range: 1-1.5km Weight: 0.15kg

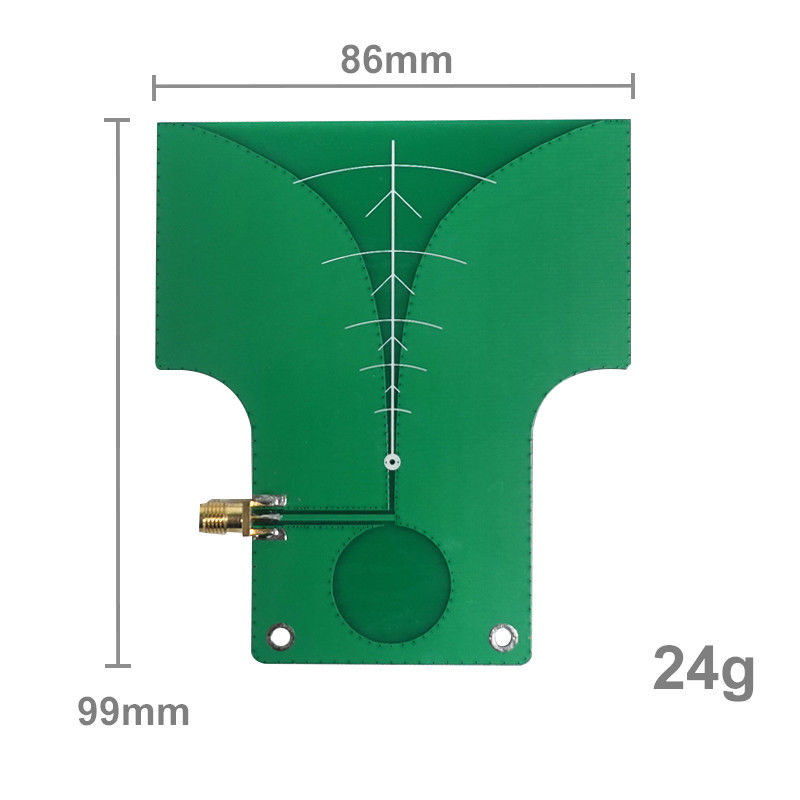

Size: 94*115*1cm Material: Epoxy Resin With Copper
Color: Green Installation: Build In
Max Output: 50W
Highlight:

Customized Handheld Signal Jammer

,

12 Channels Handheld Signal Jammer

,

10meters WiFi Signal Blocker


Product Description

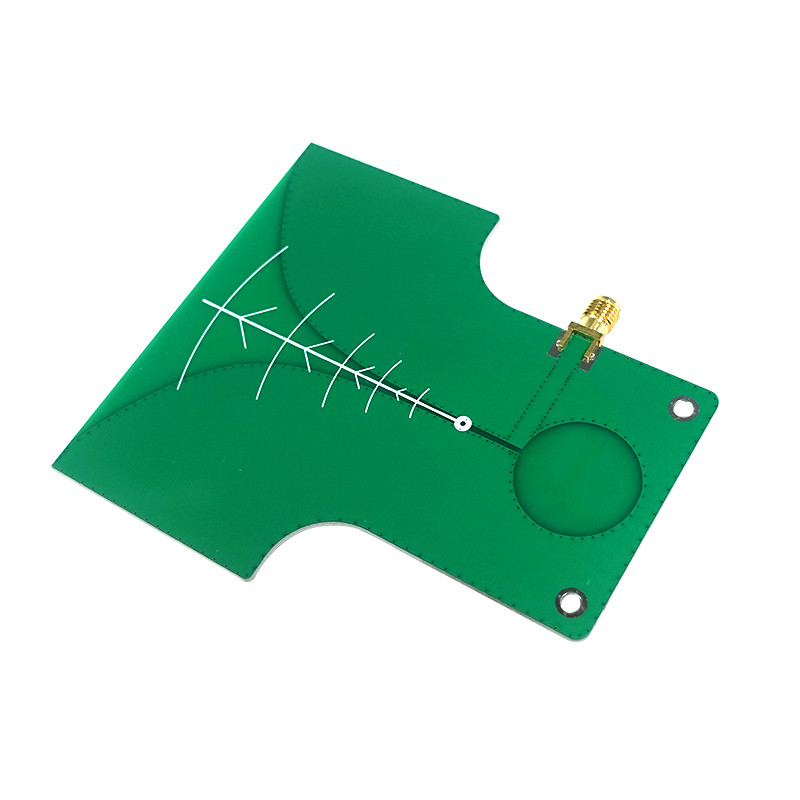

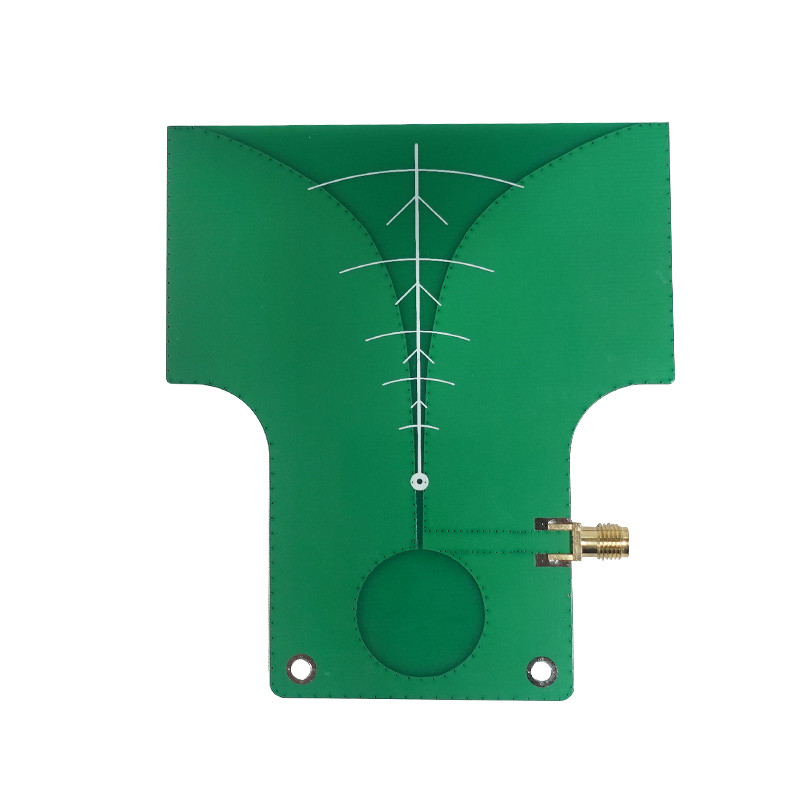

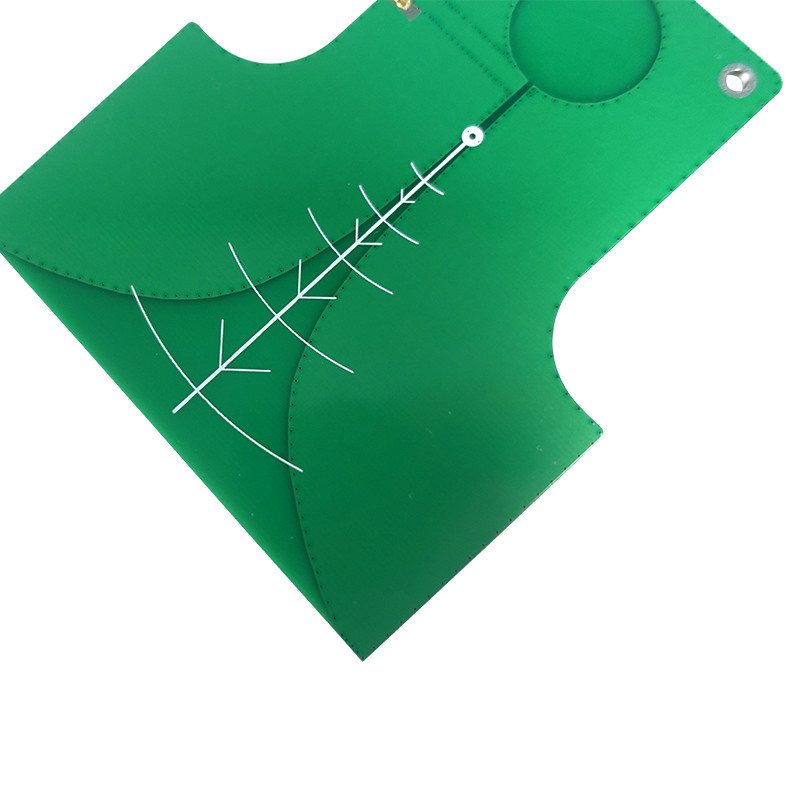

1.2G Unipolarization 65 dgree PCBA directional antenna forFPV drone  jammer gun

This 1.2G unipolarization 65-degree PCBA directional antenna lightweight structure Gain up to 8 dBi. Taking epoxy resin with copper material that has high thermal conductivity, it is able to adapt to high-power countermeasure device connection. When it operates, the jamming range can be over 1 km or more. If you need an anti-drone FPV gun jammer device, the directional antenna of the PCBA is necessary.

Main  features :
1. High gain 8dBi max output 50W

2.Exquisite design and compact structure portable installation

3.Support customized 1.2GHz 2.4GHz 5.2GHz 5.8G frequency band

4.Good heat dissipation , which can make jammer work normally , and have good performance.

5.The jamming range is up to 1-1.5km,can meet daily needs .

6.Epoxy resin with copper  good heat resistance

Customer Service

*User Instruction

we can offer online details photo illustration and video;

local instruction is also available but with extra cost

*Online technical support: our professional engineers will assist customers

with technical problems

*After sales service:

our company will perform the agreed responsibility and duty during

the warranty period

*Free training lesson and daily maintenance

*Fast reply of customer feedback and question

*All product enjoy the 1 year warranty and Life time maintenance service

Specifications :

Frequancy range  1160-1280MHz
Gain  8dBi
VSWR <1.8
Polarization  Vertical
Power  50W

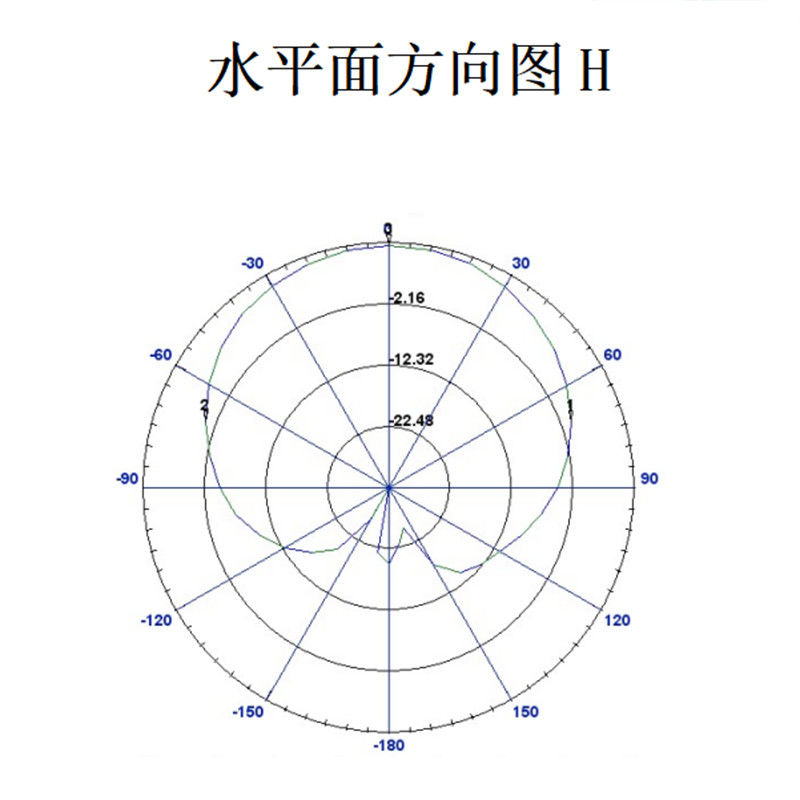

Horizontal Beamwidth 65 °

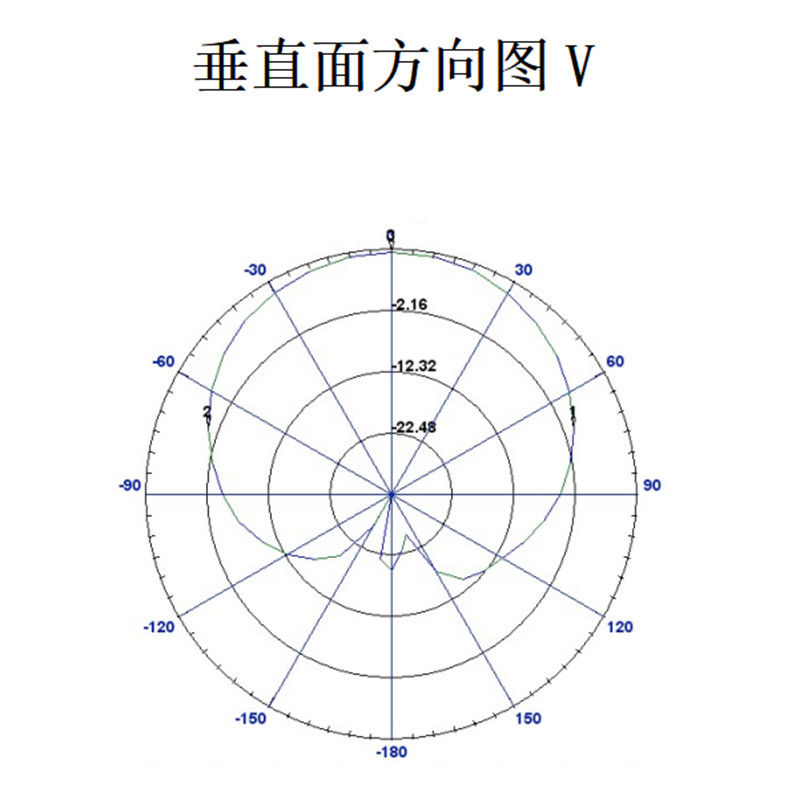

Vertical  Beamwidth 55°
Lighting protection DC ground
Weight  0.15kg
Color  Black /green
Mechanical 0-10 °





1.2G  Unipolarization 65 dgree PCBA directional antenna for FPV drone  jammer gun 0

1.2G  Unipolarization 65 dgree PCBA directional antenna for FPV drone  jammer gun 11.2G  Unipolarization 65 dgree PCBA directional antenna for FPV drone  jammer gun 2

1.2G  Unipolarization 65 dgree PCBA directional antenna for FPV drone  jammer gun 3

1.2G  Unipolarization 65 dgree PCBA directional antenna for FPV drone  jammer gun 4



1.2G  Unipolarization 65 dgree PCBA directional antenna for FPV drone  jammer gun 5

1.2G  Unipolarization 65 dgree PCBA directional antenna for FPV drone  jammer gun 6
