Durable aluminum 12band waterproof Shell RF drone Signal Jammer manpack

Durable aluminum 12band waterproof Shell RF drone Signal Jammer manpack

TX-BF-N1 is a backpack-type drone signal jammer with detection function independently developed and designed by our company. It can interfere with the video shooting and transmission of drones within the effective use range, interfere with the remote control signal of drones, and force drones to return. This backpack-type drone signal jammer with detection function can detect multiple common drone communication frequency bands, detect first and then shield, and mainly has three types of alarms: sound, light, and vibration.

Main features :

1. With a precise drone detector, it can automatically detect and interfere.

2. LED large screen displays the direction of the drone.

3. The ultra-long distance can reach 1500 - 2000 meters.

4. High-power output of over 400W achieves a strong and stable countermeasure effect.

5. Optional high-gain 16dBi multi-output directional antenna and 10dBi omnidirectional antenna.

6. The sturdy and durable aluminum alloy shell is waterproof, dustproof, windproof, sandproof, corrosion-resistant, high-temperature resistant, and low-temperature resistant.

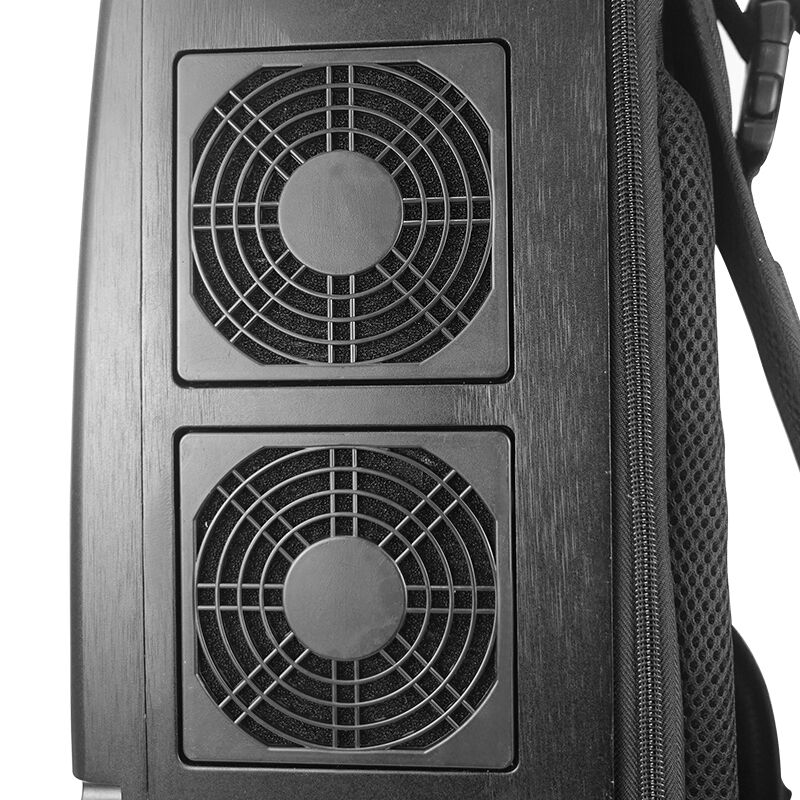

7. Exquisite heat dissipation structure: ultra-thick aluminum heat sink, convection heat dissipation large fan, cold air in, hot air out, keeping the machine operating efficiently for a long time.

8. The built-in lithium-ion rechargeable battery can last for about 40 - 50 minutes.

9. The portable strap design is convenient for individual soldiers to move quickly.

The detector has sensitive alarms, low false alarm rate, small size, and good protection.

Product Feature

* Can use 2 different kind antenna

* 10 Channel jamming frequency

* High output Power over 400W for effective and stable jamming

* Solid and high gain antenna

* Durable metal alloy out shell: water proof, dust proof, heat resistant, anti corrosion

* Smart cooling design: with ultra heat sink inside, large cooling fans to bring cool air in and blow hot air out

* Built in lithium battery lasts about 40-50 minute

* Back pack style for easy moving

* With AC and DC charging Both

Applications :

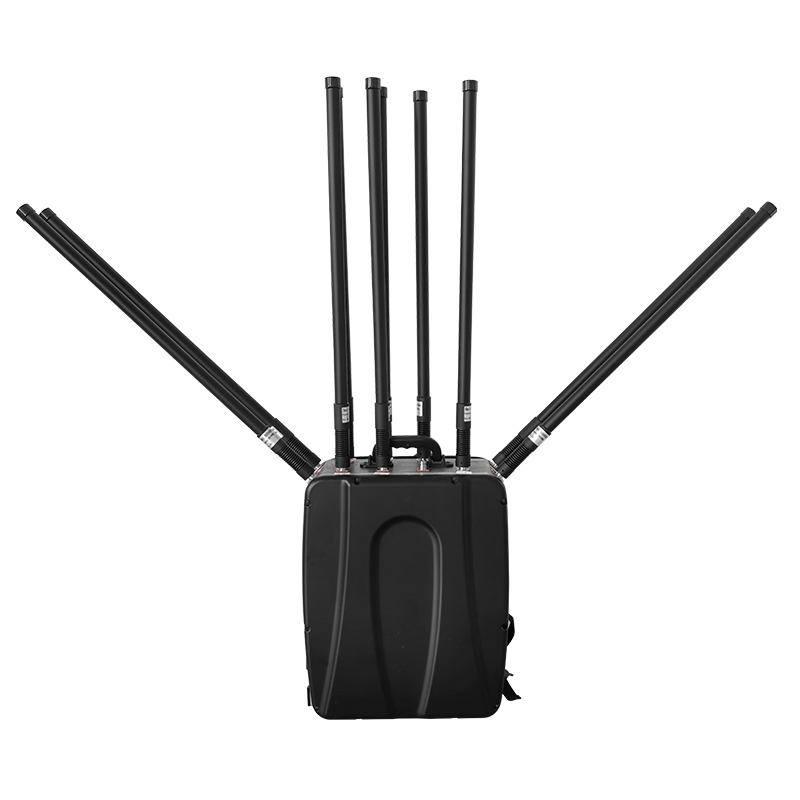

(1) Screw on the antenna (O mark: directional antenna, mark: omnidirectional antenna). The antenna must be connected to the fuselage according to the frequency band mark (otherwise, the equipment is prone to short circuit).

(2) Secondly, connect the drone detector equipment.

(3) Before turning on the device, be sure to connect the remote control.

(4) (Very important!!! Do not turn on the device without the antenna connected or the remote control connected, otherwise it may cause a short circuit, because the circuit is specially designed to protect the stable use of the machine under high power).

(5) Press the switch, pay attention to adjusting your position, and read the direction of the drone through the LED detector display screen, that is, in the detection work, set the sound and vibration in the upper right corner. When the drone is detected, the device will vibrate, the screen will display the picture of the drone, and the frequency band of the drone will be displayed.

(6) Click on the drone picture to enter the lateral interface, first turn around 360° in place to detect the direction of the drone. When the arrows of the two circles are consistent, it represents the direction of the drone at the moment.

(7) When a drone threat is detected, please press the required frequency band to realize the automatic interference function of the countermeasure drone.

(8) To turn off the detector, press the button and remove the antenna.

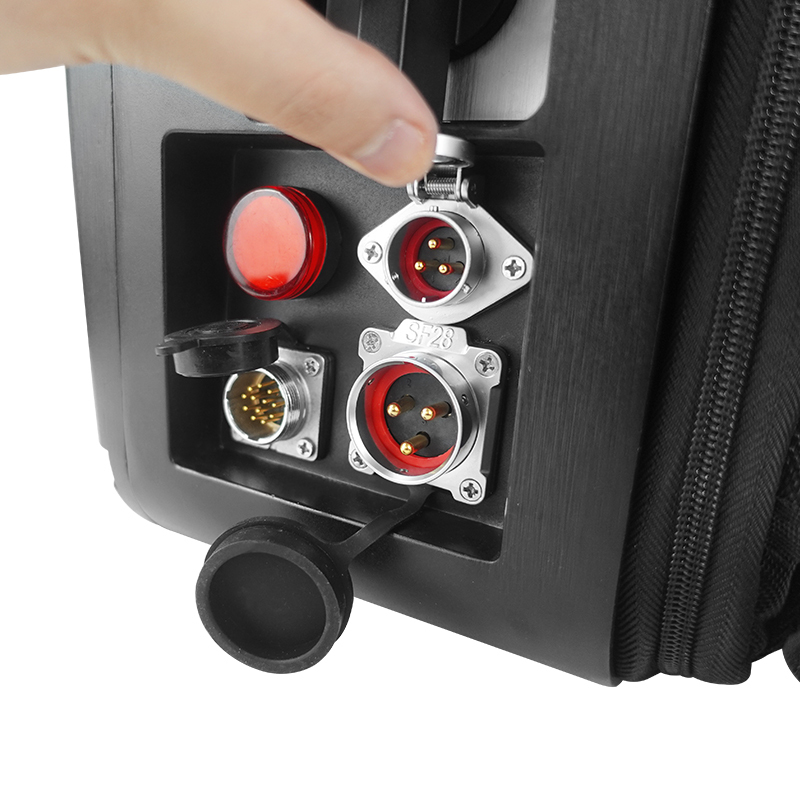

(9) The power supply mode can be selected from the built-in battery or the DC external battery (only the interface is provided).

Specifications :
