| Place of Origin: | Shenzhen ,China |
|---|---|
| Brand Name: | TeXin |
| Certification: | CE ISO SGS |
| Model Number: | TX-XQ06 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Brief case with 5 layer K=K kraft paper carton |
| Delivery Time: | 1-3 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 100000/month |
| Type: | Anti Droen Gun Jammer | Jamming Range: | 1500-2000 Meter |
|---|---|---|---|
| Size: | 680*220*60 Mm | Weight: | About 6.02 KG |
| Jamming Channel: | Customized 6 To 8 Channel | Output Power: | Over 130W |
| Power Supply: | AC100-240V-DC24V | Duration Time: | 1-1.5 Hour |
| High Light: | stable Anti UAV Jammer,8 Channel Anti Drone Gun Jammer,Anti Drone Gun Jammer 2000 Meter |
||

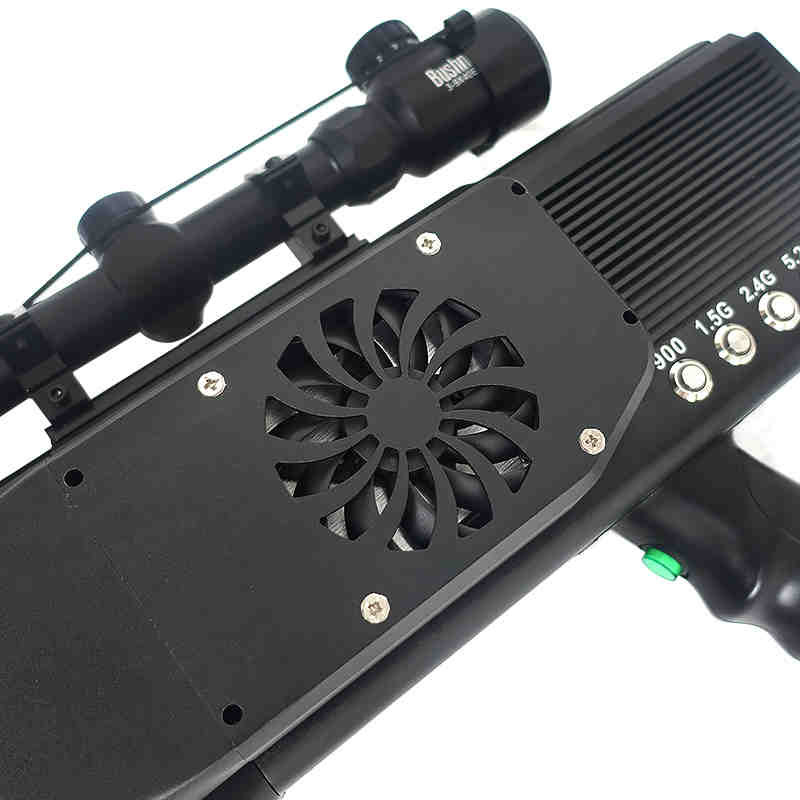

2000 Meter 8 Channel Anti UAV Drone Gun Jammer
TX-XQ06 is a 6 channel anti drone gun signal jammer up to 1500-2000 meter effective jamming range.
It specially strengthen the 2.4GHz and 5.8GHz 2 channel signal frequency, which is the 2 main and drone
remote control signal.
Since then, it will be more stable and long distance for the drone interference effect.
Also, the jamming frequency is customized even 1pcs sample. Customer can choose to shield 8 channel
jamming frequency too.
Te Xin is the professional China expert for the anti drone gun, fixed anti drone system, RF jammer module
phone wifi signal jammer, GPS jammer, etc.
Anti Drone Gun Jammer Function
The intruding target drone will be forced to:
1. Enter vertical safe-landing mode
2. Or Return to the starting point or the drone operator which allows the drone
operator to be tracked down
Drone Gun Jammer Specification
| Model No. | TX-XQ06 Anti Drone Gun Jammer |
| Size | 680*220*60 mm |
| Weight | about 6.02 KG |
|
6 Channel Jamming Frequency |
CH1: 433MHz, 1 module
|
|
CH2: 868/915MHz, 1 module
|
|
|
CH3: 2.4G: 2400-2500 MHz, 2 module strengthen effect
|
|
|
CH4: 5.8G: 5725-5850 MHz, 2 module strengthen effect
|
|
|
CH5: GPSL1&Glonass L1: 1560-1620 MHz, 1 module
|
|
|
CH6: GPSL2&Glonass L2: 1100-1300 MHz, 1 module
|
|
| Total Output Power | Over 130W |
|
Jamming Range |
About 1500-2000 Meter |
|
(depends on the real environment; hopping frequency drone is less distance ) |
|
| Power supply | AC100-240V-DC24V |
| Battery Charge Time | 4 Hours |
| Built-in Battery | 24V 15A ( External Battery can be offered with extra cost ) |
| Duration Time | 1-1.5 Hour |
Packing List
> Anti Drone UAV Gun Jammer *1 piece
> Removable Built-in Battery *1 piece
> AC charger *1piece
