High gain 17dbi long range GNSS 2.4ghz 5.2ghz PCB antenna for portable drone jammer system

Basic Information

Place of Origin:	Shenzhen ,China
Brand Name:	TeXin OEM
Certification:	CE ISO
Model Number:	TX003-5153-17Q65VBG

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Durable case or box
Delivery Time:	Within 3 work days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	100000/month

Get Best Price Contact Now

Detail Information

Type:	High Gain Antenna	Frequency:	2.4ghz /5.2ghz/5.8ghz
Weight:	0.15KG	Size:	370281mm
Gain:	17dbi	Shield Range:	1000-3000 Meters
Connector:	SMA / Female
Highlight:	Aluminum Shell Cell Phone Signal Blocker , 50meters Cell Phone Signal Blocker , omnidirectional antennas Desktop Signal Jammer

Product Description

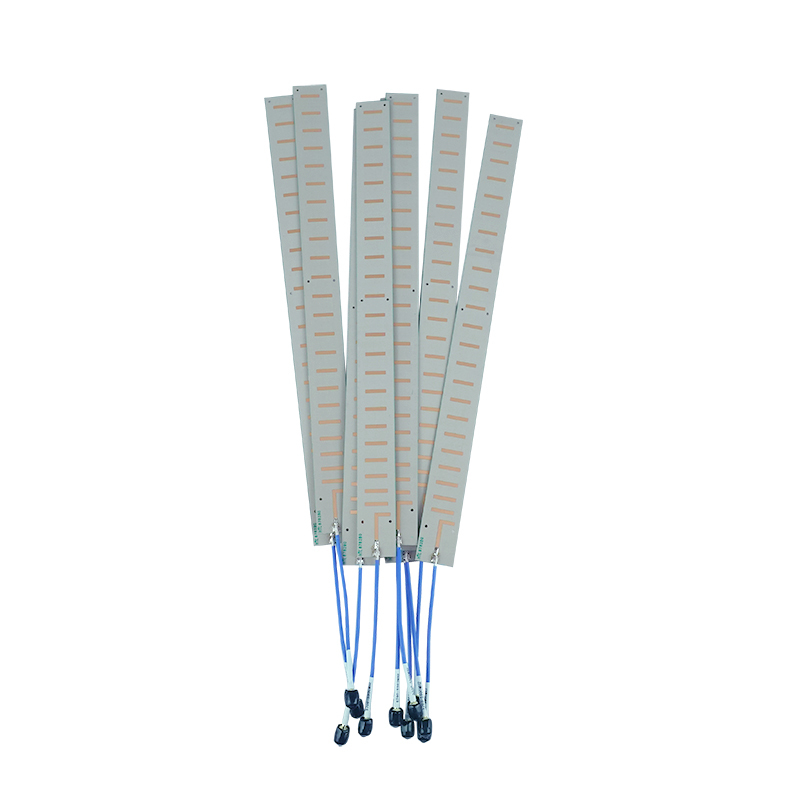

High gain 17dbi GNSS 2.4ghz 5.2ghz PCB antenna for portable drone jammer system

The TX003-5153-17Q65VBG high gain 17dbi PCB antenna is a directional antenna can highly transmit signal distance 1000-1500m according to the system .The PCB board assembly method offers both lightweight advantages and centralized signal output, ensuring uninterrupted operation even in complex industrial and outdoor environments. It can be used in drone countermeasures and communication ,applications.This antenna is cost-effective and highly efficient. The frequency band can be customized. Welcome to inquire

Main features :

1.High gain 17dbi

2.Light weight 150g portable to carry

3.Taking Double-sided polytetrafluoroethylene copper clad laminate that High temperature resistance

4.Long distance to jamming

5.It has lightning Protection

6.Out put 50W need match 50W input


			Frequency Range (MHz)
			(Customized )

			Gain(dBi)
			17dbi

			V.S.W.R
			≤1.6

			Polarization
			Vertical

			Horizontal Beamwidth(0º)
			35-45º

			Vertical Beamwidth(0º)
			27-38º

			Input Impedance(Ω)
			50Ω

			Lightning Protection
			DC ground

			Size
			370*28*1mm

			Radome Color
			Black

			Weight (g)
			150g

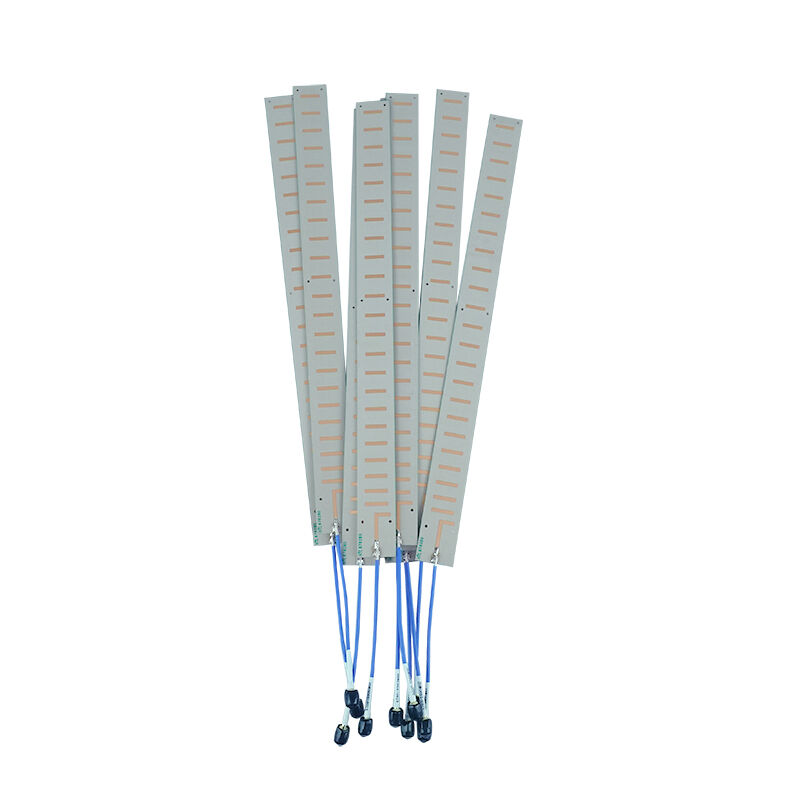

Pictures:
