Detail Information

Product Name:	Power Amplifier	Operating Frequency:	Customized
Operating Temperature:	-30℃~+70℃	Size:	15821725mm
Weight:	1.2kg	Supply Voltage:	+24V~32V,+28V Nominal
Watts:	100w	Warranty:	1 Year
Highlight:	courts desktop Signal Jammer , courts WIFI Signal Jammer , 8 way desktop Signal Jammer

Product Description

300MHz-2700MHz RF Broadband High Power Amplifier for Signal Boost & Jamming Application

1.Product Introduction

The TXH0327-PA100W power in the frequency range of 300MHz to 2700 MHz while maintaining relevant RF performance. Different from traditional continuous - wave CW amplifiers, this amplifier can amplify spread - spectrum signals with an instantaneous bandwidth of up to 200 MHz. When used in conjunction with a suitable software - defined radio SDR digital excitation source, it can produce excellent interference effects on remote control, data transmission, and positioning signals. Therefore, this amplifier is particularly suitable for use in wireless communication interference systems in the U,L,and S bands,including but not limited to mobile phones,radiio stations,and drones.

300MHz-2700MHz RF Broadband Power Amplifier Module,10W 50W 100W Linear Power Amp for Communication, Testing & Jamming Systems 0 2. Features and benefits

1) Utilizing third-generation GaN transistor

2) Ultra-wide working bandwidth and instant bandwidth

3) Excellent reliability

4) Features temperature detection,standing-wave detection,and protection functions

5) RS485 serial interface for monitoring and control

3. Specifications of Products

Parameter	Value	Unit
Dimension	200 x 158x 25	mm
Weight	1.4	kg
RF Connectors In/Out	Input: SMA-F Output: N-F	-
Control Connector	D-Sub 15-Pin Female	-
Power Supply Connector	Pull-core Capacitance	-
Cooling	External Heat sink	-

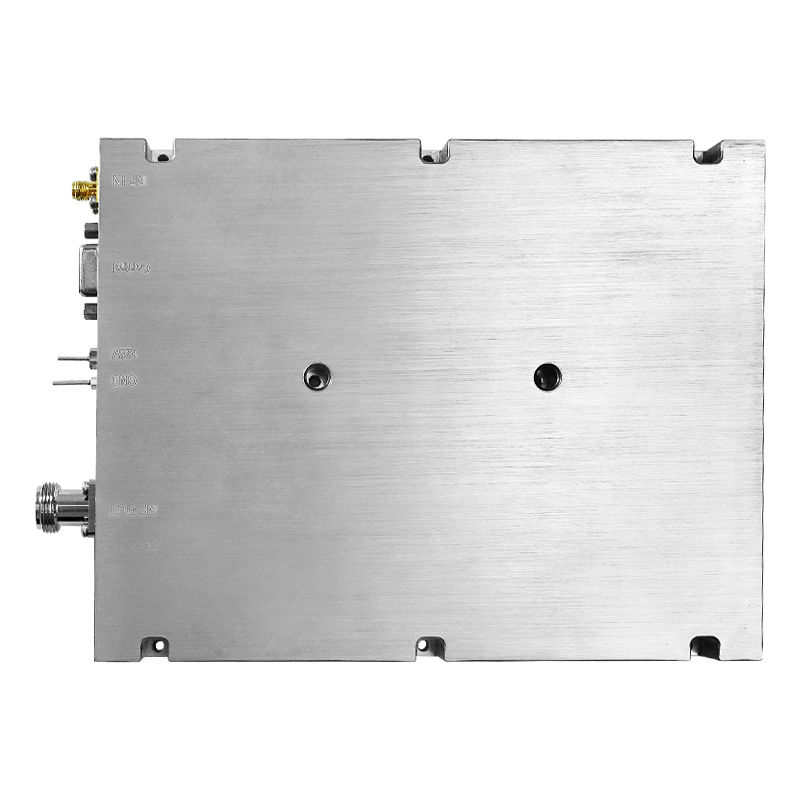

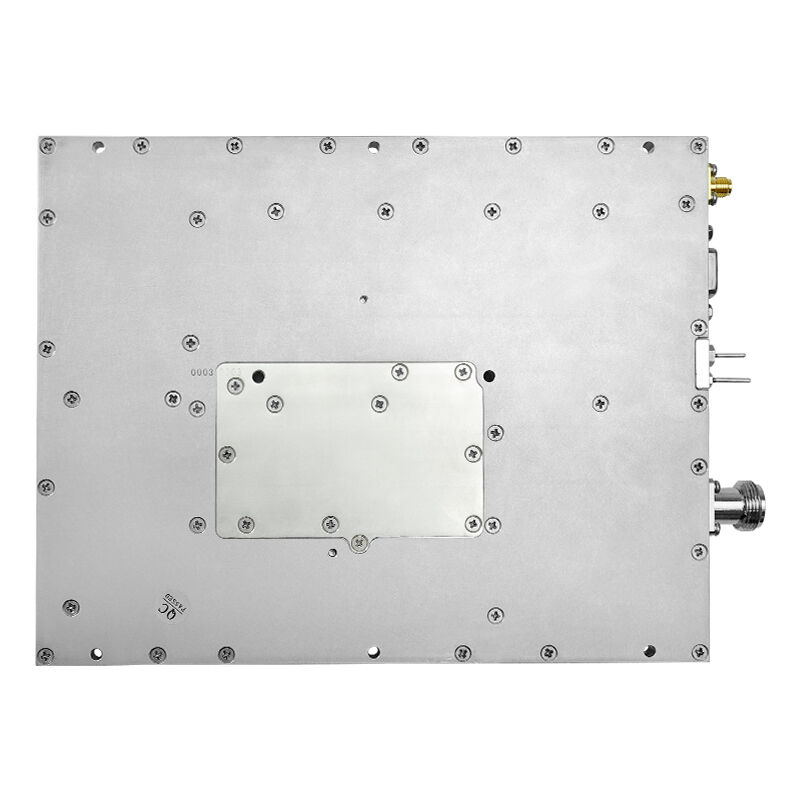

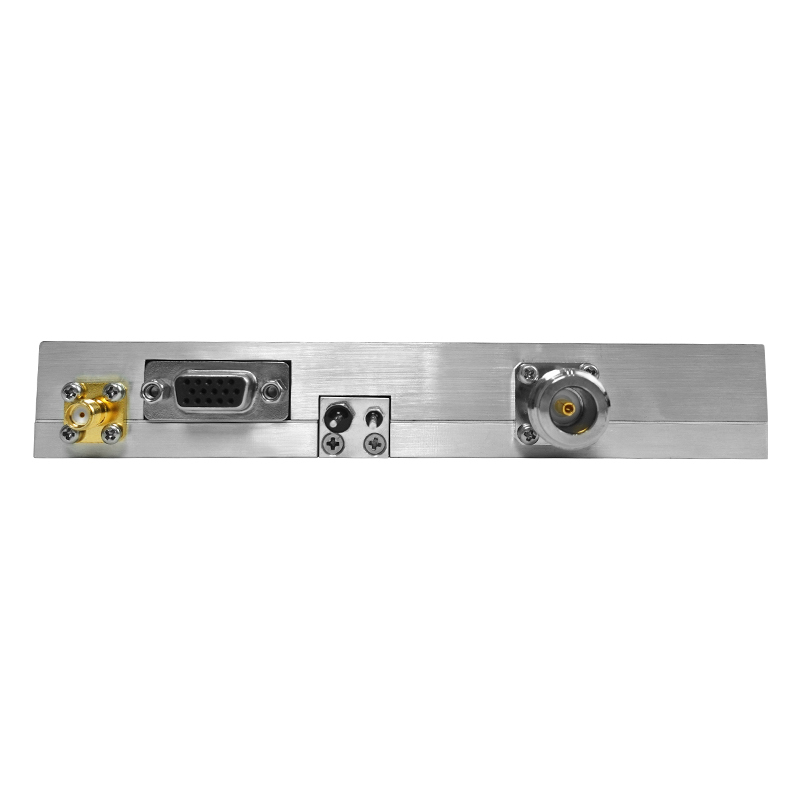

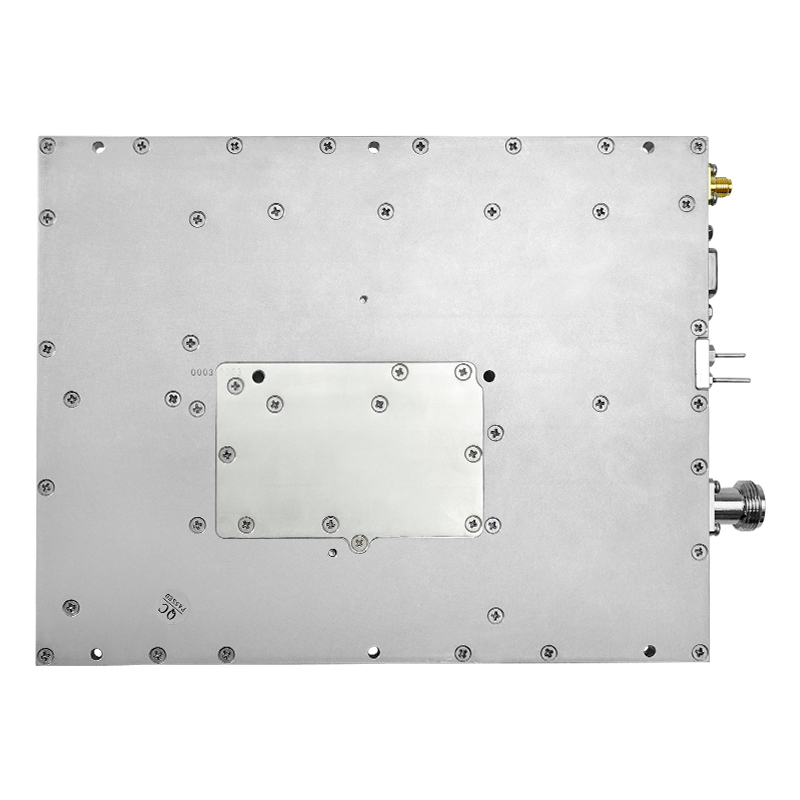

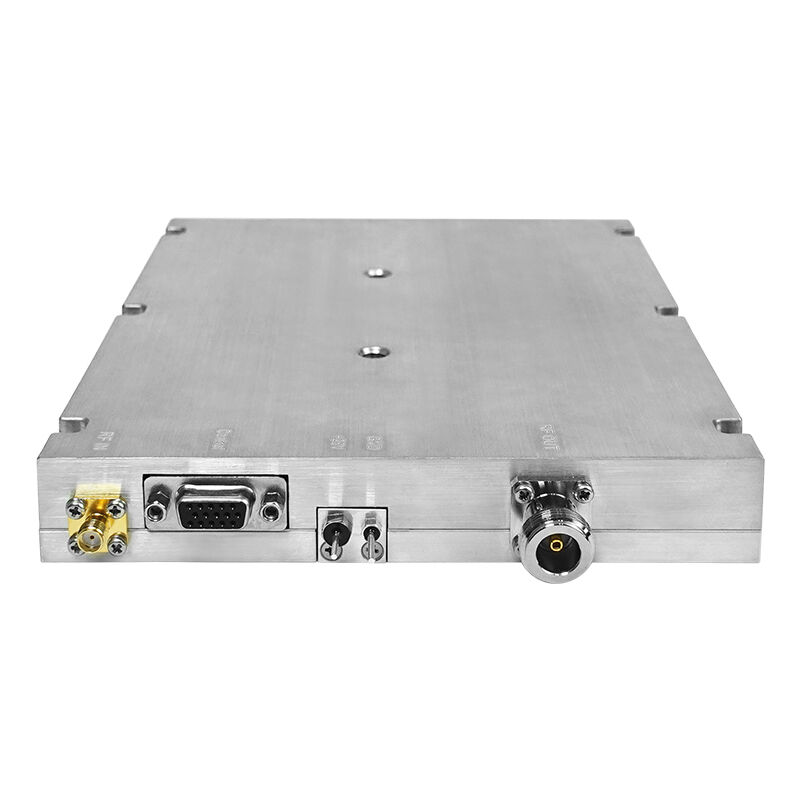

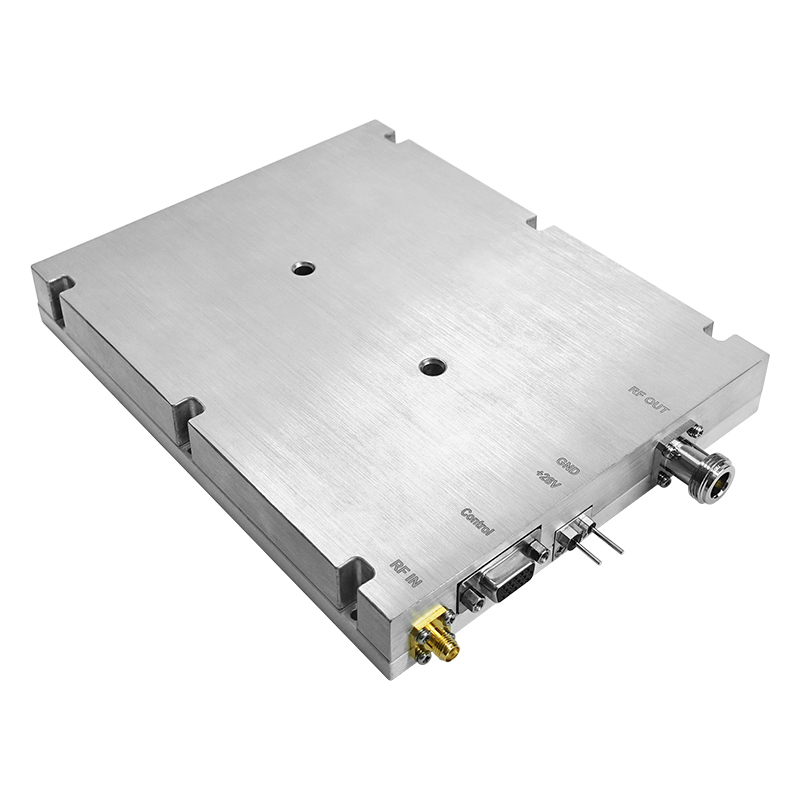

4.Factory Dispaly

300MHz-2700MHz RF Broadband Power Amplifier Module,10W 50W 100W Linear Power Amp for Communication, Testing & Jamming Systems 1

300MHz-2700MHz RF Broadband Power Amplifier Module,10W 50W 100W Linear Power Amp for Communication, Testing & Jamming Systems 3
