| Product Name: | OMNI Drone Signal Jammer | Type: | 4 Channel Drone Signal Jammer |
|---|---|---|---|
| Rang: | 800-1500 Meter | Size: | 670*185*126mm |
| Weight: | 5.15kg(including Antenna) | Application: | Privacy Protection, Prisons, Schools |
| Color: | Black | Warranty: | 1 Year |
| Highlight: | Radius 10m Car GPS signal jammer,Resin OutShell GPS signal jammer,waterproof GPS signal jammer |
||
Factory supplier 1km 4 Channel Long Distance Drone Signal Jammer key area protect
1. Product Introduction
This effective drone jammer can force the drone return home or land ina long range about 1000 meter by interfering the remote control signal between the drone and ground.
2. Specification
| Model No. | TX-FK01 |

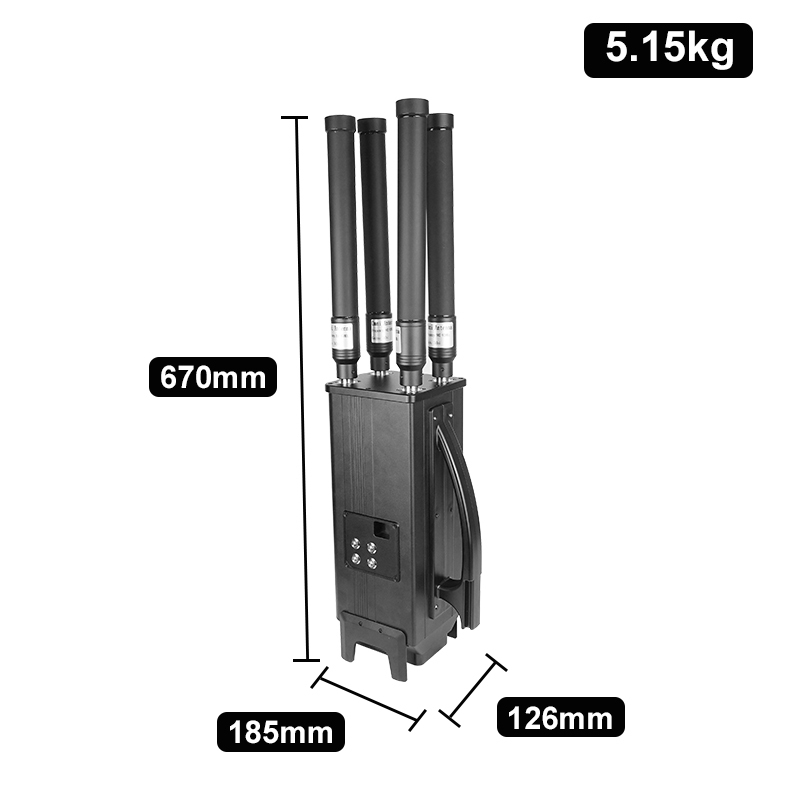

| Size | 670*185*126mm |
| Weight | 5.15kg(including antenna) |
| Effective Range | 800-1500 meter,depends on real environment |
| Frequency and power | 830-930 MHz ( 900MHz) 40W |
| 1560-1620 MHz (1.5 GHz) 40W | |
| 2400-2500 MHz (2.4 GHz) 40W | |
| 5725-5850 MHz ( 5.8 GHz) 40W | |
| Total 160W or customize | |
| Output Power | Total 160 Watt |
| Battery Use Time | 40-50 minute |
| Working temperature | -40ºC to +65ºC |
| Power Supply | 24V 10A inside lithium-ion battery |
| (It can be designed to connect the external battery) | |
| Relative Humidity | 35~85% |
3. How to Use
1. Please check the LCD screen to ensure the jammer is fully charged
2. Choose the frequency band to jam, and press the button
3. Target the jammer at the flying drone in sky
4. Drone will be forced to return home or land immediately
* Pressing the choosen buttons as below sheet to act its jamming function
4. Multi Application
* Personal security protection and privacy protection, various vehicles
*Excursions, cars, trucks, transporters, offices, meeting rooms, places of worship
* Public transportation, concert halls, restaurants, educational institutions, prisons, etc.
* Military, VIP protection
![]()
![]()
