| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | TX |
| Certification: | ISO9001,SGS,CE |
| Model Number: | TX-JZ01 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiated |
| Packaging Details: | Durable case or box |
| Delivery Time: | 1-3 days |
| Payment Terms: | L/C, D/A, D/P, T/T, |
| Supply Ability: | 10000pcs per month |
| Product Name: | Drone Signal Jammer | Type: | Drone Signal Jammer |
|---|---|---|---|
| Rang: | Radius 500-80m | Size: | 500*450*230 Mm |
| Weight: | 35kg | Application: | Privacy Protection, Prisons, Schools |
| Color: | Black | Warranty: | 1 Year |
| High Light: | Stationary Anti UAV Equipment,anti uav equipment 220W,IP65 Waterproof Drone Signal Jammer |
||
Stationary Anti-UAV Equipment
1. Product Introduction
Drones bring us a lot of fun, but at the same time they destroy our daily life and invade our privacy. In order to protect your area from interference, it is recommended to use a drone jammer, TX-JZ01 can shield drones of wireless frequencies, custom frequencies are also welcome. This stationary anti-drone device can block signals within a radius of 500-1000 meters, depending on the specific environment, with an output power of 220W
2. Specification
|
Brand |
TeXin |
|
Model |
TX-JZ01 |
|
Type |
Anti Drone Counter UAV CUAS System |
|
Working Band |
Band1: Wi-Fi 2.4GHz : 2400-2500 MHz |
|
Band2: Wi-Fi 5.8GHz : 5725-5850 MHz |
|
|
Customized Channel Option |
WiFi 2.4G , 5.8G, GPS, 433MHz, 900MHz, 868MHz, etc |
|
Jamming Range |
1km-3km radius, depends on real environment |
|
Single Channel on/off |
Controllable button |
|
Remote Control Connection |
RJ45 or RJ485 |
|
Working Time |
24 hour 7 day continuously |
|
Water&Dust Proof Level |
IP65 level |
|
Out shell Material |
Aluminum Alloy |
|
Product Size |
500*450*230mm |
|
Product Weight |
35kg |
|
Output Power |
180 W |
|
Power consumption |
430 W |
|
Power supply |
AC Adapter 110-240V |
|
Working temperature |
-20 ° ~ +85 ° |
|
Relative humidity |
35～85% |
|

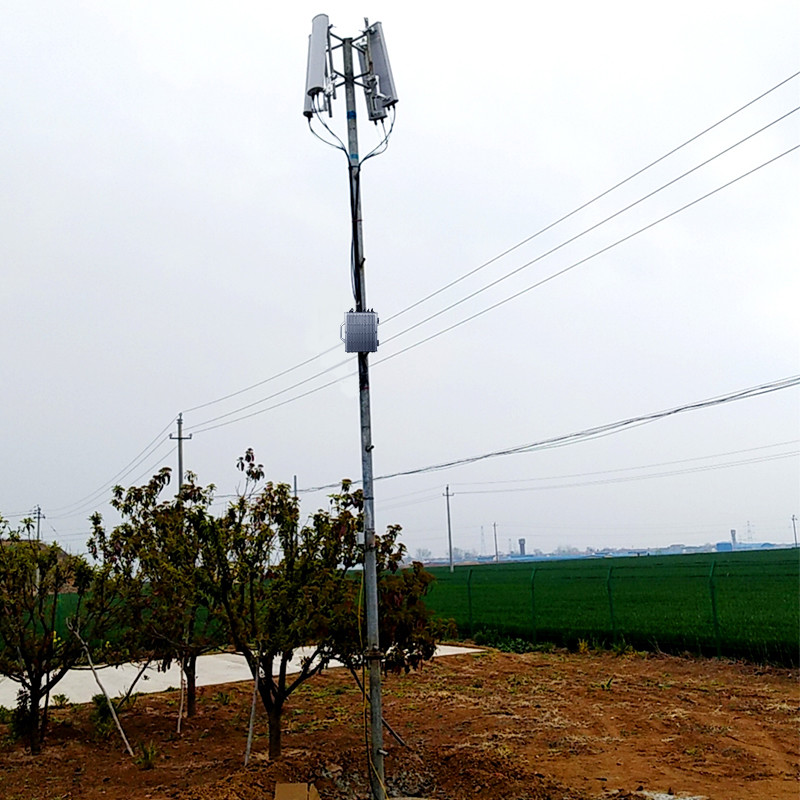

Installation |
Wall Mount or Pole Holding |
|
Suggest Installation Height |
3-15m |
3. Product Feature
*Large output power, total power up to 220W
*Large shielding range, can shield signals within a radius of 500-1000 meters
*Individual switch control for each channel
*Aluminum alloy cabinet, waterproof, dustproof and shockproof, durable
*High gain directional antenna 15dbi
*Built-in superheating fins for fast heat dissipation
4. Product Application
This stationary drone signal jammer
* Government: Prisons, Military, Police, Border Control, Government Buildings, Detention Centers, Drug Rehab Centers, Other Law Enforcement
*Critical infrastructure: chemical industry, oil depots, refineries, gas stations, power plants, nuclear power plants, water control centers, reservoirs
* Large-scale events: stadiums and events, important conferences, entertainment performances
*Museums, campuses, theaters, churches, hospitals
* Research centers, security services, testing facilities
