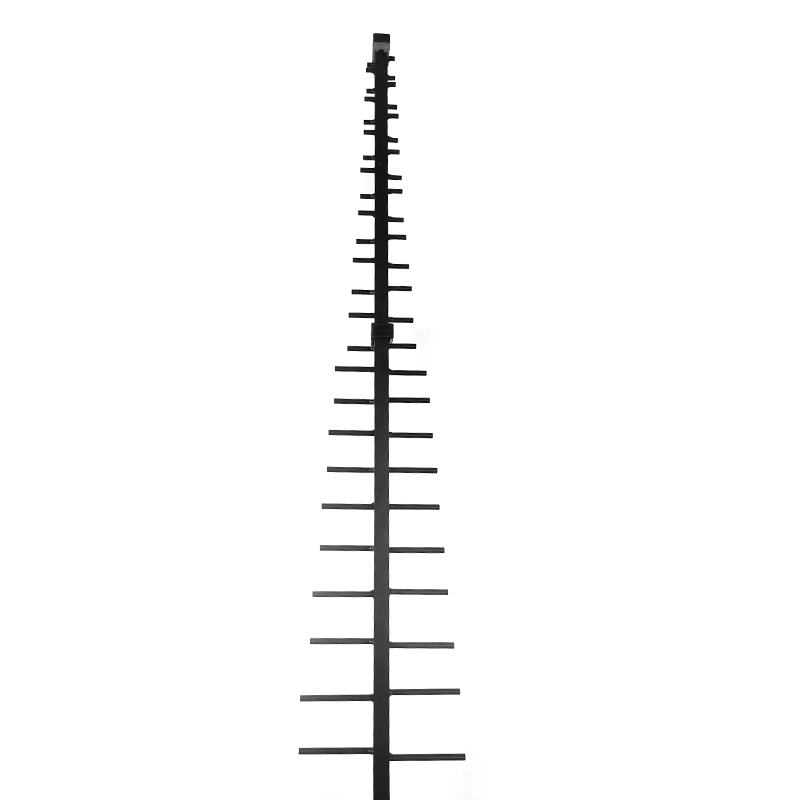

OEM high gain 14dbi 1.2GHz 720-1020MHz for outdoor drone blocker VUF Yagi antennas
This directional Yagi antenna is primarily used for intercepting illegal drones outdoors. It concentrates the signal radiation in one direction, achieving a gain of 14 dBi, effectively enhancing the antenna's radiation range. It is particularly suitable for long-range, high-precision interception against strong interference. Made of high-performance aluminum alloy, it can withstand high and low temperatures, wind, rain, and dust. It can be used and installed in schools, prisons, oil depots, and government facilities.
Texin has its own R&D team and supports customized services, covering both high and low frequency frequencies.
2,Product Specification
| █Electrical Specifications |
| Frequency Range |
720-1020MHz |
| Gain(dBi) |
14±0.5dBi |
| VSWR |
≤2 |
| Polarization |
Vertical |
|

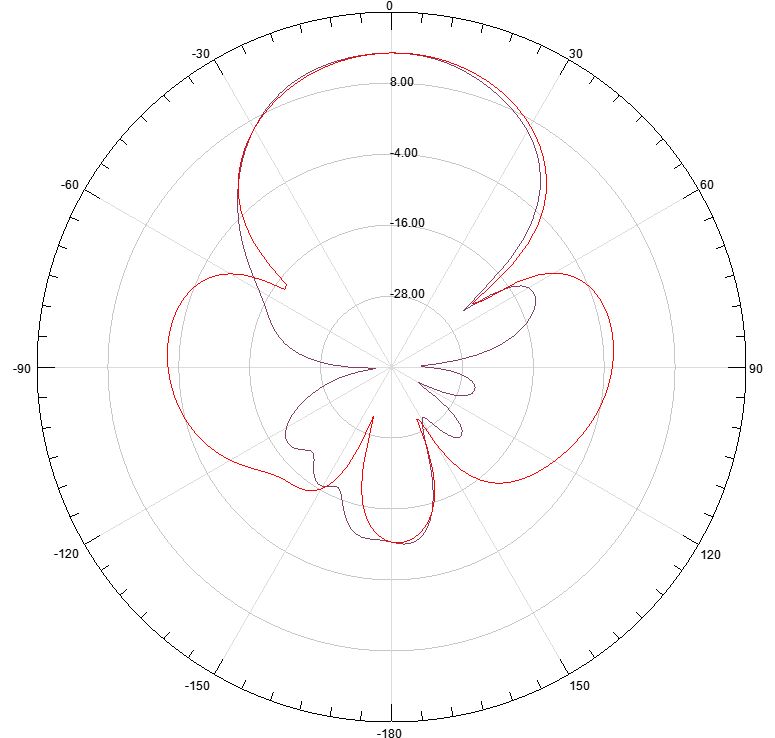

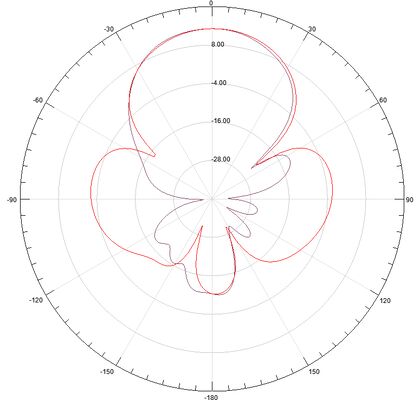

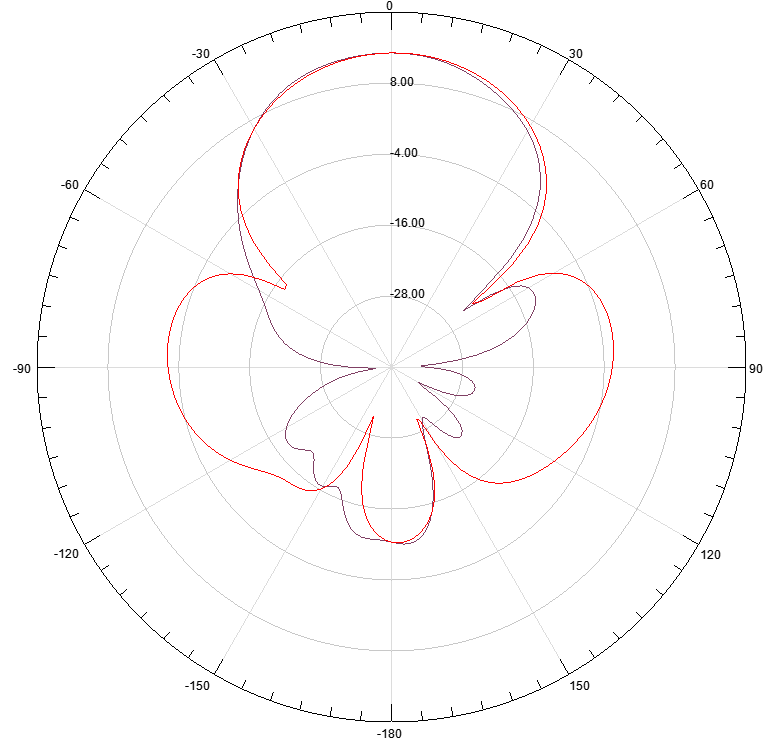

Horizontal Beamwidth(0º)
Vertical Beamwidth(0º)
|
360º
55±5º
|
| ovality(dB) |
≤±2dB |
| Input Impedance(Ω) |
50Ω |
| Maximum input power(W) |
100W |
| █Mechanical Specifications |
|
| Dimensionsmm(Height/Width/Depth) |
1310*370mm |
| Antenna weight(kg) |
1.309KG |
| Rated Wind Velocity(m/s) |
31m/s |
| Operational Humidity(％) |
10- 95 |
| Radome Color |
Black |
| Radome material |
Aluminum |
| Operating temperature(ºC) |
-40～55 º |
3, Feature
* Directed radiation for precise interference with target objects
* 100W high power output with strong signal efficiency
* High gain 14dbi long distance signal trasnsmit
* The antenna can customized frequency to match diferent requirement
* Stable structure, low loss, and long service life
* Durable, rugged housing that is water and pressure resistant;
* Narrow-beam directional radiation can effectively counter electromagnetic interference.
* Flexible installation; can be installed on rooftops, walls, and open spaces.
4, Application
Outdoor drone blocking system ,the frequency 720-1020mhz can cover the conventional frequency band of drone
Airports, military restricted areas, government office compounds, key research institutions, large-scale events, concerts, celebrations, international conferences and other densely populated places; fire and earthquake rescue sites; epidemic prevention and control isolation areas.

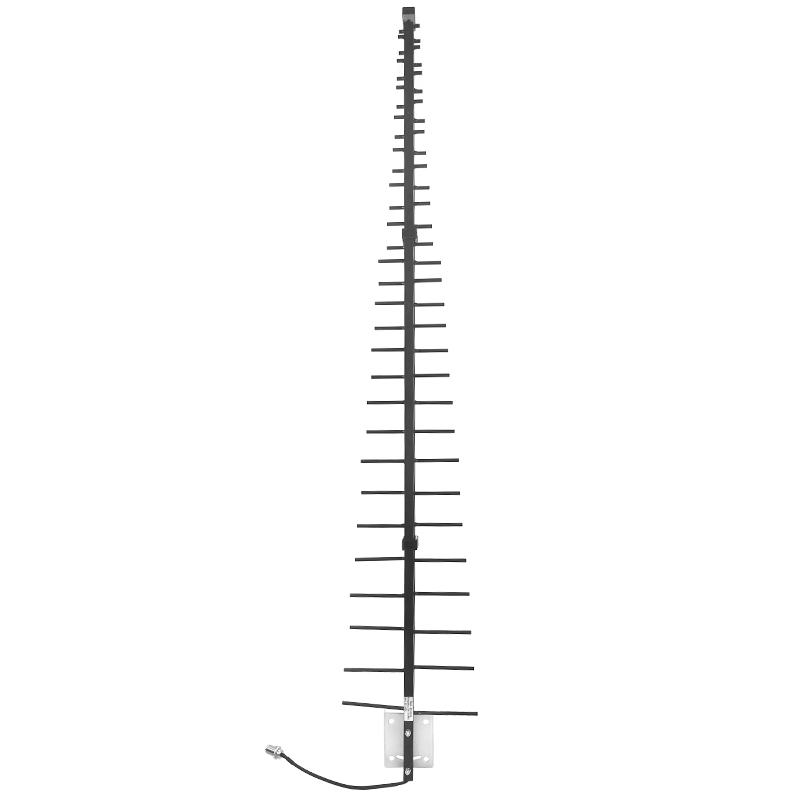

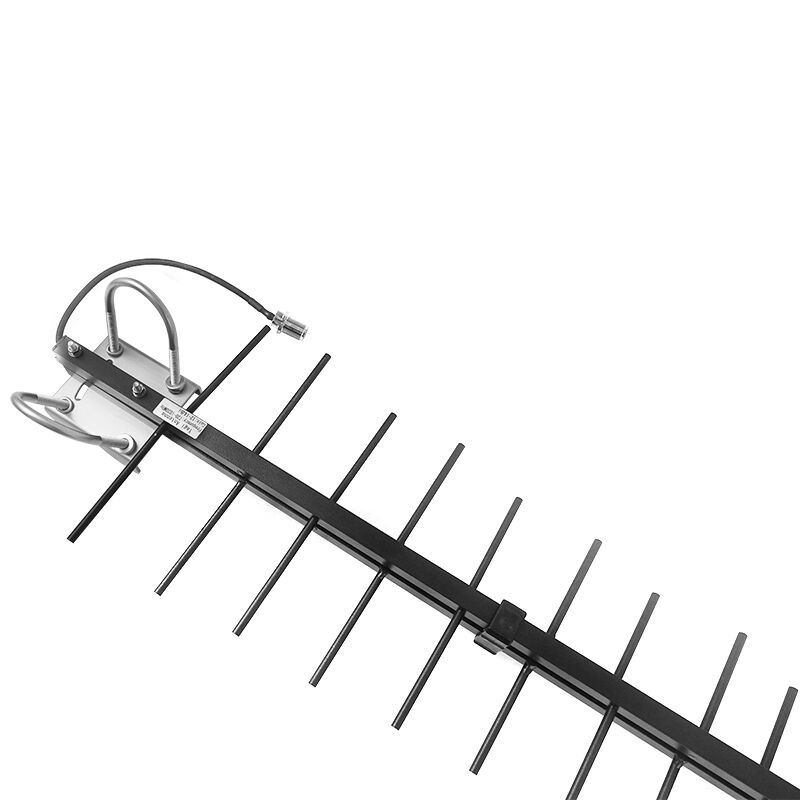

5,More Photo
