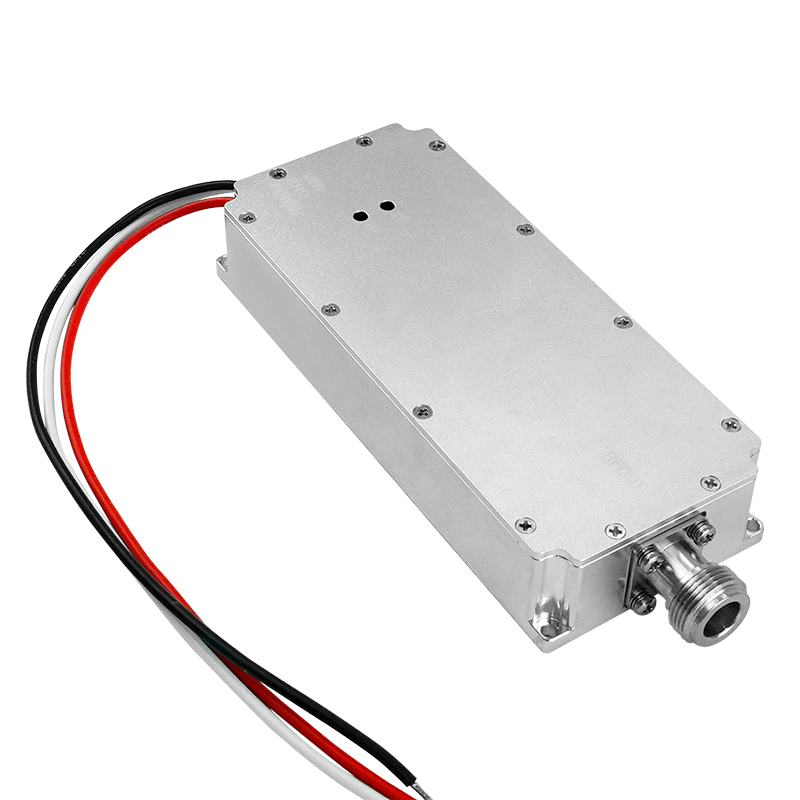

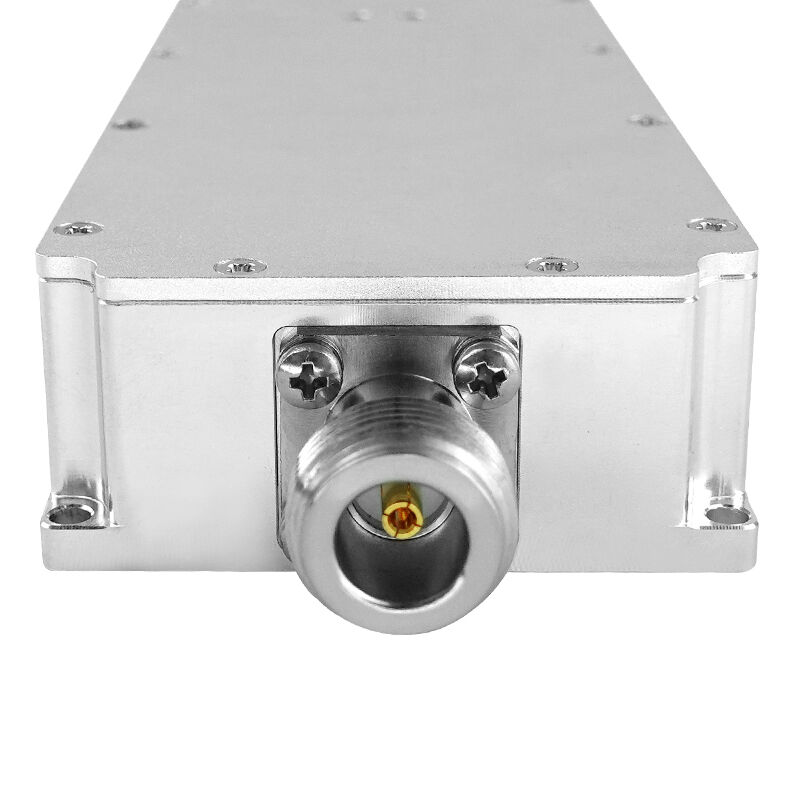

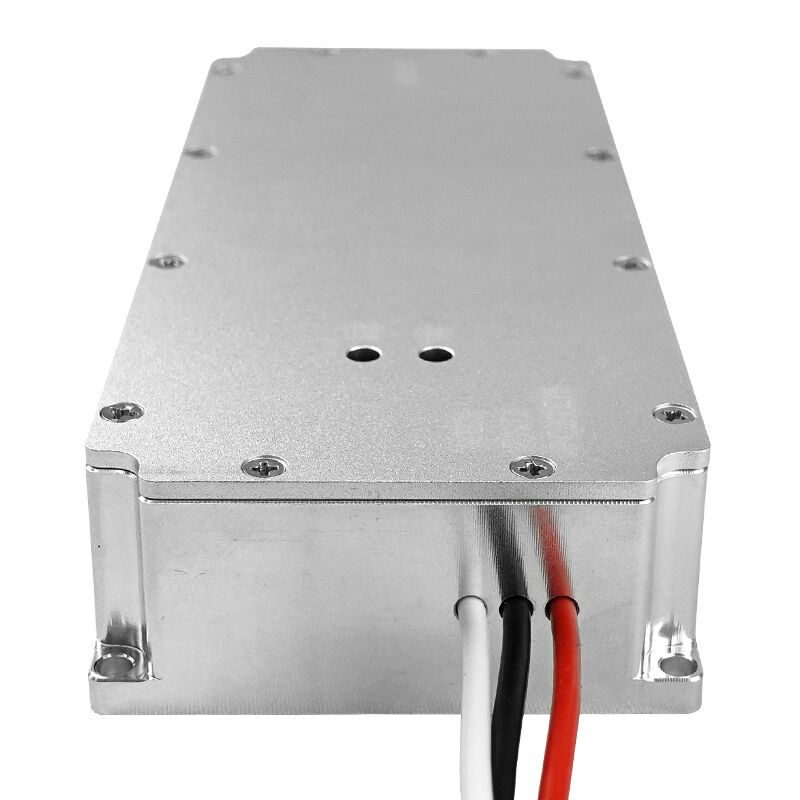

High Performance 100-7500MHz 100W GaN RF Jamming Drone Signal Jammer Module

100-7500MHz 100W GaN Jammer Module

This is a professional wireless information security module for 100-7500MHz band, adopting GaN material solution with 100W (50dBm) high output power.

It features excellent in-band performance, multiple protection mechanisms and compact design, and is the core component for various RF jamming devices.

Regular type with signal source,if you want without signal source type also can offer(input signal 0-10dBm)

Core Advantages

1. GaN core design: 100W high average output power, 50dB high gain, ±1dB in-band flatness, minimal upper and lower sideband offset
2. Dual versions available: Standard version with built-in signal source; customized version without signal source (supports 0-10dBm external input)

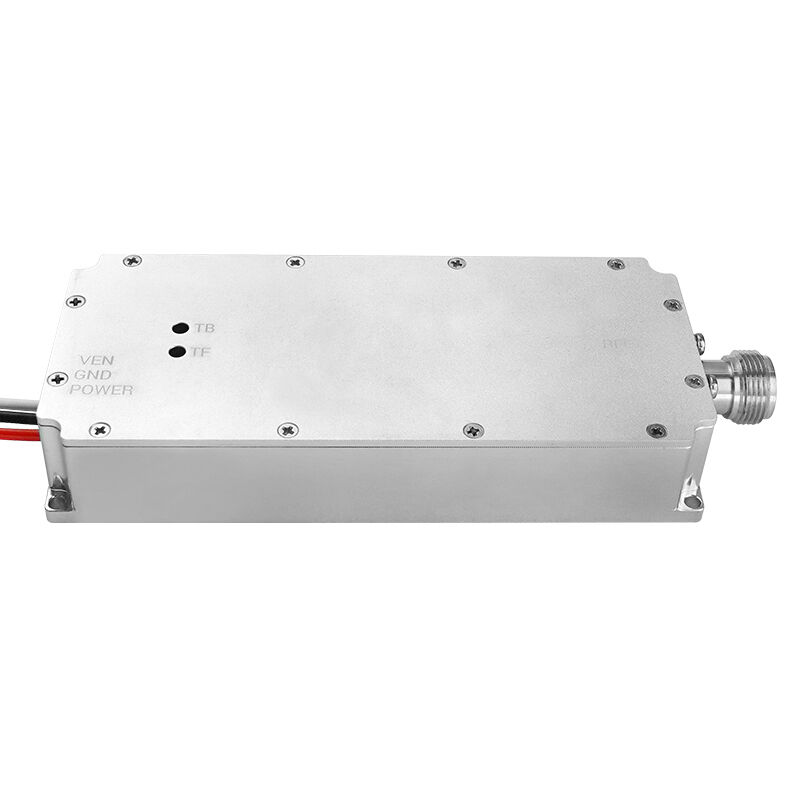

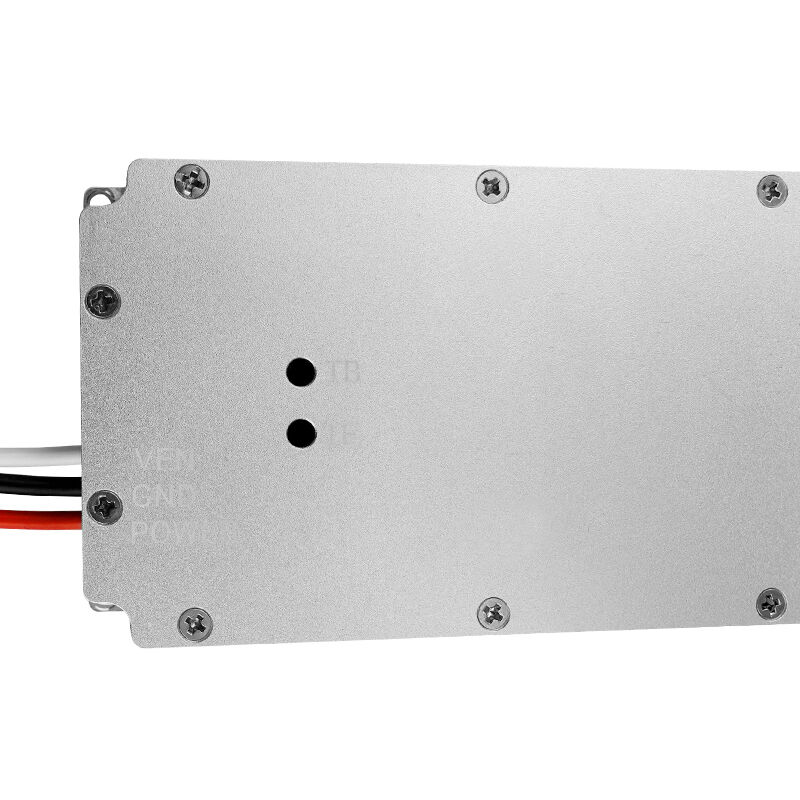

3. Robust structure: High-performance aluminum alloy housing + ceramic sealed tube, with reserved adjustment holes for on-site fine-tuning
4. Multiple protections: Built-in VSWR and over-temperature protection (75℃ trigger), VSWR ≤1.5, ensuring stable and safe operation
5. Compact & lightweight: 1555524mm in size, 0.45Kg in weight, easy for integration into various devices

Features

Application field:

• Drone jammer (countering 400-600MHz drone control/ image transmission signals)
• WiFi jammer (shielding WiFi signals in the band)
• Other wireless signal jamming equipment for 400-600MHz band

Precautions for use

• Heat dissipation: Strengthen heat dissipation (heatsink/fan) when output power ≥5W to prevent over-temperature
• Connection sequence: Antenna first → front-end signal source → power supply (reverse for power off)
• Load matching: Connect 50Ω standard RF load/antenna to avoid VSWR abnormality
• Fine-tuning: Adjust reserved holes only under professional guidance to ensure performance stability
